Super Circuits PC335GDVR Manuel utilisateur

Hi-Resolution Color DVR

Box Camera User Manual

Products: PC335GDVR

Camera With Optional Lens

Please read this manual before installing and using this camera and always follow instructions for proper use.

Save this manual away for future reference.

PC335GDVR_CM

ii www.supercircuits.com

LEGAL NOTICE

Supercircuits products are designed to meet safety and performance

standards with the use of specic Supercircuits authorized accessories.

Supercircuits disclaims liability associated with the use of non-Supercircuits

authorized accessories.

The recording, transmission, or broadcast of any person’s voice without their

consent or a court order is strictly prohibited by law.

Supercircuits makes no representations concerning the legality of certain

product applications such as the making, transmission, or recording of video

and/or audio signals of others without their knowledge and/or consent. We

encourage you to check and comply with all applicable local, state, and federal

laws and regulations before engaging in any form of surveillance or any

transmission of radio frequencies.

Other trademarks and trade names may be used in this document to refer

to either the entities claiming the marks and names or their products.

Supercircuits, Inc. disclaims any proprietary interest in trademarks and trade

names other than its own.

No part of this document may be reproduced or distributed in any form or by

any means without the express written permission of Supercircuits, Inc.

11000 N. Mopac Expressway, Building 300, Austin, TX 78759

Sales/Support: 1.800.335.9777 | Fax: 1.866.936.7257

iii

Hi-Resolution Color DVR Box Camera User Manual

PRECAUTIONS

Precautions

• Do not install the camera in temperature condition or humidity that is

outside the specied operating range.

• Do not install the camera under unstable lighting.

• Do not touch the CCD element. If it is necessary to clean the element, use

a soft cloth moistened with alcohol to remove any dust build up.

• Do not drop the camera; protect it from physical shocks.

• Do not use the camera close to an gas or oil leak.

• Do not disassemble the camera.

• Never point the camera directly at intense light.

• Do not expose the camera to rain or spill beverage on it.

iv www.supercircuits.com

TABLE OF CONTENTS

Table of Contents

SECTION1 Features................................................. 1

1.1 Systemoptions...........................................4

SECTION2 Installation .............................................. 6

2.1 What’sinthebox.........................................6

2.2 Whatyouneed...........................................6

2.3 Installingthecamera .....................................6

2.4 AimingtheCamera.......................................9

SECTION3 SETUPMenu(OSD)Usage ................................. 10

3.1 SETUPmenuoptions.................................... 11

SECTION4 DVRUsage.............................................. 20

4.1 Initial DVR setup for recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

4.2 Playingbackrecordedvideo.............................. 25

SECTION5 Cleaning................................................ 27

SECTION6 Specications ........................................... 28

APPENDIXATroubleshooting......................................... 30

APPENDIXBDimensions ............................................. 32

Hi-Resolution Color DVR Box Camera User Manual

SECTION 1: FEATURES

SECTION1 Features

• High resolution 1/3” Sony® CCD image sensor

• C/CS lens mount (lens not included)

• Digital Noise Reduction (DNR)

• Wide Dynamic Range (WDR)

• Motion detection

• Auto white balance

• True Day & Night function

• Manual/DC drive lens support

• On screen Display (OSD) control

Mounting Bracket Connector

(top and bottom sides)

Auto-iris Lens Jack

C/CS Mount Lens

Optional Manual Lens

2www.supercircuits.com

SECTION 1: FEATURES

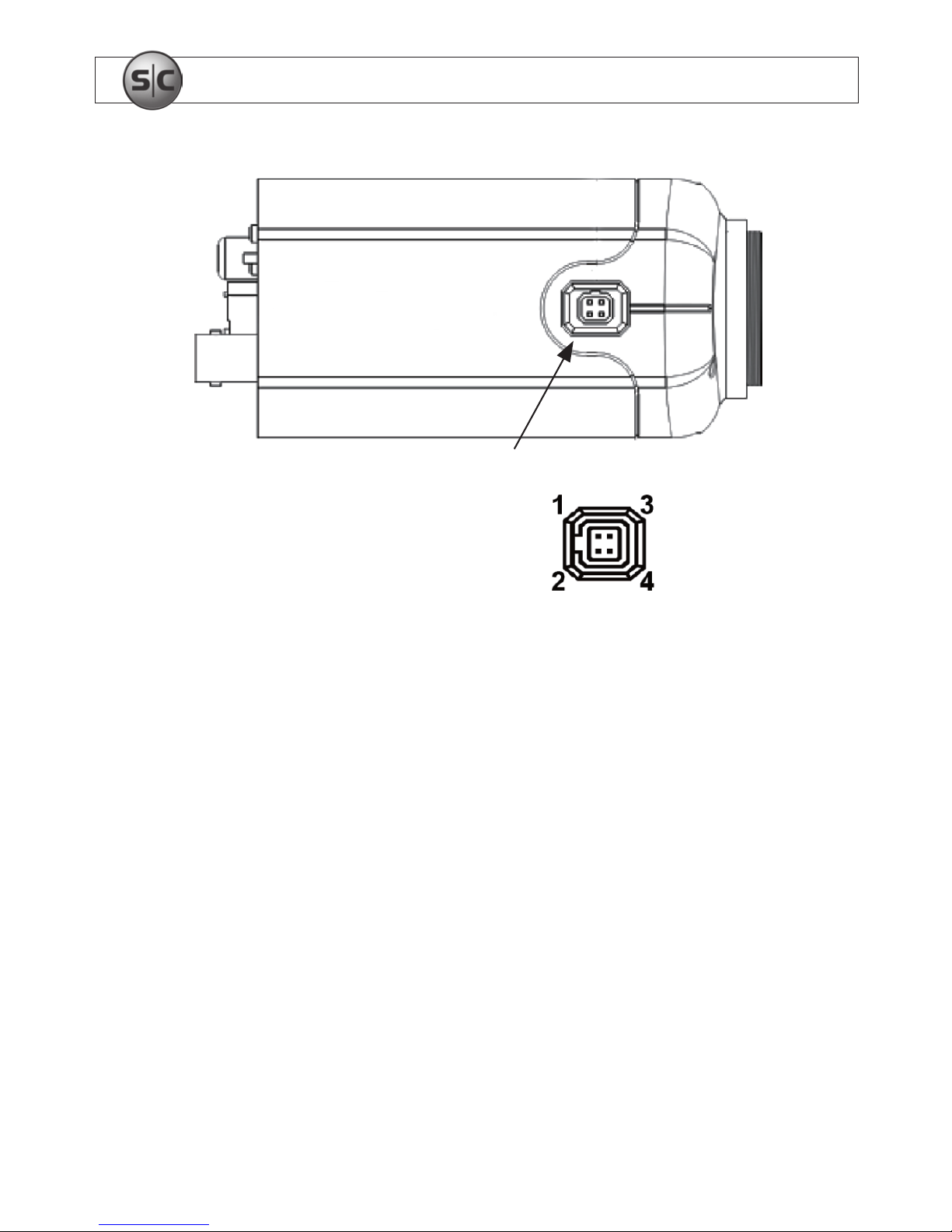

Auto-Iris Jack

Auto-IrisJackPin

Assignments

Pin DCDriver

1 - Control

2 + Control

3 - Drive

4 + Drive

Hi-Resolution Color DVR Box Camera User Manual

SECTION 1: FEATURES

Back View

1 Audio

2 Function setup joystick

3 UTP Gain

4 12 VDC

5 Video

6 RS485 and UTP terminations

7 SD Card

* The camera will accept SD, MMC, and SDHC memory cards up to 32GB.

4www.supercircuits.com

SECTION 1: FEATURES

Remote Control

Delete Press to delete the le in the recordings list.

ESC / MODE Press to return to the previous menu and

quick playback.

Left / REW Press to move left in the mask area and 4

levels of fast backward playback.

Right / FF Press to move right in the mask area and

4 levels of fast forward playback.

Play / Pause Press to play or pause playback.

UP and DOWN Press to select an item and to increase or

decrease the volume during the playback.

ENTER / REC Press to conrm and start recording.

MENU / Pre Press to enter and exit a menu.

STOP Press to stop recording.

Install the Remote Control battery before use.

1.1 System options

The camera can connect directly to a CCTV monitor or to a DVR.

Hi-Resolution Color DVR Box Camera User Manual

SECTION 1: FEATURES

Connect

Multiple camera system with DVR and monitor

6www.supercircuits.com

SECTION 2: INSTALLATION

SECTION2 Installation

2.1 What’s in the box

The camera package contains:

• Camera assembly

• Hex wrench

• Remote control

• Instruction manual

2.2 What you need

To install the camera, you will need:

• C/CS type lens

• Mounting bracket, such as a Supercircuits SKU MB14

• Hardware and tools to attach the mounting bracket to the mounting surface

• Video, audio, and power extension cable

• 12 VDC power adapter

2.3 Installing the camera

This procedure steps through the installation of a C/CS mount box camera using the

Supercircuits MB14 mounting bracket (sold separately). If you are using a dierent

mounting bracket, this procedure can serve as a general guideline for installing your

equipment.
