Color CCD Box Camera User Manual

PRECAUTIONS

Precautions

• Do not install the camera in temperature condition or humidity that is

outside the specied operating range.

• Do not install the camera under unstable lighting.

• Do not touch the CCD element. If it is necessary to clean the element, use

a soft cloth moistened with alcohol to remove any dust build up.

• Do not drop the camera; protect it from physical shocks.

• Do not use the camera close to an gas or oil leak.

• Do not disassemble the camera.

• Never point the camera directly at intense light.

• Do not expose the camera to rain or spill beverage on it.

iv www.supercircuits.com

TABLE OF CONTENTS

Table of Contents

SECTION1 Features................................................. 1

1.1 Cameracomponents......................................2

1.2 Systemoptions...........................................4

SECTION2 Installation .............................................. 5

2.1 What’sinthebox.........................................5

2.2 Whatyouneed...........................................5

2.3 Installingthecamera .....................................5

2.4 AimingtheCamera.......................................8

SECTION3 SETUPMenu(OSD)Usage .................................. 9

3.1 SETUPmenuoptions.................................... 10

SECTION4 Cleaning................................................ 19

SECTION5 Specications ........................................... 20

APPENDIXATroubleshooting......................................... 22

APPENDIXBDimensions ............................................. 24

Color CCD Box Camera User Manual

SECTION 1: FEATURES

SECTION1 Features

• 1/4” Sharp® CCD image sensor

• C/CS lens mounting (lens not included)

• Digital Noise Reduction (DNR)

• Digital Wide Dynamic Range (D-WDR)

• Motion detection (4 zones)

• Auto white balance

• Manual/DC drive lens support

• On screen Display (OSD) control

Mounting Bracket Connector

(top and bottom sides)

Auto-iris Lens Jack

C/CS Mount Lens

Optional Manual Lens

2www.supercircuits.com

SECTION 1: FEATURES

1.1 Camera components

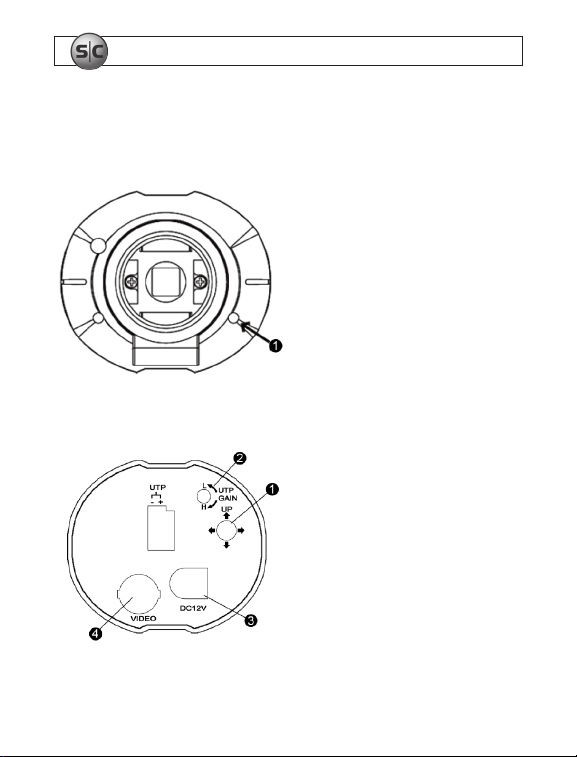

Front View

1 Indicator LED

Back View

1 Function setup joystick

2 UTP Gain

3 Power (12 VDC)

4 Video

Color CCD Box Camera User Manual

SECTION 1: FEATURES

Side View

Auto-Iris Jack

Auto-IrisJackPin

Assignments

Pin DCDriver

1 - Control

2 + Control

3 - Drive

4 + Drive

4www.supercircuits.com

SECTION 1: FEATURES

1.2 System options

The camera can be connected to a CCTV monitor or to a DVR.

Connect

Multiple camera system with DVR and monitor

Color CCD Box Camera User Manual

SECTION 2: INSTALLATION

SECTION2 Installation

2.1 What’s in the box

The camera package contains:

• Camera assembly

• Instruction manual

• Hex wrench

2.2 What you need

To install the camera, you will need:

• C/CS type lens (for PC243C5G)

• Mounting bracket, such as a Supercircuits SKU MB14

• Hardware and tools to attach the mounting bracket to the mounting surface

• Video and power extension cables

• 12 VDC power adapter

2.3 Installing the camera

This procedure steps through the installation of a C/CS mount box camera using the

Supercircuits MB14 mounting bracket (sold separately). If you are using a dierent

6www.supercircuits.com

SECTION 2: INSTALLATION

mounting bracket, this procedure can serve as a general guideline for installing your

equipment.

1. Using the bracket mounting plate as a template, mark the location of the mounting

screw holes on the mounting surface.

Camera attachment

screw

Mounting screw

locations

Directional

adjustment screw

Use the mounting bracket to mark holes for mounting screws

2. Drill mounting screw holes into the mounting surface.

3. Attach the bracket to the mounting surface.

4. Attach a lens assembly to the camera, if needed. Use the instructions provided with

the lens.

5. If you installed an auto-iris lens on the camera, plug the lens cable into the AUTO

IRIS connector on the side of the camera.
