Sunveytech SWD-MY101V607 Manuel

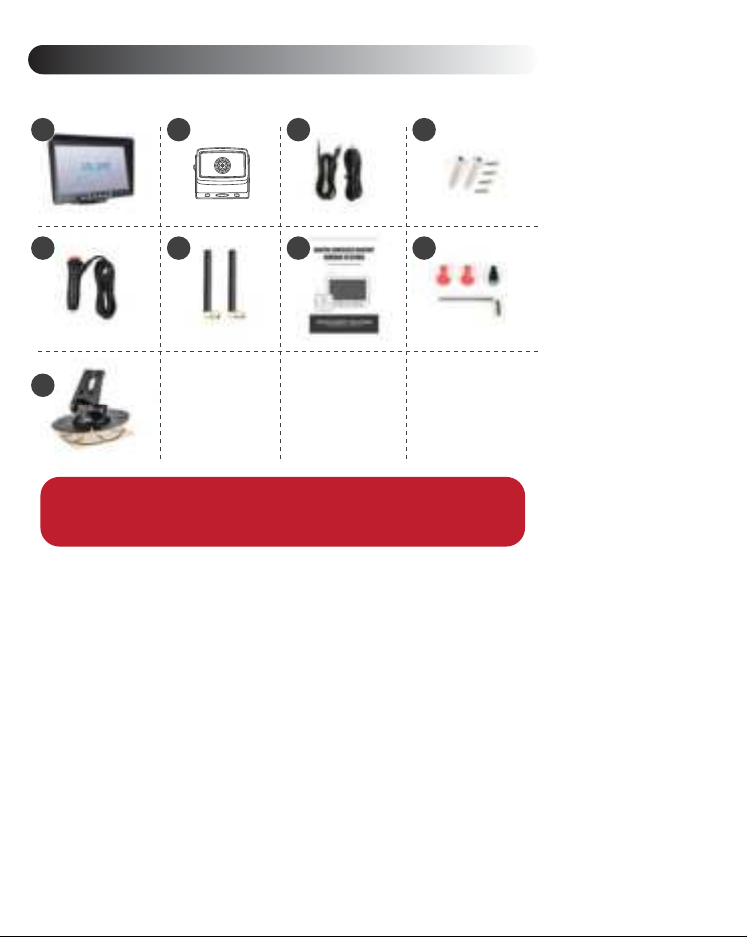

What’s in the Box?
NOTE: The contents included may be different based on the kit
you purchased. Please take the actual product as standard.
02 03 04
05
09
06 07 08
01
01. 10.1’’ monitor
02. HD camera
03. Power Cable
04. Screw
05. Car charger
06. Antenna
07. Manual
08. Accessories
09.Bracket
Thank you very much for purchasing a Rear View Backup Camera
System. With this manual you will be able to properly install and
operate the unit.
The Backup Camera System is intended to be installed as a
supplement aid to your standard rear view mirror that already exists
in your vehicle. The Backup Camera System should not be used as
a substitute for the standard rear view mirror or for any other mirror
that exists in your vehicle. In some jurisdictions, it is unlawful for a
person to drive a motor vehicle equipped with a TV viewer or
screen located forward of the back of the driver’s seat or in any
location that is visible, directly or indirectly, to the driver while
operating the vehicle.
Introduction
Please read all of the installation instructions carefully
before installing the product. Improper installation will
void manufacturer’s warranty.
Monitor Operation
Button
1)Enter 2)After inserting the card, start/pause recording
3)Long press to bring up the car ruler mode "V/H/M"
Switch screen
1) Brightness "-" 2) Enter the menu and select left 3)-
4) Press and hold for 8 seconds to flip the menu
1)Menu 2) Cancel button 3) Long press to zoom X1 X1.5X2 X3
1) Brightness "+" 2) Enter the menu and select right 3)+Power switch
onitor O
p
eration
4&-77108&3.ˋFunction
On the back of the monitor, you can insert an TF card
It is recommended to use high-speed TF card of class
10 or above.(Less than 128G)
Plug in the card to start recording(“SEL” to turn on/off
recording)
Recording: REC
Video playback:Close recording -”Menu” to find Play
Camera Installation
Suitable Installation Position
Installation Diagram
Monitor Installation
Choose a monitor location in your vehicle that does not block your view
and complies with local laws for safe driving. Do not place in an area
where it might interfere with driving. 4&-77108&3.@
Note: Of connecting power directly to battery, the cameras
always ON and therefore candrain battery. Therefore it is
recommended to connect power to an ignition switched
accessory power source.
Connection method
Car charger connect to
wireless receiver in the monitor
“+”ACC/Fuse/radio “+” Taillight
“-” “-” Ground
1
2
NOTE: when you need pairing,please confirm the circuit is
properly connected and powered.If you need to pairing multiple
cameras, please switch to the corresponding channel.
Pairing the Camera and Monitor
1. Select the channel to be pairing
3. Press the "SEL" confirmation key
to check the code
4. Waiting for matching and drawing
successfully
4&-77108&3.@PAIRING START
18 4&-77108&3.@4&-77108&3.@NO SIGNAL
2. Then press "M" ,then select PAIRING
4&-77108&3.@CAM1
１１１
Power Supply
Wireless Frequency
2.4G Wireless network range
Wireless Range
Delaying Time
Operating temperature
Image Sensor
Waterproof Rating
View Angle
Camera Pixel
DC12 to 36V
2.4 GHz
2406-2478MHz
300m(open area)
<200ms
-20°C ~ 80°C
1/3 inch
IP68
105°[H] 130°[D]
1000TVL
CAMERA
LCD Size
Resolution
Contrast
Brightness
Response Time
Power Consumption
10.1 inch IPS
1024(H) x 600(V)
500:1
500cd/н
25ms
<500mA
MONITOR
Specifications
Troubleshooting
Monitor Won’t turn on
Camera and Monitor
won’t pair
Weak Signal
Night Vision is poor
Dark Picture
Check the cigarette lighter has 12-36V DC Output
Check the fuse in the Cigarette socket adapter
Check if the camera is receiving power
Make sure to follow the instructions to operate the Pairing
Check if the camera and monitor antennas are installed
Distance between camera and monitor is too great.
Reduce distance between camera and monitor
Large dense objects could be obscuring the signal.
If possible, move the objects
Interference from overhear power lines may be
affecting the signal
Try unpairing and pairing
The night sensor on the camera may be dirty or obstructed
Ensure the camera is installed at least 2 inches
away from rear lights
Check whether brightness and contrast are adjusted correctly
Problem Solution
