Deluxe Inversion Table
SF-1201
Owner’s Manual
Photo may differ from actual product
Take a few moments to familiarize yourself with the specific parts and hardware included with your
product. Make sure all the parts and hardware are included in the carton and examine them for any
damage that may have occurred in transport. Some parts may be pre-assembled and pre-installed.
•Do not use this inversion table without
approval from your physician.
•Read all instructions carefully before using.
•Leave adequate space to properly invert.
•Tighten all bolts before using equipment.
•Do not let children use the inversion table
unsupervised.
•For your safety, we suggest someone stand
by your side while you use this table.
•This equipment is designed for indoor and
home use only, NOT intended for
commercial use.
•For Customer Service, please contact :
WARNING
2
3
Exploded View

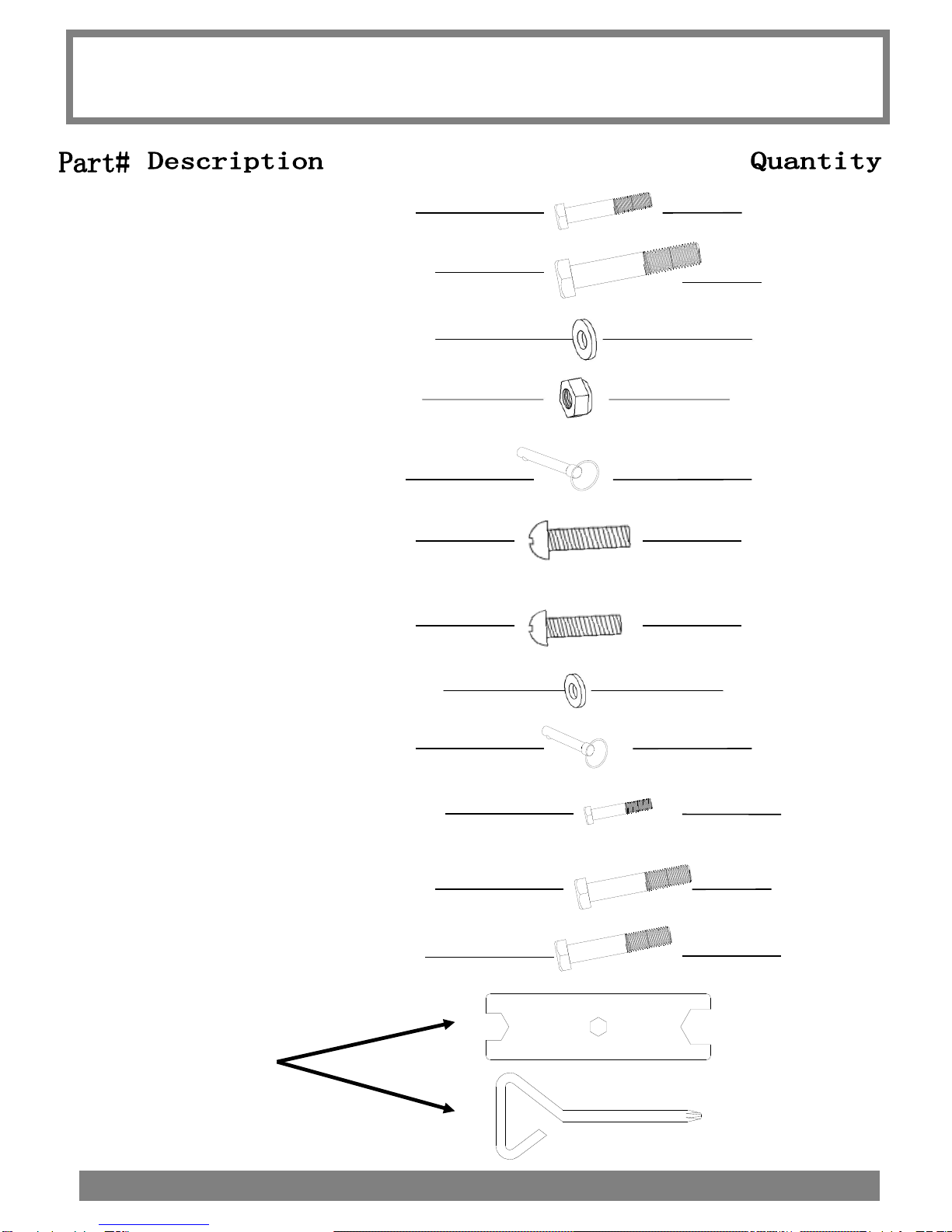

Hardware Bag Packing List
10 Hex Head Bolt M8*25 6
11 Hex Head Bolt M8*45 1
13 Washer M8 22
15 Lock Nut M8 10
24 Ball Pin- φ8*72.5 1
26a Screw 6*25 4
26b Screw 6*20 4
27 Washer M6 12
33 Ball Pin- φ8*53 1
38 Hex Head Bolt M8*21 4
40 Hex Head Bolt M8*40 1
43 Hex Head Bolt M8*38 2
4
Tools
5
Parts List
Part # Description Quantity
1 Front U-Frame 1
2 Rear U-Frame 1
3 Adjustment Boom 1
4 Bed Frame 1
5 Pivot Arm 2
6 Adjustable Instep Frame 1
7 Foam Leg Roller 4
8L Left Folding Arm 1
8R Right Folding Arm 1
9 Leg Tube 1
10 Hex Head Bolt 8*25mm 6
11 Hex Head Bolt 8*45mm 1
12 Hex Head Bolt 6*40 1
13 Washer M8 22
14 Left Foot Cap 2
15 Lock Nut M8 10
16 Lock Nut M6 5
17 Leg Tube Adjustment Knob 1
18 Height Adjustment Knob 1
19 Incline Adjustment Bolt 1
20 Rubber Pad/Stopper 1
21 Oval End Cap 2
22 Foot bar End Cap 2
23 Spring 1
24 Ball Pin φ8*72.5 1
25 Round End Cap 4
26a Screw 6*25 4
26b Screw 6*20 4
27 Washer M6 12
28 Right Foot Cap 2
29L Left Handlebar 1
29R Right Handlebar 1
30 Pad 1
31 Eva Stopper 1
32 Metal block sleeve 1
33 Ball Pin- φ8*53 1
34a Metal Bushing 1
34b Metal Bushing 1
35 Nylon Bed 1
36L Left Handlebar Foam Grip 1
36R Right Handlebar Foam Grip 1
37L Left Protective Cover 1
37R Right Protective Cover 1
38 Hex Head Bolt 8*21 4
39 Foot Bar 1
40 Hex Head Bolt 8*40 1
41 Square End Cap 1
42 Spring Latch 1
43 Hex Head Bolt 8*38 2
44 Hex Head Bolt 8*20 1
45 Cross Head Bolt M6X30 4
6
Base Frame Assembly
STEP 1

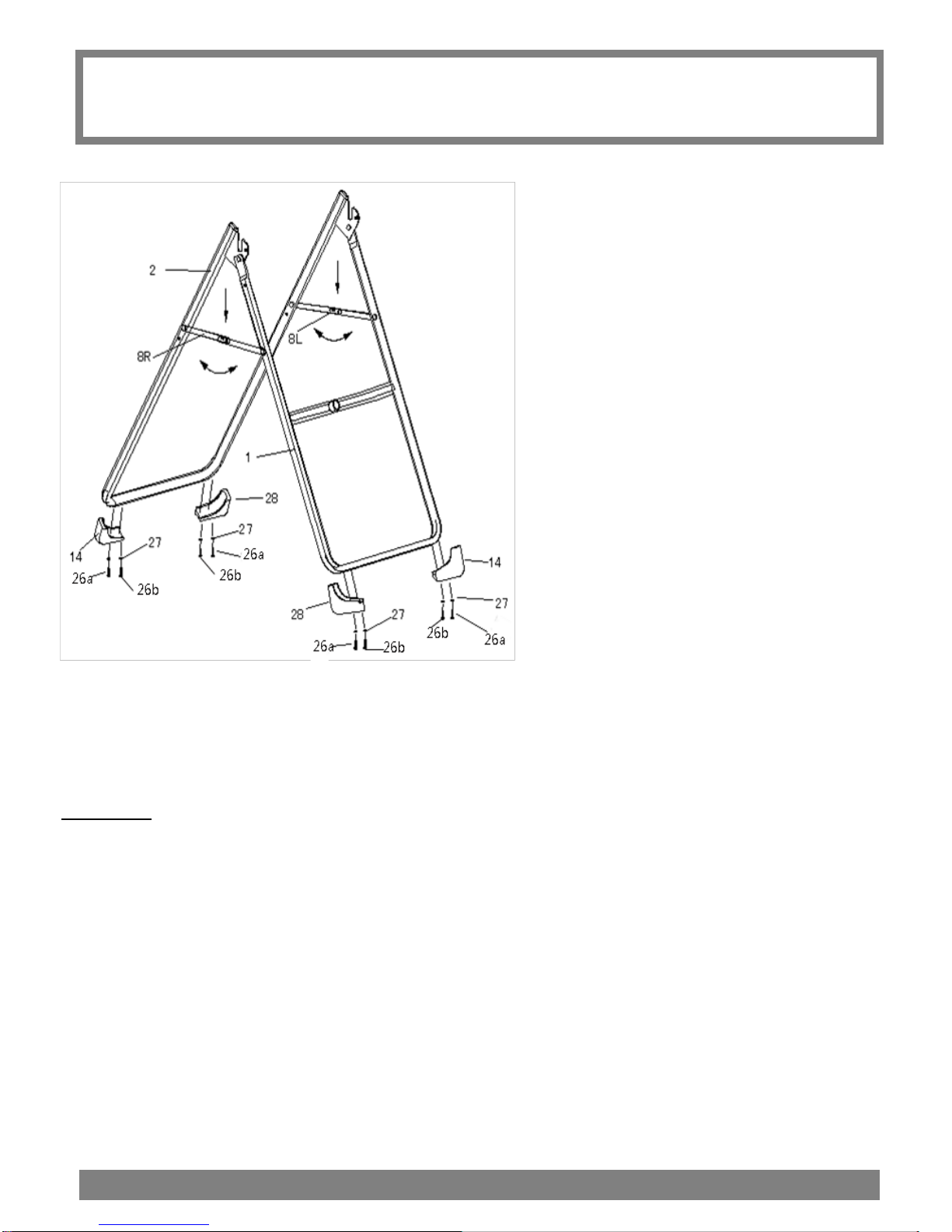

Stand up the base of the machine by separating the U-Frames. Pull
the Front and Rear U-Frames (1&2) as far apart from each other as
possible. Then push down on the middle of the 2 FoldingArms (8L&R)
until they are fully locked down. Attach the Left & Right Foot Caps
(14&28) to the Front & Rear U-Frame (1&2) each with 1 Screw (26a)
and 1 Screw (26b) and 2 Washers (27). Note: Ensure that ALL screws
and washers are in place and partially threaded in before completely
tightening any ONE screw.
27 Washer M6 8
Part # Description QTY
28 Right Foot Cap 2
14 Left Foot Cap 2
26a Screw M6*25 4
26b Screw M6*20 4
7
Handlebar Protective Cover Assembly
STEP 2

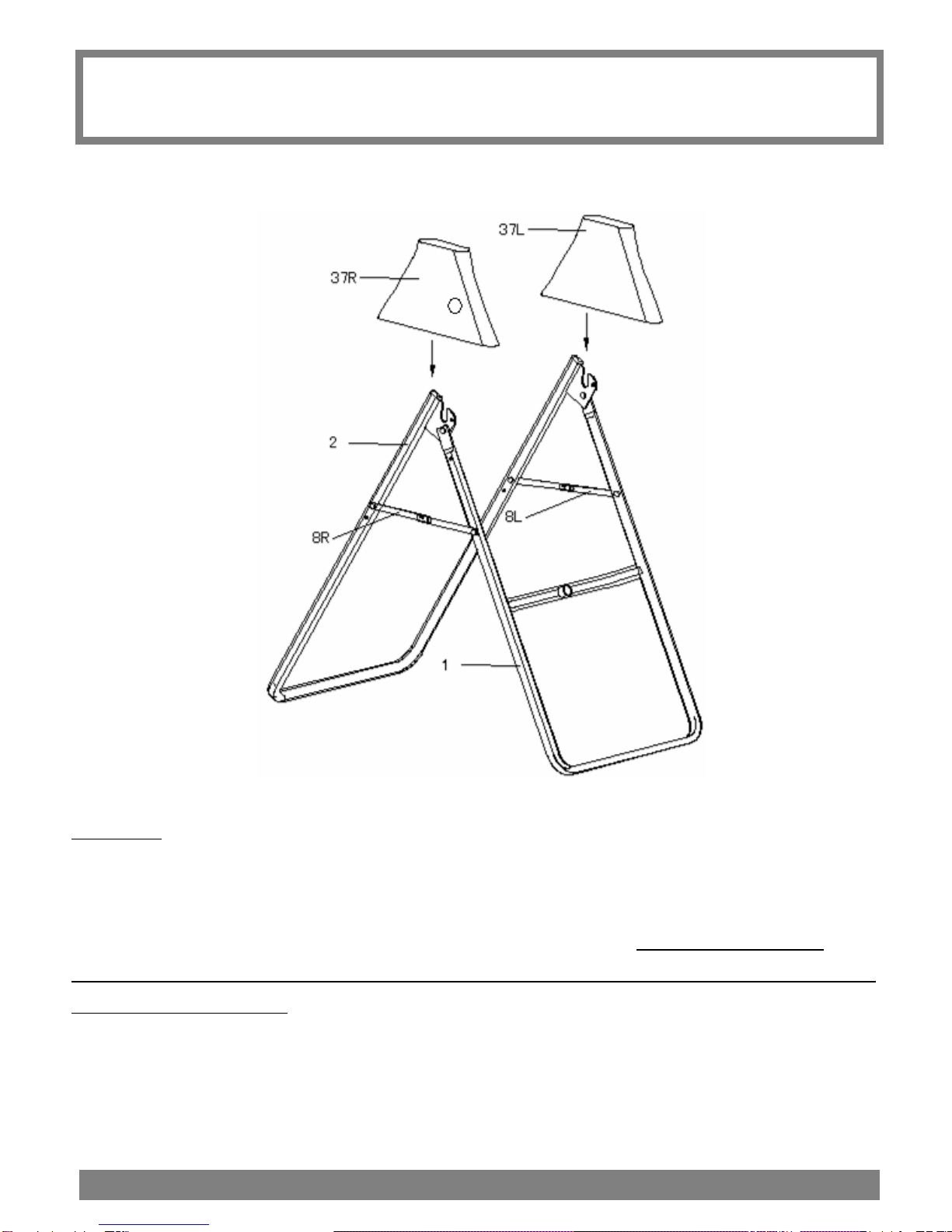

Slide one Protective Cover (37L&R) on to each side of the base, as
shown, and pull down on the Cover until the bottom of the Covers
are slightly lower than the Folding Arms (8L&R). Note: There is a
hole in Right Protective Cover (37R), match this hole with the hole in
the Front U-Frame. Use the Velcro straps on the bottom of the
covers to secure the Cover to the Folding Arms. When the covers
are assembled correctly, the folding arms should be fully covered by
the protective cover.
STEP 3

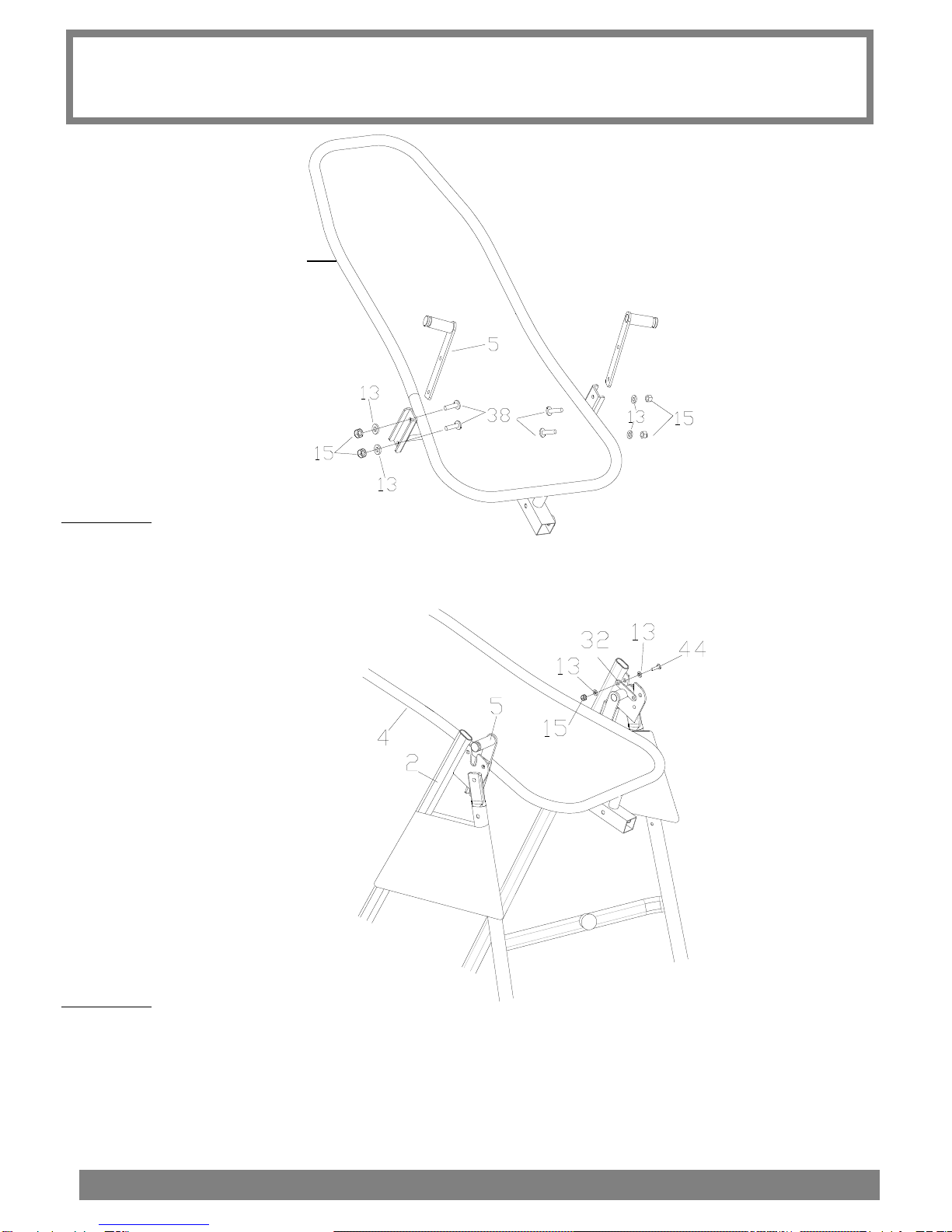

Attach the Pivot Arms (5) to the Bed Frame (4) using 4 Bolts (38), 4 Washers (13)
and 4 Lock Nuts (15).
STEP 4
Mount the completed Bed Frame (4) to the Rear U-Frame (2) by inserting the ends
of the PivotArms (5) into the grooves on the plates, as seen in above diagram.
NOTE: Temporarily remove Metal Block Sleeve (32) in order to insert Pivot Arms (5)
into the grooves. Then reinstall Metal Block Sleeve (32) to original position.
Backrest Assembly
8
4
9
STEP 5
Install Leg Tube (9) through the
hole in Adjustment Boom (3)
using Inner Hexagonal Bolt (11),
Metal Bushing (34a) , Washer
(13) and Lock Nut (15). Slide
Foam Leg Rollers (7) over Leg
Tube (9).
Body Height Adjustment Boom and Rollers
STEP 6
Slide the Foot Bar (39) into the
bottom of theAdjustment Boom (3)
and attach it with Hexagonal Bolt
(40), Metal Bushing (34b), Flat
Washer (13) and Lock Nut (15) .
NOTE: TIGHTEN ALL BOLTS AT THIS TIME
STEP 7

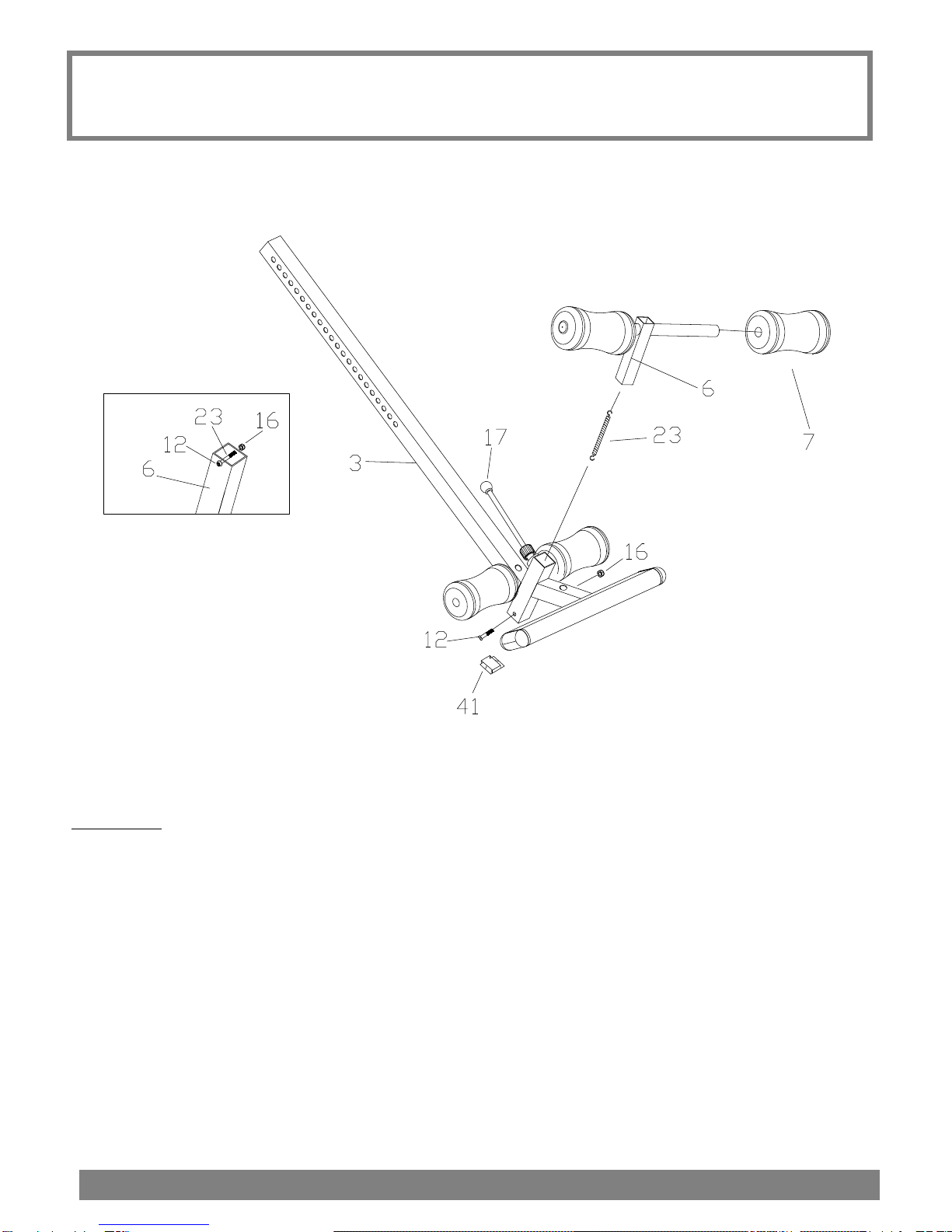

Pull Adjustable Instep Frame (6) upward a little and rotate 90 degrees until the
holes are aligned with those on the Adjustment Boom (3). Slide Foam Leg
Rollers (7) over Adjustable Instep Frame (6), as shown above.
Once the holes are aligned you can screw the Leg TubeAdjustment Knob (17)
into threaded hole in Adjustment Boom (3) and tighten.
Adjustable Instep Frame Assembly
10
