ASSEMBLY INSTRUCTION
ITEM # L-GZ098PST SKU # 210017115
10 FT X 13 FT Facility Gazebo
IMPORTANT:
Please read and follow all safety statements, warnings, assembly instructions, use & care
directions before attempting to assemble.
IMPORTANT:
1. When installing and assembling your gazebo, it is recommended that 2 or more adults
are involved.
2. Do not use the unit during an electrical storm, as there is a remote chance of getting
struck by lightening.
3. Do not climb on top of the gazebo. Falling off the gazebo can result in serious injury,
possibly even death.
4. Do not leave the gazebo assembled when there is a risk of high wind, as possible
damage will occur to the structure.
5. Never barbecue under this gazebo or use lanterns that contain naked flames.
6. This package contains small items and plastic bags that should be kept away from
children.
7 Ensure that all connectors & poles are firmly secured in position fully. It is important to
do so before use so as to avoid collapsing or damage to the item, which could result in
injury.
8. WARNING: Keep all flame and heat sources away from this tent fabric. This tent is
made with fabric that meets CPAI – 84 specifications for flame resistance. It is not fire
proof. The fabric will burn if left in continuous contact with any flame source. The
application of any foreign substance to the tent fabric may render the flame-resistant
properties ineffective.
Parts List
NO. Part Qty Image
A Beam 1 8
B Beam 2 4
C Beam 3 2
D The joint for Beams
and Poles 4
E Second roof bevel
beam1 4
F Second roof bevel
beam 2 4
G Second roof beam 1 2
H Second roof beam 2 2
I Connector for top roof 4
J Top of second roof 1
K Second roof canopy 1
L Top roof beam 1
M Connector for beams 2
N Top roof canopy 1
O Pole base 6
P Pole 1 6
Q Pole 2 6
R Peg 12
S Mosquito net 1
T Plastic buckle 44
U Rope 6
V Rope peg 6
ASSEMBLY STEPS:
A
A
C
A
A
BB
D
D
D
E
F
E
EF
F
G
H
II
LJ
H
J
H
I
F
E
HG
Fig.5
Fig.3
Fig.4
CA
AB
Fig.1
Fig.2
DA
AE
Fig.6
B
BG
M
Fig.7
F
JI
F
Fig.8
II

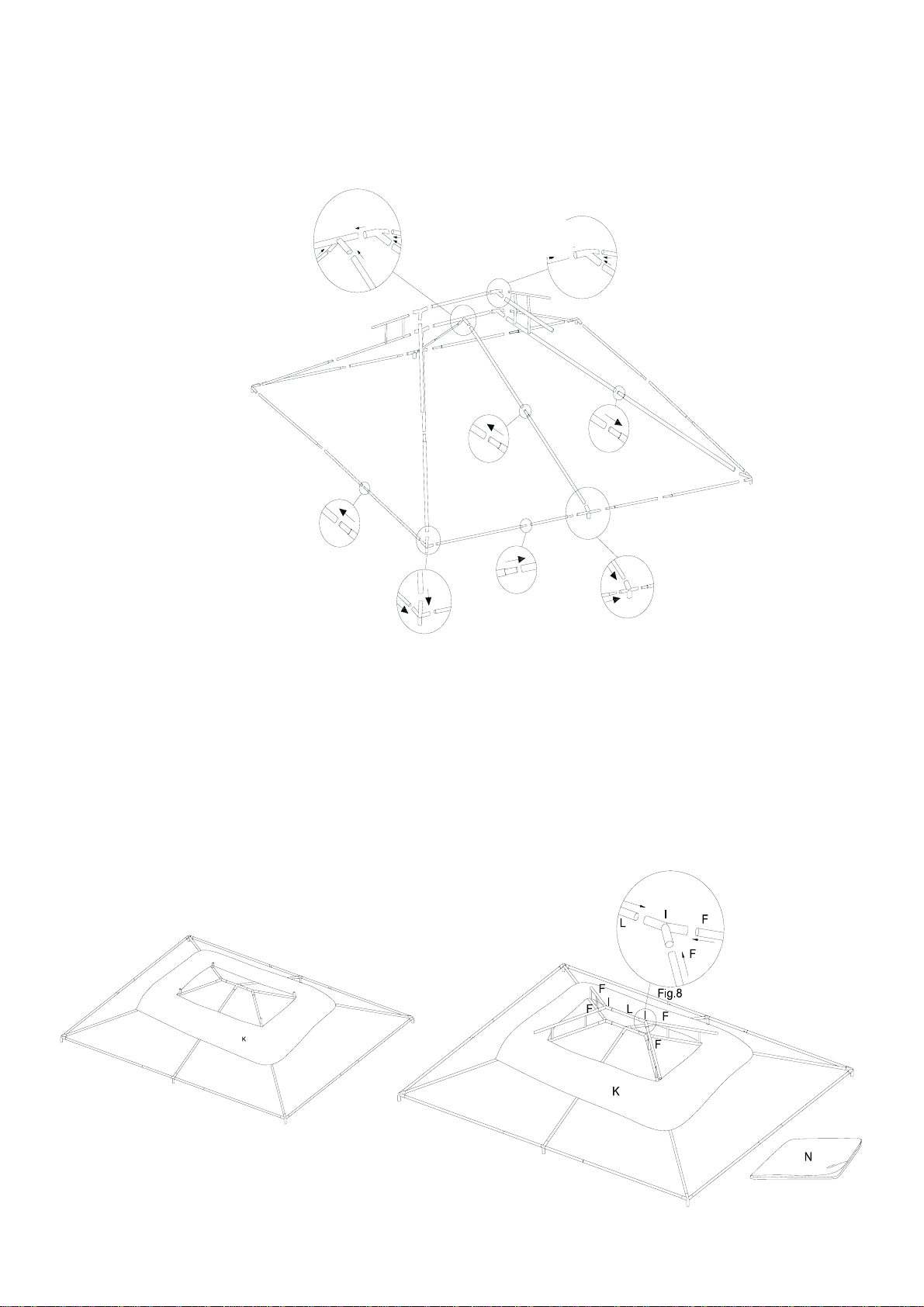

Step1: ①Insert A into B and C. (Fig.1，Fig.2).
②Insert M into B (Fig.7)
③Insert A into Connector D (Fig.6)
④Insert E into F and put G into H (Fig. 3, Fig. 4)
⑤Insert J and L into I, then put assembled E & F
parts and G & H parts into I and J (Fig.5, Fig.8)
⑥Put assembled E & F parts into D (Fig.6)
⑦Put assembled G & H parts into M (Fig.7)
L
Now your gazebo is ready for use.
USE & CARE:
1. This Gazebo is not a permanent structure and should be disassembled & stored away after use.
2. Do not repack your gazebo until completely dry.
3. This Gazebo must be assembled by two adults or more.
4. This Gazebo must not be left erect in windy conditions.
WARNINGS:
1. Assembly Instructions must be followed.
2. Pegs and ropes supplied must be used to hold this gazebo in place when upright.
3. Warranty does not cover damage due to extreme weather conditions.
CUSTOMER SERVICE:
If you are within the return policy that most stores have, you do have the option of returning this item back
to the store which you bought it from for an exchange of the same item, or a refund of the purchase.
If you are within or beyond the return policy that most stores have, and need tech. assistance or
replacement parts, please call Sunjoy Industries at 1(866) 578-6569 from 8:30 am to 5:30 pm eastern
with the purchase receipt to 1 (740) 283-3549 for assistance.
Thank you for choosing Sunjoy Industries
Step4: ①Insert P into O and Q，and then insert whole part
into D.(Fig.9, Fig.10, Fig.11)
②Fix the poles on the ground by R
Step5: ①Attached S by T on A, B, C beams (Fig.13).
Complete assembled K part.
②Tie one end of the rope (u) to the corner edge of the
canopy (k); Insert rope peg (V) to the ground within
60” distance of the gazebo, loop another end of the
rope (U) through the hole of rope peg (V), strain the
rope (U) and knot it to secure the gazebo.
Step3: Put N on the top roof, complete
assembled.
Step2: Put K on the second roof, but do not complete.
