Assembly Instructions

10'x10' Pergola with Solid Slats Lars

Style# L-PG169PST-B2

DPCI# 009050552

Production No.: XXXXXXXX

Assembly Instructions

Safety Information

1. Two people are required for this assembly.

2. Some parts may contain sharp edges. Wear protective gloves.

3. When assembling and using this product, basic safety precautions should always be followed to reduce the risk of personal injury and

damage to equipment. Please read all instructions before assembly and usage.

DANGER

This unit is heavy! Do not assemble this item alone.

Warranty: 6 months

WHAT IS COVER?

The limited warranty is extended to the original purchaser and applies to material and manufacturer’s defect provided the item is maintained with

care and used only for personal, residential purposes.

IMPORTANT

KEEP THIS INSTRUCTION MANUAL FOR FUTURE REFERENCE.

Assembly Instructions

Parts List

A P11141C01108 Post 1 2

B P11142C01108 Post 2 2

C P11571A01108 Base Cover 4

D P11683A01108 Base 4

E P11066A01108 Cross Beam 1 2

F1 P11065A01194 Cross Beam 2 2

F2 P11060E01194 Cross Beam 3 4

G P13014C01194 Top Small Beam 1 11

H P13015C01194 Top Small Beam 2 1

I P12601A01108 Hook 1

Assembly Instructions

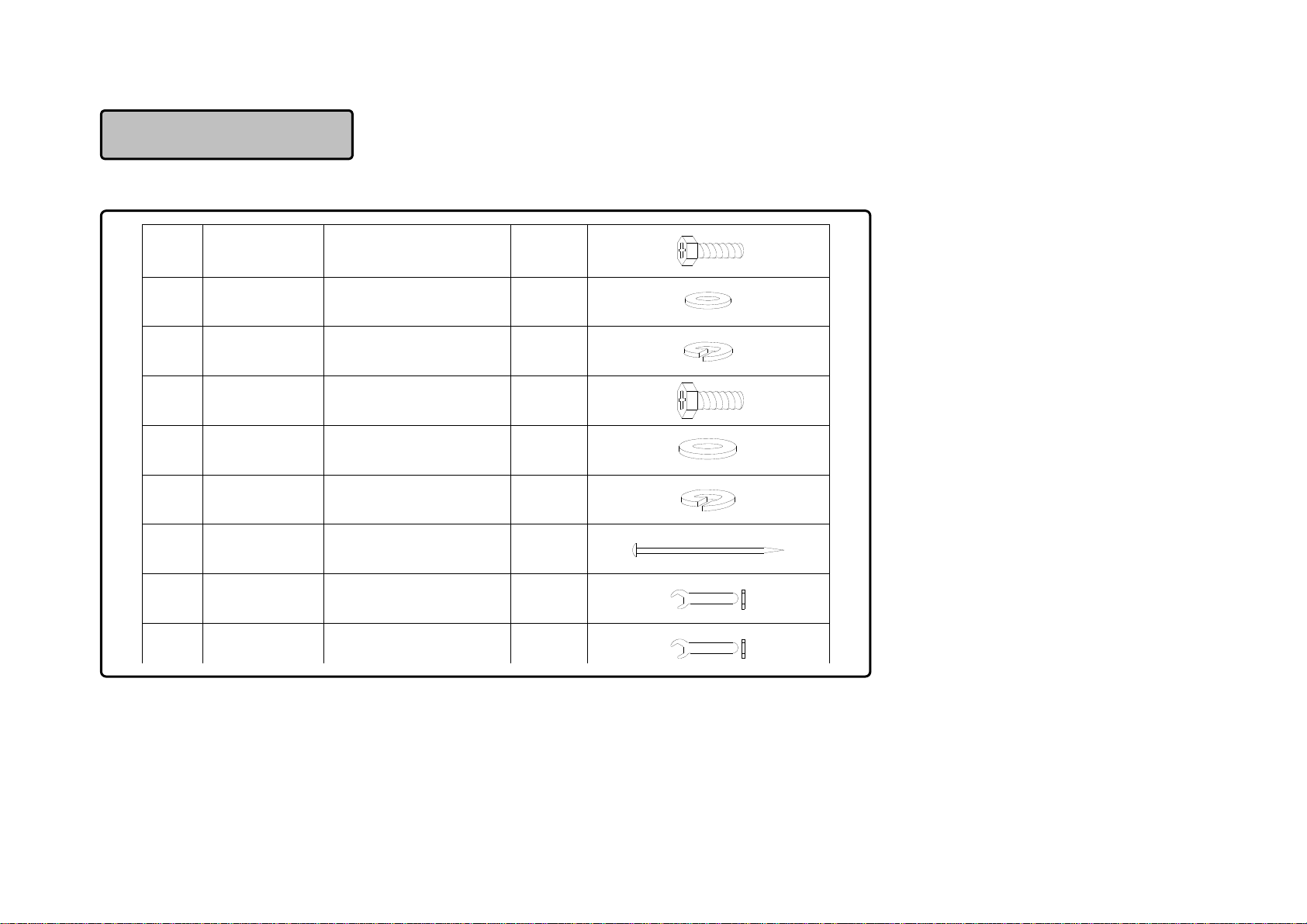

AA H02020C11 M6X20 Bolt 32 PCS

BB H19001C11 M6 Washer 32PCS

CC H13001C11 M6 Spring Washer 2 PCS

DD H02020D11 M8X20 Bolt 48 PCS

EE H19001D11 M8 Washer 48 PCS

FF H13001D11 M8 Spring Washer 48 PCS

GG P12401A0100 Stake ￠8*180 8 PCS

Z1 H0001C12 M6 Wrench 1 PC

Z2 H0001D12 M8 Wrench 1 PC

Hardware Pack

Assembly Instructions

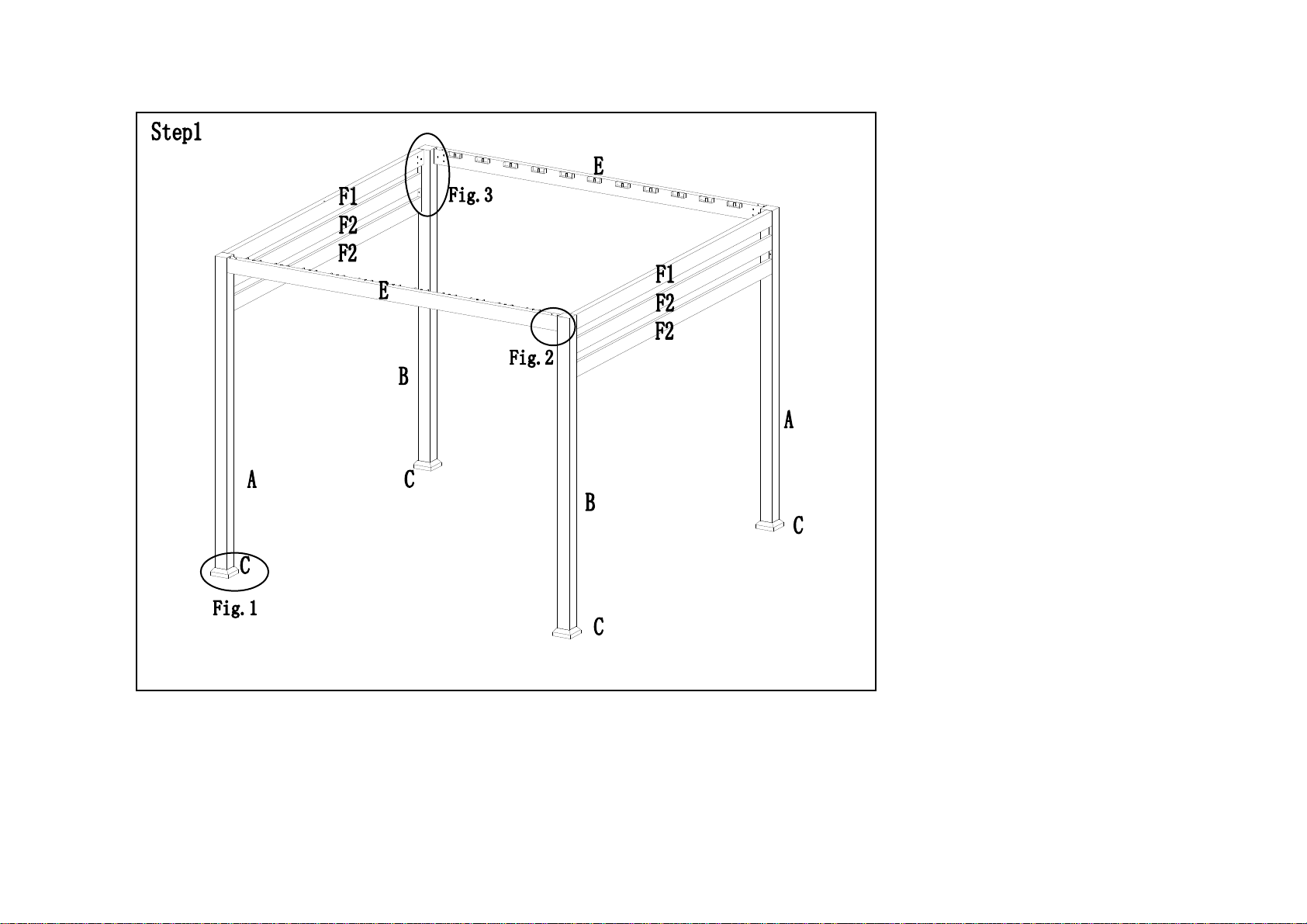

Fig.1: Insert Base Cover (C)

into Post (A, B), then fix Base

(D) to Post (A, B) by Bolt (AA)

and Washer (BB).

Fig.2: Attached the Cross Beam

2(F1) to Post (B) by Bolt (DD),

Spring Washer (FF) and Washer

(EE). Then fix Cross Beam 3(F2) to

Post (B) by Bolt (DD), Spring

Washer (FF) and Washer (EE).

Then use same way to assembly

Post (A) and Cross Beam 2, Cross

Beam 3.

Fig.3: Attached Cross Beam 1 (E)

to Post (B) by Bolt (DD), Spring

Washer (FF) and Washer (EE).

Then use the same way to

assemble Post (A) and Beam 1 (E).

Assembly Instructions

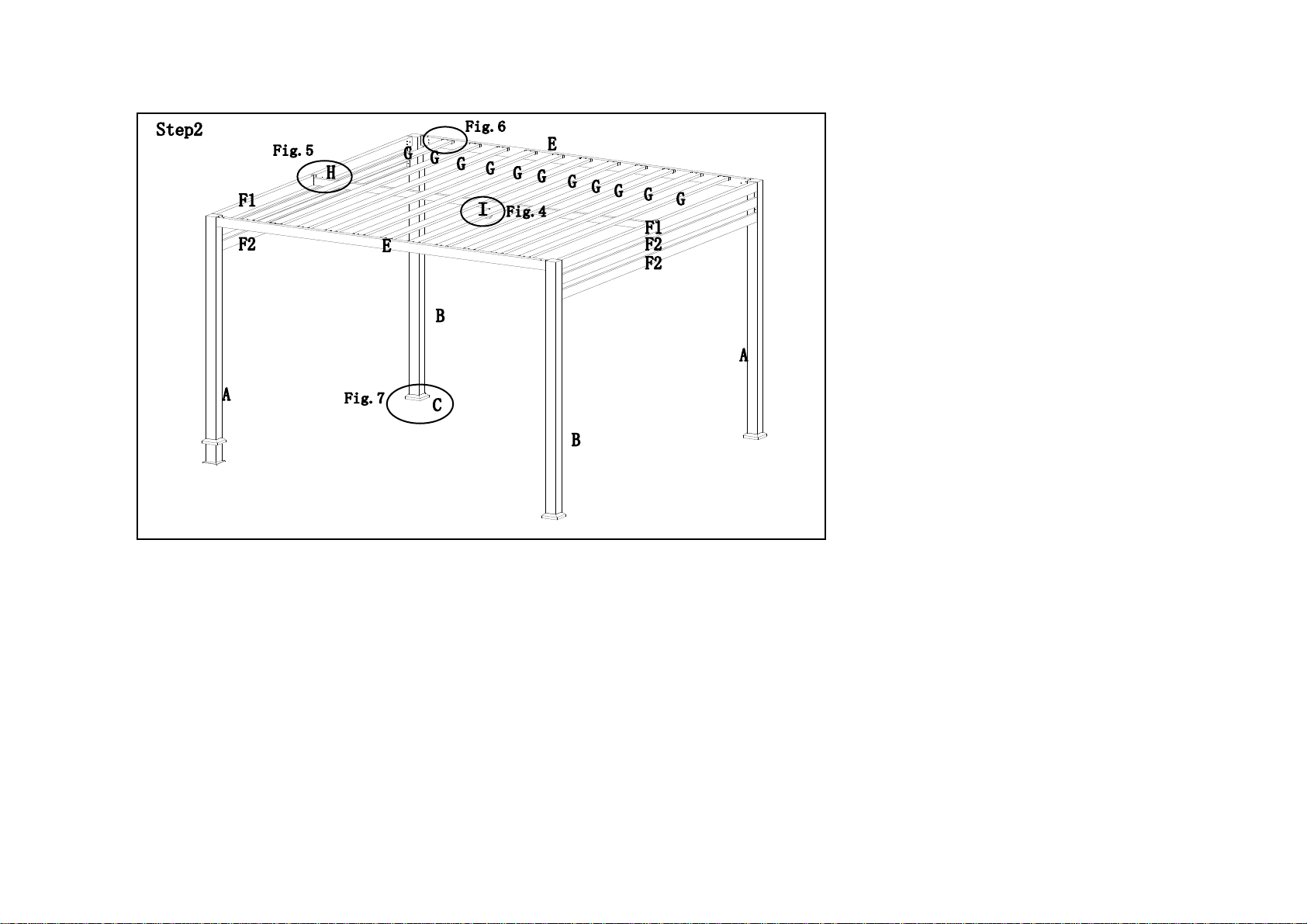

Fig.4: Attached the Hook (I) to

Top Small Beam 2 (H)

Fig.5: Attached the Top Small

Beam 2 (H) to Cross Beam

2(F1) by Bolt (AA), Spring

Washer (CC) and Washer

(BB).

Fig.6: Put The Top Small Beam

1(G)’s end into the U-shaped on

the side of Cross Beam 1(E) (Big

hole need put upper and small

one need put down), then fix

them by Bolt (AA) and Washer

(BB).

Fig.7 Attach the assembled

pergola to lawn with Stake

(

)
