Add Device Setting Instruction
Add/ Extend Hardware
2
Outline
Add New Device(DevicePort/ DevicePort I/O) Topology
Simple Device Power and Ethernet Connection Configuration Diagram
Connect new device to Gateway
Gateway Interface Setting
Add Serial Port Device
Add DI/O Device
Add AI Device
Gateway Resource Setting
Set IoT Central
3
Add New Device(DevicePort/ DevicePort I/O) Topology
Extended Devices
Ethernet/EAZInet
AI/AO
DI/DO
RS-232
RS-422/485
Power(DC)
DI/O
EZR5001/EZR5002
Serial Port
DPAD02HTP
RS422,485
Interface Device
DI/O
Interface Device AI Interface Device
AI
EZR5231
Demonstration of adding new device to current solution
4
Simple Device Power and Ethernet
Connection Configuration Diagram
DP/ DP I/O
Power (DC)
Ethernet
Configuration Demonstration
2 Pin Terminal
Support 12~24VDC Power Input
2 port RJ-45 ethernet
10/100M Fast Ethernet
Support Daisy Chain
+
-
5

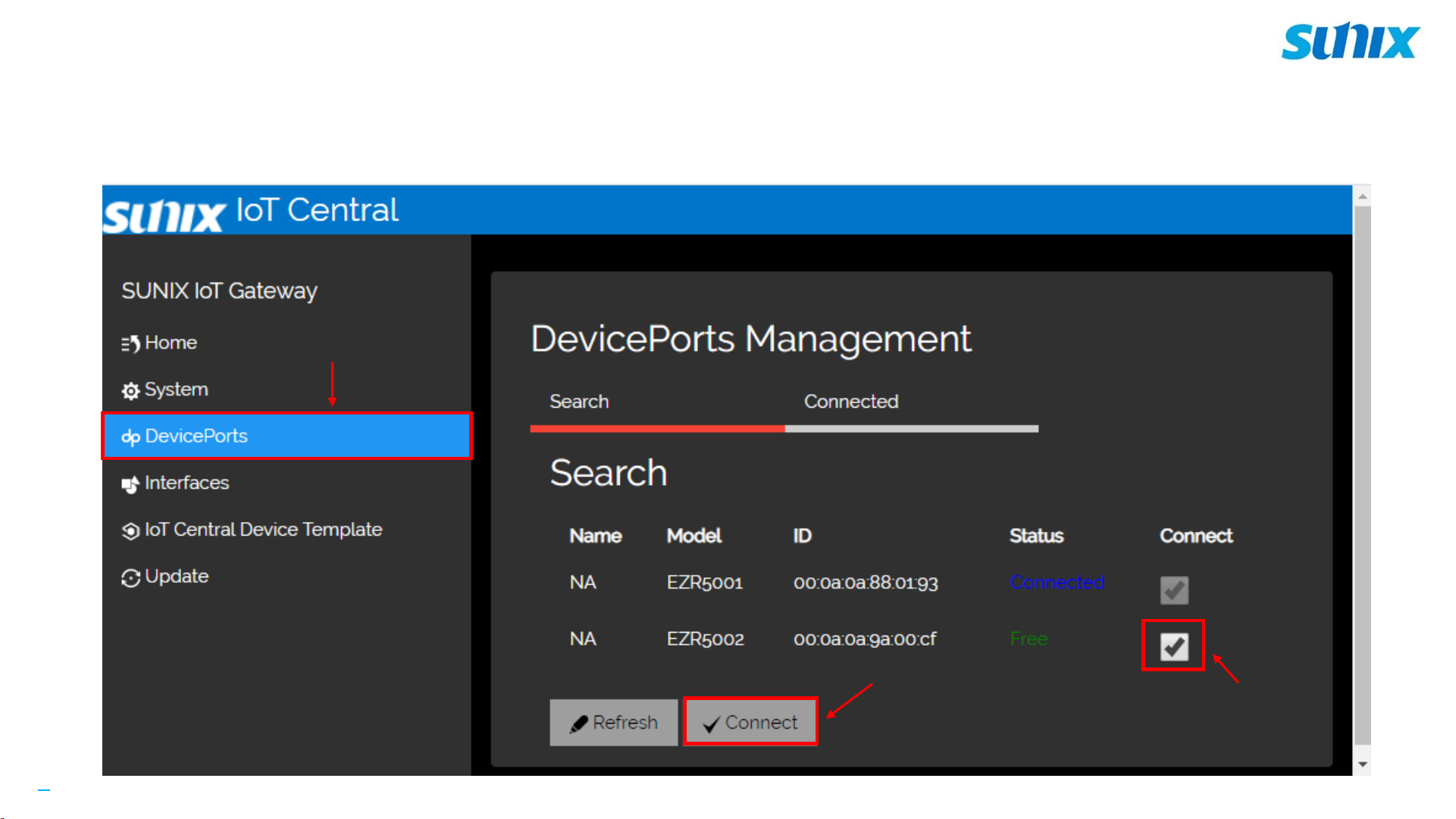

If you want to connect new device to gateway, please search gateway IP in a browser and log in to
EZG1200 setting page
1.Choose DevicePorts
2. Choose new device
(Can find the device via
mac information)
3. Click 【Connect】to connect new device and Gateway
Connect new device(DP/ DP I/O) to Gateway
6
Activate the relation between device and IoT Central. Choose the corresponding serial port device and
channel according to the real situation
1.Choose Interfaces
2. Change to Interfaces page
Gateway Interface Setting-Add Serial Port Device
7
In Interfaces page, pull down to find the new serial device and the corresponding
channel(UART), and click 【Config】
2. Click 【Config】
1.Choose the new device and the
corresponding channel(UART)
Here we take digital meter for example. Choose DPAD02HTP, channel 1(UART), and click 【Config 】
8
In the setting page, activate the relation between device and IoT Central, set the parameter,
choose device model, and click apply
1. Activate the relation between
device and IoT Central
2. Choose device brand and model
5. Click 【Apply】to complete setting
3. According to the device information
to set the correct parameter
Here we take Shihlin Electronic power meter for example to set the parameter
4. According to the device
specification to choose the
correct Interface
9
Activate the relation between device and IoT Central. Choose the corresponding DI/O device and
channel according to the real situation
1.Choose Interfaces
2. Change to Interfaces page
Gateway Interface Setting-Add DI/O Device
10
2. Click 【Config】
1. Choose the new device and the corresponding channel(DI)
Here we take signal light for example. Choose EZR5002 channel 1 (DI), and click 【Config 】
In Interfaces page, pull down to find the new DI device and the corresponding channel,
and click 【Config】
