SUNITEC Premium BC980SA
USER MANUAL

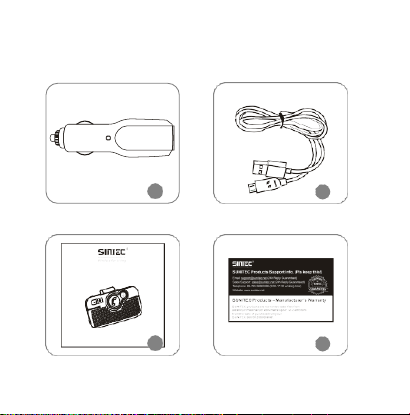

ACCESSORIES
1 2
USB car charger USB charging cable
SUNITEC Premium BC980S
USERMANUAL 3 4
User manual Warranty card
SUNITEC Premium BC980SA
1
OVERVIEW
Answer / End /Auto Power On
/LED indicator light
Sun Visor Clip ON/OFF
Volume+ Charging port
Volume-
Speaker Mute button Microphone
SUNITEC Premium BC980SA
2
WHAT YOUR SUNITEC
PREMIUM BC980SA CAN DO
Answer, end, and reject calls.
Deliver great sound and noise cancellation with the HD voice microphone.
Redial last number.
Connect to two mobile phones.
Voice Dialing to allow easy call interaction while driving
(by activating Siri, Google Assistant or other voice control software to
answer an incoming call).
Play music and GPS via your connected mobile device.
Turns on/off automatically.
Noted: you will hearthe Voice guidance of PowerOn, Power Off, Pairing,
Connected, Disconnected and Battery low for related operating.
SUNITEC Premium BC980SA
3
USING YOUR SUNITEC
PREMIUM BC980SA
1
.

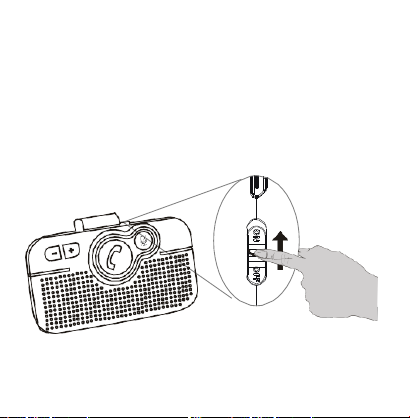

TURNING ON THE SUNITEC PREMIUM BC980SA
Slide the on/off button to turn the SUNITEC PREMIUM BC980SA on or off.
SUNITEC Premium BC980SA
4
2
.

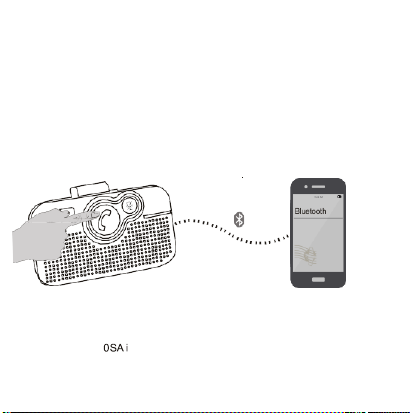

FIRST TIME PAIRING WITH YOUR DEVICE
First make sure SUNITEC PREMIUM BC980SA was slid ON, LED indicator
will guide you through pairing with your mobile phone.
1).Press and hold Multi-function button for 3 seconds until LED indicator
flashing blue and red alternative(entering pairing mode).
2). On your mobile device, turn on the Bluetooth feature.
Tip: The Bluetooth feature is usually found in the Settings menu.
3).Select your BC980SA f rom the device list. Once paired, the LED indicator
glows blue and Flashing Blue once every 10 seconds.
BC980SA
NOTE : After the SUNITEC PREMIUM BC980SA and a mobile phone have
been paired they will automatically connect whenever the SUNITEC
PREMIUM BC98 s switched on and the mobile phone has bluetooth
activated and is within range.
SUNITEC Premium BC980SA
5
3
.

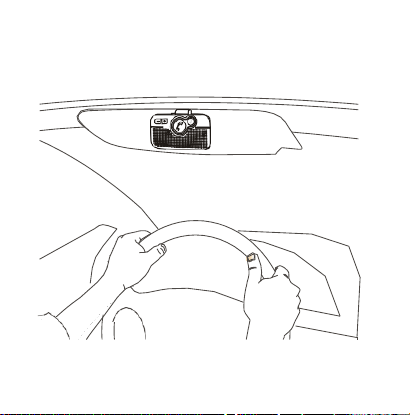

Positioning the SUNITEC PREMIUM BC980SA
Clip the SUNITEC PREMIUM BC980SA to the sun visor in your vehicle.
SUNITEC Premium BC980SA
6
4
.

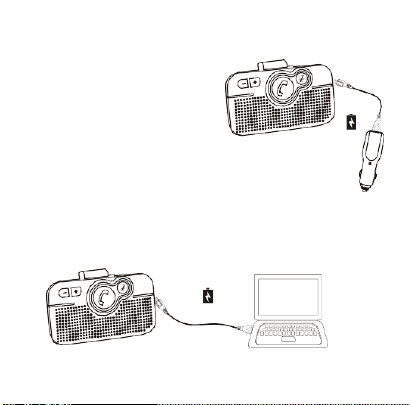

Charging YOUR SUNITEC PREMIUM BC980SA
1). In-car charging
Connect the USB cable with car charger
attachment to the SUNITEC PREMIUM
BC980SA and the car lighter socket in
your vehicle.
2). PC charging
Connect the SUNITEC PREMIUM BC980SA to any available USB slot on
your PC, using the USB cable.
SUNITEC Premium BC980SA
7
USING THE SUNITEC PREMIUM BC980SA
WITH YOUR MOBILE PHONE
SUNITEC Premium BC980SA
8
WHAT THE LIGHTS MEAN
SUNITEC Premium BC980SA
9
SUPPORT FAQ
Q: I hear crackling noises
A: Bluetooth is a radio technology that is sensitive to object between the
SUNITEC PREMIUM BC980SA and the connected device. Ensure the
SUNITEC PREMIUM BC980SA and the connected device are within 33
feet (10 meters) of each other, with no major objects in the
way (walls, etc.).
Q: I cannot hear anything
A: - Increase the speaker volume.
- Ensure the SUNITEC PREMIUM BC980SA is paired to a device that
is playing.
- Make sure your phone is connected to the SUNITEC PREMIUM
BC980SA by pressing and holding the Multi-function button.
Q: I am having pairing problems
A: You may have deleted the SUNITEC PREMIUM BC980SA pairing
connection in your mobile phone. Follow the pairing instructions.
Q: Will the SUNITEC PREMIUM BC980SA work with other
Bluetooth equipment?
A
:
The SUNITEC PREMIUM BC980SA is designed to work with Bluetooth
mobile phones. It can also support other Bluetooth devices that are
compliant with Bluetooth version 1.1 or higher and support a headset,
hands-free and/or advance audio distribution profile.
SUNITEC Premium BC980SA
10
Q
:
I cannot
use Reject
call
,
call
on hold
,
Redial
or voice
dialing
A: These features require your mobile phone to support a handsfree
profile. Refer to your mobile phone user manual for more details.
Q: My voice commands does not work
A: This feature requires your mobile phone to support voice commands such
as Siri, Google assistant or other voice control software. Refer to your
mobile phone user manual for more Details.
Q: I want to reset the pairing list in my speakerphone
A
: -
The speakerphone
registers
a list of up to 8 mobile phones
.
To clear
the
pairing list and reset the SUNITEC PREMIUM BC980SA to factory
settings you can turn the SUNITEC PREMIUM BC980SA on while
pressing and for about 10 seconds.
- When you see LED indicator flashing blue and red, release the buttons.
- The time you power on the SUNITEC PREMIUM BC980SA it will
automatically go into pairing mode.
Q: I want to cancel Auto Power On function
A: - MANUALL Y disable this feature by turning off the speakerphone .
- Slide the on/off button to turn the SUNITEC PREMIUM BC980SA of f.
Q: Pairing With Two Mobile Phones
A: 1). Slide on the SUNITEC PREMIUM BC980SA .Pairand MULTIPOINT
connect BC980SA with the FIRST phone as the above
pairing instructions.
2). Slide off the SUNITEC BC980SA and deactivate the
Bluetooth on the first phone.
SUNITEC Premium BC980SA
11
3). Slide on the SUNITEC PREMIUM BC980SA again. Pair and connect
BC980SA with the SECOND phone as the above pairing instructions.
4).Slide off the SUNITEC BC980SA and activate the Bluetooth on the
both phones.
5.Slide on the SUNITEC BC980SA, connected with both phones.
TECHNICAL SPECIFICATIONS
Speaker: 2 watt
Operating range: Up to 10 meters (33 feet)
Operating frequency band: 2.4GHz~2.48GHz unlicensed LSM band
Bluetooth version: 5.0
Paired devices: Up to 8 paired devices.
Two active devices connected simultaneously
Supported Bluetooth profiles: Hands Free profile, Headset profile,
A2DP Profile(GPS instruction announcement and music)
Digital signal processing (DSP): Up to 21 dB noise reduction on transmit
signal. Acoustic echo cancellation
Talk time: Up to 20 hours
Standby time: Up to 1000 hours
Charging time: Approximately 3 hours
Battery: Internal rechargeable 650mA Li-Polymer battery
Charger Voltage: DC5.0V, 500mA
Note: The talk and standby time may vary when using different phones or
other compatible Bluetooth devices, usage setting usage style and
environments.
SUNITEC Premium BC980SA
12
DECLARATION of CONFORMITY
The company Sunitec Electronics Limited, declares that product BC980SA
complies with the essential requirement of the 2014/53/EU.
The declaration of conformity in complete form is available at the
headquarters of Sunitec Electronics Limited.
Product sold in the US and Product sold in the European community
Manufactured by Sunitec Electronics Limited. MADE IN CHINA
Flashing Blue twice
every 10 seconds
The SUNITEC PREMIUM BC980SA is powered
on, but notconnected to a mobile phone
(standby mode)
The SUNITEC PREMIUM BC980SA is in pairing
mode, and readyto connect
Flashing Blue once
every 10 seconds
A mobile phone
’
s Bluetooth connected to the
SUNITEC PREMIUM BC980SA
Flashing Blue once
every 6 seconds
Flashing Red every
5 seconds
Activate Siri / other
voice control software
Transfer call from
SUNITEC BC980SA
tomobile phone
: +86-755-36863386 / 36863387 / 36863389
For FAQs and more information
,
please
visit
:
SUNITEC PREMIUM CAR KIT
MODEL: BC980SA
