This document provides an overview of the installation procedure for Oracle’s Sun Storage 2500-M2 Arrays,
including:
■Sun Storage 2540-M2 array (controller tray with Fibre Channel host connectivity)
■Sun Storage 2530-M2 array (controller tray with SAS-2 host connectivity)
■Sun Storage 2501-M2 array (expansion tray)
For detailed information, have the Sun Storage 2500-M2 Arrays Hardware Installation Guide available as you go
through the steps in this document.
Additional documentation is listed in the section “Documentation for This Product” and available at the Oracle
documentation web site:
http://www.oracle.com/technetwork/documentation/oracle-unified-ss-193371.html
Sun Storage Common Array Manager
Oracle’s Sun Storage Common Array Manager (CAM) software is a key component for the initial configuration
and operation of Sun Storage 2500-M2 Arrays hardware. It is installed on a management host cabled to the array
via out-of-band Ethernet (cables for this connection are provided). Note: In-band management is also supported.
To download and get started with CAM, review the latest Sun Storage Common Array Manager Quick Start Guide.
CAM documentation can be found here:
http://www.oracle.com/technetwork/documentation/disk-device-194280.html
Note – It is recommended to begin the download process now so that the software is ready for installation when
hardware installation is complete.
Before You Begin
Review the following documents before starting the installation:
•Important Safety Information for Sun Hardware Systems •Sun Storage 2500-M2 Arrays Hardware Release Notes
•Sun Storage 2500-M2 Arrays Safety and Compliance Manual •Sun Storage 2500-M2 Arrays Site Preparation Guide
Sun Storage 2500-M2 Arrays
Getting Started Guide
2
Review Contents of the Ship Kit

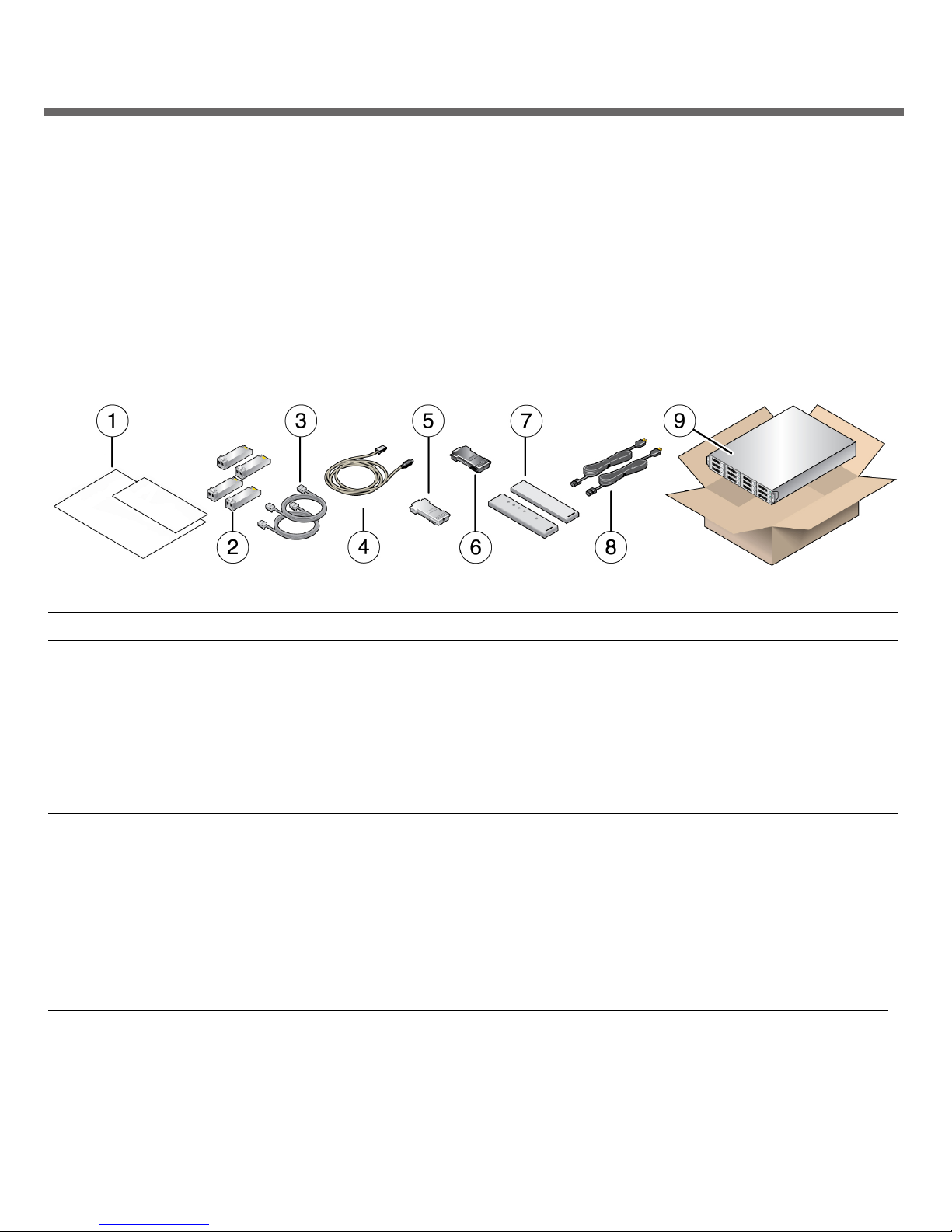

FIGURE 1 shows the components of the controller tray ship kit for the Sun Storage 2540-M2 array, Sun Storage
2530-M2 array, and Sun Storage 2501-M2 array expansion tray. Note the following:
■AC or DC power cables are included in the ship kit, depending on the configuration ordered.
■Small form-factor pluggables (SFPs) are included only with the Sun Storage 2540-M2 array.
■Cables for connecting the controller tray to the data host (SAS or Fibre Channel) are not included and may be
ordered separately. SAS cables for intertray cabling are included with the Sun Storage 2501-M2 array
expansion tray ship kit. Note: The maximum cable length for 6 Gb/sec SAS-2 is 10 meters.
FIGURE 1 Controller Tray Ship Kit Contents
Install the Cabinet and Rail Kit
Before installing the rail kit, install and stabilize the cabinet as described in the cabinet installation instructions.
Make sure the cabinet’s casters (if any) are locked to prevent the cabinet from rolling, and remove or open the
front panel and vented back panel. Then, follow the rail kit installation instructions found in the Installing
Adjustable Support Rails document.
Note – Each tray requires two standard mounting rack units (2U) of vertical space in the cabinet.
Callout Description Callout Description
1Documentation 6RJ-45 - DB9 adapter with null modem
2Fibre Channel SFPs (2540-M2 only) 7Bezel end caps
3RJ-45 - RJ-45 Ethernet cables
(one per controller module)
8Power cables*
- AC cables included for AC configurations
- DC cables included for DC configurations
* AC power cables shown.
4RJ-45 - mini-DIN cable 9Controller tray
5RJ-45 - DB9 adapter
3
Install the Tray in the Cabinet and Connect Power Cables
The following procedure provides an overview of installing a controller tray or expansion tray into the cabinet.
Consult the Hardware Installation Guide for further details.
Note – Airflow through the tray is front-to-back. For proper ventilation, allow 30 in (76 cm) clearance in front of
the cabinet and 24 in (61 cm) clearance behind the cabinet.
Note – When installing tray hardware, load the cabinet so as not to make it top-heavy. One approach is to place
the controller tray in the middle portion of the cabinet while allowing room for expansion trays to be placed
above and below the controller tray.
FIGURE 2 Installing the Tray
Review Front Panel

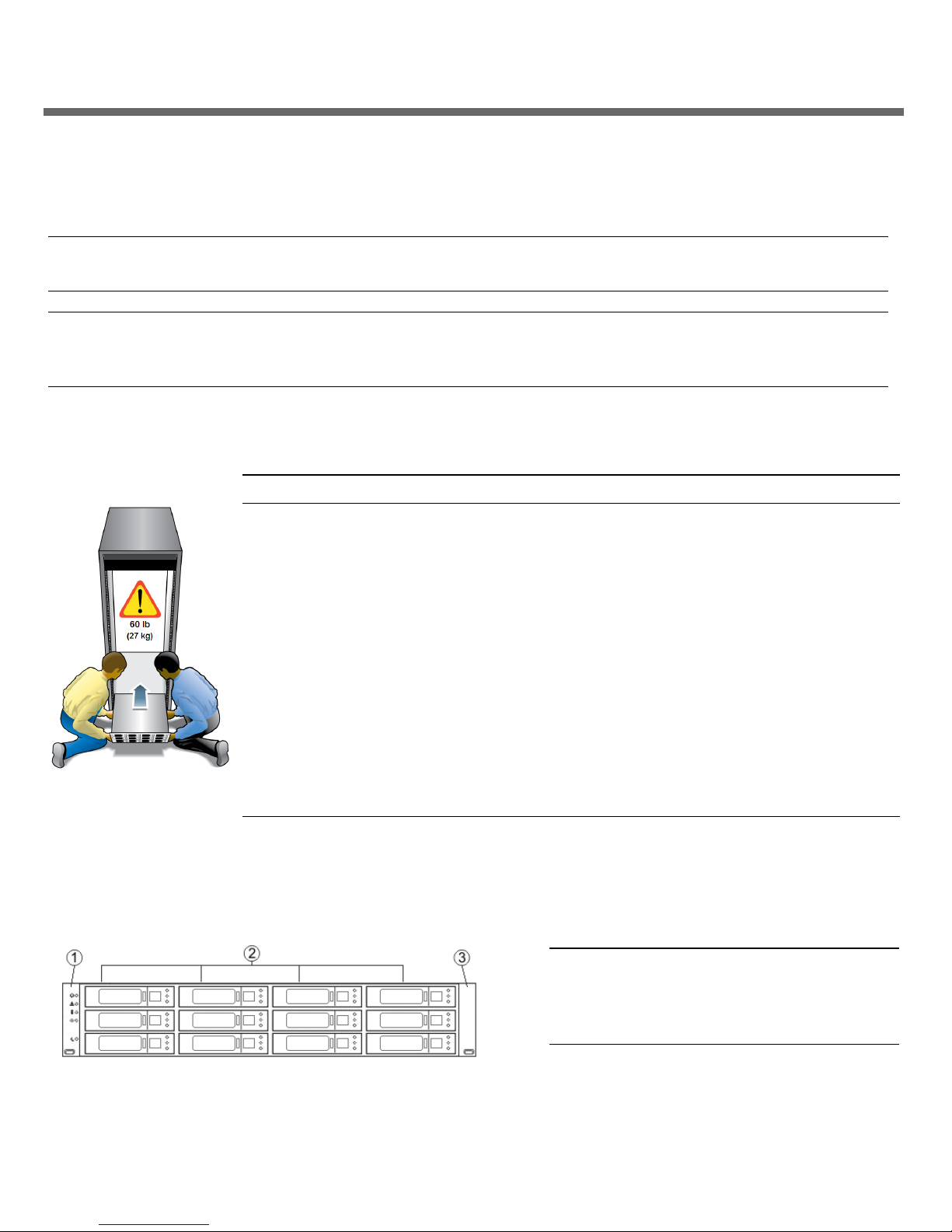

FIGURE 3 Controller Tray and Expansion Tray Front Panel
Step Task
1. Using two people, carefully lift and rest the tray on the bottom ledge of the left and
right rails. Caution: Tray equipment can weight up to 60 lb (27 kg).
2. Carefully slide the tray into the cabinet until the front mounting flanges on the tray
touch the vertical face of the cabinet and the rear edges of the tray fit into the clips on
the support rails.
3. Secure the front of the tray by inserting a screw through the center hole in each front
mounting flange. (Note: Washers may be required.) Tighten the screws.
4. Secure the rear of the tray by inserting a screw through the hole in each rear mounting
flange and into each support rail. (Note: Washers may be required.) Tighten the screws.
5. Replace the end caps (bezels) that cover the mounting flanges on the front of the array
tray.
6. Verify that the tray power switches and cabinet circuit breakers are turned off.
7. Connect each tray power supply to a separate power source in the cabinet.
Callout Description
1Left end cap with front panel LEDs
2Disk drives
3Right end cap
4
Review Rear Panel
Note: AC power connectors and switches shown. DC configuration is available. See Hardware Installation
Guide for more information.

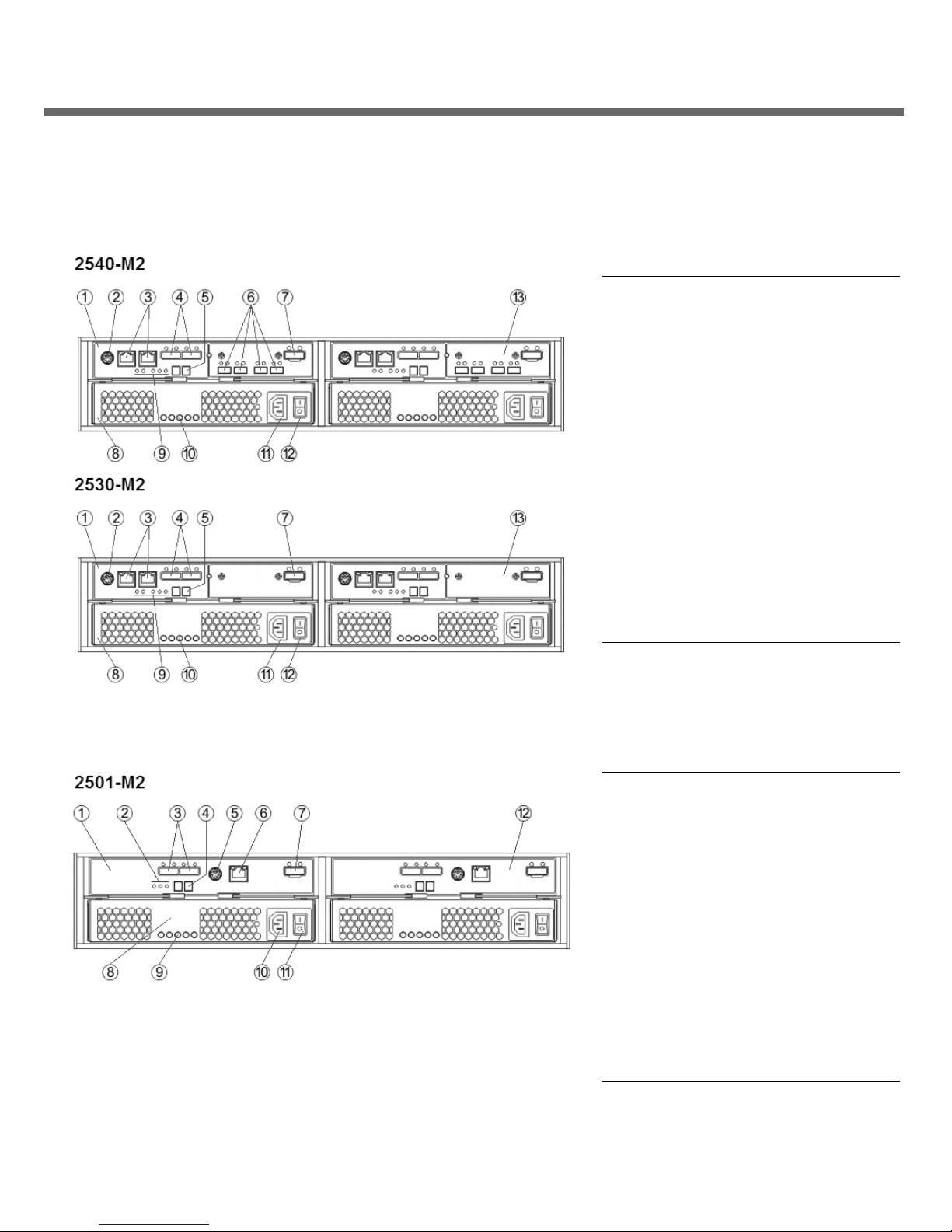

FIGURE 4 Controller Tray Rear View
FIGURE 5 Expansion Tray Rear View
Callout Description: 2540-M2 and 2530-M2
1Controller module A
2Serial port
3Ethernet ports
4SAS host ports
(Not used on 2540-M2)
5Seven-segment display
6Fibre Channel host ports
(2540-M2 only)
7Expansion port
8Power-fan module
9Controller module LEDs
10 Power-fan module LEDs
11 Power connector
12 Power switch
13 Controller module B
Callout Description: 2501-M2
1Input/output module (IOM) A
2IOM LEDs
3SAS host ports
4Seven-segment display
5Serial port
6Ethernet port
7Expansion port
8Power-fan module
9Power-fan module LEDs
10 Power connector
11 Power switch
12 IOM B
5
Connect Controller and Expansion Trays
FIGURE 6 shows recommended expansion cabling for one, two, and three expansion trays. See the Hardware
Installation Guide for more information.

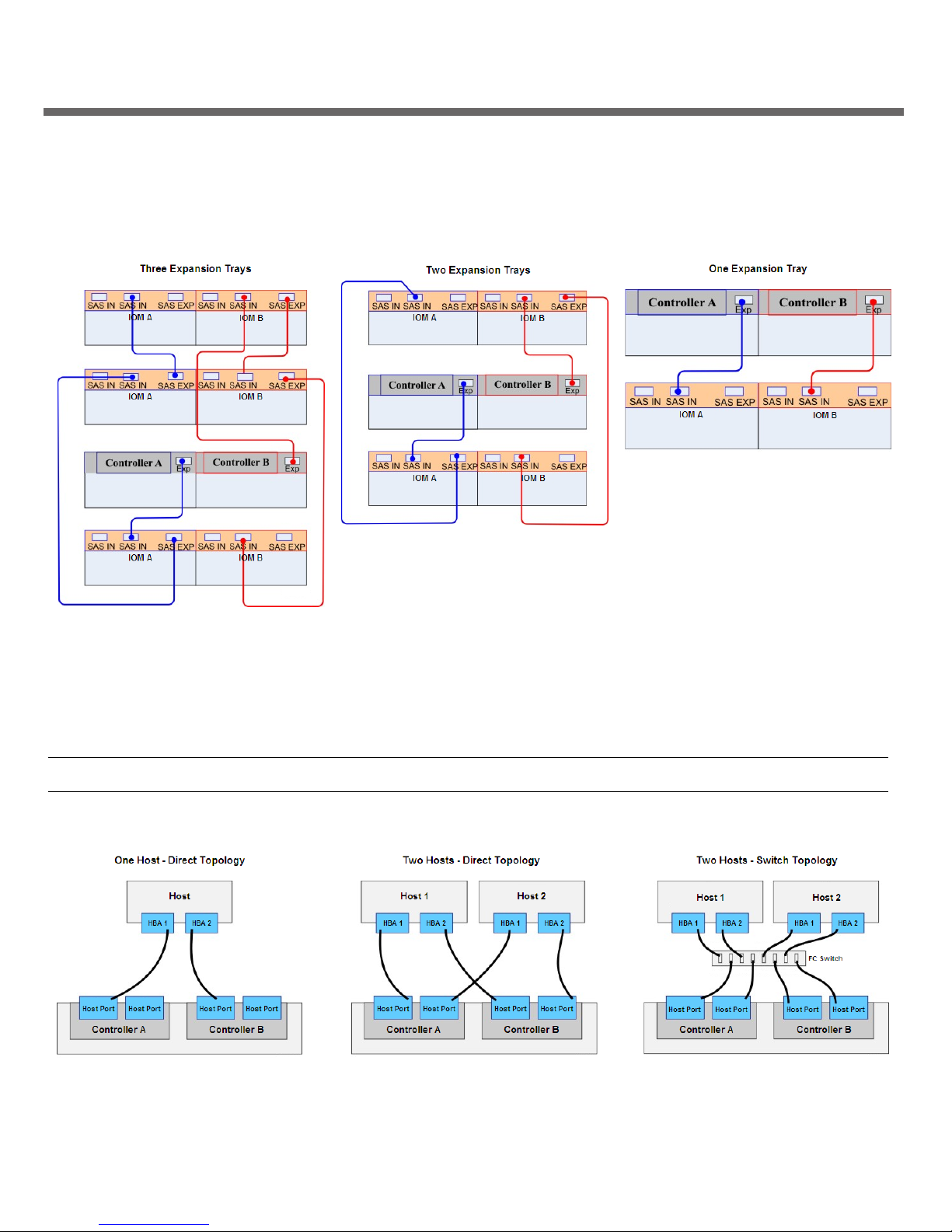

FIGURE 6 Expansion Tray Cabling Configurations
Connect Data Hosts
FIGURE 7 shows sample host connection configurations for one host in a direct topology, two hosts in a direct
topology, and two hosts in a Fibre Channel switch topology. For Fibre Channel connections (Sun Storage 2540-
M2 only), plug an SFP into a controller host port before cabling. For more information, see the Hardware
Installation Guide.
Note – The SAS host interface does not support a switch topology.
FIGURE 7 Sample Controller-to-Data Host Connections
6
Connect Management Host
Connect an Ethernet cable from the management host port (Ethernet Port 1) of each controller to the LAN of the
management host. Note: Ethernet Port 2 is reserved for access by Support personnel.
Turn on Power and Install Management Host Software
To power on the array, follow the procedure in the Installation Guide.Then, install Sun Storage Common Array
Manager on the management host. If you did not previously begin the download process, see the “Sun Storage
Common Array Manager” section.
During initial array registration, you are prompted to register with the Auto Service Request (ASR) service. It is
highly recommended that you register with ASR so that Support can respond appropriately to your needs.
Documentation for This Product
Additional documentation for Sun Storage 2500-M2 Arrays is available at:
http://www.oracle.com/technetwork/documentation/oracle-unified-ss-193371.html
Oracle Contact Information
Review safety information Sun Storage 2500-M2 Arrays Safety and Compliance Manual
Important Safety Information for Sun Hardware Systems
Review known issues and workarounds Sun Storage 2500-M2 Arrays Hardware Release Notes
Sun Storage Common Array Manager Release Notes
Prepare the site Sun Storage 2500-M2 Arrays Site Preparation Guide
Install the array Sun Storage 2500-M2 Arrays Hardware Installation Guide
Get started with the management software Sun Storage Common Array Manager Quick Start Guide
Install the management software Sun Storage Common Array Manager Installation and Setup Guide
Manage the array Sun Storage Common Array Manager Array Administration Guide
Sun Storage Common Array Manager CLI Guide
Documentation http://www.oracle.com/technetwork/indexes/documentation/index.html
Support https://support.oracle.com
Training https://education.oracle.com
Copyright © 2011, Oracle and/or its affiliates. All rights reserved.
Copyright © 2011, Oracle et/ou ses affiliés. Tous droits réservés.
Part No.: E20738-01
Mfg No.: 7010621
June 2011
