User’s Manual

SUN-OCC-576SMC

Outdoor Fiber Optic Cross-connect Cabinets

www.suntelecom.cn • +86-21-60138638 • ics@suntelecom.cn

NOTICE

Trademarks

All trademarks mentioned in this manual are registered

property of our company.

Explanation

The content of this manual is subject to our explanation.

Fiber Optic Solutions Provider 1/8

www.suntelecom.cn • +86-21-60138638 • ics@suntelecom.cn

1 Feature and specification

Feature

Cabinets with SMC material: heat insulation, waterproof and good

corrosion resistance

High performance rubber seals: effective rain and dust proof for outdoor

environment

Modules individually removable: easy to construct and maintain

Reliable cable fixing and grounding protection devices

Safe and reliable fiber optic storage and protection

Specification

Parameters

Specification

Model

SUN-OCC-SMC576

Max. No. of Cores

576

Max. No. of Splitters

Cabinet Material

SMC

Adapter Panel

FC square, SC, DLC (SC type), (ST and FC

small D type can be customized)

Insulation Resistance

(MΩ)

1000 @500V (DC)

Withstanding Voltage

(V/min)

3000 (DC), no breakdown, no flashover

Installation Type

Ground

Protection Rating

IP65

Operating

Temperature (°C)

-40~ +60

Dimensions (mm)

1450(H) x 750(W) ×540(D)

Weight (kg)

159

Fiber Optic Solutions Provider 2/8

www.suntelecom.cn • +86-21-60138638 • ics@suntelecom.cn

2 The installation of the cabinet

2.1 The installation and debugging of the cement

2.1.1 Prefabricate the cement as picture 1 below.

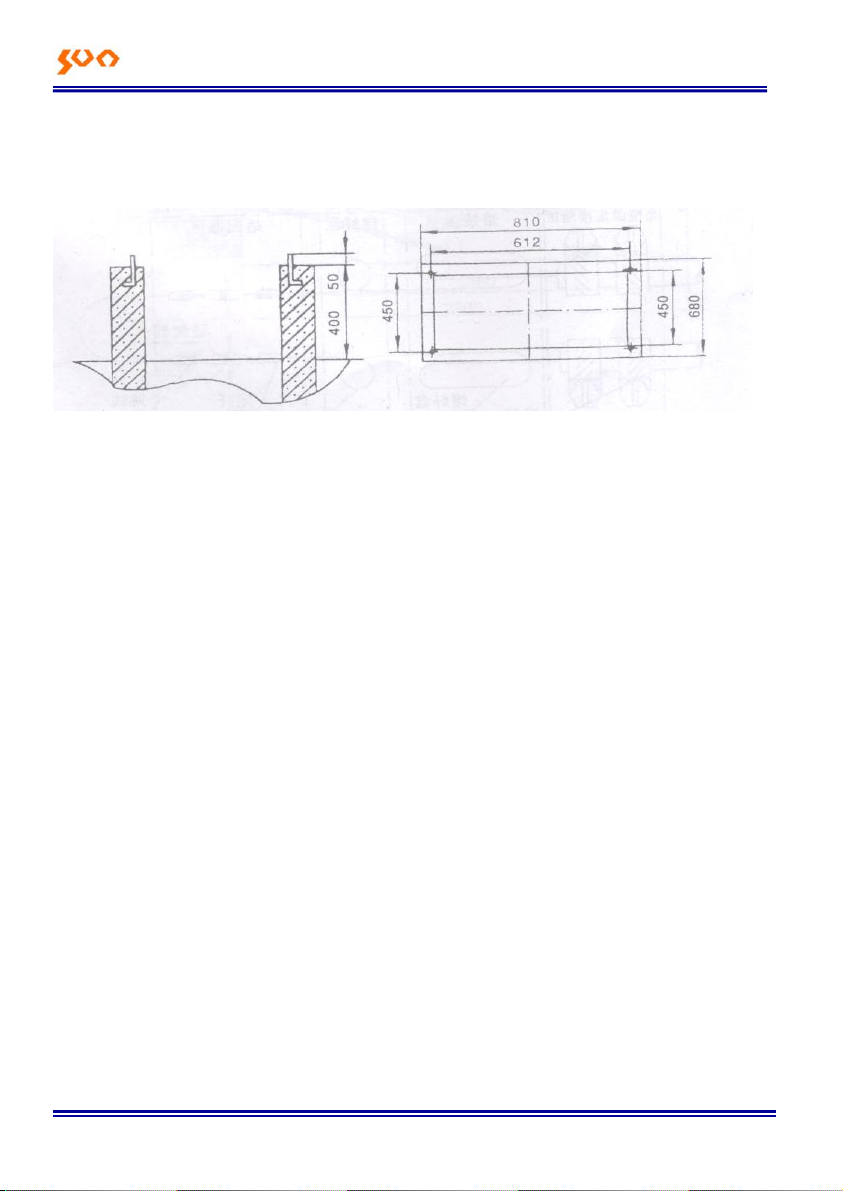

Sketch of the prefabricated cement

Dimension of the cement(H*L*W): 810mm×680mm×400mm

Leave a 550mm×450mm×400mm hole for the wire to entry in the

foundation center.

2.1.2. Pre-embed ground screws and ensure the center length of the ground

screw to be 612mm ×450mm and at the same time the screw is 50mm above

ground. (The expansion bolt is also available here.)

2.1.3. Put the cabinet on the cement and make sure the fixing hole is aligned

to the ground screw.

2.1.4. In the case of the existing cement, four M17×100 expansion screws is

enough to do the fixing.

2.2 The installation and the debugging of the cabinet base

When adopt matched-installation, the base can be fixed on the cement first

according to the actually situation and then connected to fixing base of the

cabinet.

3 Use and maintenance

3.1 Working principle of the cabinet see picture 2.

Fiber Optic Solutions Provider 3/8

www.suntelecom.cn • +86-21-60138638 • ics@suntelecom.cn

Picture 2

3.2 Strip fiber cable

3.2.1 Strip the fiber cable from where is 2800mm away from the end to strip.

3.2.2 Cut crosswise the outer sheath before stripping with the special stripping

knife and carve scratch on the steel strip (but not cut) and then gently bend it

back and forth until it break. Remove the disconnected steel strip together

with the outer sheath to expose the integrated aluminum sheath.

3.2.3 Take two checking rings and one hose clamp, whose diameter is similar

with the diameter of the fiber cable and put it into the fiber cable in turn.

3.2.4 Starting at the end of the integrated aluminum sheath, cut 1800mm of

the PR inner sheath and LAP layer and remove the sheath. Be patient to

avoid damaging the fiber loose tube.

3.2.5 Lengthwise cut 30mm along the sheath direction at the integrated

aluminum sheath breaking point and then crosswise cut 10mm. at this time

you will see the L-shaped incision as picture 4 shows.

3.2.6 Cut the winding wire and wrapping tape, and round up the aramid cord.

Leave 150mm for the wrapping tape and aramid cord.

Fiber Optic Solutions Provider 4/8

www.suntelecom.cn • +86-21-60138638 • ics@suntelecom.cn

Picture 3

3.2.7 Clean up the optical fiber loose tube, strength member and wrapping

cord. Please wipe outwards from integrated aluminum sheath breaking point,

opposite direction is prohibited, to avoid the loose tube breaking. It is

forbidden to use gasoline and other flammable solvent scrubbing in case of a

fire.

3.2.8 The fiber loose tube is bent caused by wring. Straighten the tube with

electric hair drier and avoid overheating to prevent the loose tube from

softening deformation.

3.2.9. Crosswise carve a circle scratch on the loose tube surface with the

cutting knife and the carving point is 450mm away from the integrated

aluminum sheath breaking end. Gently break the loose tube in the scratched

point and remove it. Please don’t cut the loose tube in case of the damage of

the optical fiber.

3.2.10. Clean up the filling gel of the optical fiber. Please along the loose

tube-fiber end direction when wipe and the opposite direction is forbidden.

3.2.11. If necessary, you can stick the loose tube and fiber can be sticked

3.3 The fix and grounding of the cable inlet device

3.3.1 Put the cable into the device through the bottom of the cabinet and then

into the cable fixing and grounding protection device

3.3.2 Strip the cable from 100mm ahead from where the hose hoops fixed at

with the special cable stripping knife and protect the fiber with sheath. The

length of stripping should be from 100mm to 1000mm.

Fiber Optic Solutions Provider 5/8

www.suntelecom.cn • +86-21-60138638 • ics@suntelecom.cn

3.3.3 Fix the armored fiber cable to the cable fixed board with hose clamp and

fix the strength member to the grounding copper column.

3.3.4 Connect the ground wire is to the cable fixing plate, and then connect it

with room ground.

3.4 The cabinet adopts combinations step rubber bushing for different

diameter cable into the box. The open aperture of the rubber bushings

should be at least 2mm smaller than the diameter of the fiber cable.

3.5 Thread the stripped fiber into the serpentine hose, and fix the serpentine

hose on the binding wire board and then introduce into the splice tray

according to the natural curvature.

3.6 Thread the optical fiber splice protection sleeves into the fiber core, and

then splice the ends of the fiber core with the ends of the pigtail core

and then drive them into the splice tray. (Each splice tray can splice 12

single -core optical fiber.)

3.7 Introduce the spliced pigtail to the patch panel and insert it to

corresponding adapter.

3.8 Fiber-optic lines are connected and scheduled through cross-connection

with the pigtails. The best length of the pigtail is from 1meter to 1.5

meter.

3.9 When does not require scheduling, the trunk cable and drop cable can

be placed directly into the splice tray for protection after being spliced.

4 Notes

4.1 This cabinet is suitable for the connection, distribution and dispatch of

outdoor cable. It is supposed to be fixed on the firm fixing base for easy

installation and dispatch.

4.2 There is an air cleft between the cabinet border and the baseboard to

keep the inside of the cabinet dry. Do not block it during the installation.

Fiber Optic Solutions Provider 6/8

www.suntelecom.cn • +86-21-60138638 • ics@suntelecom.cn

4.3 4.3 Keep the excess part of the fiber cable bending naturally and the

bending radius should be 20 times bigger than the diameter of the fiber

cable.

4.4 The opening direction (left or right) of the cabinet is up to the user. As

long as the positioning pin is removed, you can change the opening just

by rotating the door 180 degree.

4.5 The lock hole of the box door is equipped with a stainless steel

protective cover. Close the cover to prevent the hole was blocked after

installation.

4.6 Be careful when operating the optical fiber to avoid piercing the skin and

eyes.

4.7 You are advised not to look directly at the fiber or the end-face of the

fiber connector during the light energy was transmitted optically unless

the safe energy output is guaranteed.

5 Packing, transportation and storage

5.1 Packing

The packing of the device comply with the packing specification with

measurement to proof damp and shock. The package is printed with rain,

moisture, shock and direction signs.

5.2 Transportation

The device is suitable for all kinds of transportation. Keep the temperature at

-25℃~+55℃and relative humidity less than

85％（at +30℃）. When the temperature is above +30 ℃or in rainy

days ,prepare awnings to avoid products directly affected by sunlight or rain

shower. Handling and carrying the products according to the transport

operation mark.

5.3 Storage

Do not put overweight items on the top of the cabinet. The treasury acidic,

alkaline of the air or other harmful gases should comply with environmental

requirements in the warehouse. and keep the indoor temperature between

-25 ℃~ +55 ℃and the relative humidity less than 85% (+30 ℃pm).

Fiber Optic Solutions Provider 7/8

www.suntelecom.cn • +86-21-60138638 • ics@suntelecom.cn

An important message from Sun Telecom

We guarantee that any information you supply will remain confidential.

By returning this card, you will automatically be notified about updates,

modifications, and recalibration.

Warranty Registration Card

Serial Number:

Model Number:

Date of Purchase:

Company Name:

CompanyAddress:

TEL: FAX:

E-mail:

Note: Please fax this note within one month from the date of receiving

units.

YOUR OPINION

Do you have any comments on the quality of this product or the service from

us?

Fiber Optic Solutions Provider 8/8

www.suntelecom.cn • +86-21-60138638 • ics@suntelecom.cn

SHANGHAI SUN TELECOMMUNICATION CO., LTD.

Building No.145, Lane 666 Xianing Road,

Jinshan Industrial Park, Shanghai 201506 China

Tel: +86 21 60138638 Fax: +86 21 60138635 - 401

E-mail: ics@suntelecom.cn

http: //www.suntelecom.cn/

Table des matières

Autres manuels Sun Microsystems Stockage

Sun Microsystems

Sun Microsystems StorEdge L11000 Manuel utilisateur

Sun Microsystems

Sun Microsystems StorEdge 3510 Manuel utilisateur

Sun Microsystems

Sun Microsystems StorEdge D2 Guide de configuration

Sun Microsystems

Sun Microsystems StorEdge 6130 Manuel utilisateur

Sun Microsystems

Sun Microsystems StorEdge 3900 Series Manuel utilisateur

Sun Microsystems

Sun Microsystems SPARCstorage Manuel utilisateur

Sun Microsystems

Sun Microsystems Sun StorEdge T3 Manuel utilisateur

Sun Microsystems

Sun Microsystems ZFS Manuel utilisateur

Sun Microsystems

Sun Microsystems Blade 6000 Manuel utilisateur

Sun Microsystems

Sun Microsystems Sun StorEdge 5310 NAS Instructions d'utilisation

Sun Microsystems

Sun Microsystems Ultra Enterprise 6000 Systems Mode d'emploi

Sun Microsystems

Sun Microsystems StorEdge 3900 Series Manuel utilisateur

Sun Microsystems

Sun Microsystems StorEdge N8400 Manuel utilisateur

Sun Microsystems

Sun Microsystems SPARCstorage Library Manuel utilisateur

Sun Microsystems

Sun Microsystems Sun StorEdge 5310 Comment utiliser

Sun Microsystems

Sun Microsystems Sun Blade 100 Manuel utilisateur

Sun Microsystems

Sun Microsystems StorEdge 5210 Manuel utilisateur

Sun Microsystems

Sun Microsystems StorEdge T3+ Manuel utilisateur

Sun Microsystems

Sun Microsystems StorEdge 6920 System Instructions originales

Sun Microsystems

Sun Microsystems SUN BLADE 150 Manuel utilisateur

Sun Microsystems

Sun Microsystems 2.1 Gbyte 7200 rpm Manuel utilisateur

Sun Microsystems

Sun Microsystems Sun Enterprise 10000 Manuel utilisateur

Sun Microsystems

Sun Microsystems Netra st D130 Guide de démarrage rapide

Sun Microsystems

Sun Microsystems Sun StorEdge 3900 Series Mode d'emploi

Manuels Stockage populaires d'autres marques

QNAP

QNAP TS 32PXU Series Manuel utilisateur

LaCie

LaCie RUGGED RAID Manuel utilisateur

Freecom

Freecom CLS DOCK Manuel utilisateur

PNY

PNY Attache P-FD64MBATT3 Manuel utilisateur

HP StorageWorks MSL2024 Manuel utilisateur

OLT

OLT 6x6 Maximizer Manuel utilisateur

Transcend

Transcend JetFlash 160 Manuel utilisateur

LaCie

LaCie RUGGED MINI Manuel utilisateur

Thunderbolt

Thunderbolt 600 Manuel utilisateur

Panasonic

Panasonic LB-DH8 series Manuel

Intel

Intel RAID High Availability Manuel utilisateur

LaCie

LaCie 12big Thunderbolt 3 Manuel utilisateur

Spectra Logic

Spectra Logic T-Series Spectra T50e Manuel utilisateur

Panasonic

Panasonic LKM-F931-1 Manuel utilisateur

Tabernus

Tabernus Enterprise Erase E2400 Manuel utilisateur

Rocstor

Rocstor COMMANDER 3F series Manuel utilisateur

HP P9000 Manuel utilisateur

Western Digital

Western Digital Ultrastar Data60 Manuel utilisateur
