Sun Enterprise™10000
System Dual Grid Power
Option Installation Guide
Please
Recycle
Copyright 2000 Sun Microsystems, Inc., 901 San Antonio Road, Palo Alto, CA 94303-4900 USA. All rights reserved.
This product or document is protected by copyright and distributed under licenses restricting its use, copying, distribution, and decompilation.
No part of this product or document may be reproduced in any form by any means without prior written authorization of Sun and its licensors,
if any. Third-party software, including font technology, is copyrighted and licensed from Sun suppliers.
Parts of the product may be derived from Berkeley BSD systems, licensed from the University of California. UNIX is a registered trademark in
the U.S. and other countries, exclusively licensed through X/Open Company, Ltd.
Sun, Sun Microsystems, the Sun logo, AnswerBook2, docs.sun.com, and Solaris are trademarks, registered trademarks, or service marks of Sun
Microsystems, Inc. in the U.S. and other countries. All SPARC trademarks are used under license and are trademarks or registered trademarks
of SPARC International, Inc. in the U.S. and other countries. Products bearing SPARC trademarks are based upon an architecture developed by
Sun Microsystems, Inc.
The OPEN LOOK and Sun™ Graphical User Interface was developed by Sun Microsystems, Inc. for its users and licensees. Sun acknowledges
the pioneering efforts of Xerox in researching and developing the concept of visual or graphical user interfaces for the computer industry. Sun
holds a non-exclusive license from Xerox to the Xerox Graphical User Interface, which license also covers Sun’s licensees who implement OPEN
LOOK GUIs and otherwise comply with Sun’s written license agreements.
RESTRICTEDRIGHTS: Use, duplication, or disclosure by the U.S. Government is subject to restrictions of FAR 52.227-14(g)(2)(6/87) and FAR
52.227-19(6/87), or DFAR 252.227-7015(b)(6/95) and DFAR 227.7202-3(a).
DOCUMENTATION IS PROVIDED “AS IS” AND ALL EXPRESS OR IMPLIED CONDITIONS, REPRESENTATIONS AND WARRANTIES,
INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR NON-
INFRINGEMENT, ARE DISCLAIMED, EXCEPT TO THE EXTENT THAT SUCH DISCLAIMERS ARE HELD TO BE LEGALLY INVALID.
Copyright 2000 Sun Microsystems, Inc., 901 San Antonio Road, Palo Alto, CA 94303-4900 Etats-Unis. Tous droits réservés.
Ce produit ou document est protégé par un copyright et distribué avec des licences qui en restreignent l’utilisation, la copie, la distribution, et la
décompilation. Aucune partie de ce produit ou document ne peut être reproduite sous aucune forme, par quelque moyen que ce soit, sans
l’autorisation préalable et écrite de Sun et de ses bailleurs de licence, s’il y en a. Le logiciel détenu par des tiers, et qui comprend la technologie
relative aux polices de caractères, est protégé par un copyright et licencié par des fournisseurs de Sun.
Des parties de ce produit pourront être dérivées des systèmes Berkeley BSD licenciés par l’Université de Californie. UNIX est une marque
déposée aux Etats-Unis et dans d’autres pays et licenciée exclusivement par X/Open Company, Ltd.
Sun, Sun Microsystems, le logo Sun, AnswerBook2, docs.sun.com, et Solaris sont des marques de fabrique ou des marques déposées, ou
marques de service, de Sun Microsystems, Inc. aux Etats-Unis et dans d’autres pays. Toutes les marques SPARC sont utilisées sous licence et
sont des marques de fabrique ou des marques déposées de SPARC International, Inc. aux Etats-Unis et dans d’autres pays. Les produits portant
les marques SPARC sont basés sur une architecture développée par Sun Microsystems, Inc.
L’interface d’utilisation graphique OPEN LOOK et Sun™ a été développée par Sun Microsystems, Inc. pour ses utilisateurs et licenciés. Sun
reconnaît les efforts de pionniers de Xerox pour la recherche et le développement du concept des interfaces d’utilisation visuelle ou graphique
pour l’industrie de l’informatique. Sun détient une licence non exclusive de Xerox sur l’interface d’utilisation graphique Xerox, cette licence
couvrant également les licenciés de Sun qui mettent en place l’interface d’utilisation graphique OPEN LOOK et qui en outre se conforment aux
licences écrites de Sun.
CETTE PUBLICATION EST FOURNIE "EN L’ETAT" ET AUCUNE GARANTIE, EXPRESSE OU IMPLICITE, N’EST ACCORDEE, Y
COMPRIS DES GARANTIES CONCERNANT LA VALEUR MARCHANDE, L’APTITUDE DE LA PUBLICATION A REPONDRE A UNE
UTILISATION PARTICULIERE, OU LE FAIT QU’ELLE NE SOIT PAS CONTREFAISANTE DE PRODUIT DE TIERS. CE DENI DE
GARANTIE NE S’APPLIQUERAIT PAS, DANS LA MESURE OU IL SERAIT TENU JURIDIQUEMENT NUL ET NON AVENU.
3
Installation Procedure
Pre-Installation Requirements
You must meet the following conditions for the successful installation of the dual
power option:
■SSP version installed that supports dual power grid installation
■Internal boot disks and other peripheral devices (except hub, AC sequencer, and
Remote Power Control Module (RPCM) Shelf) relocated to external cabinet
■Five additional NEMA L6-30Rs (for North America) from another power source
available (four if no AC sequencer is installed)
4Sun Enterprise 10000 Dual Power Grid Installation Guide • March 2000
Pre-Installation Checklist
❏The time for completed installation is determined.
❏The most convenient time to connect power to all Sun Enterprise 10000 power
cables is scheduled.
❏The ultimate location is determined for the equipment that will be removed from
the upper Sun Enterprise 10000 chassis, including but not limited to the
following:
■AC sequencer
■Remote power control shelf
■Hub
■Internal boot disks
Make sure the following tasks are completed during the night before the installation
of the dual power option to ensure a smooth and timely installation procedure:
❏Sun Enterprise 10000 system is shut down.
❏Sun Enterprise 10000 internal circuit breakers are turned off.
❏Circuit breakers to the power cords are turned off.
❏The necessary floor tiles are removed.
❏All power cords from the receptacles are disconnected. Free ends of the cords are
placed on the raised floor.
Note – The free ends of the power cords are placed on the raised floor so that the
cords are seen to be disconnected and the power grid labels can be installed.
❏Facility power modifications are performed.
Installation Procedure 5
Tools, Parts, and Hardware
Tools Required
The following tools are necessary to install the dual power system:
■Screwdriver, #2 Phillips, with 6-inch shank
■Screwdriver, #2 Phillips, with short (stubby) shank and small diameter handle
Note – A powered driver handle with a #2 Phillips tip is suggested for greater ease
of installation.
■Portable light to facilitate viewing inside the chassis
6Sun Enterprise 10000 Dual Power Grid Installation Guide • March 2000
Parts
Hardware
TABLE 1 Parts and Quantity
Part Quantity
4U panel 2
Corner bracket 2
Horizontal rail 4
Trim angle 2
Trim plate 2
Data extension cable 2
Data extension cable screw lock 4
Latch strike bracket 2
Blank panel 2
Hot -swap status module assembly 1
Cable Kit 1
Dual Power Label Set 1
3/16 inch wrench 1
TABLE 2 Hardware and Quantity
Hardware Quantity
10-32x1/2 screws 16
M4 washer square cone 18
M4x10 panhead screw 18
M4x12 Phillips flathead 32
M5x10 black Phillips flathead 6
M4x6 Phillips panhead 2
Installation Procedure 7
Remove Selected Parts
1. Remove the front and rear doors of the chassis.
Remove the side panels if they are accessible. This modification can be performed
through the front and rear of the chassis if necessary.
Note – For this installation procedure, the front of the chassis contains system
boards 8 through 15, and the rear of the chassis contains system boards 0 through 7.
2. Remove all peripherals, hub, AC Sequencer, input cables, Remote Power Control
Modules (RPCM), and glove box (if installed) from the peripheral rack area.
3. Remove the trim panels on the sides opposite the existing power shelves.
Leave the brackets in place.
4. Set aside the existing hardware for use in reassembly.
Remove and Install Power Cables, and
Install Ground Cables
1. Install labels “POWER GRID A” to the upper inside of the existing power shelves
(FIGURE 1).
The labels must also be placed so they are visible when the inside of the chassis is
viewed from the front or back.
2. Remove the existing power cables (red jacket) from four horizontal connectors (J1,
J2, J9, and J10) of the existing power shelves (FIGURE 2).
Hold the screw locks in place with the 3/16 inch wrench while you remove the
connector screws (FIGURE 3). If the screw locks are not held with the wrench, the
loose hardware could fall inside the power shelf where it is difficult to recover.
Discard these cables, they are not needed.
8Sun Enterprise 10000 Dual Power Grid Installation Guide • March 2000
FIGURE 1 Apply Power Grid Labels to Power Shelves—Typical
Power grid labels
Power shelves
Installation Procedure 9

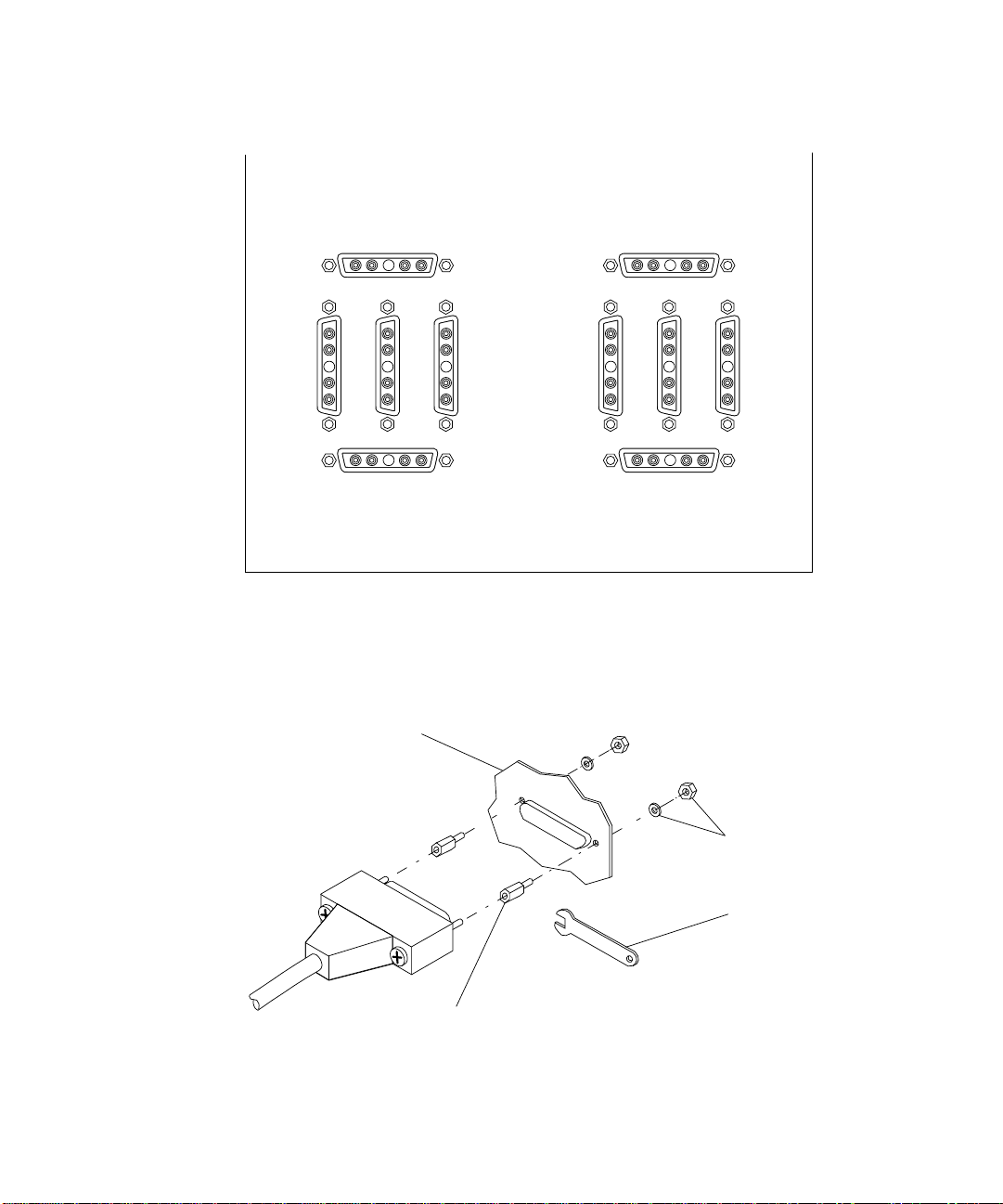

FIGURE 2 Power Connectors on Existing Power Shelf—Typical
FIGURE 3 Screw Lock Retention at Back of Power Shelf
J1
J9
J2
J10
Back of power shelf
3/16 inch wrench
Loose hardware
Screw lock
10 Sun Enterprise 10000 Dual Power Grid Installation Guide • March 2000
3. Ensure that loose connector hardware is installed on connectors before cables are
attached to power shelves.
Put a screw and washer on each side of the connector if they are not installed as
captive hardware.
4. Attach the (black) DC power cables to the lower horizontal connectors J9 and J10
on the existing power shelves (FIGURE 2).
Install the outer connectors first then the inner connectors.
5. Attach the straight connector ends of the (red) DC power cables to the upper
horizontal connectors J1 and J2 on the existing power shelves (FIGURE 2).
Install the outer connectors first then the inner connectors.
6. Attach a ground cable to each vertical rail on the left side of the chassis (FIGURE 4).
Install with a M4x10 screw in the hole that is surrounded by a 0.75 in. diameter area
free of paint. Lay the free ends on the top of the card cage for later use.
FIGURE 4 Ground Point Location—Typical
Unpainted area Vertical rail
around ground point
