Sub-Zero 249RP Instructions d'utilisation
Planning Information
Undercounter Model 249RP
All Refrigerator
1
Dimensions in parentheses are in
millimeters unless otherwise specified.
11/06
Removable wire
shelves
Serial and model
number plate
Stationary door
shelves
Interchangeable
door hinge
Front venting with
removable kickplate
One piece interior Adjustable tempera-
ture control
Four-sided
magnetic gasket
MODEL 249RP
Undercounter all refrigerator unit
EnergyStar qualified
24" (610) depth-true design for a complete built-in look
Door accepts custom panels
Smooth surface, easy-to-clean one piece interior
Interchangeable hinge allows door swing to be reversed
in the field
Front venting with removable kickplate allows unit to be
serviced from the front
Cycle defrost
Solid core door with magnetic gasket and door closer
UL approved for US and Canada
Two, five and twelve year residential warranty—
exclusions apply; warranty information can be found on
our website,subzero.com
Model 249RP
Door closer
Aside from the full-size units
Sub-Zero offers in its Built-In and
Integrated lines of refrigeration, we
round out our product line-up with
aline of traditional Undercounter
refrigeration which meets all of the
exacting standards you have
grown to expect from Sub-Zero.
This all refrigerator model is ideal
when coupled with an automatic
ice maker next to it for the
complete bar environment. It also
could be easily used for children to
have their special soda and treats
located in a space that they have
easy access to.
Planning Information
Undercounter Model 249RP
2
Dimensions may vary by ± 1/8"(3).
Dimensions in parentheses are in
millimeters unless otherwise specified.
SPECIFICATIONS
Model 249RP Undercounter All Refrigerator
Overall Width 23 7/8"(606)
Overall Height 33 13/16"(859)
Overall Depth 24" (610)
Refrigerator Capacity 4.9 cu ft (139 L)
Minimum Height Required 34 1/4"(870)
Door Swing Clearance 25 3/8"(645)
Electrical Requirements 115 V AC, 60 Hz, 15 amp circuit
Annual Energy Usage 333 kWh / $ 31
(based on 9.06 cents per kilowatt hour)
Energy Star Qualified
Shipping Weight 117 lbs (53 kg)
Special Note Door accepts custom wood panels
or panels are available as sales accessories
Specifications are subject to change without notice.
OPTIONAL DOOR PANELS
White Enamel Steel
Almond Enamel Steel
Classic Stainless Steel
ACCESSORIES
Hinge conversion kit
Overlaypanel conversion kit
Accessories are available through your
Sub-Zero dealer. To obtain local dealer
information, visit the Locator section of
our website,subzero.com.
237/8"
(606)
24"
(610)
253/8"
(645)
3313/16"
(859)
24"
(610)
OVERALL DIMENSIONS
Planning Information
Undercounter Model 249RP
Dimensions in parentheses are in
millimeters unless otherwise specified. 3

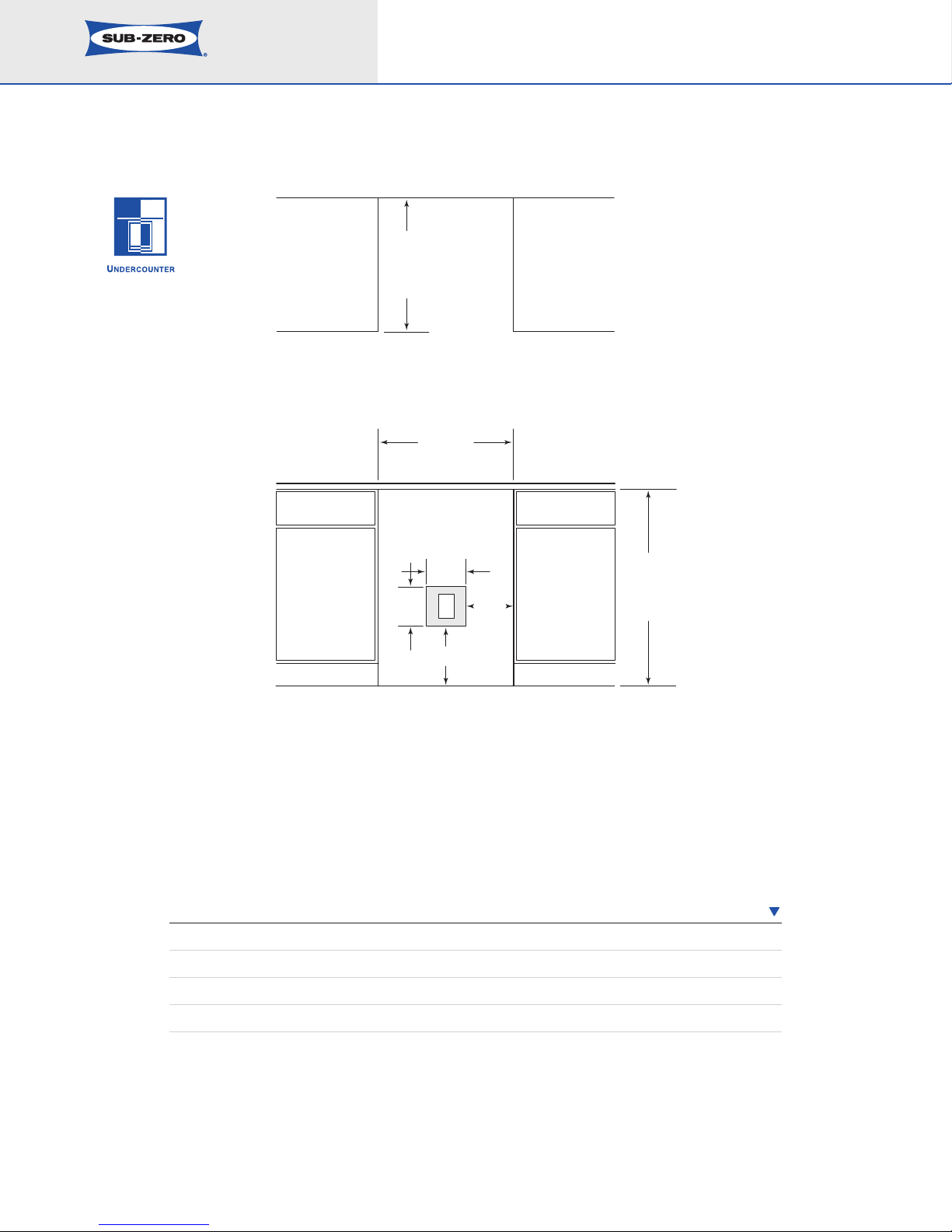

INSTALLATION SPECIFICATIONS
DIMENSIONS
Finished Rough Opening Width 24" (610)
Finished Rough Opening Height 34 1/2"(876)
Finished Rough Opening Depth 24" (610)
Location of Electrical Within shaded area
See Installation Instructions shipped with unit for detailed specifications.
341/2"
(876)
ROUGH
OPENING
HEIGHT
24"(610)
ROUGH OPENING
WIDTH
101/2"(267)
7"
(178)
7"
(178)
E81/2"
(216)
24"
(610)
ROUGH
OPENING
DEPTH
TOP VIEW
FRONT VIEW
LOCATE ELECTRICAL
WITHIN SHADED AREA
Planning Information
Undercounter Model 249RP
Dimensions in parentheses are in
millimeters unless otherwise specified. 4
INSTALLATION NOTES
Refer to the illustrations and specifications
for overall dimensions, finished rough opening
dimensions and installation specifics.
A115 V AC, 60 Hz, 15 amp fused electrical
supply is required. It is recommended that a
separate circuit, serving only this appliance, be
provided.
All Undercounter models are equipped with a
power supply cord with a 3-prong grounding
plug which must be plugged into a mating
3-prong grounding type wall receptacle. Locate
electrical within the shaded area shown in the
illustration on page 3.
You must follow all National Electrical Code
regulations. In addition, be aware of local codes
and ordinances when installing your service.
Refer to the Undercounter Installation
Instructions packed with the appliance, which
provides step-by-step procedures for making
sure the unit is installed properly.
Planning Information
Undercounter Model 249RP
Dimensions in parentheses are in
millimeters unless otherwise specified. 5
FRAMED PANELS
Framed door panels must be 1/4"(6) thick around the
perimeter. If the panel is thicker than 1/4"(6), an edge must
be routed around the panel to ensure a proper fit. Refer to
the illustrations on this page.
IMPORTANT NOTE: The weight of the panel cannot
exceed 20 lbs (9 kg).
FRAMED PANEL DIMENSIONS
WIDTH HEIGHT
Door Panel 23 5/8"(600) 30 " (762)
Handle Recess Location (A) 15" (381)
Maximum Panel Weight 20 lbs (9 kg)
Framed door panel 1/4"(6) thick or less
Framed door panel thicker than 1/4" (6)
PANELS 1/4"(6) THICK OR LESS
1/4"(6) Panel
Trim reveal
1/4"(6) min
PANELS THICKER THAN 1/4"(6)
Trim reveal
1/4"(6) min
Rout to 1/4"(6)
thickness
W
H
A
4"
Framed Door Panel
Planning Information
Undercounter Model 249RP
Dimensions in parentheses are in
millimeters unless otherwise specified. 6
OVERLAY PANEL
The overlay door panel design allows for a decorative
panel to cover the door trim for a more seamless appear-
ance. To achieve this look, the most common way is to
work with three panels – the decorative 3/4"(19) thick
overlay panel, a 0.10" (3) thick spacer panel and a 1/4"(6)
thick backer panel. An accessory kit (OVERPAN) is required
in order to accommodate the proper installation of the
overlay panel. Additional specifications will be provided
with the accessory kit.
IMPORTANT NOTE: An area must be notched out on the
back edge of the overlay panel at both the top and bottom
hinges to avoid interference as shown in illustration on
this page.
Keep in mind that the Sub-Zero door panels have the
potential for hitting adjacent cabinets and/or countertops
when they are opened. You need to be aware of your
surrounding cabinetry and space limitations when using
the overlay units. Refer to the full-scale illustration on
page 7.
You will need to follow the exact dimensions and panel
placement for your model to ensure a proper fit. Refer to
the overlaypanel specifications below.
IMPORTANT NOTE: The weight of the panel assembly
cannot exceed 20 lbs (9 kg).
IMPORTANT NOTE: The total thickness of all panels for an
overlay model must be at least 5/8"(16) thick.
OVERLAY PANEL DIMENSIONS
WIDTH HEIGHT
Door Panel 24" (610) 30 5/16"(770)
Door Spacer 23" (584) 29 3/8"(746)
Door Backer 23 5/8"(600) 30" (762)
Maximum Weight (panel assembly) 20 lbs (9 kg)
5/16"
(8)
Notch
Required
for Hinge
Clearance
(top and bottom)
1"
(25)
OVERLAY PANEL
Rear View
1/8"(3)
Notch required for hinge clearance
Overlay Door Panel
W
H
Planning Information
Undercounter Model 249RP
Dimensions in parentheses are in
millimeters unless otherwise specified. 7
*MODEL 249 OVERLAY
MUST EXTEND A MINIMUM
OF 1-13/16" (46) BEYOND
SURFACE OF ADJOINING
CABINETRY AND MUST BE
1" (25) FROM ADJACENT
CABINETRY TO ALLOW THE
MAXIMUM DOOR SWING
113/16"(46)
3/4"(19)
1"* (25)
DOOR CLOSED
DOOR PANEL
145˚*
DOOR PANEL
DOOR OPEN @ 145˚
145˚ DOOR OPENING
(TOP VIEW)
24" (610)
CABINETRY OPENING
OVERLAY PANEL
