Stuv 30 Compact Mode d’emploi
Replacement of refractories 2
of the grate of the ashpan 3
of the grate shaker 4
of the bolt and the bolt spring of the drum 4
of the drum positioner 5
Rotation of the drum 5
Replacement of the damper and its regulator 6
of the upper tight seal between body and drum 6
of the lower tight seal between body and drum 8
of the door locking mechanism 9
of the panes 10
of the «anti-convection» seals and the pane on the solid door 11
of the door seals 12
List of spare parts 14
maintenance
S 30 maint. EN 10-06
SN 20783 > ...
S30 maint. EN
10-06
2
1
A
B
EF
D
23
6

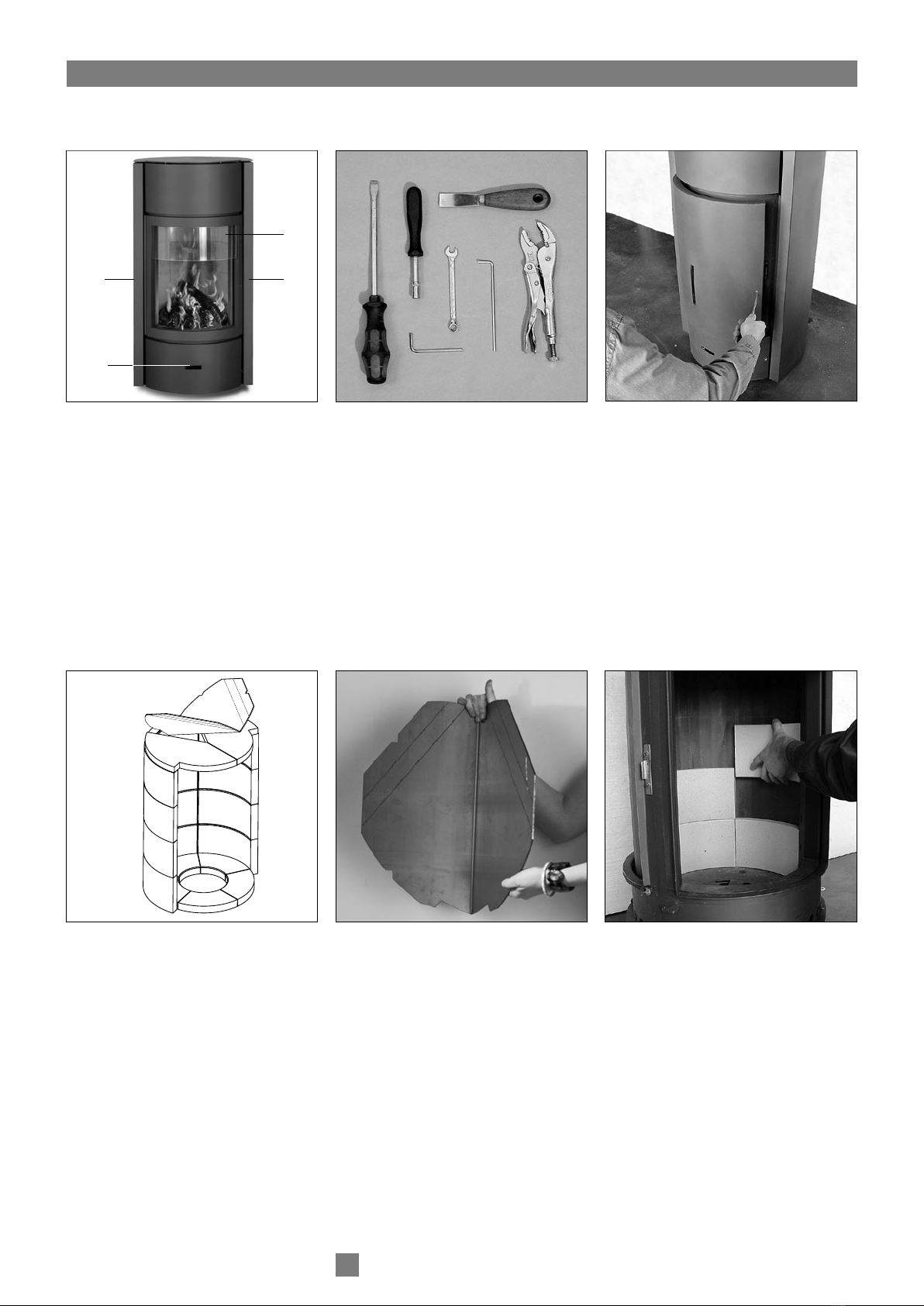

2 Tools needed :
- 1 flat screwdriver
- 1 3 mm and 1 4 mm Allen key
- 1 8 mm open-end spanner
- 1 adjustable locking wrench
- 1 socket-head screwdriver and
7 mm and 8 mm sockets
- 1 spatula
3 Open the door using the cold
handgrip.
6 Re-assembly :
- vertical refractories (4B)
- smoke deflector (5)
- horizontal refractories (4A)
CC
1 General view of the Stûv 30
A front panel
B «open fire» door
C side facings
D combustion chamber
E damper regulator
F ashpan door
Replacement of refractories
5
4 & 5 Remove steel bar supporting
horizontal vermiculite refractors by
simply pushing it out of its notches.
Remove horizontal vermiculite
refractors (4 C) then smoke deflec-
tor (4 D & 5) upwards.
Then remove horizontal refractors from
the bottom of the hearth which are lose
(4 A).
Remove the smoke deflector at least
once a year to prevent soot clogging
the smoke outlet.
4
A 5 parts
B 12 parts
C 2 parts
B
D
A
C
B
S30 maint. EN
10-06
3
2
2 Open a door.
Take out the 2 front refractories.
4 & 5 Detach the 3 parts making up the grate. Position the support for fixed
lower grate. the three lugs should fit into the half-moons cut out of the bot-
tom of the fireplace. Be careful : the opening marked A should be on the
right.
1 Grate mechanism
A black button
of the grate shaker
B removable upper grate
C fixed lower grate
D fork
3 Remove the grate with its pin.
6 Refit refractors. Using the black
button of the grate shaker (photo
1 A & 6 A) turn the fork clockwise
(photo 1 D) as far as it will go.
Then position the removable upper
grate (photo 1B), making sure
to insert its shank into the fork
(photo 1D).
1
A
BC
D
4
A
5
3
1. Disassembly of the grate
2. Re-assembly of the grate
A6
Replacement of the grate of the ashpan
S30 maint. EN
10-06
4
2 Unscrew the 2 parts of the grate
shaker by holding the black button
with your right hand and the fork
with your left hand.
123
1 Open a door. Take out the front
refractories. Remove the grate and
the grate holder.
3 Unscrew the black button of the
metal rod to allow the 2 parts of
that rod to come out through the
inside of the fireplace.
23
4
4 Unscrew the black button to take
out the spring.
2 Unscrew the 2 M5 screws, using
the 8 mm socket spanner.
3 Take the bolt out of the drum.
Replacement of the grate shaker
Replacement of the bolt and the bolt spring of the drum
1
1 Open the ashpan door.
S30 maint. EN
10-06
5
2. Replacing the drum guide bearing
2
2 Using an 8 mm flat spanner, undo
2 screws holding drum positioner
To put the positioner back in place,
insert the positioner and screw the 2
screws with the fan washers. Do not
tighten.
Check that the door is perfectly in line
with the front panel and the ashpan
door, and then tighten the two screws.
The positioner is the fixed afemale component, which allows the bolt to immobilise the drum.
123
1 View of the drum with :
- guide bearing
- support bearing
2 Rotate the drum for easy access
to the bearing (or to the gripping
hook).
3 Insert a flat screwdriver between
the rail and the lower ring of the
drum in order to raise it slightly.
Using the No. 4 Allen spanner,
loosen the screw (2 or 3 turns)
and move the gripping hook
rightwards to take out the bearing
through the hole provided for that
purpose.
12
2 Using the No. 4 Allen spanner,
unscrew the screw located in
the bearing pin. Do not forget
to put the washer back in place
between the bearing and the
lower ring of the drum.
1 Turn the drum to have easy access
to the bearing.
1. Replacement of the drum holder bearing
of the gripping hook
2’
2’
Replacement of the drum positioner
Rotation of the drum
1
1 Open the ashpan door.
S30 maint. EN
10-06
6
Carefully observe the position of the seal before removing it.
1 2
2 Unscrew and remove the front
panel (you can also remove the
side facings to make the operation
easier.
3 Unscrew the 3 hexagonal-headed
screws of the stainless-steel seal
retainer.
3
1 Take out the plates located on the
top of the fireplace.
4
4 Take out the damper through the
inside of the fireplace and its regu-
lator though the outside.
1 2
2 Take out the primary air deflector. 3 Unscrew the screw holding the
damper regulator, using the 8 mm
spud wrench.
3
1 Remove the 2 front refractories.
A
Replacement of the upper tight seal between body and drum
Replacement of the damper and its regulator
S30 maint. EN
10-06
7
56
4 Take out the stainless-steel seal
retainer.
7
7 Remove the 2 front refractories
covering the bottom of the fire-
place.
8
8 Take out the stainless-steel
primary air deflector.
9
9 Remove the 2 vertical protective
sections by raising tahem through
the holes provided for fixing the
barbecue grill.
5 Using an 8 mm open-end spanner
and an 8 mm spud wrench, uns-
crew the bolt that holds the upper
crosspiece in place.
6 Turn the drum 10 cm towards the
right. Remove the upper cross-
piece.
10 11
11 Take out the vertical seal retainers. 12 Take out the worn seal.
12
10 Unscrew the bolts that keep the
vertical seal retainers in place.
To save time, loosen the seal retai-
ner bolts without removing them.
4
S30 maint. EN
10-06
8
Carefully observe the position of the seal before removing it.
13 Fit the new seal with the flexible
part towards the front and the
thin part against the surface of
the fireplace. Fix the left vertical
seal retainer first, tightening only
the lower bolt, then pull the seal
upwards while tightening the
other 2. Do the same with the
vertical seal on the right and then
fit the rest of the seal evenly along
the horizontal part.
Check the tightness of the seal by
rotating the drum several times.
13
5 6
5 Take out the stainless-steel,
primary air deflector.
6 Remove the 2 vertical protective
sections by raising them through the
holes provided for fixing the barbe-
cue grill.
23
3 Turn the drum 10 cm to the right.
Remove the refractories covering
the bottom of the fireplace.
4 Remove the 2 front refractories
covering the bottom of the fire-
place.
4
2 Using an 8 mm open-end spanner
and an 8 mm spud wrench, uns-
crew the bolt that holds the upper
crosspiece in place.
1
1 Open the door slightly. Turn the
drum 10 cm to the right. Raise the
door to remove it from its hinges,
then push it to the left.
1
2
Replacement of the lower tight seal between body and drum
S30 maint. EN
10-06
9
7 Unscrew the Allen screws and M5
nut holding the lower crosspiece.
78 9
9 Take out the seal. For installing
the seal, work in the opposite
direction.
8 Position the drum in the solid
door position, and remove the
door by lifting it off its hinges.
Turn the drum towards the left
to bring the hole (15 mm Ø)
level with the vertical body seal.
Through the hole you can see the
hexagonal-head screw that keeps
the lower horizontal seal retainer
in position. Unscrew it (turn 2 or 3
times). Do the same on the right.
Replacement of the door locking mechanism
12
1 Unscrew the 2 screws, using the 8
mm spud wrench. Fit the new door
striker.
2 Using a socket spanner, undo
2 bolts holding door striker.
Door locking mechanism has two distinct elements :
the striker plate on the drum, and the striker on the door.
S30 maint. EN
10-06
10
1
1
2
23
1 Slightly half-open the door.
4 5 6
5 Replace the window.
2 Turn the drum 10 cm rightwards.
Lift the door to take it off its
hinges, then push it leftwards.
Rest it on a support to keep it
steady.
3 Remove the door lock.
Carefully observe its position !
8
8 Put the door back in place.
6 Tighten the window clamps while
pushing the window so as not to
damage the edge of the window.
Be careful, place the side without
projections facing the window.
7
7 Refit the door lock.
4 Unscrew the clamps that hold the
window in place.
The procedure is the same for the glass door and for the «open fire» door.
