QUESTIONS ON PRODUCT, INSTALLATION, RETURNS? PLEASE CONTACT
1(323)-612-8011support@streamlinebath.com
READ ENTIRE INSTALLATION GUIDE
PRIOR TO INSTALLING THE BATHTUB
THIS BATHTUB SHOULD ONLY BE
INSTALLED BY A CERTIFIED PLUMBER
CAUTION! TWO PEOPLE ARE REQUIRED
TO LIFT THE BATHTUB
CLAWFOOT BATHTUB SERIES
OWNER'S MANUAL &
INSTALLATION GUIDE
These products must be installed by a fully insured and licensed plumber only.
Installation of any product by anyone other than fully insured and licensed plumber shall void limited warranty.
We are not responsible for any local code compliance for this product.
Building and plumbing codes may vary state-to-state.
Streamline shall not be held liable for any and all incidental damages or flood caused due to use of this product.
Streamline shall not be held liable for any and all fees stemming from cost of installation, re-installation, removal,
subsequent damage, or transportation in a case of a product defect.
Please note:
Different bathtub models have different drain & clawfeet models. Please see the next page to determine which
drain or clawfoot model applies to the bathtubmodel that you have purchased.
Silicone
Bathtub
Clawfeet
Adjustable Key Measuring Tape Safety GlassesPencil Level Bar
PRIOR TO INSTALLING
TOOLS REQUIRED
WHAT'S IN THE BOX
Drain
Model: N-DWF-CH
Model: N-DWF-GLD
DRAIN MODEL COMPATIBILITY
FREESTANDING BATHTUB
R-5000-69CICFRD-FM R-5001-69CICFWH-FM R-5020-72CICFWH-FM
R-5160-72CICFRD-FM
R-5101-48CICFWH-FM R-5161-61CICFRD-FM R-5162-72CICFWH-FM
R-5220-67CICFWH-FM
R-5163-61CICFWH-FM R-5221-61CICFWH-FM R-5240-71CICFWH-FM
R-5281-66CICFWH-FM
R-5280-66CICFRD-FM R-5420-67CICFWH-FM
R-5440-65CICFGR-FM
R-5442-65CICFWH-FMR-5441-65CICFRD-FM
R-5501-66CICFWH-FM
R-5460-53CICFWH-FM R-5500-60CICFWH-FM
R-5060-67CICFPR-FM R-5061-67CICFWH-FM R-5100-66CICFWH-FM
N-DWF-CH
N-DWF-GLD
DRAIN DIAGRAMS
No ITEM Qty
1
2
3
4
5
6
7
8
10
11
12
13
14
15
16
17
16
17
9
Cover
Cover gasket
Cartridge
Strainer
Waste upper gasket
Waste lower gasket
Connector
Coupling nut
Nut
Washer
Tee
Pipe
Overflow body
Tapered rubber gasket
Overflow upper gasket
Overflow plate
Pin Bolt
Taic piece
Flange
1
1
1
1
1
1
1
1
1
3
3
1
1
1
1
1
1
1
1
Model: N-DWF-CH
Model: N-DWF-GLD
CLAWFOOT CONFIGURATION
Clawfeet: R-CFL03, R-CFL04, R-CFL06, R-CFL-20 have specific foot placement. Each foot in the set is unique.
Inside each foot is labeled with a letter to help you find the proper location on the tub for installation. Match up the
letters on the clawfeet with the letters on the underside of the tub. The letters on the tub will be the same as what
are on the clawfeet and will match accordingly.
APPLICABLE MODELS
R-CFL01-CH
R-CFL01-WH
R-CFL01-GLD
R-CFL02-CH
R-CFL02-WH
R-CFL02-GLD
R-CFL03-CH
R-CFL03-WH
R-CFL03-GLD
R-CFL04-CH
R-CFL04-WH
R-CFL04-GLD
R-CFL06-CH
R-CFL06-WH
R-CFL06-GLD
R-CFL08-CH
R-CFL08-WH
R-CFL08-GLD
R-CFL10-CH
R-CFL10-WH
R-CFL10-GLD
R-CFL16-CH
R-CFL-20-CHR
R-CFL-20-GLD
R-CFL-20-WH
CLAWFOOT DIAGRAM
ITEMNo. Qty
Adjustable Feet
Claw Feet
Nut
Washer
Rubber Washer
Bolt
1
2
3
4
5
6
4
1
2
3
4
5
6
4
4
4
4
4
BATHTUB INSTALLATION

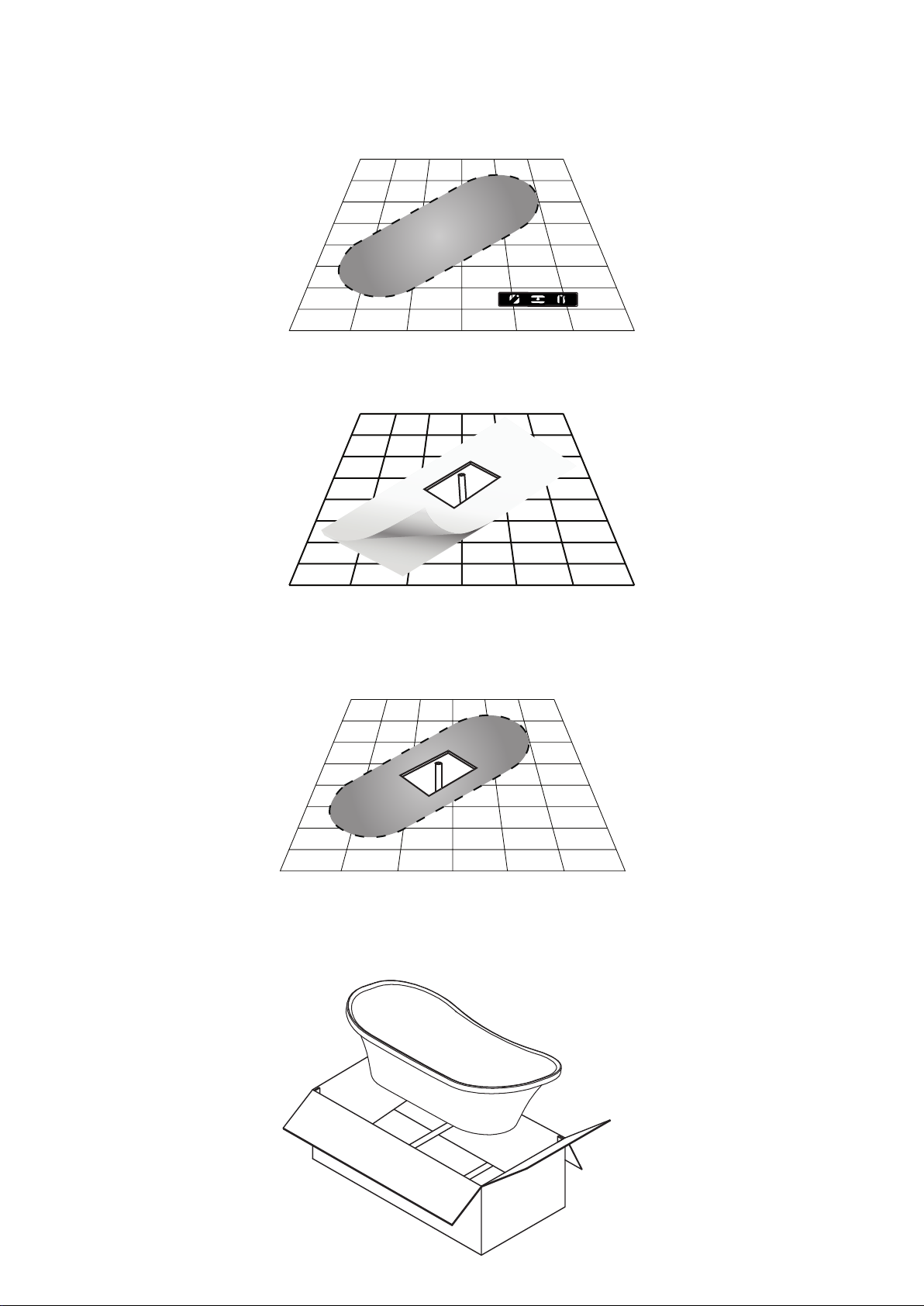

1. Ensure that the floor at the installation site has sufficient floor support and is level.
2. Waterproofing the floor is highly recommended.
3. Determine the location of the drainpipe on the floor by taking measurements of the drain and waste
location underneath the unit. Clean the drain hole area in preparation of setting the drain. The area
should be dry & free from any debris.
4. Remove the bathtub from its box. It is recommended that the bathtub is carried by a minimum of
two people. Ensure to carry and set down the bathtub only in the upside-down position.
5. Gently place the bathtub in the upside-down position on a tarp or cardboard sheet in order to avoid
contact with any rough surface.
6. Take (1) adjustable foot [#1], place it through the hole in the clawfoot [#2],
1
5
2
6
7. Place (1) rubber washer [#5] and place it over the bolt [#6]
8. Take the clawfoot [#2] and place it over over the rubber washer [#5] and bolt [#6].
9. Take one washer [#4] and place it over the clawfoot [#2] and bolt [#6].
2
2
6
5
6
4
9. Take (1) nut [#3] and place it over the the washer [#4].
10. Make sure to adjust the clawfoot so that it fits snug with the bolts on the bathtub. This will help to
ensure that the clawfeet are placed correctly and are functioning properly.
10. Tighten the nut [#3] with a wrench and adjust the clawfoot as needed. Repeat for the other 3 clawfeet.
4
3
11. Take the strainer, place silicone sealant around it, and then place it into the drain hole ensuring
a tight connection with the drain ell & gasket. Use siliconesealant. DO NOT useplumbers putty to seal.
Silicone
Sealant
Strainer
Gasket
Drain Ell
12. Insert thetailpiece into thetrap inlet using the O-ring, coupling nut, & flange. The tailpiece may
need to be cut for properfit. 1''-2'' of the tailpiece shoudlfit inside the trap. Slip the flange over the tailpiece
and slide down to the floor.
O Ring
Coupling Nut
Flange
Trap Inlet
Tailpiece
13. Assemble the tee section to the tailpiece, overflow, & drain ell using the coupling nuts and O-rings
that are provided.
O Ring
Tee
Coupling Nut
