Stollmann BlueHDP+USB Manuel utilisateur
BlueHDP+USB
User Guide
Release r01
BlueHDP+USB
User Guide
Release r01 www.stollmann.de Page 2 of 14
Table of contents
1Introduction .......................................................................................................3
1.1 Product description.......................................................................................3
1.2 Content.........................................................................................................3
1.2.1 LED.....................................................................................................4
1.2.2 Label...................................................................................................5
2Installation.........................................................................................................6
2.1 Procedure of Installation ...............................................................................6
3Usage of the BlueHDP+USB with Continua Enabling Software Library (CESL).7
3.1 Requirements ...............................................................................................7
3.2 Test Setup ....................................................................................................7
3.3 Procedure of Installation ...............................................................................8
3.4 Using the CESL Manager with BlueHDP+USB .............................................8
3.5 Using the CESL Agent with BlueDev+P25/G2/HDP....................................11
4Firmware Upgrade...........................................................................................12
4.1 Stollmann BlueHDP+USB Serial Module Updater.......................................12
4.2 Troubleshooting..........................................................................................13
5History.............................................................................................................14
BlueHDP+USB
User Guide
Release r01 www.stollmann.de Page 3 of 14
1 Introduction
We are very pleased to see that you have purchased a Stollmann product and
would like to express our appreciation.
This documentation is valid for the following product: BlueHDP+USB
Software version 1.402 or later
1.1 Product description
BlueHDP+USB is an active Bluetooth USB dongle. The complete Stollmann
Bluetooth stack is running in the dongle.
The following Bluetooth profiles are supported:
- HDP
- DID
- SPP
1.2 Content
This package contains the following part:
BlueHDP+USB
BlueHDP+USB
User Guide
Release r01 www.stollmann.de Page 4 of 14
1.2.1 LED
The BlueHDP+USB have an LED on the front side.
LED (green)
USB
Connector
The green LED indicates that the BlueHDP+USB is powered correct from the USB
port of the host system. There is no other functionality of the LED.
BlueHDP+USB
User Guide
Release r01 www.stollmann.de Page 5 of 14

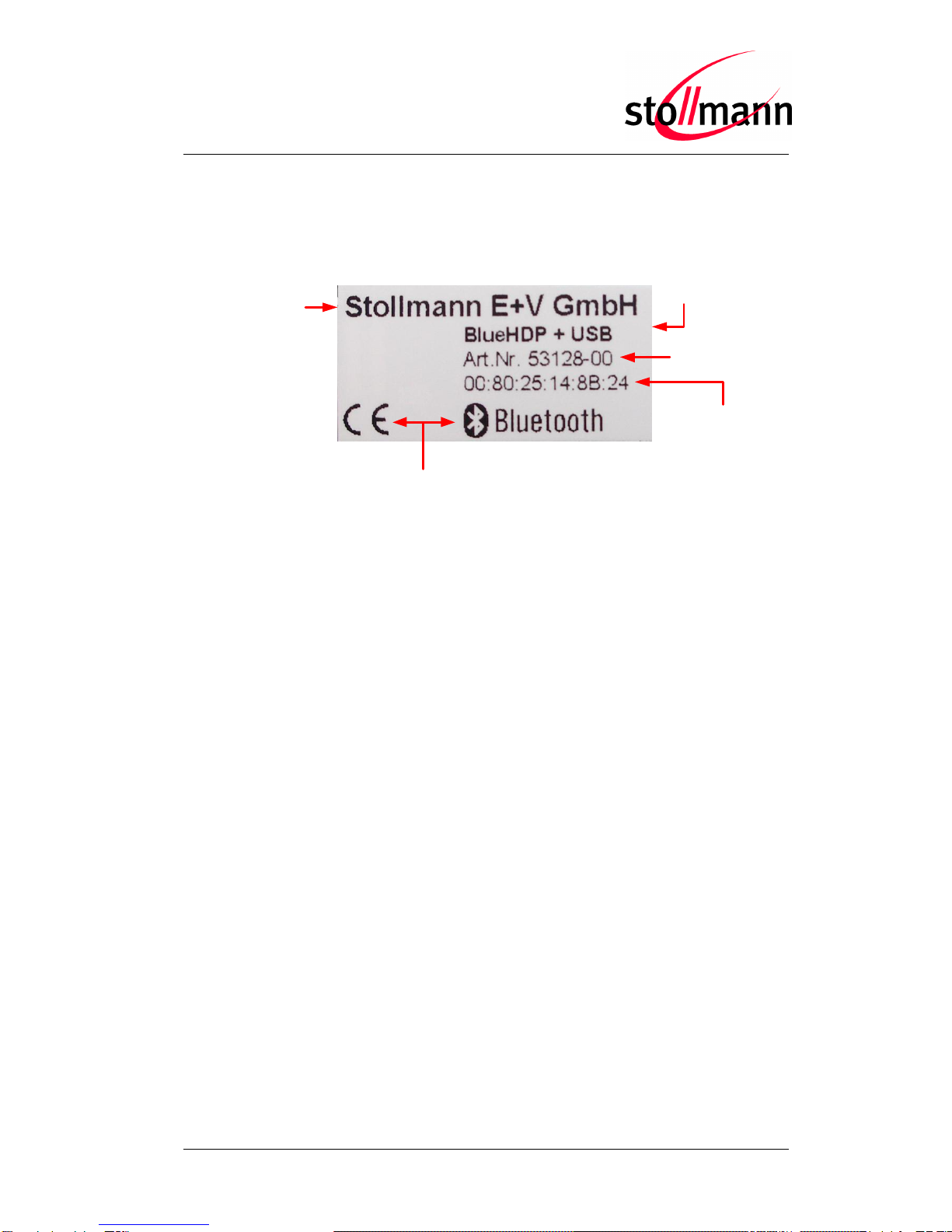

1.2.2 Label
Manufacturer
CE and Bluetooth
Qualification
Product
Name
Part Number
Bluetooth
Address
BlueHDP+USB
User Guide
Release r01 www.stollmann.de Page 6 of 14
2 Installation
2.1 Procedure of Installation
Connect the BlueHDP+USB to a PC USB port and install the Silabs USB to UART
Bridge driver (can be downloaded at
http://www.silabs.com/products/mcu/pages/usbtouartbridgevcpdrivers.aspx).
Find a new COM port in the device manager called “Silicon Labs CP210x USB to
UART Bridge”.
Now the BlueHDP+USB is ready to operate at the assigned COM port.
BlueHDP+USB
User Guide
Release r01 www.stollmann.de Page 7 of 14
3 Usage of the BlueHDP+USB with Continua Enabling
Software Library (CESL)
3.1 Requirements
- BlueHDP+USB with software version 1.402 or later
- CESL binary setup with software version 1.5 or later
- PC with Windows XP, Vista or 7 operating system
3.2 Test Setup
USB Bluetooth
HDP Device
CESL Manager
Stollmann
BlueHDP+USB
BlueHDP+USB
User Guide
Release r01 www.stollmann.de Page 8 of 14
3.3 Procedure of Installation
To operate with BlueHDP+USB and CESL binary software please install the
following software:
- BlueHDP+USB with Silabs USB to UART Bridge CP210x
- CESL binary setup v1.5 or later
After correct installation of BlueHDP+USB with Silabs USB to UART Bridge CP210x
please install the CESL binary software and follow the instructions.
3.4 Using the CESL Manager with BlueHDP+USB
Start the “Continua Manager GUI” application and modify the following parameters
in the “Edit” section:
- “Transport Settings” --> disable USB & TCP Transport
- “Transport Settings” --> enable Bluetooth Transport with according
COM-Port of BlueHDP+USB
- “WAN” --> disable Delivery to WAN Bridge
Now press “Start Transport” (1) to initialize the connected BlueHDP+USB and push
“Discover” (2) to start the device discovery of HDP Bluetooth devices in your area.
BlueHDP+USB
User Guide
Release r01 www.stollmann.de Page 9 of 14
BlueHDP+USB
User Guide
Release r01 www.stollmann.de Page 10 of 14

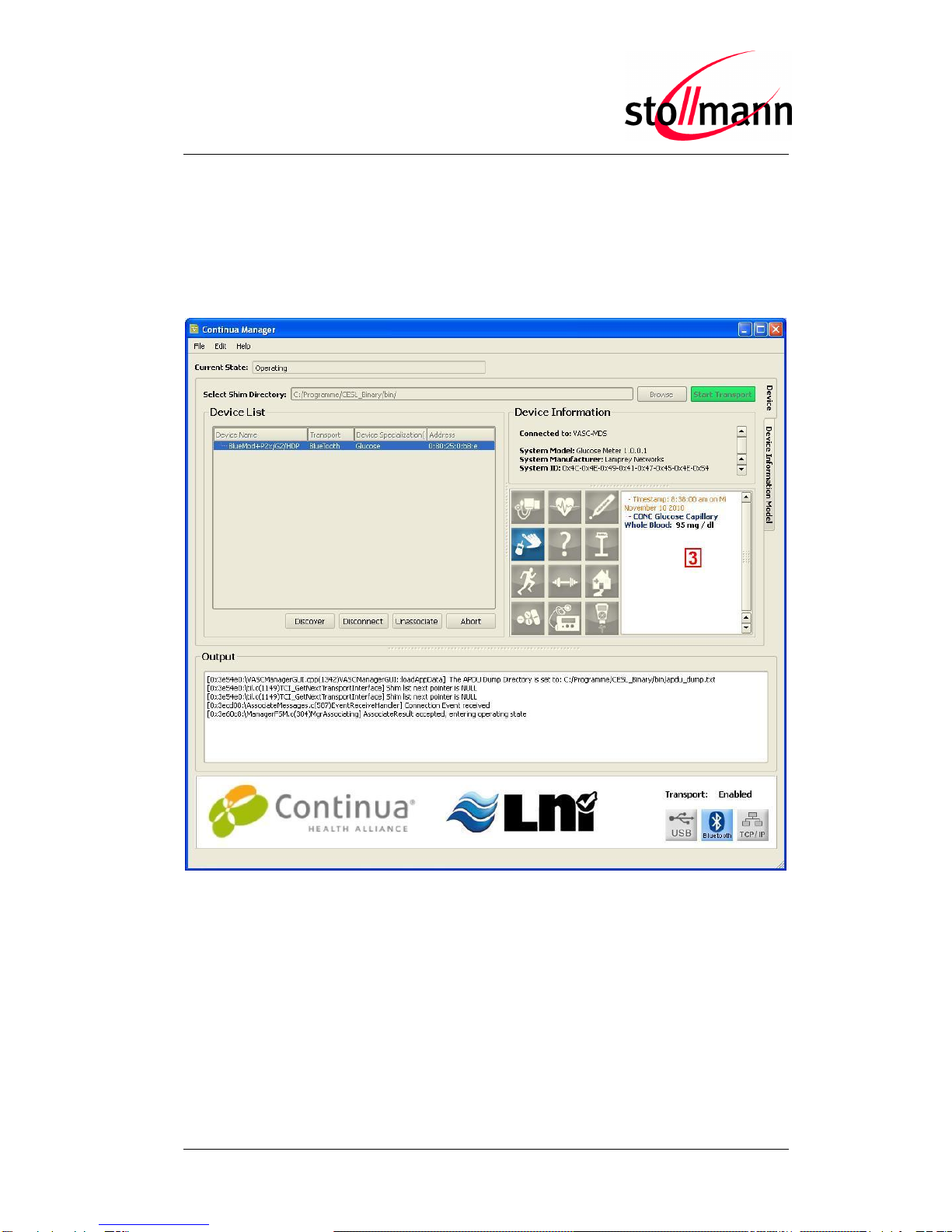

If the remote HDP device is listed in the “Device List” box, press “Connect” to
initialize the connection process.
Now both devices are connected and ready to transfer data (3).
