STODDART SPPL.HSS.01 Manuel utilisateur
Rev: A - 01/02/2018
Model:
SPPL.HSS.01
Installation Manual
Hand Sanitiser Stand
Due to continuous product research and development,
the information contained herein is subject to change without notice.
Page 1 www.stoddart.com.au
SPPL.HSS.01
In the box
Assembly
1 x Stand Body
1 x Stand Base
1 x 1/9 GN Pan
6 x M5 16mm Mushroom Phillips Head Screws
2 x M5 Flat Washers
2 x M5 Nylock Nuts
• Insert 1/9 GN pan into the stand body
• Using a Phillips head screwdriver, secure the stand body to the
stand base with 4 M5 mushroom head screws
2.1.
Hand Sanitiser Dispenser Units
Tools Required
Phillips Head Screwdriver #2
Socket Set and/or Shifting Spanner
Due to continuous product research and development,
the information contained herein is subject to change without notice.
Page 2
www.stoddart.com.au

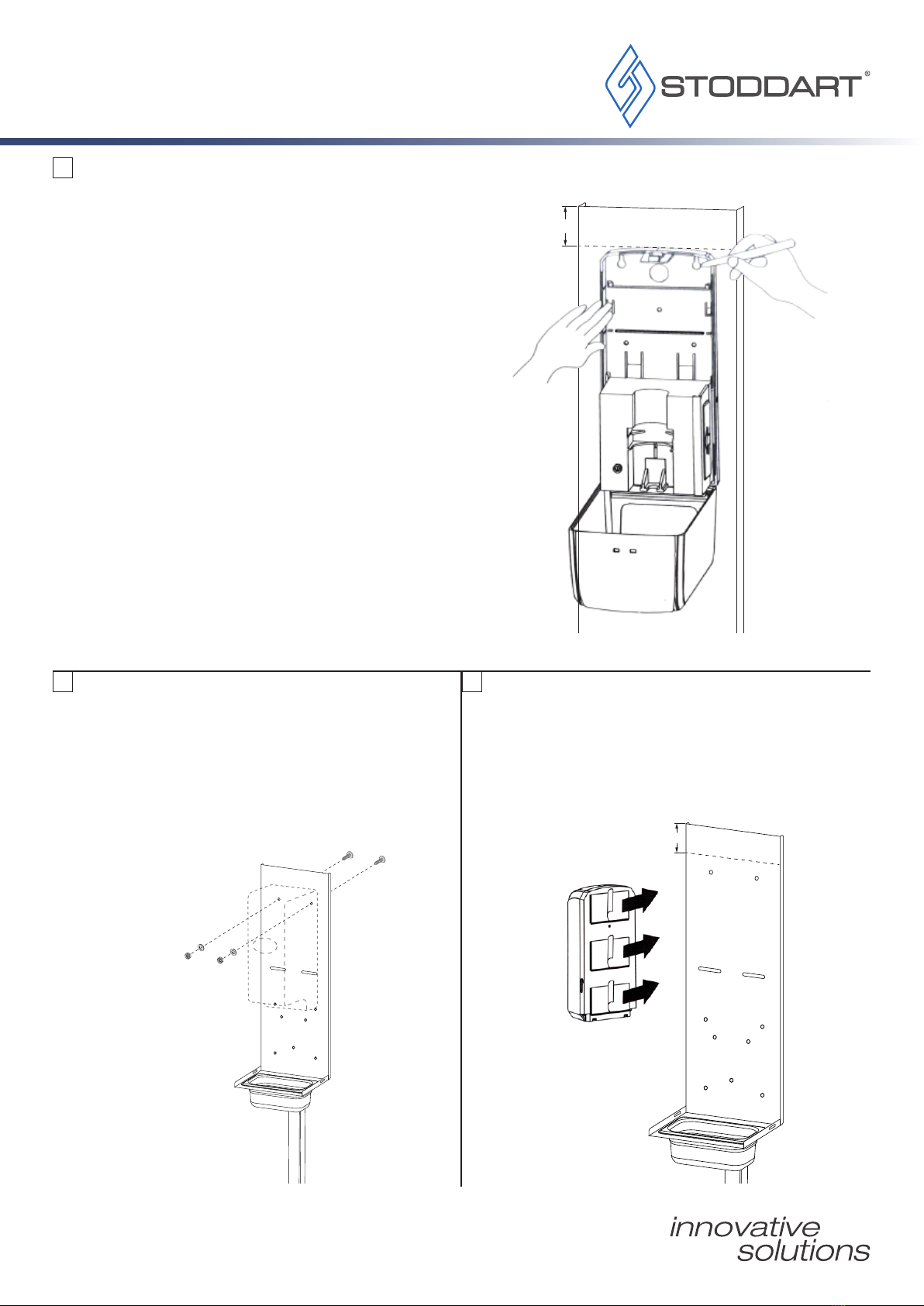

Auto Dispenser Installation - Screw Fixing
Auto Dispenser Installation - Screw Fixing Auto Dispenser Installation - Double Sided Tape
(Early versions of the Dispenser Stand do not include top mounting
holes).
For stands with top mounting holes go to Step 4.
• Measure 40mm from the top edge of the stand
• Open the auto dispenser, align the top of the dispenser with the
40mm mark
• Using a permanent marker, outline the dispenser hole locations
onto the stand
• Centre punch marked holes
• Using a 6.5mm drill bit, drill holes
• Using a Phillips head screwdriver and shifting spanner, secure
the dispenser to the stand (use the top hole locations) with the
supplied M5 mushroom head screws, M5 washers and M5
nylock nuts
• For dispenser units supplied with double sided tape, install the
dispenser as per the instructions supplied by the dispenser
manufacturer
• Measure 40mm from the top edge of the stand
• Apply double sided tape to the back of the dispenser stand
(Tape not supplied by Stoddart)
• Peel backing layer from the double sided tape
• Align the top of the dispenser with the 40mm mark. Apply firm
pressure onto the dispenser ensuring it adheres to the stand
3.
4. 5.
40mm
Hand Sanitiser Dispenser Stand
40mm
www.stoddart.com.au
International
Sales
Tel: +617 3440 7600
Email: [email protected]
Service / Spare Parts
Tel: +617 3440 7600
Email: [email protected]
Email: [email protected]
www.stoddart.co.nz
New Zealand Business Number: 6837694
New Zealand
Sales
Tel: 0800 79 1954
Email: [email protected]
Service / Spare Parts
Tel: 0800 935 714
Email: [email protected]
Email: [email protected]
www.stoddart.com.au
Australian Business Number: 16009690251
Australia
Sales
Tel: 1300 79 1954
Email: [email protected]
Service / Spare Parts
Tel: 1300 307 289
Email: [email protected]
Email: [email protected]
