STM ROCKETBOX 2.0 Manuel utilisateur
POWER
Standard 110V
8 Full Load Amps
5-1/2 ft. Cord Length
SOFTWARE &
UPGRADES
HD 7" Responsive Touch Control Panel
with Data Log and Remote Access Capabilities
OPERATION Patent-Pending Pneumatic Leveling System
CYCLE
CUSTOMIZATION
Single Cycle Operation with
Customizable Run Settings
TRAINING Integrated Training Mode with Step-by-Step Tutorials
VOLUME
CAPACITY 453, 143 or 72 Pre-Rolls Every Cycle
MATERIALS
Encased in SAE 304 Stainless Steel
Heavy Duty Caster Wheels (for transport)
Aluminum & Other Food Grade Components
WEIGHT &
DIMENSIONS
Approximately 300 lbs
Machine Dimensions 24" L x 37" H x 27" W
PAPER
COMPATIBILITY Compatible with 84, 98, and 109 mm cones
COMPLIANCE
OSHA Compliant
UL-Listed Components
100% Food-Grade
Emergency Stop System
LIFE CYCLE 10 Years
Sesh Technologies Manufacturing, Inc.
3223 North Market Street, Spokane, WA 99207
Phone: (509) 204-3164 | Web: www.stmcanna.com
USER MANUAL V1.4
ROCKETBOX 2.0 ™
Table of Contents ......................................... 1
Break-In Procedure ...................................... 2
Components ................................................. 3
Lift Plate ........................................................ 5
Adaptor Plate ............................................... 6
Adjustable Top Tray ..................................... 7
Loading & Unloading Cones ....................... 9
Getting Started ........................................... 10
1
TABLE OF CONTENTS
Operation Of Machine ............................... 11
Touch Screen .............................................. 12
Startup Manual .......................................... 13
Input Density Screen ................................. 14
Parameters/Cycle Run ............................... 15
Density Testing ........................................... 16
Cleaning and Maintenance ....................... 19
Terms of Business ...................................... 20
Thank you for being a valuable and loyal client
of STM. Our goal is to bring our customers the
very best in product quality and customer
service. We value your feedback and use it to
evaluate what to improve and/or update in
our existing product line.
The RocketBox™ uses a direct funneling
system to deliver contaminate-free material
into the selected pre-rolls when used properly.
The Top Tray funnels are directly inserted into
the opening of the pre-roll cones. This only
allows what is being fed onto the Top Tray to
enter the desired pre-rolls in the Bottom Tray.
After setting up the RocketBox™, run the machine through
multiple cycles with each of your tray systems - empty and
unloaded. Watch for and remove any debris in-between the
trays and in the bottom of the shaker box. We take great care
to mitigate this during production, however, due to the intense
vibration some debris may appear.
After un-boxing and the initial dry runs are complete, you may
proceed with regular/normal use of the RocketBox™. Until the
machine has been ran for 400 hours, discard all materials
which have dropped inside the bottom of RocketBox™.
*Run time is located on the start screen.
PLEASE ADHERE TO THE RECOMMENDED
GUIDELINES TO BREAK-IN YOUR ROCKETBOX™
After the RocketBox™ has ran for 400 hours you may reuse the
material that has been collected in the bottom of the shaker
box. Only use this product after visual inspection for debris has
been completed.
Visual inspection should always remain part of the
operation for quality control standards.
2
BREAK-IN PROCEDURE
3
COMPONENTS
6. E-Stop Button3. 7" Touch Screen
1. Rubber Flaps
2. Guide Rod
7. Casters
4. Ports
5. Power Switch 1. Rubber Flaps - Helps
prevent material from falling
into the base of machine.
2. Guide Rods - Threaded rods
to guide and secure the top
and bottom trays into machine.
3. 7" Touch Screen- Used for
the operation of machine.
4. Ports- Ethernet, USB, and
AUX connectivity.
5. Power Switch- Turns the
machine on and off.
6. E-Stop Button- Instantly
turns the machine off in case
of an emergency.
7. Casters - Swiveling caster
wheels for easymobility.
4
COMPONENTS
11. Loading Box
8. Adjustable Top Tray
9. Bottom Tray
12. Reset Brackets
13. Riser Bolts
14. Density Beaker
11. Loading Box- Holds Top/Bottom
Trays for easy loading and unloading
and also guides the marrying of the
trays.
8. Adjustable Top Tray- Used to funnel
material into bottom tray and control
desired fill level of pre-rolls.
9. Bottom Tray- Cone holding tray (84,
98, or 109 mm cones).
12. (2) Reset Brackets- To reset the
adjustable top tray to the default 1/4"
spacing.
13. Riser Bolts - Adjusts the lift plate for
84mm (1-1/4) and 98mm (98 Special)
cones. (x2 sets of 4)
14. Density Beaker- 10 mL graduated
beaker used during density tests.
10. Wingnuts + Washers- Threads onto
guide rods to secure Top and Bottom
Tray into Rocketbox.
10. Wingnuts + Washers
5
LIFT PLATE
Remove the (4) flathead screws with a 5/32
Allen wrench. Then remove the Lift Plate
completely from the shaker box.
With the lift plate removed, install the
desired Riser Bolts (4) onto the fixed riser
bolts on the bottom of the shaker box.
*See Riser Bolt image to right*
Once Riser Bolts are installed, align and re-
install the Lift Plate. Secure in place with the
four (4) flathead screws using a 5/32 Allen
wrench.
*Riser Bolts should ALWAYS be installed UNDER
the lift plate*
ADJUSTING THE LIFT PLATE
The Lift Plate rests on the four (4) default riser bolts
connected to the bottom of the shaker box.
*Because all papers are rolled by hand, this allows
an even fill line from the bottom up.*
The Lift Plate uses four (4) Riser Bolts to adjust for
98mm (A) and 84mm (B) pre-rolls. The shaker box
always comes with four (4) default riser bolts that
are designed for 109mm King Size pre-rolls.
*DO NOT REMOVE THE DEFAULT SPACERS.*
'A' RISER BOLTS 'B' RISER BOLTS
Used for 98mm pre-rolls Used for 84mm pre-rolls
*Please ensure the correct Riser Bolts are installed prior to use.*
6
ADAPTOR PLATE COMPONENTS (OPTIONAL)
2. Flat Washer/ Lock Washer / Nut
3. Flat Head Hex Screws
(Long)
4. Hat Spacers
1. Adaptor Plate
5. Top/Bottom
Tray Guide Rods
1. Adaptor Plate- Allows the
Rocketbox 2.0 to run with two (2)
Mini Trays at once - 143ct. or 72ct.
2. Flat Washer / Lock Washer /
Nut- Secures adaptor plate to
Rocketbox 2.0.
3. Flat Head Hex Scews (Long) -
Secures lift plate to bottom of the
shaker box - These are the
LONGER flat head screws. Utilize a
5/32 Allen wrench to
secure/remove.
4. Hat Spacers- Placed ON TOP of
riser bolts. Only used with adaptor
plate install. This compensates for
the added depth from the adaptor
plate.
5. Guide Rods - Threaded rods to
guide and secure the Top and
Bottom trays into Rocketbox.
7
ADJUSTABLE TOP TRAY
Bottom Tray
Top Tray
The Adjustable Bolt touches the Bottom
Tray with the default 1/4" adjustment.
Ensure all (4/6) bolts are adjusted evenly.
Reset Brackets fit in between the Top
and Bottom Tray. Make sure to keep the
Reset Brackets in a convenient location
for future adjustments.
The RocketBox 2.0 includes (2) removable
Reset Brackets to reset the height of the
Top Tray to the default 1/4" setting.
Included Reset Brackets
Placement of Reset Brackets
Placement of Adjustable Bolt
Loading Box
TRAY ASSEMBLY
8
ADJUSTABLE TOP TRAY

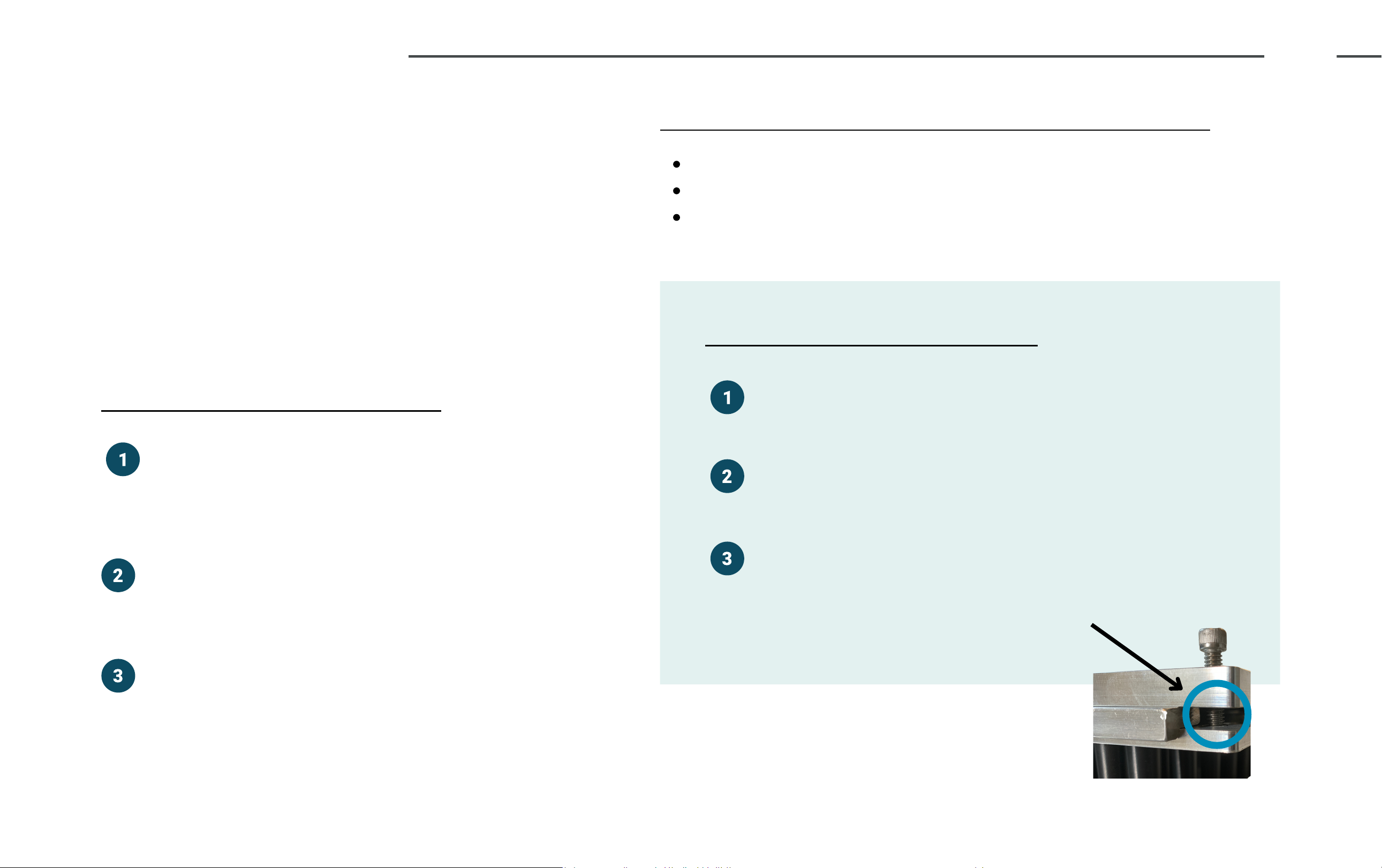

Loosenthe bottom nut on the Adjustment Bolt
with a 7/16" closed-end wrench. Repeat with
each of the (4/6) bottom nuts.
Turn the Adjustment Bolt counter-clockwise to
lower the Top Tray, or clockwise to raise the Top
Tray. Repeat for all (4/6) Adjustment Bolts.
Tighten the Adjustment Bolt bottom nut with
7/16" closed-end wrench to secure into place.
Repeat with all (4/6) bottom nuts.
ADJUSTING THE TOP TRAY
RESETTING THE TOP TRAY
Add the (2) Reset Brackets to each side of the
Bottom Tray. Place Adjustable Top Tray on top.
Loosen all hex bolt lock nuts with a 7/16" wrench.
Repeat for all (4/6) bottom nuts.
Turn the Adjustment Bolts until it just touches the
Bottom Tray. Tighten the hex bolt lock nut to lock
into place. Repeat with all (4/6) bolts. This is the
default 1/4" setting. *See Picture*
The Adjustable Top Tray gives the ability to refine and
control the weight of the pre-rolls. This tool allows
the operator to lower and raise the funnels in and out
of the paper pre-rolls. This will increase or decrease
the overall volume and height of fill lines in the pre-
rolls.
The RocketBox 2.0 is pre-installed with an Adjustable
Top Tray. The default adjustment is set at at¼", easily
adjusted with a 7/16" wrench.
(4/6) ¼” Adjustment Bolts *Dependent on Tray Size*
(4/6) ¼” Bottom Nuts *Dependent on Tray Size*
(2) Removable Reset Brackets
ADJUSTABLE TOP TRAY IS EQUIPPED WITH:
