Mounting instructions for „Multi-functional trainer basic“

Item-No. 55 1009 401

State: 02.12.2015 p. 1

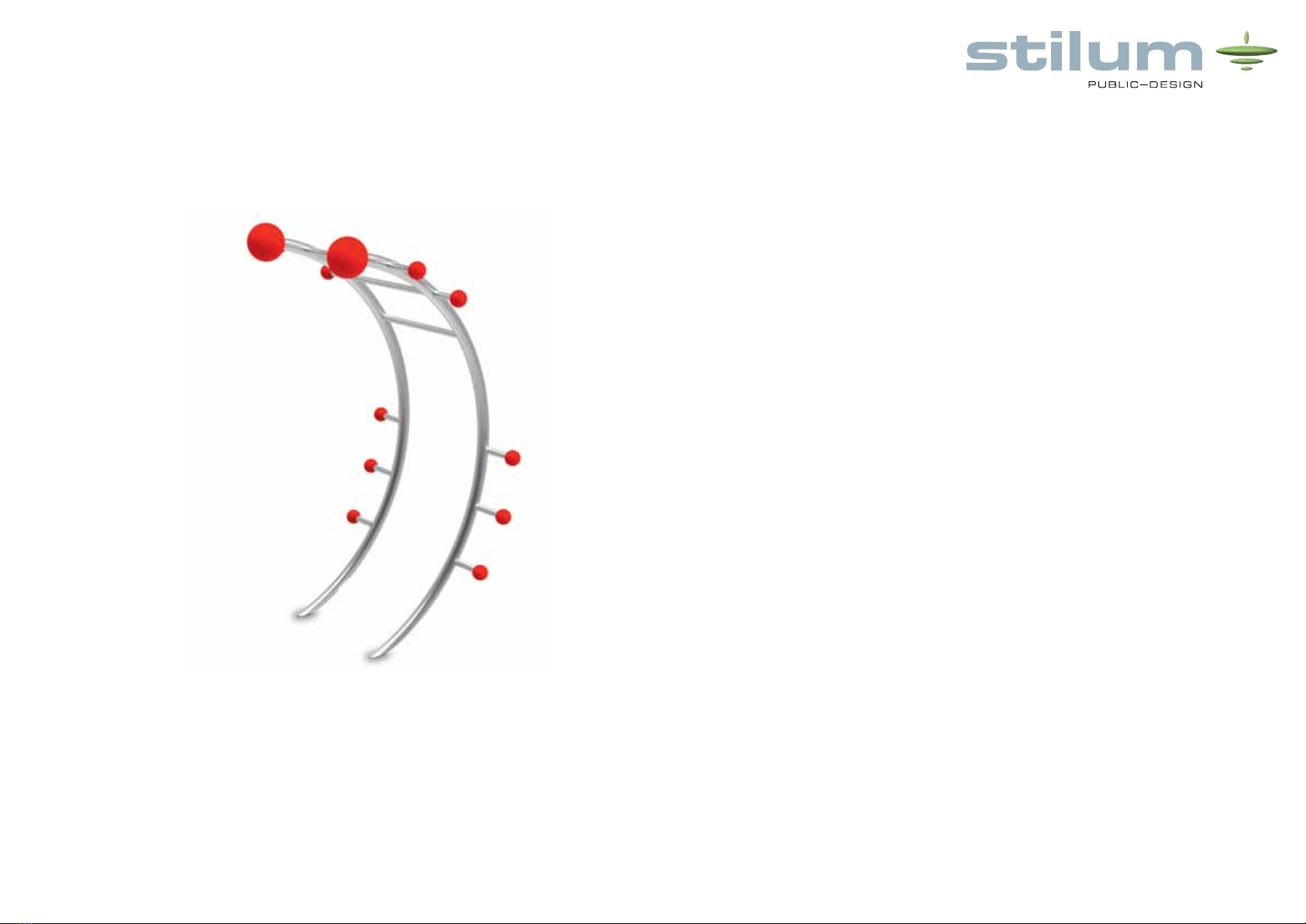

Diagram 1: Overall view of the tness equipment

Mounting instructions for „Multi-functional trainer basic“

Item-No. 55 1009 401

State: 02.12.2015 p. 2

1. Select the tness equipment location in consideration of the required safety

area (see diagramm 3: 5970 x 5890 mm).

2. Carry out excavation work for the foundation anchor as shown in Diagram

2. (1000 x 850 x 550 mm). After excavation, compress the foundation oor.

Note: The tness equipment is built in on the play level.

3. Grout the foundation oor with concrete of quality class B25 up to a

height of appr. 400 mm.

4. After the setting period of 8 -10 days - depending on weather conditions and

foundation size - clean the surface of the foundation, place the pre-mounted

tness equipment onto it and screw the base plate of the tness equipment

onto the foundation anchor with the included heavy-duty dowels.

5. Seal the foundation with the safety cover required for the height of fall indica-

ted.

Critical drop height: about <2000 mm

Recommended surface material: synth. fall protection.

6. Do not allow to use the equipment before the installation has been nished.

1000

400

150

850

Kies

Gravel

Beton

Concrete

Erde

Ground

Einbautiefe = 150mm

Zust.

Änderung

Datum

Name

Bearb.

Gepr.

Norm

Bl.

Allgemein-

toleranzen

DIN 7168-m

Maßstab 1:1

28.11.2014

M.Boehm

Multitrainer Basic

0137-00-00-Multitrainer Basic

0137-00-00

Fertigung

1000

400

150

850

Kies

Gravel

Beton

Concrete

Erde

Ground

Einbautiefe = 150mm

Zust.

Änderung

Datum

Name

Bearb.

Gepr.

Norm

Bl.

Allgemein-

toleranzen

DIN 7168-m

Maßstab 1:1

28.11.2014

M.Boehm

Multitrainer Basic

0137-00-00-Multitrainer Basic

0137-00-00

Fertigung

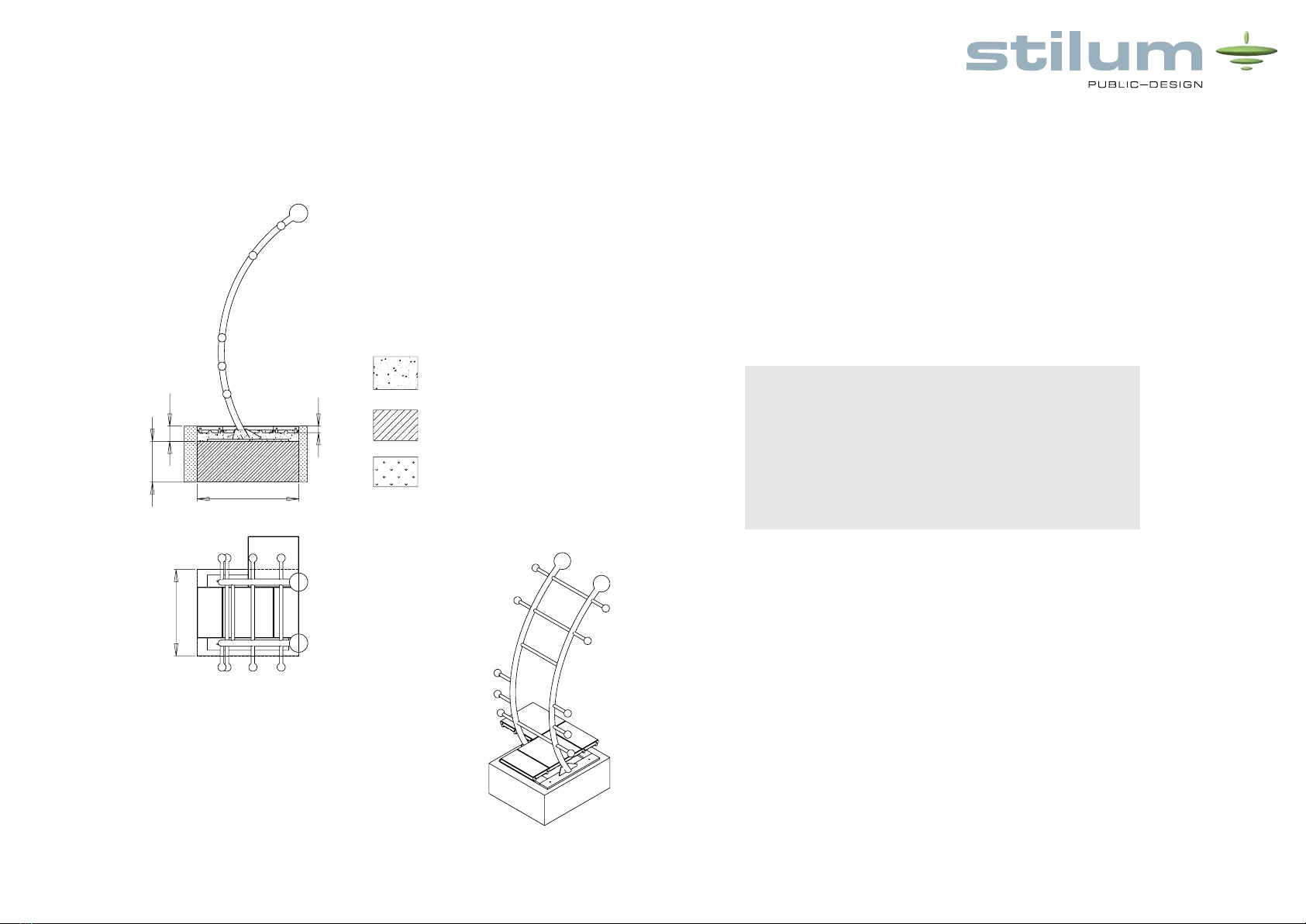

Reinforcement plan: Concrete foundation with rein-

forcement

Main foundation: BSt 500S

Ever 4 stirrups Ø 8 mm lengthwise and cross

Concrete cover h´= 3 cm

Concrete quality class B25

Diagram 2: Side view with dimension details

„Multi-functional trainer basic“

Mounting instructions for „Multi-functional trainer basic“

Item-No. 55 1009 401

State: 02.12.2015 p. 3

7. Attention: If the tness equipment has been incompletely installed or partly

dismantled when carrying out maintenance and repair work, this may lead to

particular risks of injury for the user. For this reason, make clearly visible that

the equipment shall not be used in such cases.

8. NOTE: Fitness equipment, which contain components made of stainless

steel should not come with „normal“ steel parts in contact. Those steel parts

may rub off and leave small steel particles in combination with moisture

brown rust stains.If such corrosion occur on stainless steel parts, they are

ne with an abrasive (240 grit) to remove.

Please take care when transporting and setting up the fact that the compo-

nents are made of stainless steel with no „normal“ steel parts in contact.

9. The tness information sign has to be arranged outside of the minimum zone

because of the risk of injury.

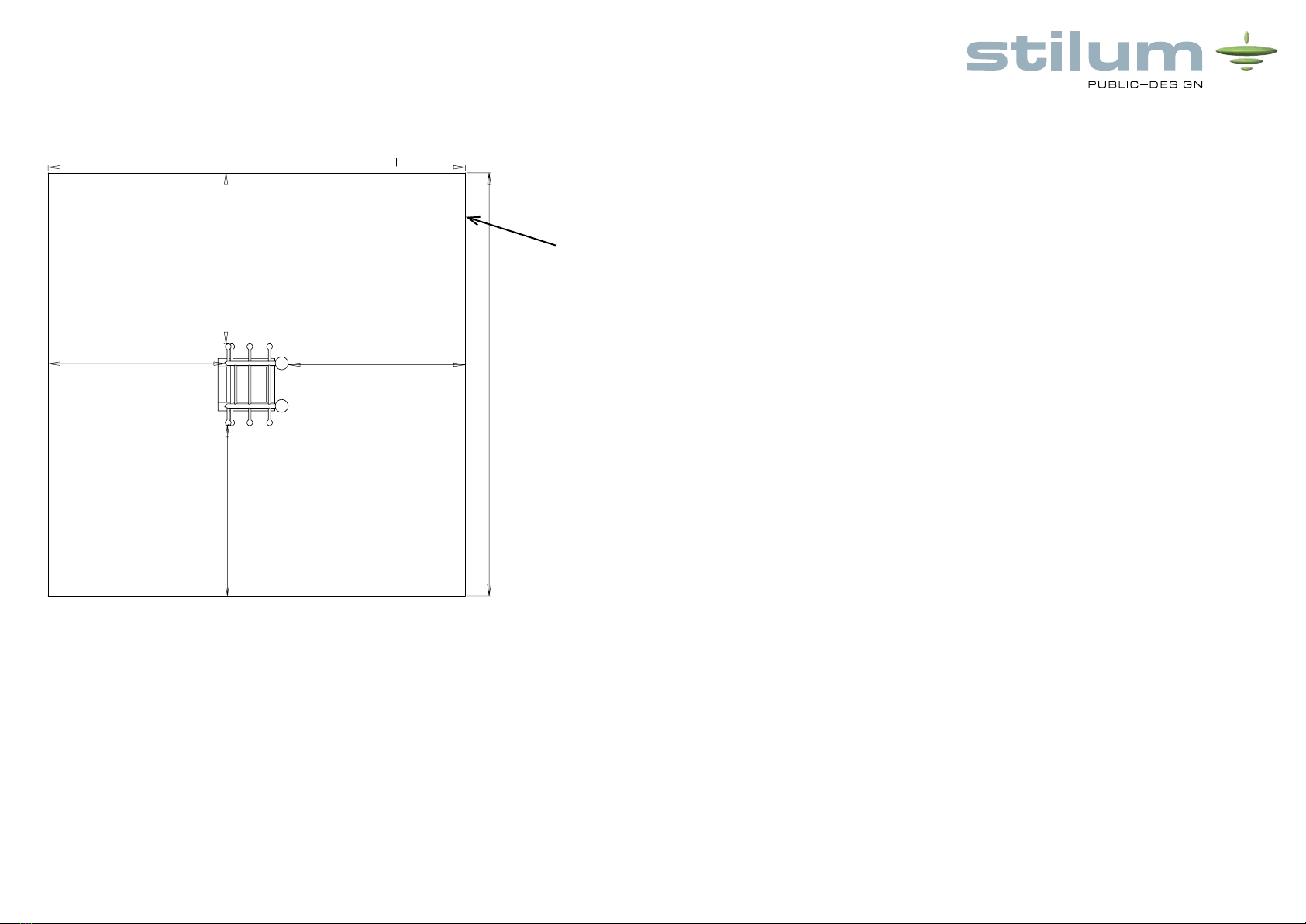

Diagram 3: Top view „Multi-functional trainer“

2503

2410 2410

5882

5967

2500

Freiefallhöhe=1987

Einbautiefe = 150mm

Zust.

Änderung

Datum

Name

Bearb.

Gepr.

Norm

Bl.

Allgemein-

toleranzen

DIN 7168-m

Maßstab 1:1

28.11.2014

M.Boehm

Multitrainer Basic

0137-00-00-Multitrainer Basic

0137-00-00

Fertigung

Extent of the mini-

mum zone = safety

area

Mounting instructions for „Multi-functional trainer basic“

Item-No. 55 1009 401

State: 02.12.2015 p. 4

In order to preserve a good visual appearance of your stilum playground equip-

ment over a long period one should take care of maintenance of the stainless

surface even despite of their corrosion resistance.

Especially areas, which can not be reached by rainfall should be frequently clea-

ned from dirt and deposits due to air pollution and dirt caused by the atmosphere.

Light soiling can easily be romoved by using a high pressure cleaner.

For persistent deposits use a clean cloth moistened with a special liquid cleaner

(e.g. on phosphoric acid) and rinse off with clear water after a short application

time. During cleaning with mild abrasive components, only wipe over stainless

steel surface in polishing direction.

For heavily soiled surfaces, polishes can be used (e.g. for cleaning chrome on

cars) or for greasy and oily dirt alcoholic cleaning agents and solvents (e.g. ethyl

alcohol, isopropyl alcohol or acetone).

However, it should be noted that the dissolved soiling is not spread over the sur-

face again.

Do not use any chlorid or hydrochloric containing cleaning products nor scouring

powder, bleaching - or silver polish cleaner. Cleaning intervals depend on type

and degree of soiling as well as on demands made on optical characteristics.

Therefore cleaning is advisable at intervals of six to twelve months – whereby in

the case of strong soiling it is appropriate to clean the playground equipment at

intervals of 3 to six months.

General Information DIN 79000:2012 05_4. 1:

DIN EN1176 species that tness equipment should not be installed in the imme-

diate vicinity of children’s playground equipment. In cases where they are erected

in playgrounds or similar establishments near children’s playground equipment,

they must be separated by adequate distance, fencing or other structural means

from the general play zone.

Movement area DIN 79000:2012-05_4.3.14.4

The free space allowed as movement area must be a minimum of 2.2m. The

movement area must be clear of fences, and observers should not wait in this

space. The space should be free of all objects that the user could fall on and

be injured. E.g. injuries could be caused by posts that are not ush with adja-

cent parts or by protruding footings. In cases where the equipment has a forced

movement, the free area must be extended about 0.5m. Where tness units are

installed on or adjacent to a wall which is at least as high as the exercise space,

the movement area may be reduced. Movement areas of adjacent equipment

may overlap except for equipment with forced movement.
