Maintenance instructions for monkey bar dux

Item-No. 551521401

State: 28.03.2019 p. 1

Attention!

The maintenance intervals mentioned above are to be understood as recommen-

dations. The frequency of inspections has to be increased accordingly in case of

intensive use of the equipment, extreme weather conditions, installations near the

coast or in places which are often subject to vandalism and depending on the age

of the equipment!

In addition to the maintenance recommendations given by the manufacturer, it is

also absolutely necessary to follow the regulations stipulated in DIN EN 1176-7!

When exchanging or repairing elements, please always use original spare parts

for the sake of operational safety and for liability reasons!

If the equipment has been incompletely installed or partly dismantled when car-

rying out maintenance and repair work, this may lead to particular risks of injury

for the user. For this reason, make clearly visible that the equipment shall not be

used in such cases!

Quarterly operative inspection:

1. Check the play and safety area for obvious safety hazards and cleanliness

(e.g. exposed foundations, missing or damaged parts, missing or insufcient

impact absorption, broken pieces, dirt etc.).

2. Check the area for cleanliness and damages. Protruding elements, if there

are any, have to be removed. If necessary ll up the installation depth to the

mark „ground level“.

3. Check the equipment for cleanliness, correct functioning, wear, stability and

damages. Check all the xing elements and retighten them if necessary. In

case of damages, replace the damaged elements.

Annual main inspection

(in intervals of not more than 12 months):

In addition to the checks of the operative inspection, pay special attention to the

stability of the equipment (which may be affected due to corrosion or vandalism)

and its operational safety, especially after repair works or after mounting new

elements or replacing existing elements. For that purpose, it may be necessary to

uncover the foundations.

Maintenance instructions for monkey bar dux

Item-No. 551521401

State: 28.03.2019 p. 2

In order to preserve a good visual appearance of your stilum-equipment over a

long period one should take care of maintenance of the stainless surface even

despite of their corrosion resistance.

Especially areas, which can not be reached by rainfall should be frequently clea-

ned from dirt and deposits due to air pollution and dirt caused by the atmosphere.

Light soiling can easily be romoved by using a high pressure cleaner.

For persistent deposits use a clean cloth moistened with a special liquid cleaner

(e.g. on phosphoric acid) and rinse off with clear water after a short application

time. During cleaning with mild abrasive components, only wipe over stainless

steel surface in polishing direction.

For heavily soiled surfaces, polishes can be used (e.g. for cleaning chrome on

cars) or for greasy and oily dirt alcoholic cleaning agents and solvents (e.g. ethyl

alcohol, isopropyl alcohol or acetone).

However, it should be noted that the dissolved soiling is not spread over the sur-

face again.

Do not use any chlorid or hydrochloric containing cleaning products nor scouring

powder, bleaching - or silver polish cleaner. Cleaning intervals depend on type

and degree of soiling as well as on demands made on optical characteristics.

Therefore cleaning is advisable at intervals of six to twelve months – whereby in

the case of strong soiling it is appropriate to clean the equipment at intervals of

three to six months.

Spare parts

Spare parts are available for parts that become worn through normal use, for

example balls.

These parts should be regularly inspected every year for wear and tear and re-

placed if necessary.

Ce manuel convient aux modèles suivants

Autres manuels stilum Équipements de jeux et d'aires de jeux

stilum

stilum pila 2 Manuel utilisateur

stilum

stilum retis 2 Manuel utilisateur

stilum

stilum aqua Caractéristiques techniques

stilum

stilum Ascendo 2 Manuel utilisateur

stilum

stilum multiplay ascendo 1B Robinia Manuel utilisateur

stilum

stilum retis 2 Caractéristiques techniques

stilum

stilum vola1 Manuel utilisateur

stilum

stilum supra 3 Manuel utilisateur

stilum

stilum Multifunctional trainer Caractéristiques techniques

stilum

stilum Alva swing Manuel utilisateur

stilum

stilum silva 2 Guide de l'utilisateur

stilum

stilum arobis Manuel utilisateur

stilum

stilum sinio asto Caractéristiques techniques

stilum

stilum altus1 Manuel utilisateur

stilum

stilum quina Manuel utilisateur

stilum

stilum Multifunctional trainer glulam Manuel utilisateur

stilum

stilum circulus 3 Manuel utilisateur

stilum

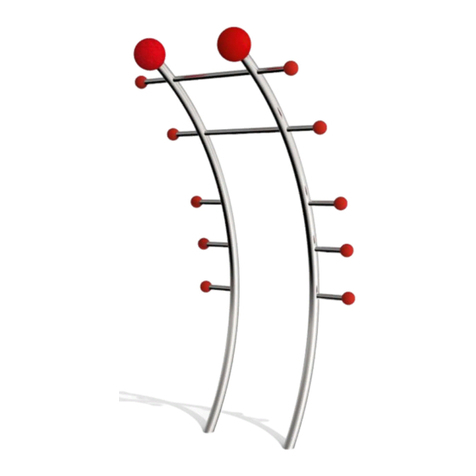

stilum Multi-functional trainer basic Manuel utilisateur
