Stilum Angulus 2 Caractéristiques techniques

Maintenance instruction Multiplay „angulus 2“

Item-No. 51 5522 601

Quarterly operative inspection:

1. Check the play and safety area for obvious safety hazards and cleanliness

(e.g. exposed foundations, missing or damaged parts, missing or insufcient

impact absorption, broken pieces, dirt etc.).

2. Check the play area for cleanliness and damages.

Protruding elements, if there are any, have to be removed. Check the installa-

tion depth. If necessary ll up the installation depth to the mark „game level“.

3. Check the equipment for cleanliness, correct functioning, wear, stability and

damages. Check all the xing elements and retighten them if necessary. In

case of damages, replace the damaged elements.

4. Clean the surfaces of the wooden elements if necessary. Check ssures,

chipping, moss-covering, etc. Trimm splittings if necessary.

5. The structural constitution of wood may change in the course of its useful life.

This is why it is advisable to tighten the screws in the wooden elements in

regular intervals.

Attention!

The maintenance intervals mentioned above are to be understood as recommen-

dations. The frequency of inspections has to be increased accordingly in case of

intensive use of the equipment, extreme weather conditions, installations near the

coast or in places which are often subject to vandalism and depending on the age

of the equipment.

In addition to the maintenance recommendations given by the manufacturer, it is

also absolutely necessary to follow the regulations stipulated in DIN EN 1176-7!

When exchanging or repairing elements, please always use original spare parts

for the sake of operational safety and for liability reasons.

If the play equipment has been incompletely installed or partly dismantled when

carrying out maintenance and repair work, this may lead to particular risks of

injury for the user. For this reason, make clearly visible that the equipment shall

not be used in such cases!

Maintenance instruction Multiplay „angulus 2“

Item-No. 51 5522 601

Annual main inspection

(in intervals of not more than 12 months):

1. In addition to the checks of the operative inspection, pay special attention

to the stability of the equipment (which may be affected due to corrosion or

vandalism) and its operational safety, especially after repair works or after

mounting new elements or replacing existing elements. For that purpose, it

may be necessary to uncover the foundations.

2. Wooden elements must be checked regarding their stability/sustainability.

Affected by putrefaction and rotten wood must be renewed.

STAINLESS STEEL

NOTE: Play equipment, which contain components made of stainless steel

should not come with „normal“ steel parts in contact. Those steel parts may

rub off and leave small steel particles in combination with moisture brown

rust stains. If such corrosion occur on stainless steel parts, they are ne

with an abrasive (240 grit) to remove.

Please take care when transporting and setting up the fact that the compo-

nents are made of stainless steel with no „normal“ steel parts in contact.

MAINTENANCE: In order to preserve a good visual appearance of your sti-

lum playground equipment over a long period one should take care of main-

tenance of the stainless surface even despite of their corrosion resistance.

Especially areas, which can not be reached by rainfall should be frequently

cleaned from dirt and deposits due to air pollution and dirt caused by the

atmosphere.

Light soiling can easily be romoved by using a high pressure cleaner.

For persistent deposits use a clean cloth moistened with a special liquid

cleaner (e.g. on phosphoric acid) and rinse off with clear water after a short

application time. During cleaning with mild abrasive components, only wipe

over stainless steel surface in polishing direction.

For heavily soiled surfaces, polishes can be used (e.g. for cleaning chrome

on cars) or for greasy and oily dirt alcoholic cleaning agents and solvents

(e.g. ethyl alcohol, isopropyl alcohol or acetone).

However, it should be noted that the dissolved soiling is not spread over the

surface again.

Do not use any chlorid or hydrochloric containing cleaning products nor

scouring powder, bleaching - or silver polish cleaner. Cleaning intervals de-

pend on type and degree of soiling as well as on demands made on optical

characteristics. Therefore cleaning is advisable at intervals of six to twelve

months – whereby in the case of strong soiling it is appropriate to clean the

playground equipment at intervals of three to six months.

Maintenance instruction Multiplay „angulus 2“

Item-No. 51 5522 601

WOOD

NOTE: For all play equipment with wooden elements, it cannot be ruled out that

dry cracks may develop. These natural changes of wood are dependent on climate

conditions as well as on the age and usage of the play equipment. Longer dry peri-

ods may lead to more dry cracks.

This development, however, does not represent a quality defect. Static properties of

the equipment are not impaired.

See EN 1176 Bbl 1:2019-01 4.2.7.6: Dry cracks in wood elements as a conse-

quence of weather conditions are not to be considered as dangerous openings in

terms of the standard due to the fact that the shape of the cracks (tapering towards

the inside) makes it almost impossible for ngers to get trapped in them.

MAINTENANCE: To ensure a long life of stilum playground equipment, wooden

surfaces should be regularly re-glazed. This provides the wooden surfaces with the

necessary protection and preserves the look. Areas which are not exposed to rain

should be regularly freed from deposits.

The cleaning intervals depend on the degree and type of soiling as well as on the

exigencies on cleanliness. It is recommended to clean and / or glaze at every 6

to 12 months, or to shorten the cleaning interval to 3 to 6 months if the wheather

conditions are bad.

LASUR: Use a soft and at brush or / and a glaze application roll to paint.

The wood should be cleaned a few hours before glazing. That can be done with

mild javel water, which should in any case be rubbed off afterwards. For resistant

dirt use a wood cleaner. Eventually a light abrasion is necessary. If water-based de-

tergents are used for cleaning, please ensure that the wood elements are thorough-

ly dried before the glazing is done.

Always brush in one direction, so that the glaze can spread evenly. Apply very

thinly!

Remove glaze with a soft cotton cloth.

Then let the freshly glazed wood dry for at least one day and prohibit the use of the

equipment for this duration.

Ce manuel convient aux modèles suivants

Autres manuels stilum Équipements de jeux et d'aires de jeux

stilum

stilum Tamino 1 Guide de l'utilisateur

stilum

stilum angulus 2 Guide de l'utilisateur

stilum

stilum curvus Manuel utilisateur

stilum

stilum Multifunctional trainer Caractéristiques techniques

stilum

stilum librium Caractéristiques techniques

stilum

stilum Tamino 2 Guide de l'utilisateur

stilum

stilum circulus 1 flower Guide de l'utilisateur

stilum

stilum silva 3 Manuel utilisateur

stilum

stilum intera 2 Manuel utilisateur

stilum

stilum gravis1 Manuel utilisateur

stilum

stilum kleinkinder Tamino 2 Guide de l'utilisateur

stilum

stilum pinna2 Manuel utilisateur

stilum

stilum Klara Guide de l'utilisateur

stilum

stilum retis 2 Manuel utilisateur

stilum

stilum angulus 2 Manuel utilisateur

stilum

stilum Ascendo Robinia Manuel utilisateur

stilum

stilum angulus 5 Guide de l'utilisateur

stilum

stilum silva 2 Guide de l'utilisateur

stilum

stilum play scara swing Manuel utilisateur

stilum

stilum Multifunctional trainer Caractéristiques techniques

stilum

stilum Vigo 1 Manuel utilisateur

stilum

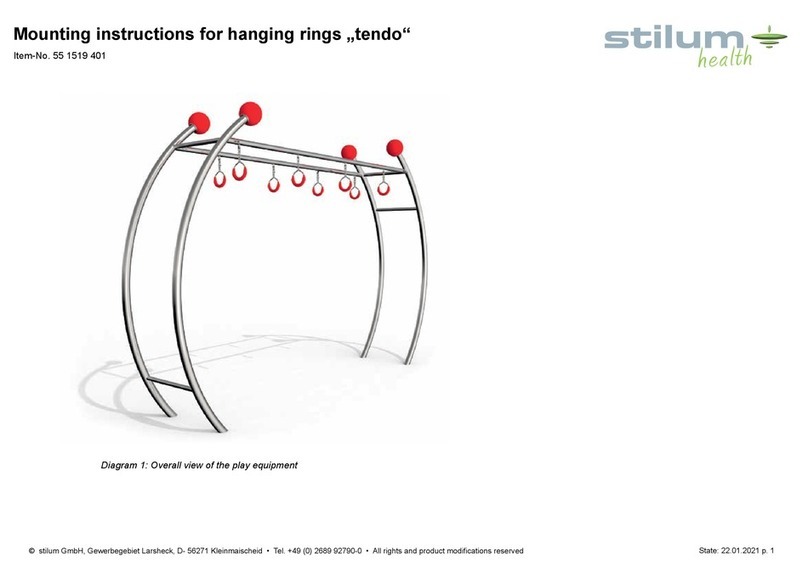

stilum Tendo Manuel utilisateur
