STILLA Maple Manuel utilisateur

STILLA

ASSEMBLY INSTRUCTIONS

‘Maple’ 12x6

S3097

Every part needed to construct your shed is included inside the pack; cedar

panels, doors, windows, hardware kits & roof sheeting. Please ensure you fully

unpack all the parts & check against the parts checklist before contacting

customer service about anything you believe may be missing. Thank-you!

1 | P a g e

Caution

Please be careful when handling all components, some parts have sharp metal edges.

Always wear work gloves, eye protection and long sleeves when assembling or maintaining

your shed.

Tools required for assembly

•Level (if floor option purchased)

•Drill (capable of driving 100mm

batten screw)

•Hammer

•Ladder

•Circular/power saw (if floor option

purchased)

•Phillips head drive

•Hex Head Drive (5/16’)

•Safety glasses

•Gloves

•Tape measure

•4mm Allen key

•5mm Batten screw drive

Before assembly

•Remove all parts from packages and place in a safe place close to assembly area.

•Review all instructions; continue to refer to instructions throughout assembly –step

by step.

Preparing your site

•Choose your site carefully; site surface must be level (unless an Elevation kit or

Heavy duty floor kit option has been purchased with your product).

2 | P a g e

MAPLE 12x6 PARTS CHECKLIST

Part Code

Checked

Part Description

Qty

Cedar Clad Panel 900x1890mm

FWP

Cedar Clad Window Panel 1080x1890mm

Door Head 1440x130

6ft Gable

Rafter 900x42x35mm

Double Colonial Door 714x1770mm

1150mm Roof Sheeting 10&2 Single Pans

10 &

12x6 Hardware Kit

1520mm Ridge Cap

6ft Fascia Pack

Corner Post 1890x60x18mm

Cover Strip 1890x40x7mm

Door Stop 1440x42x18mm

Door Leaver Packer 100x100x18mm

Collar Tie 1210mm

TB/BB

Top Batten/Bottom Batten 3905mm

Ridge Beam 3516x140x35mm

Channel 3905mm

12x6 Instruction Manual

Floor Kit –Option

Floor Frame - (Rebated Floor 70x35mm/Heavy Duty Floor 140x35mm)

Part Code

Checked

Part Description

Qty

End Plate 1870mm

Double Joist 1730mm

Single Joist 1730mm

Logs (light duty floor does not come with logs) 750mm

1798mm x 800mm

1798mm x 311mm

6 Foot Loft Shelf - Option

Part Code

Checked

Part Description

Qty

6LS

6ft Loft Shelf

3 | P a g e

12x6 Lean To –Option –Add Extra Screws

Part Code

Checked

Part Description

Qty

Beam 3905x70x35

Verandah Beam 3905x140x35mm

Verandah Rafter 1000x42x35

Verandah Posts 2400x90x90mm

Verandah Fascias 1100x75x20mm

Verandah Roof Sheets 1150mm

12x6 Annex –Option –Add Extra Screws

Part Code

Checked

Part Description

Qty

Beam 3905x70x35mm

Verandah Beam 3905x140x35mm

Verandah Rafter 1930x42x35

Verandah Posts 2400x90x90mm

Verandah Fascias 2000x75x20mm

Verandah Roof Sheets 2050mm

4 | P a g e

If no floor option was purchased, go to step 2.0 (Wall Assembly)

STEP 1.0

FLOOR KIT

1.0 –FLOOR KIT

PART CODE

QTY

DESCRIPTION

End Plate 1870mm

Single Joist 1730mm

Double Joist 1730mm (42x35mm part of DJ goes at the top inside)

100BS

100mm Batten screw (Heavy Duty Floor Only)

75N

75mm Nail (Rebated Floor Only)

65HHS

65mm Hex head screw

1.0 –FLOOR FRAME

Fasten through EP into DJ using 3 x 100BS per join (75N on Rebated Floor)

Fasten through EP into SJ using 2 x 100BS per join (75N on Rebated Floor)

Once first floor in position and logs are in place butt second floor in to mark the hole

positions –when ready using 6 –65HHS screw through EP into EP holding flush on top.

HEAVY DUTY FLOOR KIT

Heavy duty floor can be installed on unlevelled ground –use supplied logs to level your floor

by digging them into the ground.

Install heavy duty floor kit using (L) 4 logs –1 in each corner (position shown above) screw

through frame into log using 4 x 100BS per corner

Yellow Tongue

5 | P a g e

Ensure floor frame is square by measuring from corner to corner diagonally prior to

installing flooring. Screw frames together using 6x65hhs

STEP 1.1

FLOORING INSTALLATION

1.1 –FLOOR INSTALLATION

PART CODE

QTY

DESCRIPTION

Floor Board 1798x800mm

Floor Board 1798x311mm

50PS

50mm Philips Screw

1.1 –FLOOR SHEETS

Fasten floor sheets to floor frame as shown below using 50PS

6 | P a g e

STEP 2.0

WALL ASSEMBLY

IF ADDITIONAL WINDOW OPTION PURCHASED (WP –900MM WINDOW PANEL), IT CAN BE

POSITIONED ANYWHERE ON THE SHED WHERE WE HAVE USED A P (900MM WALL PANEL)

2.0 - ASSEMBLY PARTS –WALL ASSEMBLY

PART CODE

QTY

DESCRIPTION

FWP

1080mm Window Wall panel

900mm Wall panel

65HHS

65mm Hex head screw

2.0 - ASSEMBLY –WALL ASSEMBLY

Screw through P into FWP (top, centre & bottom) using 3 x 65HHS. (Holding studs flush on

the outside) Note: Ensure tongue on VJ Cedar Cladding is facing upwards

Screw 3 x 65HHS (Top,

centre & bottom)

FWP

Cedar Strip

7 | P a g e

STEP 2.1

WALL ASSEMBLY

2.1 - ASSEMBLY PARTS –WALL ASSEMBLY

PART CODE

QTY

DESCRIPTION

900mm Wall panel

65HHS

65mm Hex head screw

2.1 - ASSEMBLY PARTS –WALL ASSEMBLY

Screw through P into P (Top, centre & bottom) using 3 x 65HHS, holding studs flush on the

inside.

Screw 3 x 65HHS (Top,

centre & bottom)

8 | P a g e

STEP 2.2

WALL ASSEMBLY

2.2 - ASSEMBLY PARTS –WALL ASSEMBLY

PART CODE

QTY

DESCRIPTION

900mm Wall panel

65HHS

65mm Hex head screw

2.2 - ASSEMBLY PARTS –WALL ASSEMBLY

Screw through P into P (Top, centre & bottom) using 3 x 65HHS, holding studs flush on the

outside.

Screw 3 x 65HHS (Top,

centre & bottom)

9 | P a g e

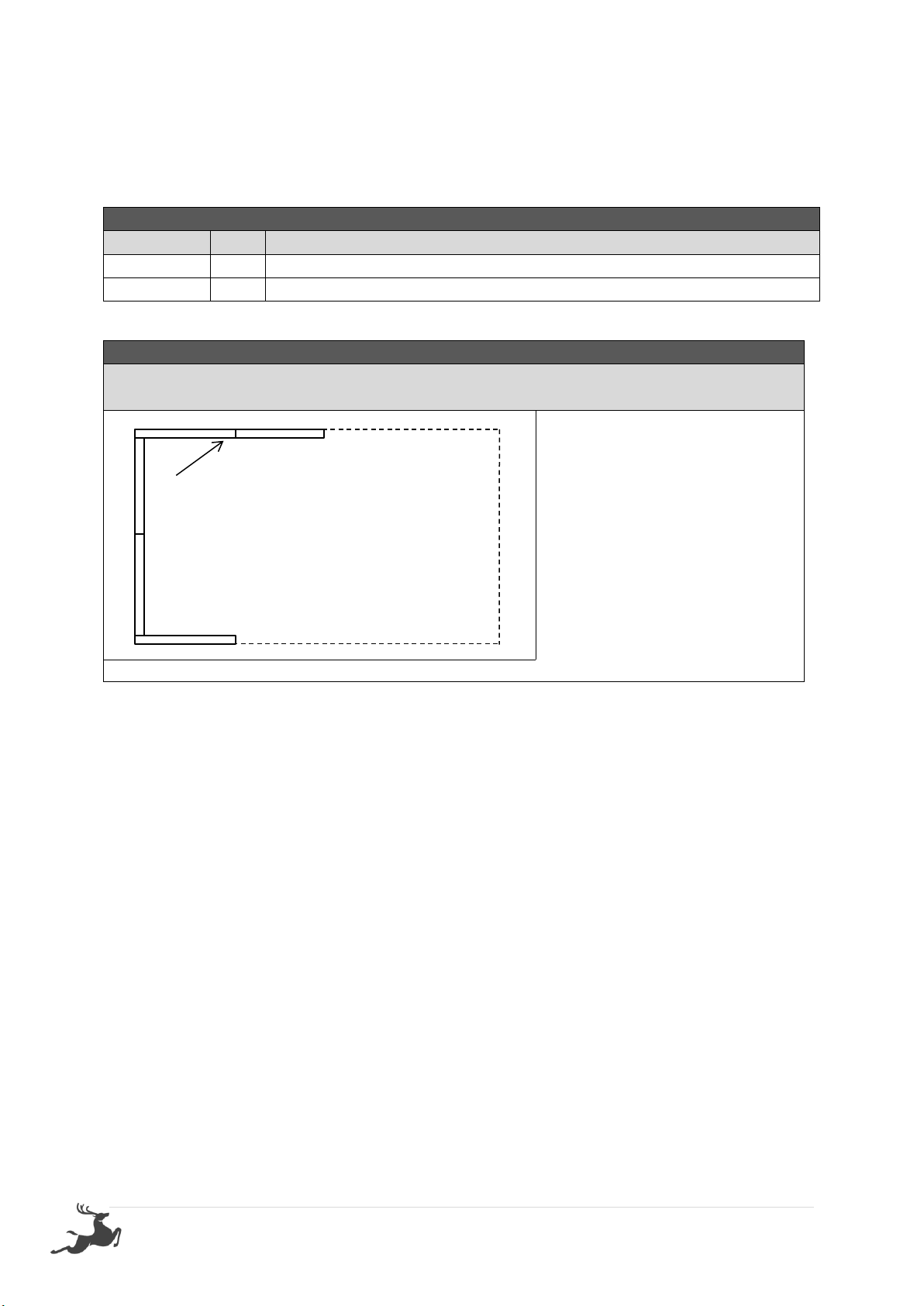

STEP 2.3

WALL ASSEMBLY

2.3 - ASSEMBLY PARTS –WALL ASSEMBLY

PART CODE

QTY

DESCRIPTION

900mm Wall panel

65HHS

65mm Hex head screw

2.3 - ASSEMBLY PARTS –WALL ASSEMBLY

Screw through P into P (Top, centre & bottom) using 3 x 65HHS, holding studs flush on the

inside.

Screw 3 x 65HHS (Top,

centre & bottom)
