Steren COM-315 Manuel utilisateur

ENGLISH

ENGLISH-02

Before using your new KVM switch, please read this instruction

manual to prevent any damage. Put them away in a safe place for

future references.

IMPORTANT

Clean only with a soft, dry cloth. Do not use solvents.

Make sure all the computers completely boot-up before switching

between them.

Do not move the mouse whilst switching between the PCs.

FEATURES

Compact and size design, easy to handle

Compatible with Microsoft, Logitech mice

Compatible with DOS, Win 3.X, Windows 95, 98, 2000, XP, Vista,

WinNT, Netware, Unix, Linux.

Hot plug, does not require to turn the device off to connect or

disconnect peripherals

High video quality, up to 1920 x 1440. Bandwidth: 200MHz

Drivers are not required

Auto scan mode

Keyboard status restored when switching PCs

LED status display

Buzzer sound for switching port conﬁrmation

•

Before usin

our new KVM switch, please read this instruction

anual to prevent an

dama

e. Put them awa

in a safe place for

uture references

ENGLISH

ENGLISH-03

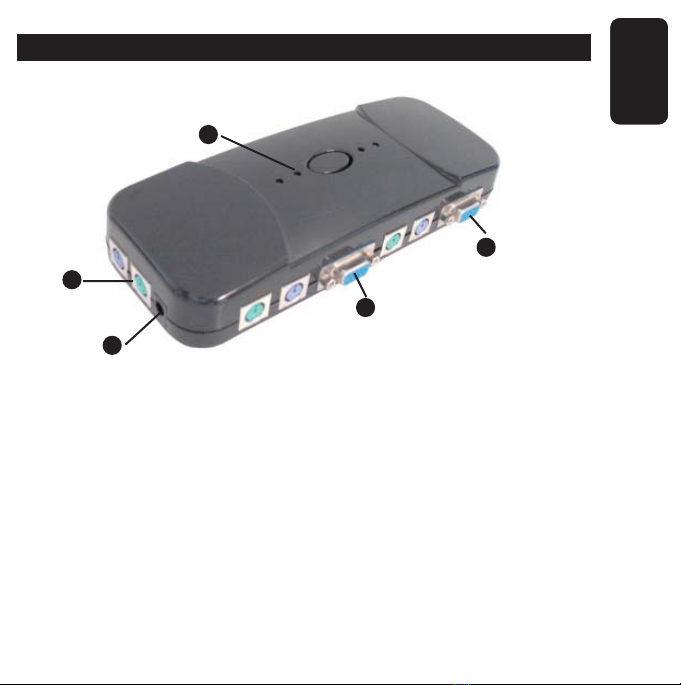

CONTROLS

1.- Mouse and keyboard connector

Allows you to connect the main mouse and keyboard

2.- AC power adapter input jack

In case you use a notebook and the KVM requires more energy, please

connect an AC power adapter with this speciﬁcations: 5V ~ 9V DC,

100mA ~ 1A

3.- Monitor connector

Allows you to connect the main monitor

ENGLISH

ENGLISH-04

4.- CPU1 connectors

Use a KVM cable (506-220) to connect the switch to CPU1

5.- CPU2 connectors

Use a KVM cable (506-220) to connect the switch to CPU2

6.- CPU3 connectors

Use a KVM cable (506-220) to connect the switch to CPU3

7.- CPU4 connectors

Use a KVM cable (506-220) to connect the switch to CPU4

ENGLISH

ENGLISH-05

8. CPU Selector

Press it to choose a CPU

9.- LEDs indicators

A LED will light according to selected CPU

INSTALLATION

Before installing the KVM switch, assure all the external devices

are off.

1.- Connect the keyboard, mouse and monitor to the lateral KVM switch

connectors.

2.- Connect a KVM cable from the switch to the different CPUs (up to 4

CPUs can be connected)

3.- Turn the devices on, wait until the system boot up. Then you can use

the KVM switch.

Make sure to use KVM cable (male-to-male) for each CPU that you

want to use, we recommend to buy the KVM Steren cable: 506-220.

Make sure to connect the mouse, keyboard and monitor to the

KVM switch, otherwise the switch will not work.

Before installin

the KVM switch, assure all the external devices

re off

ake sure to use KVM cable

(

male-to-male

)

for each CPU that

want to use, we recommend to bu

the KVM Steren cable: 506-220

e sure to connect t

e mouse,

oar

mon

tor to t

KVM

, ot

erw

se t

e sw

ill

not wor

ENGLISH

ENGLISH-06

DIAGRAM

From monitor

From keyboard

From mouse

To keyboard connector

To mouse connector

To monitor connector

CPU 1

CPU 2 CPU 4

CPU 3

KVM cable

ENGLISH

ENGLISH-07

INSTRUCTIONS

1.- Turn the CPUs on.

2.- Turn the monitor, keyboard and mouse.

3.- Wait until the CPUs booted up

4.- Once the CPUs booted up, you can press the selector button to

change between different CPUs.

5.- The corresponding indicator LED will light up.

If you switch to an empty port, the corresponding LED will ﬂash.

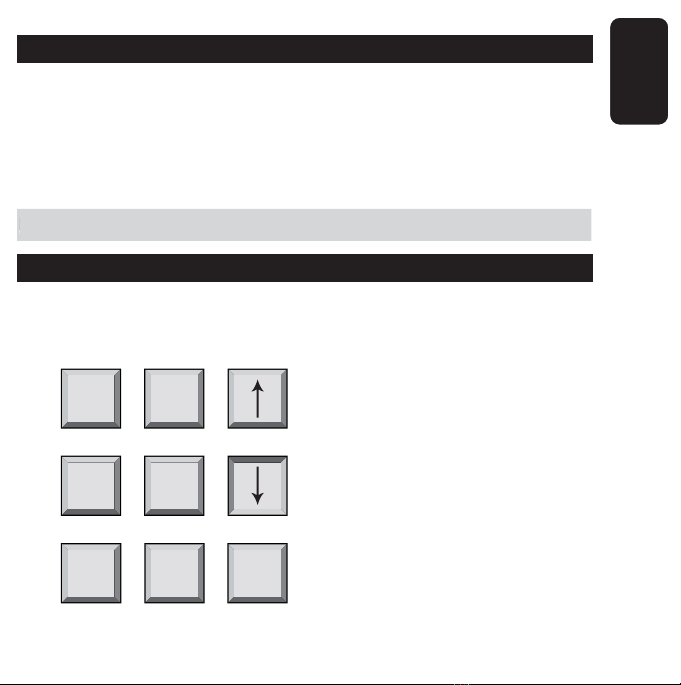

SHORTCUTS

Using the keyboard, you can use keypad shortcuts to quickly do an

action in KVM switch. Press the Scroll Lock key twice within 2 seconds.

You will hear a beep, then you can press other button as follows:

Previous channel

Next channel

Auto scan

ou switch to an empt

port, the correspondin

LED will ﬂash

Scroll

Lock Scroll

Lock

Scroll

Lock Scroll

Lock

Scroll

Lock Scroll

Lock S

ENGLISH

ENGLISH-08

Select PC port directly

Beeper on (Factory default: off)

To leave the auto scan mode, press space bar once.

TROUBLESHOOTING

Assure all the cables are well connected. Label the cables to avoids

confusion.

1.- The KVM switch obtain the energy from the keyboard, if you use a

notebook and have not enough energy for the KVM, please use a power

adapter: 5V~9V, 100mA~1A

2.- Do not press any button whilst the select computer boot up,

otherwise, the keyboard may not be recognized.

3.- If the keyboard does not boot up but the computer, try connecting the

keyboard directly to the CPU. If does not work, use a 101, 102 or 104

keyboard.

4.- If the mouse does not boot up but the computer, try connecting the

mouse directly to the CPU. If does not work, use a new mouse or check

if it is a PS/2 mouse.

o leave the auto scan mode,

ress s

ace bar once

Scroll

Lock Scroll

Lock B

Scroll

Lock Scroll

Lock 1

2 or 3 or 4

ENGLISH

ENGLISH-09

5.- We recommend to connect a notebook before to boot up the system.

In case the system booted up and then you connect the computer to the

KVM switch, press Scroll Lock twice + P.

SPECIFICATIONS

PC ports: 4

Console port: 1

Maximum PC connections: 4

LEDs: 4

PC connectors: PS/2 keyboard 6 pin mini-din

PS/2 mouse 6 pin mini-din

VGA 15-pin HDDB

(female connectors)

Console connectors: PS/2 keyboard 6 pin mini-din

PS/2 mouse 6 pin mini-din

VGA 15-pin HDDB

(Female connectors)

Scan intervals: 8 seconds

Keyboard emulation: PS2

Mouse emulation: PS2

VGA resolution: 1920x1440

Bandwidth: 200MHz

Weight: 140g

Dimensions: 110x74x29mm

Product design and speciﬁcations are subject to change without

previous notice

roduct desi

n and speciﬁcations are sub

ect to chan

e without

rev

ous not

WARRANTY

This Steren product is warranted under normal usage against defects in workmanship and

materials to the original purchaser for one year from the date of purchase.

CONDITIONS

1.- This warranty card with all the required information, invoice or purchase ticket, product

box or package, and product, must be presented when warranty service is required.

2.- If the product stills on the warranty time, the company will repair it free of charge.

3.- The repairing time will not exceed 30 natural days, from the day the claim was received.

4.- Steren sell parts, components, consumables and accesories to costumer, as well as

warranty service, at any of the addresses mentioned later.

THIS WARRANTY IS VOID IN THE NEXT CASES:

If the product has been damaged by an accident, acts of God, mishandling, leaky batteries,

failure to follow enclosed instructions, improper repair by unauthorized personnel, improper

safe keeping, among others.

a) The consumer can also claim the warranty service in the purchase establishment.

b) If you lose the warranty card, we can reissue it, if you show the invoice or purchase ticket.

Product: 4 port KVM switch

Part number:COM-315

Brand: Steren
