Stengthmaster Mx800 Manuel utilisateur

Table Of Contents

Congratulations on the purchase of your new motorized treadmill. To help ensure the

enjoyable and trouble-free operation of your new treadmill, we strongly suggest you read this

manual carefully and follow its recommendations.

MX850

MX800

Important Safety Instruction ..............1

Assembly Instruction .........................2

CONSOLE OPERATION..................4

Preset Program.................................9

Utilizattion.....................................12

Maintenance...................................13

2006/11(MX8-3)

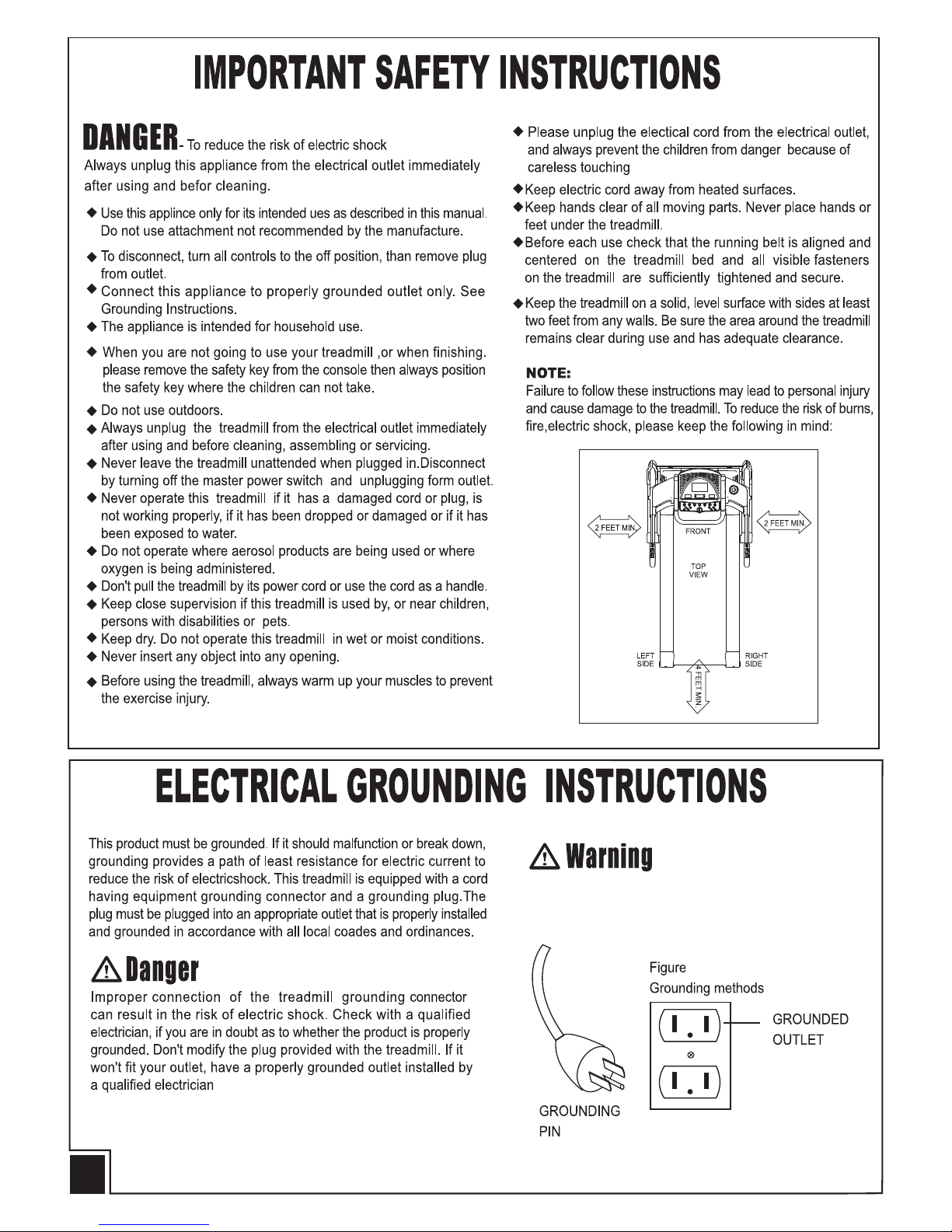

Never use extension cords between the treadmill

and wall outlet.

Pls pay attention , the power cable need individual power source strictly ,

can not be usage mutual power supply with another equipment.

Frame

Base frame

Support handle-Left

Support handle-Right

Handlebar-Left

Handlebar-Right

Console bracket

Handle rail

Console

Rack-Left

Rack-Right

Base frame cover-Left

Base frame cover-Right

Parts

Since your treadmill is a heavy piece of equipment, we recommend that after taking off the top portion of the box,

you slit the corners of the lower carton and fold down the sides. This will eliminate the need for you to pick up the

treadmill over the sides of the box.

Prior to starting the assembly process take all of the parts out of the box, remove all plastic bags, and lay them out

on the floor to become familiar with the compoents. Make sure that you remove all parts packaged underneath the

readmill. You may need to slightly pick up the back of the treadmill to get better access to the parts on the bottom.

You will notice that the treadmill is completely assembled except for the handlebars and the display window.

MX800/MX850

21 22

Hardware、tool

Screws Already in Place on the Treadmill

M8(12PCS)

washer

Tool

SCREWS

M10*75L(2PCS)

M10*10t(2PCS)

SCREWS

M8*15L(6PCS)

SCREWS

M8*20L(6PCS)

SCREWS

M4*10L(14PCS)

nylon nut

#8*5/8"L(4PCS)

SCREWS

(1PCS)

25 26 27

Wrench-6mm

T Handle

Wrench Triangle screw

driver Wrench

(1PCS) (1PCS) (1PCS)

Step 1: Handlebars assembly

MX800/MX850

Step 2: Racks assembly

Step 3: Compete assembly

FIG-6 FIG-7

23 23

FIG-9

FIG-8

1. Flat the shipping box and take out packing material, Styrofoam, parts, screw bag and manual etc. from box.(FIG 1)

2. Remove screws/washers 18 19 20 22 from base frame and screws/washers 21 22 from Right/Left handle bar.(FIG 2)

3. Upright the completed support handles and handlebars.Pls set up handle bar 5 6 with supporting handle 3 4 by

attached 21 22 screw and washer and fix it.(FIG 3)

4. Attach and tighten screw 18 and nut 19 on left support handle. Attach and tighten screw 20 and washer 22 on right

support handle. Repeat the same on right side.(FIG 4)

5. Attach base frame covers 13 and 14 to match cover 12 on left base frame and then tighten with screws 23 24. (FIG 4)

6. Repeat the same on right side for base frame covers 15 16 17 . (FIG 5)

Warning:

1. Be careful to avoid machine tilt or getting hurt.

2. Do not have the wire harness(inside of handlebars) get pinched.

1. Attach and tighten screw and washer 21 22 on

right/left handlebars.

2. Attach left rack 10 on left handlebar and tighten with

screws 23.

3. Repeat the same on right side for right rack

assembly.

FIG-5

1. Attach handle rail on handlebar and then tighten with

screws/washers 21 22. (FIG 8)

2. Adjust console bracket 7 and console to a proper

position and then tighten the 4 pcs of screws 20 22

underneath of handlebar. (FIG 9)

FIG-3

MX800

Buttons and Windows

Incline up:

This will select program/level in setting mode before starting.

This will increase the elevation in 1 increment.

Incline down:

This will select program/level in setting mode before starting.

This will decrease the elevation in 1 increment.

START/STOP:

This will start the treadmill and this will stop the

treadmill. There will also be an emergency stop switch.

(Safety Key)

MODE:

This will accept programs/level selection. And this

will switch display data on data window during exercise.

SPEED up:

This will select program/level in setting mode before starting.

This will increase the speed in 0.1 km/h or 0.1 mph

SPEED down:

This will select program/level in setting mode before starting.

This will decrease the speed in 0.1 km/h or 0.1 mph

ENTER:

This will set-up each program. into every step.

Quick keys for speed /incline:

Quick keys for incline: 4,6,8,10

Quick keys for speed: 4,6,8,10(km/hr)

If the light under each button is flashing, it means

to use that button for next setup process.

There are 1 LCD window and 3 LED windows.

1)WIN0(Incline) window: shows level of incline

2)WIN1:shows Time, Distance, Calories, Pulse, Lap, Scan

3)WIN2(Speed) window: shows speed

Handlebar toggle for incline and speed adjustment

1. Left: for incline adjustment. Increase or decrease by 1 every time.

2. Right: for speed adjustment. Increase or decrease by

0.1 km/hr every time.

MX850

Buttons and Windows

Incline up:

This will select program/level in setting mode before starting.

This will increase the elevation in 1 increment.

Incline down:

This will select program/level in setting mode before starting.

This will decrease the elevation in 1 increment.

START/STOP:

This will start the treadmill and this will stop the

treadmill. There will also be an emergency stop switch.

(Safety Key)

MODE:

This will accept programs/level selection. And this

will switch display data on data window during exercise.

SPEED up:

This will select program/level in setting mode before starting.

This will increase the speed in 0.1 km/h or 0.1 mph

SPEED down:

This will select program/level in setting mode before starting.

This will decrease the speed in 0.1 km/h or 0.1 mph

ENTER:

This will set-up each program. into every step.

Quick keys for speed /incline:

Quick keys for incline: 4,6,8,10

Quick keys for speed: 4,6,8,10(km/hr)

If the light under each button is flashing, it means

to use that button for next setup process.

There are 4 LED windows and 12 Alpha numeric display.

Handlebar toggle for incline and speed adjustment

1. Left: for incline adjustment. Increase or decrease by 1 every time.

2. Right: for speed adjustment. Increase or decrease by

0.1 km/hr every time.

TFT-LCD TV

MENU Mode: Allowing user to adjust the value of Brightness, Contrast, Color and Tint.

1.Hold "MODE" for 3~4 seconds into "MENU"model. Using button CH+ and CH- to select the item you like to

set up.

2.Using button VOL+ and VOL- to adjust value of each item as below.

Press to power on or power off TV display.

AV/TV

CH+

CH-

VOL+

VOL -

Button function:

Button Function

1. Press to select TV/Video/MP3 Function. TV-AV-MP3

2. Hold for 3~4 seconds: enter into "MENU" to setup screen.

1. In TV mode: Press to select channel.

2. In MENU mode: Press to select item to set up.

1.In TV/Vedio/MP3 mode: Press to adjust volume.

2. In MENU mode: Press to adjust the value of each item.

POWER ON/OFF

Item

BRIGHTNESS

CONTRAST

SHARP

COLOR

TINT

MUTE

TV SYSTEM

AUTO SCAN

RESET

QUIT

Description

Adjust BRIGHTNESS. 0 ~ 63

Adjust CONTRAST. 0 ~ 63

Adjust SHARP. 0 ~ 7

Adjust COLOR. 0 ~ 63

Adjust TINT. 0 ~ 63

Mute ON/OFF

Select TV system. NTSC-M、NTSC-J、PAL-BG、PAL-DK、PAL-AI、

SECAM-BG、SECAM-DK、SECAM-L according to Tuner.

ON/OFF

Return to DEFAULT value.

Press VOL+ or VOL- to exit MENU mode.

MX800/MX850

Manual Function

12 Preset Programs

Target Heart Rate Program

This program automatically modifies the speed and incline to maintain a preset target heart

rate. This target is established in the setup process. The chart on this owners manual should

be used to determine the appropriate target heart rate. To set up the target heart rate program,

you will need to enter the workout time, age, your target heart rate and max. desired speed.

1. Attach safety key and press "MODE" into selecting program mode.

2. Using speed arrow buttons to choose "HRC" program. Then press "ENTER".

3. Using speed or incline arrow buttons to input your age (13-80). Then press "ENTER".

4. Using speed or incline arrow buttons to input your target heart rate (60-180). Then press "ENTER".

5. Using speed arrow buttons to input max. desired speed (3-20). Then press "ENTER".

6. Using speed or incline arrow buttons to input Max, desired incline (5-15). Then press "ENTER".

7. Using speed or incline arrow buttons to input workout time (10~99 Min.) . Then press "START".

Console of 3LED & 1LCD is with 1 Manual function, 12 preset programs, 1 H.R.C program,

Body Mass and 2 user setting programs.

Console of 4 LED & 12 character Alphanumeric LED is with 1 Manual function, 12 preset

programs, 1 H.R.C program.

MX800: 1. Attach safety key and press "MODE" into selecting program mode.

2. Using speed arrow buttons to choose "Manual" function, then press "ENTER".

3. Time window is flashing. Using speed or incline arrow buttons to input workout time (10~99 Min.)

4. Press "START".

MX850: 1. Attach safety key and 12 Alpha bumericdisplay shows "Welcome To Strength Master".

2. Press "Mode" into Mannual aditing mode. 12 Alpha numeric display shows "SET TIME".

3. Using speed or incline arrow buttons to input workout time.(10~99 Min.) Press "ENTER".

4. Press "START".

P1~P5: Automatically change the speed of the treadmill throughout the workout.

P6~10: Automatically change the level of incline for the treadmill belt.

P11: 5km distance program. Automatically change the level of incline for the treadmill belt. The user sets the

speed to a desired level and the program modifies the incline. The user can override the incline for any

segment within the workout but at the end of each workout segment the program will override any

adjustments made to the incline.

P12: 10km distance program. Automatically change the level of incline for the treadmill belt. The user sets

the speed to a desired level and the program modifies the incline. The user can override the incline fo

rany segment within the workout but at the end of each workout segment the program will override any

adjustments made to the incline.

1. Attach safety key and press "MODE" into selecting program mode.

2. Using speed arrow buttons to choose desired preset program "P1~P12". Then press "ENTER".

LCD window shows speed (P1~P5) or incline (P6~P12)

3. Using incline arrow buttons to choose desired level (L1~L3). Then press "ENTER"

4. Using speed or incline arrow buttons to input workout time (10~99 Min.)

MX800/MX850

1. Attach safety key and press "MODE" into selecting program mode.

2. Using speed arrow buttons to choose "Body Mass" program. Then press "ENTER".

3. Using speed or incline arrow buttons to input your sex, height, weight, and age. Then press "ENTER".

4. LCD window shows "Please Hold". Please hold the hand pulse grips.

5. It shows BMI on LCD window value after 25 seconds measurement.

Notes:

1) It shows E4 if it does not read signal from hand pulse grips.

1. Attach safety key and press "MODE" into selecting program mode.

2. Using speed arrow buttons to choose "User 1" or "User 2" program. Then press "ENTER".

3. Using speed or incline arrow buttons to input workout time. (10~99 Min.) Then press "ENTER".

4. During setup process: Incline window shows level of incline, Time window shows number of segment,

Speed window shows speed level.

5. Using incline arrow buttons to input level of incline for each segment. Using speed arrow buttons to input

speed level for each segment. Then press "ENTER" for next segment till finish all 30 segments.

Notes:

1) After press "START", there is a warming period for first 3 minutes at incline level 5 and speed 3.0km/hr.

2) After warming up, the program compares actual heart rate and target heart rate every 12-15 seconds.

3) If the actual heart rate is less than target heart rate, increases speed by 0.2km/h every time and

increases incline by 1 once changing speed by 5 times. If the actual heart rate is reached target heart

rate, decreases speed by 0.2km/h every time and decreases incline by 1 once changing speed by 5

times.

4) If the speed is increased up to max. target speed, then speed can not be increased anymore

eventhough the actual heart rate is still less than target heart rate.

5) If it does not read heart rate signal from user in 30 seconds after warming up period, the treadmill

stops into runend mode.

under weight 20

IBW 21~24

Overweight 25~29

Overweight 30~34

Overweight 40

Body Mass Index Comparison table

Body Mass

(Only for MX800)

User setup programs

(Only for MX800)

TARGET HEART RATE PROGRAM: This program automatically modifies the speed and incline to maintain a

preset target heart rate. This target is established in the setup process. The chart on this owners manual should be

used to determine the appropriate target heart rate. To set up the target heart rate program, you will need to enter the

workout time, your age, and your target heart rate.

Increased Performance Range

Aerobic Training Range

Weight Loss Training Range

Heart Rate BPM

MX800

P1 P2 P3 P4 P5

10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30

SEGMENT

1 2 3 4 5 6 7 8 9

2 2 2 3 3 3 4 4 4 3 3 3 2 2 2 3 3 3 4 4 4 3 3 3 2 2 3 3 2 2

3 3 3 4 4 4 5 5 5 4 4 4 3 3 3 4 4 4 5 5 5 4 4 4 3 3 4 4 3 3

4 4 4 5 5 5 6 6 6 5 5 5 4 4 4 5 5 5 6 6 6 5 5 5 4 4 5 5 4 4

2 2 2 3 3 3 4 4 4 5 5 5 6 6 6 7 7 7 8 8 8 6 6 6 4 4 4 2 2 2

3 3 3 4 4 4 5 5 5 6 6 6 7 7 7 8 8 8 9 9 9 7 7 7 5 5 5 3 3 3

4 4 4 5 5 5 6 6 6 7 7 7 8 8 8 9 9 9 8 8 8 6 6 6 4 4 4

2 2 2 4 4 4 6 6 6 8 8 8 7 7 7 6 6 6 5 5 5 4 4 4 3 3 3 2 2 2

3 3 3 5 5 5 7 7 7 9 9 9 8 8 8 7 7 7 6 6 6 5 5 5 4 4 4 3 3 3

4 4 4 6 6 6 8 8 8 9 9 9 8 8 8 7 7 7 6 6 6 5 5 5 4 4 4

1 1 1 3 3 3 6 6 6 7 7 7 7 8 8 8 8 7 7 7 7 6 6 6 3 3 3 1 1 1

2 2 2 4 4 4 7 7 7 8 8 8 8 9 9 9 9 8 8 8 8 7 7 7 4 4 4 2 2 2

3 3 3 5 5 5 8 8 8 9 9 9 9 9 9 9 9 8 8 8 5 5 5 3 3 3

1 1 1 7 7 7 2 2 2 9 9 9 9 2 2 2 2 9 9 9 9 2 2 2 7 7 7 1 1 1

2 2 2 8 8 8 2 2 2 3 3 3 3 2 2 2 8 8 8 2 2 2

3 3 3 9 9 9 2 2 2 4 4 4 4 2 2 2 9 9 9 3 3 3

LEVEL

2 2 2 3 3 3 4 4 4 3 3 3 2 2 2 3 3 3 4 4 4 3 3 3 2 2 3 3 2 2

3 3 3 4 4 4 5 5 5 4 4 4 3 3 3 4 4 4 5 5 5 4 4 4 3 3 4 4 3 3

4 4 4 5 5 5 6 6 6 5 5 5 4 4 4 5 5 5 6 6 6 5 5 5 4 4 5 5 4 4

Speed

Program

10 10 10

10 10 10 10

10 10 10

10 10 10 10

11 11 11 11 11 11 11 11

P10

P11

P12

Incline

Program

LEVEL

2 2 2 3 3 3 4 4 4 5 5 5 6 6 6 7 7 7 8 8 8 6 6 6 4 4 4 2 2 2

3 3 3 4 4 4 5 5 5 6 6 6 7 7 7 8 8 8 9 9 9 7 7 7 5 5 5 3 3 3

4 4 4 5 5 5 6 6 6 7 7 7 8 8 8 9 9 9 8 8 8 6 6 6 4 4 4

2 2 2 4 4 4 6 6 6 8 8 8 7 7 7 6 6 6 5 5 5 4 4 4 3 3 3 2 2 2

3 3 3 5 5 5 7 7 7 9 9 9 8 8 8 7 7 7 6 6 6 5 5 5 4 4 4 3 3 3

4 4 4 6 6 6 8 8 8 9 9 9 8 8 8 7 7 7 6 6 6 5 5 5 4 4 4

1 1 1 3 3 3 6 6 6 7 7 7 7 8 8 8 8 7 7 7 7 6 6 6 3 3 3 1 1 1

2 2 2 4 4 4 7 7 7 8 8 8 8 9 9 9 9 8 8 8 8 7 7 7 4 4 4 2 2 2

3 3 3 5 5 5 8 8 8 9 9 9 9 9 9 9 9 8 8 8 5 5 5 3 3 3

1 1 1 7 7 7 2 2 2 9 9 9 9 2 2 2 2 9 9 9 9 2 2 2 7 7 7 1 1 1

2 2 2 8 8 8 2 2 2 3 3 3 3 2 2 2 8 8 8 2 2 2

3 3 3 9 9 9 2 2 2 4 4 4 4 2 2 2 9 9 9 3 3 3

2 2 2 4 4 4 6 6 6 8 8 8 7 7 7 6 6 6 5 5 5 4 4 4 3 3 3 2 2 2

3 3 3 5 5 5 7 7 7 9 9 9 8 8 8 7 7 7 6 6 6 5 5 5 4 4 4 3 3 3

4 4 4 6 6 6 8 8 8 9 9 9 8 8 8 7 7 7 6 6 6 5 5 5 4 4 4

2 2 2 3 3 3 4 4 4 3 3 3 2 2 2 3 3 3 4 4 4 3 3 3 2 2 3 3 2 2

3 3 3 4 4 4 5 5 5 4 4 4 3 3 3 4 4 4 5 5 5 4 4 4 3 3 4 4 3 3

4 4 4 5 5 5 6 6 6 5 5 5 4 4 4 5 5 5 6 6 6 5 5 5 4 4 5 5 4 4

10 10 10

10 10 10 10

10 10 10 10 10 10 10 10

11 11 11 11 11 11 11 11

10 10 10

(5km)

(10km)

P6 P7 P8 P9 P10 P12(10km)

P11(5km)

Speed Program:

Incline Program:

Ce manuel convient aux modèles suivants

Table des matières

Manuels tapis roulant populaires d'autres marques

Treadly

Treadly TREADLY 2 Manuel utilisateur

HEALTH ONE

HEALTH ONE Walk Ro Manuel utilisateur

NordicTrack

NordicTrack NTL12941 Manuel utilisateur

NordicTrack

NordicTrack T7.5 S Manuel utilisateur

Gold's Gym

Gold's Gym ADVANTAGE GGTL12920 Manuel utilisateur

Merax

Merax MS282992 Manuel utilisateur

FYTTER

FYTTER RU-2SX Manuel utilisateur

Precor

Precor 903 Manuel utilisateur

FitLogic

FitLogic freewill d225 Manuel utilisateur

HOP-SPORT

HOP-SPORT ESTIMA HS-3200LB Manuel utilisateur

Horizon Fitness

Horizon Fitness Adventure 5 Plus Manuel utilisateur

Stamia

Stamia InMotion II Manuel utilisateur

Smooth Fitness

Smooth Fitness EVO 3i Manuel utilisateur

NordicTrack

NordicTrack NETL81810.0 Manuel utilisateur

Schwinn

Schwinn 830/Journey 8.0 Manuel utilisateur

Keys Fitness

Keys Fitness HealthTrainer HT-740T Manuel utilisateur

Spirit

Spirit XT8 Manuel utilisateur

NordicTrack

NordicTrack T 14.0 Treadmill Manuel utilisateur

Stengthmaster mx800 Manuel utilisateur

Manuels tapis roulant populaires d'autres marques
