USER GUIDE

SMART CONTROLLER • THERMOSTAT

Model: ASMC402

INS-ASMC402-US-0518

- 2-- 2-

TABLE OF CONTENTS

THE 360° COMFORT EXPERIENCE 3

COMPATIBILITY 4

WHAT’S IN THE BOX AND TOOLS REQUIRED 4

WARNING 5

BEFORE YOU START 6

Make the most of your MAESTRO 6

Where to install your MAESTRO controller

•thermostat 7

Read this guide and watch the installation video 7

Four steps to managing the comfort of your home 8

1Install your MAESTRO controller

•thermostat 8

2Install your MAESTRO thermostats 8

3Install the MAESTRO app and create your MAESTRO account 9

4Build your MAESTRO network 9

INSTALLING THE MAESTRO CONTROLLER

•THERMOSTAT 10

1Cut off power supply 10

2Remove existing thermostat 11

3Secure the MAESTRO controller

•thermostat mounting plate 12

4Connect the wires 13

5Secure the controller

•thermostat on the mounting plate 14

6Turn power back on 15

7 Set-up basic options on rst start 16

ENJOY THE FULL 360° COMFORT EXPERIENCE 17

Home screen 17

USING THE CONTROLLER

•THERMOSTAT 18

Controlling your MAESTRO system with the MAESTRO app 18

Connecting the controller

•thermostat to your wi- network

and registering it in the MAESTRO app 18

Obtaining the registration code for the controller

•thermostat 19

Creating your home’s MAESTRO network 20

Connecting a thermostat to the controller

•thermostat 20

With the MAESTRO app 20

Without the MAESTRO app 21

Changing statuses or activities 22

Description of statuses 22

Examples of status and activity changes 23

Selecting a status for your home 24

Selecting an activity 24

Managing geofencing 25

Activating or deactivating geofencing 26

Deleting mobile devices 26

Dening the setpoint temperature of the controller

•thermostat 27

Temporarily modifying the setpoint temperature

of a group of thermostats 28

Temporarily modifying the setpoint temperature of a thermostat 29

Removing a thermostat from the home 30

Activating or deactivating open window detection 31

Activating or deactivating proximity sensor 31

Locking or unlocking the controller

•thermostat screen 32

Viewing active alerts 33

Viewing technical information on the controller

•thermostat 34

Modifying display options on the controller

•thermostat 35

Modifying the display language 35

Modifying the temperature format display 35

Conguring the heat mode 36

Modifying the time format display 37

Modifying the “screen saver” option 37

Resetting the controller

•thermostat 38

CONTROLLER

•THERMOSTAT TROUBLESHOOTING 39

Common problems 39

Deactivating the Zigbee network from a controller •thermostat 41

MENU TREE 42

CONTROLLER

•THERMOSTAT DEFAULT VALUES 43

TECHNICAL SPECIFICATIONS 44

Electrical data 44

Temperature display 44

Connectivity 44

Storage and operating conditions 44

WARRANTY 45

- 3-- 3-

CONGRATULATIONS!

You’ve chosen to entrust the heating of your home to the MAESTRO smart thermostat. The comfort of your family is now in your

hands. Elegant, accurate and highly efcient, your new MAESTRO smart thermostat will help you reduce your energy bill and

ecological footprint, so you can do your part for the environment.

Create your own ecosystem in your home and take full control of your comfort with the MAESTRO mobile app.

CONTROL YOUR COMFORT FROM WHEREVER YOU ARE

THE 360° COMFORT EXPERIENCE

GROUP ROOMS

You can set up zones in your home to make managing your

heating even simpler.

CREATE PERSONALIZED ACTIVITIES

Planning an in-home workout session or movie night? Create

an activity and MAESTRO will adjust the temperature of your

rooms at the right time.

ANTICIPATED START

MAESTRO takes into account the outside temperature to

reach the desired temperature at the perfect time.

GEOFENCING:

COMFORT FOLLOWS YOU WHEREVER YOU GO

The MAESTRO app adjusts the temperature of your home

according to your geographic location, to ensure ideal com-

fort when you arrive and lowering it when you leave.

TRACK YOUR ENERGY CONSUMPTION

By giving you access to real-time reports, MAESTRO keeps

you informed of your energy consumption, helping you

achieve real savings.

MADE AND DESIGNED FOR NORTH AMERICA

Established in Quebec, Canada for more than 35 years, the °STELPRO family business understands the specic needs our

climate imposes on us as well as our concerns regarding safety and environmental protection.

By choosing MAESTRO by °STELPRO, you’re encouraging the development of energy efcient products for a better future.

- 4-- 4-

• MAESTRO controller

•thermostat

• Mounting plate

• Mounting screws (2)

• Caps (2)

• Quickstart guide

• Warning

WHAT’S IN THE BOX AND TOOLS REQUIRED

COMPATIBILITY

Your MAESTRO controller• thermostat can control electric baseboards, convectors and fan-forced heaters.

IMPORTANT: This controller• thermostat is not compatible with:

• Systems with inductive loads

• Central heating systems

• Systems with resistive loads that are:

o inferior to 260 W at 208 VAC or 300 W at 240 VAC

o superior to 3400 W at 208 VAC or 4000 W at 240 VAC

Your controller

•

thermostat is compatible with 802.11 b/g/n Wi-Fi networks.

See page 44 for detailed technical specications of the MAESTRO controller

•thermostat.

To install your controller

•thermostat, you will need:

• No. 2 Phillips screwdriver

The two required screws are supplied.

- 5-- 5-

Before installing and operating this controller• thermostat, the owner and/or installer must read, understand and follow these

instructions and keep them handy for future reference. If these instructions are not followed, the warranty will be considered

null and void and the manufacturer deems no further responsibility for this product. Moreover, the following instructions must

be adhered to in order to avoid personal injuries or property damages, serious injuries and potentially fatal electric shocks.

All electric connections must be made by a qualied electrician, according to the electric and building codes effective in your

region.

• Do NOT connect this product to a supply source other than 208 VAC or 240 VAC, and do not exceed the load limits specied.

• Protect the heating system with the appropriate circuit breaker or fuse. You must regularly clean dirt accumulations on the

controller• thermostat.

• Do NOT use uid to clean controller• thermostat air vents.

• Do NOT install controller• thermostat in a wet place or on an external wall. However, installing it in isolated walls is allowed.

To avoid any risk of overheating, leave a clearance of at least 12 in. around the controller• thermostat to ensure proper

ventilation.

• Make sure that the air vents at the bottom and top of the controller•thermostat housing are clear of any obstruction:

blocked air vents can lead to the unit overheating and affect its operation.

NOTE: °STELPRO reserves the right to modify its product without notice to improve operability. Therefore, the instructions in

this user guide many not entirely match all the functions of your controller• thermostat. To obtain the most recent documen-

tation, visit the °STELPRO website.

IMPORTANT: HIGH VOLTAGE! CUT OFF POWER BEFORE INSTALLING UNIT OR DOING ANY MAINTENANCE.

WARNING

- 6-- 6-

BEFORE YOU START

MAKE THE MOST OF YOUR MAESTRO

The MAESTRO controller• thermostat can function on its own, but it offers more options when used with MAESTRO thermos-

tats and the MAESTRO app. By using the complete MAESTRO system, you’ll benet from maximum comfort, exibility and

energy savings.

For more information on the MAESTRO system, visit www.stelpro.com/en-US/maestro

- 7-- 7-

WHERE TO INSTALL YOUR MAESTRO CONTROLLER•THERMOSTAT

The controller• thermostat allows you to control the other MAESTRO thermostats in your home. Install it in a room that is

central, for example the main living area of your home, where it will be easily accessible. Since the controller• thermostat also

serves as a thermostat, it will control the temperature of this room.

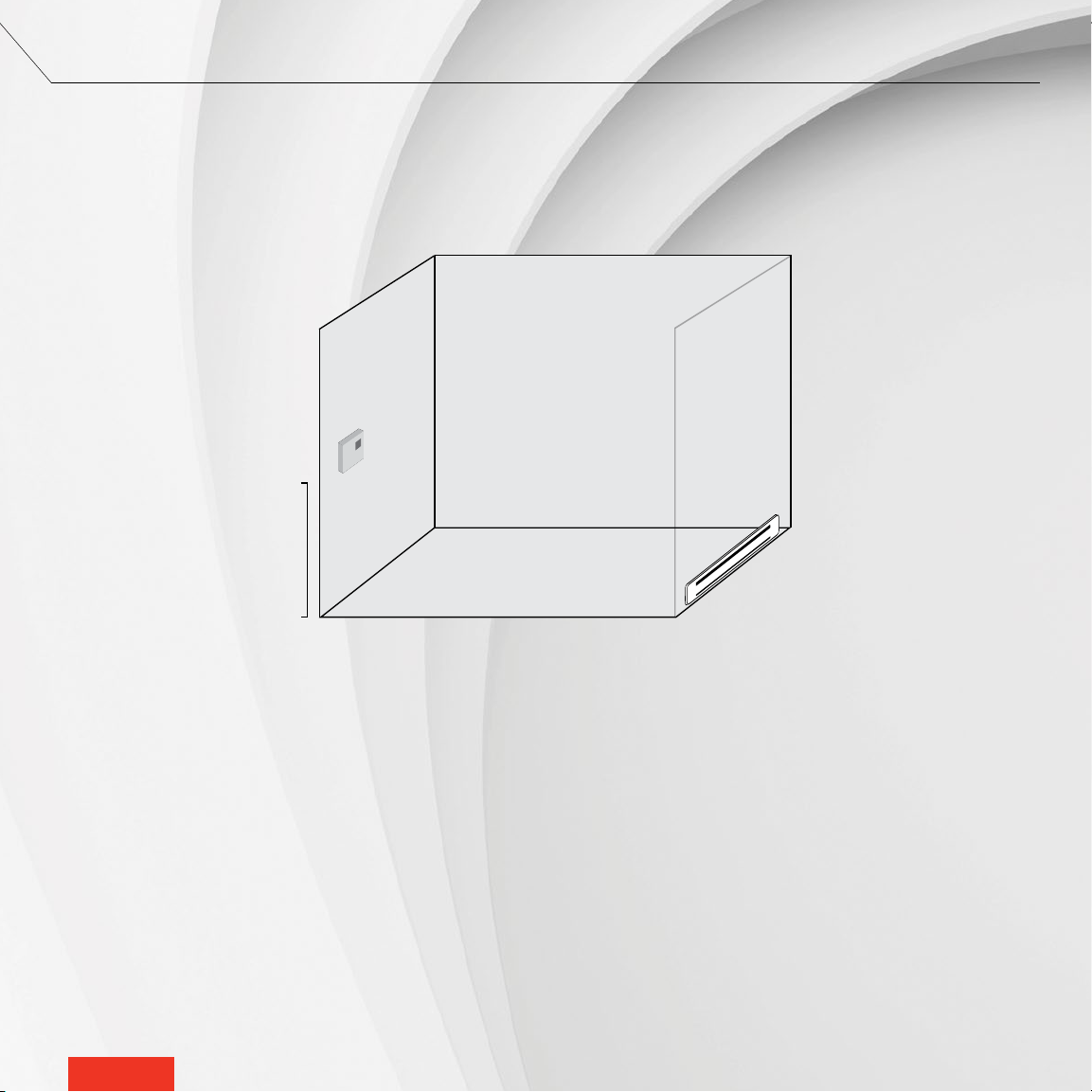

You must install the controller• thermostat at approximately 5 ft. from the oor, on an indoor wall that faces the heating system.

The controller• thermostat must be mounted on an electrical box.

ATTENTION : To avoid any risk of overheating, leave a clearance of at least 12 in. around the controller• thermostat to ensure

proper ventilation. Also, the front of the unit should be completely clear of any obstruction to ensure optimal functionality. For

example, do not install the controller• thermostat behind curtains or furniture.

To avoid getting false temperature measurements, do not install the controller•thermostat in any of the following locations:

• Near a window or close to a door leading outside

• In an area exposed directly to the light or heat of the sun, a lamp, a replace or any other heat source

• Near an air outlet

• Near concealed ducts or a chimney

• Where there is poor air ow (e.g. behind a door)

• Where there is a high concentration of dust

• Where there are frequent air drafts (e.g. top of stairs)

5 ft.

- 8-- 8-

Take full advantage of your MAESTRO controller• thermostat by also using the MAESTRO thermostats and the MAESTRO

mobile app. Using the complete MAESTRO system enables you to create your own ecosystem in your home and control it at

any time, from anywhere.

FOUR STEPS TO MANAGING THE COMFORT OF YOUR HOME

1INSTALL YOUR MAESTRO CONTROLLER

•THERMOSTAT

Follow the instructions in this guide to install your MAESTRO controller• thermostat. Don’t forget that your

controller• thermostat also serves as a thermostat for the room in which it is installed.

2INSTALL YOUR MAESTRO THERMOSTATS

Now install your MAESTRO thermostats. For instructions on how to do this, read the thermostat’s installation and

user guide. To maintain full control over the temperature of your home, you must have a thermostat in each room.

NOTE: A MAESTRO thermostat can control up to 4,000 watts.

READ THIS GUIDE AND WATCH THE INSTALLATION VIDEO

Before you start, take a few minutes to carefully read this guide and watch the step-by-step video on installing the MAESTRO

controller• thermostat. It will ensure safe and easy installation.

The installation video is at the bottom of this page: www.stelpro.com/en-US/maestro

- 9-- 9-

3INSTALL THE MAESTRO APP AND CREATE YOUR MAESTRO ACCOUNT

Download and install the MAESTRO app available for free in the App StoreTM or on Google PlayTM.

After installing the app, create your user account. Once your MAESTRO network is set up, you will be able to control

your MAESTRO system with any mobile device that is connected to this account.

NOTE: Since only one account can control your MAESTRO system, use an email address and password

that you can share with those who will need to manage your MAESTRO system.

4BUILD YOUR MAESTRO NETWORK

Follow these steps to build your MAESTRO network:

1- Connect the controller•thermostat to your Wi-Fi network (see page 18).

2- In the MAESTRO app, enter the registration code displayed on the controller• thermostat screen to create a home.

3- In the MAESTRO app, the “Connect a thermostat to my MAESTRO system” feature will activate and set the controller•ther-

mostat in thermostat pairing mode (see www.stelpro.com/en-US/support-maestro for more details on how to use

the MAESTRO app).

4- Connect the thermostats to the controller•thermostat, one at a time (see the “Connecting a thermostat to the control-

ler• thermostat” section on page 20).

5- Once the connection is complete, the thermostat will appear in the MAESTRO app. Take this opportunity to give it a

name that will be easily recognizable.

NOTE: In your network, each thermostat is connected to the controller • thermostat via a thermostat that

is located nearby. You therefore need to connect your thermostats starting with the one closest to the

controller • thermostat and gradually working outwards. You may need a Zigbee repeater to get around

obstacles or to strengthen the Zigbee signal.

- 10 -- 10 -

1CUT OFF POWER SUPPLY

To avoid any risk of electric shock, cut off the power supply on the lead wires from the electrical panel. Make sure the

power is off by checking, for example, that the heating system remains off even if the setpoint temperature is higher

than the ambient temperature (mechanical thermostat).

INSTALLING THE MAESTRO

CONTROLLER•THERMOSTAT

INSTALLATION OF THE CONTROLLER • THERMOSTAT MUST BE DONE BY A QUALIFIED ELECTRICIAN.

IMPORTANT

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Stelpro Thermostat

Stelpro

Stelpro MAESTRO Manuel utilisateur

Stelpro

Stelpro T12 Series Manuel utilisateur

Stelpro

Stelpro STE252NP+ Manuel utilisateur

Stelpro

Stelpro STE362RNP Manuel utilisateur

Stelpro

Stelpro STCPW5 Manuel utilisateur

Stelpro

Stelpro MAESTRO Manuel utilisateur

Stelpro

Stelpro STE402P Manuel utilisateur

Stelpro

Stelpro STE402NP Manuel utilisateur

Stelpro

Stelpro MAESTRO Manuel utilisateur

Stelpro

Stelpro STCNP - 5mA Manuel utilisateur

Stelpro

Stelpro STCP Manuel utilisateur

Stelpro

Stelpro STE402P Manuel utilisateur

Stelpro

Stelpro STZB402 Plus Manuel utilisateur

Stelpro

Stelpro B2T1 Series Manuel utilisateur

Stelpro

Stelpro Maestro SMT402 Manuel utilisateur

Stelpro

Stelpro True Comfort PS120/240WF Manuel utilisateur

Stelpro

Stelpro STE302PA Manuel utilisateur

Stelpro

Stelpro 360 comfort D070 Manuel utilisateur

Stelpro

Stelpro Allia ASAT402ZB Manuel utilisateur

Stelpro

Stelpro STE302NP Manuel utilisateur

Stelpro

Stelpro Allia SAT402ZB Manuel utilisateur

Stelpro

Stelpro STE302R2+ Manuel utilisateur

Stelpro

Stelpro STE402P Manuel utilisateur

Stelpro

Stelpro STE241 Manuel utilisateur

Manuels Thermostat populaires d'autres marques

EWELLY

EWELLY EW-181 Manuel utilisateur

Prolon

Prolon T1100 Instructions d'installation

Computherm

Computherm Q20 Manuel utilisateur

Heatmiser

Heatmiser neoStat Manuel utilisateur

Aube Technologies

Aube Technologies TH111GFCI-NP 240 VCA Manuel utilisateur

Mars

Mars HEAT CONTROLLER IR Wireless Thermostat Manuel utilisateur

Saswell

Saswell SAS920XWHB-7-S-RF Mode d’emploi

Aircalo

Aircalo TFP1-ET85P2 Manuel utilisateur

Honeywell

Honeywell CM721 Manuel utilisateur

Carrier

Carrier DEBONAIR 33CS Manuel utilisateur

Lennox

Lennox iHarmony Zone Thermostat Instructions de montage

Gemtech

Gemtech GT7000 Mode d’emploi

Rollei

Rollei Smartes 45000 Manuel utilisateur

Sinope

Sinope TH1300RF Manuel utilisateur

Honeywell

Honeywell RLV4305 Manuel utilisateur

Honeywell

Honeywell Prestige 2.0 THX9421 Manuel utilisateur

NuTone

NuTone NTBZ48 Instructions d'utilisation d'origine

Honeywell

Honeywell T6811 Manuel utilisateur
