STEINDORFF NYMCS-603 Manuel utilisateur

STEINDORFF®

Metallurgical Microscope

Model Number

NYMCS-603

User Manual

This manual is written for Metallurgical Microscope of NYMCS-603. For safety and for exerting

the best performance, making you familiar with the instrument entirely, it is strongly

recommended that you read this manual carefully before using the microscope.

STEINDORFF®

Contents NYMCS-603

User Notices …………………………………………………………………… 2

1 Components Name ………………………………………………………….. 3

2 Installation …………………………………………………………………... 4

2.1 Installing Diagram …………………………………………………………………….. 4

2.2 Installing steps …………………………………………………………………………. 5

3 Adjustment & Operation ………………………………………………….... 9

3.1 Adjustment System Installing Illustration ………………………………………….. 9

3.2 Operation ………………………………………………………………………………. 11

4 Technical Specifications …………………………………………………….. 14

5 Troubleshooting …………………………………………………………….... 15

STEINDORFF®

Use Notices NYMCS-603

I. Safety note

1. Carefully open the box, avoid the accessories, like lens, dropping to ground and being damaged.

2. Do keep the instrument out of direct sunlight, high temperature or humidity, dusty and easy

shaking environment. Make sure the stage is smooth, horizontal and firm enough.

3. When moving the instrument, please use two hands to grip with the two sides of the microscope

body.

4. If the bacterium solution or the water splash to the stage, objective or viewing tube, pull out the

power cord at once, and wipe up the microscope. Otherwise, the instrument will be damaged.

5. When running, the lamp house and nearby parts will be very hot. Please ensure there is enough

cooling room for them.

6. Make sure the instrument is earthed, to avoid lighting strike.

7. For safety, be sure the main switch is in “O”(off) state before replace the halogen lamp or the fuse,

then cut off the power, and do the operation after the lamp bulb and the lamp house completely cool.

8. Check the input voltage: be sure the input voltage which signed in the back of the microscope is

consistent with the power supply voltage, or it will bring a serious damage to the instrument.

9. Use the factory supplied power cord, please.

II. Maintenance

1. All the lenses have been well checked and adjusted. It is forbidden to disassemble them yourself.

2. The nosepiece and coarse/fine focus unit have a compact and precise frame, please don’t

disassemble them as possible as you can.

3. Keep the instrument clean, wipe dust regularly, and be attention to avoid contaminating the

optical elements especially.

4. The contaminations on the prism, as finger mark and oil, could be gently wiped with a piece of soft

cloth or tissue paper, gauze which has been immersed in pure alcohol or xylene. (Note that the alcohol

and the xylene are all burned easily, do not let them near the fire, and use them in a drafty room as

possible as you can.)

5. Don’t use organic solvent to wipe the non-optical elements, when you need to clean, use the soft

detergent, please.

6. When using, if the microscope is splash by liquid, cut off the power at once, and wipe up the

moisture.

7. Do not disassemble any parts of the microscope. That will affect the function or declinethe

performance of the microscope.

8. Place the instrument in a cool, dry position. After using the microscope, remember to cover it

with dust helmet. Do wait for the lamp house cooling completely before cover.

STEINDORFF®

1. Name of Components NYMCS-603

STEINDORFF®

2．Installation NYMCS-603

2.1 Installing Illustration

The following shows the installing order of the spare parts. The number expresses the installing process.

Before the installing, make sure there is no dust and stain on the spare parts. No marks by outside

force on the surface of the spare parts or glass.

Keeping the hexagon- spanner well, when change the spare parts, you will use it.

STEINDORFF®

2.2 Installing Steps

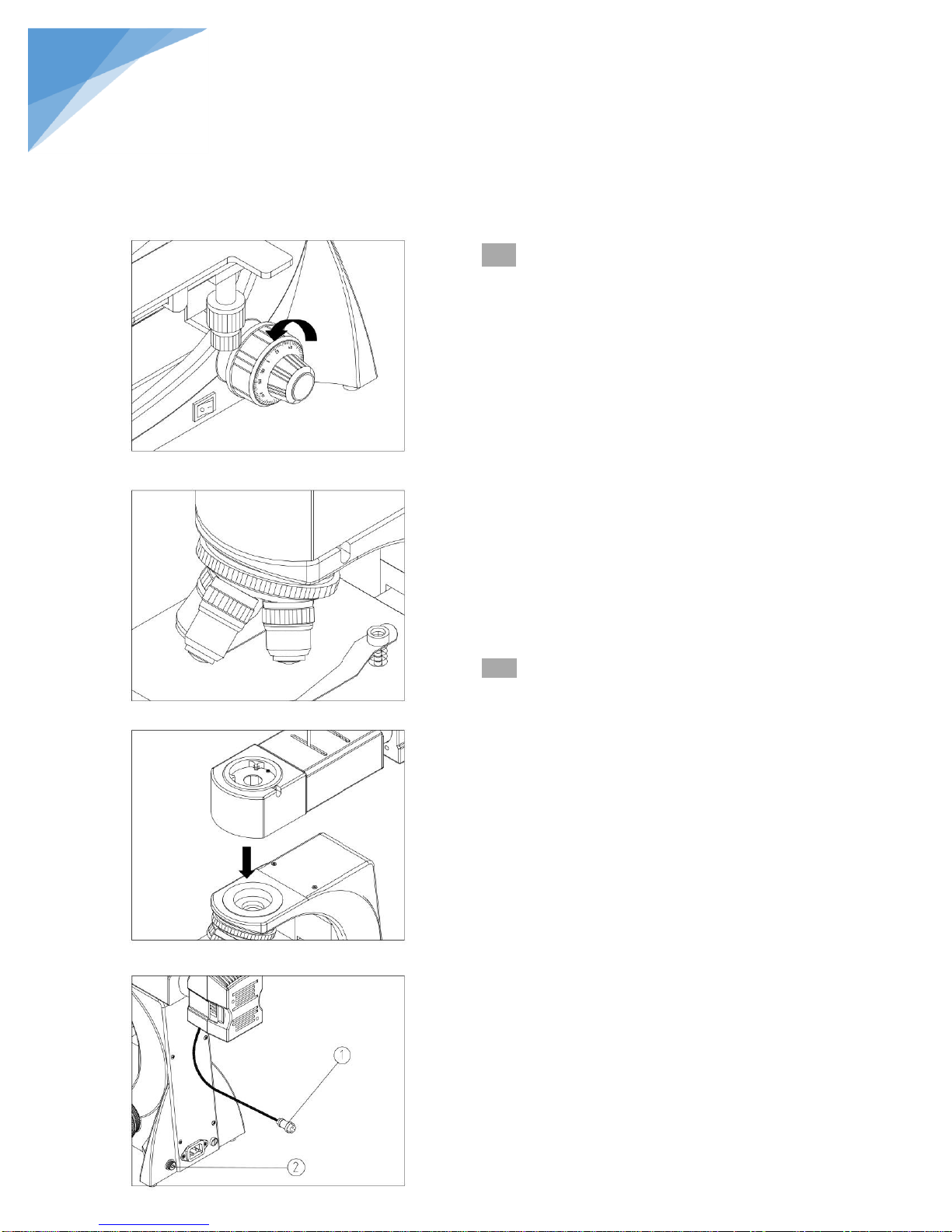

2.2.1 Installing the Objective (Fig. 1-2)

1. Adjust the coarse &fine focus knob, till the

mechanical stage to the low limited place.

2. Screw down the objective to nosepiece from left or

right side, low magnification objective first.

Install all the objective form low to high

magnification following the clock hand.

According to this way to install the objective will

make it easier to change magnification in operation.

Clean the objective frequently.

At first, use the 10X objective to looking for

image, then change another one.

Turn the objective till hear the “Kai. Kai”

sound, make sure the objective enter the

objective center.

2.2.2 Installing the Metallurgical

Illumination Set (Fig. 3-4)

1. Insert the Metallurgical Illumination Set with

Lamp House installed into the Microscope

Body. Align the position and screw down the

bolt with hexagon wrench.

2. Plug the power cord ①of the Metallurgical

Illumination Set into the socket ②. Then

screw the bolt firmly on the socket.

Fig. 1

Fig. 2

Fig. 3

Fig. 4

STEINDORFF®

2.2.3 Install the binocular viewing head

(Fig. 5-6)

Insert the binocular viewing head in the head of

the body, turn to the right place, then fix up it

by bolts.

2.2.4 Install the eyepiece (Fig. 7-8)

Insert the eyepiece in the eyepiece tube till end.

Fig. 8 picture shows the station after the installing.

Fig. 5

Fig. 6

Fig. 7

Fig. 8

STEINDORFF®

2.2.5 Install the color filter (Fig. 9-10)

Put the filter into the jack of the illumination system.

★ There is three type of color filter. The color is

blue, yellow and green.

2.2.6 Connecting the Power Cord (Fig. 11-13)

★ Do not force on the Power Cord. The cable and wire

are easier to be damaged when bended or wrapped.

1. Before connecting the power cord, switch the main

On-Off ①to “O” (off).

2. Plug the power cord ②into the socket ③on

microscope safely. Make sure be connected.

3. Plug the power cord ④into the power source

Socket ⑤safely. Make sure be connected.

★ Do use the supplied power cord all the time. If

lost or damaged, select the same standard cord,

please.

★This machine has High-Band voltage. It can

adapt any voltage between 100V and 240V.

2.2.7 Replacing the fuse (Fig. 11-12)

Do remember to turn the main switch ①on the

state of “O” (off) before replacing the fuse, and

unplug the power cord. Rotate the fuse ⑥kits out

of the holder ⑦by the “--”type screwdriver,

replace a new fuse, then rotate back to the holder

again

Fig. 9

Fig. 10

Fig. 11

Fig. 12

Fig. 13

STEINDORFF®

2.2.8 Installingand replacingthe lamp (Fig. 14-17)

Please use the specified halogen Lamp 6V30W.

1. Pull out the lamp-house ①as the picture show (Fig. 14)

2. Hold to the bulb ① after you wrap it with gauze or other

protection materials, then depress the plugs

into the jack

on the lamp house, ensure the filament and the bolt

are in a same level. (Fig. 15)

3. Replacing the lamp when using or soon after

When using, or soon after it is turned off, the lamp, the

lamp house and nearby parts will be very hot and will

cause serious burns. Please turn the main switch on “O”

(off), pull up power plug, and make sure the bulb, the

lamp house and periphery are all cool. Then, you can do

your replacing.

Please insert the lamp gently, or it will be damaged

by excessive extrusion.

Do not touch the Halogen bulb with your hands. It will

shorten the service life or cause it to burst. If you leave

fingerprints on the surface carelessly, clean it with a dry

soft cloth.

4. Align the socket ①and pins ②and align the bolt ③ and

the jack ④. Then push the lamp-house into the

Metallurgical Illumination Set until covered. (Fig. 15-16)

Fig. 14

Fig. 15

Fig. 16

Fig. 17

STEINDORFF®

3.Adjustment & Operation NYMCS-603

3.1 Adjustment Set Diagram (Fig. 18-19)

Fig. 18
