Stealth Products MTMD-12 Mode d’emploi

Medial Support

Medial Thigh Support

User Manual & Maintenance Guide

Important

Read and understand all instructions prior to the use of the product. Failure to

adhere to instructions and warnings in this document may result in property

damage, injury, or death. Product misuse or failure to follow instructions will

void the warranty.

Immediately discontinue use if any function is compromised, if parts are missing

or loose, or if any component shows signs of excessive wear. Consult with your

supplier for repair, adjustment, or replacement.

All persons responsible for fitting, adjustment, and daily use of the devices

discussed in the these instructions must be familiar with and understand all

safety aspects of the devices mentioned. In order for our products to be used

successfully, you must read and understand all instructions and warnings, and

maintain our products according to our instructions on care and maintenance.

The installation instructions will guide you through this product’s options and

possibilities.

Instructions are written with the expressed intent of use with standard

congurations. They also contain important safety and maintenance

information, as well as describe possible problems that can arise during use. For

further assistance, or more advanced applications, please contact your supplier

or Stealth Products at (512) 715-9995 or toll free at (800) 965-9229.

Always keep the operating instructions in a safe place so they may be referenced

as necessary.

All information, pictures, illustrations, and specications are based on the product

information that was available at the time of printing. Pictures and illustrations

shown in these instructions are representative examples and are not intended to

be exact depictions of the various parts of the product.

MDSS GmbH

Schigraben 41

30175 Hannover, Germany

Stealth Products, LLC

104 John Kelly Drive

Burnet, TX 78611

Phone: (512) 715-9995 Toll Free: (800) 965-9229

Fax: (512) 715-9954 Toll Free: (800) 806-1225

[email protected]

www.stealthproducts.com

Stealth Products is committed to 100% customer satisfaction. Your complete

satisfaction is important to us. Please contact us with feedback or suggestions to

help us improve the quality and usability of our products.

You may reach us at:

General Information

These products are designed to be tted, applied, and installed exclusively by

a healthcare professional trained for these purposes. The tting, application,

and installation by a non-qualied individual could result in serious injury.

CAUTION

General Information

Warranty

Our products are designed, manufactured, and produced to the highest of standards.

If any defect in material or workmanship is found, Stealth Products will repair or

replace the product at our discretion. Any implied warranty, including the implied

warranties of merchantability and tness for a particular purpose, shall not extend

beyond the duration of this warranty. Stealth Products does not warrant damage

due to, but not limited to: misuse, abuse, or misapplication of product, and/or

modication of product without written approval from Stealth Products, LLC. Any

alteration or lack of serial number, where applicable, will automatically void all

warranty.

Stealth Products, LLC is liable for replacement parts only. Stealth Products, LLC

is not liable for any incurred labor costs. Stealth Products warrants against failure

due to defective materials or workmanship:

Covers: 2 years

Hardware: 5 years

Electronics: 3 years

In the event of a product failure covered by our warranty, please follow the

procedures outlined below:

Call Stealth Products at (512) 715-9995 or toll free at (800) 965-9229.

Request a Return Authorization (RA) form from the Returns Department and follow

the documentation instructions.

Please visit https://stlpro.site/returns-n-warranty to learn more about our warranty

and returns policy.

You can download additional copies of this manual by accessing the Stealth

website (https://stlpro.site/stealth-docs) and searching “Medial Thigh Support” in

the search bar at the top of the page.

Supplier Reference

Supplier:

Telephone:

Address:

Purchase Date:

Model:

Warning Labels

Warnings are included for the safety of the user, client, operator, and property.

Please read and understand what the signal words DANGER,WARNING,

CAUTION,NOTICE, and SAFETY mean, and how they could aect the user, those

around the user, and property.

Limited Liability

Stealth Products, LLC accepts no liability for personal injury or damage to property

that may arise from the failure of the user or other persons to follow the

recommendations, warnings, and instructions in this manual.

Stealth Products does not hold responsibility for nal integration of nal assembly

of product to end user. Stealth Products is not liable for user death or injury.

CAUTION Identies a potential situation which, if not avoided, may result

in minor to moderate injury and property damage.

WARNING Identies a potential situation which, if not avoided, may result

in severe injury,death, and property damage.

DANGER Identies an imminent situation which, if not avoided, may

result in severe injury,death, and property damage.

NOTICE Identies important information not related to injury, but

possible property damage.

SAFETY

Indicates steps or instructions for safe practices, reminders of

safe procedures, or important safety equipment that may be

necessary.

Warning Labels

Table of Contents

General Information .................................................................... 1-2

Customer Satisfaction ............................................................................ 1

Important .................................................................................................... 1

Warranty ...................................................................................................... 2

Supplier Reference................................................................................... 2

Warning Labels................................................................................. 3

Warning Labels.......................................................................................... 3

Limited Liability......................................................................................... 3

Table of Contents ............................................................................. 4

Installation .................................................................................... 5-6

Abductor Pad (Pommel) Installation................................................. 5

Fixed Mount Assembly........................................................................... 5

Removable Mount Installation............................................................ 6

Adjustment ................................................................................... 7-9

Height Adjustable Hardware ............................................................... 7

Link-Type Hardware ................................................................................ 7

Swing-Away Hardware........................................................................... 8

Modular Hardware................................................................................... 8

MTMD-613 Full Surface Contact........................................................ 8

MTMD-42 Adjustable Abductor Hardware.................................... 9

First-Time Use................................................................................. 10

Care & Cleaning .....................................................................................10

Dealer Assistance ...................................................................................10

User Testing..............................................................................................10

Conditions of Use ..................................................................................10

MTHW620 MTHW640 MTHW650 MTHW660

MTMD-12 (S)

MTMD-13 (M)

MTMD-14 (L)

MTMD-19 (CUSTOM)

MTMD-21 (XS)

MTMD-22 (S)

MTMD-23 (M)

MTMD-24 (L)

MTMD-29 (CUSTOM)

MTMD-32 (S)

MTMD-33 (M)

MTMD-34 (L)

MTMD-39 (CUSTOM)

MTMD-42

Applies to the following hardware:

Applies to the following abductors:

Mounting the xed hardware:

1. Locate the t-nuts in the bottom of the

seat.

2. Line up the slots in the xed bracket with

the two corresponding rows of t-nuts in

the bottom of the seat.

3. Insert the two 1/4-20 Socket Head

Screws into the designated holes and

tighten with a 3/16 hex key.

Your Medial Thigh Support may have been pre-

assembled from the factory. If this is not the

case, please follow the instructions below.

Installation of the pad is the same for all models

of support hardware.

Select the proper orientation and mounting

holes in the abductor pad for the position

required. Insert the included button head cap

screws through the slot in the adjustable riser of

the medial support hardware and into the

mounting holes in the pommel.

Tighten the screws suciently to secure the pad.

Do not overtighten the screws..

Fixed Mount Installation

Installation

Abductor Pad (Pommel) Installation

Removable Mount Installation

Installation

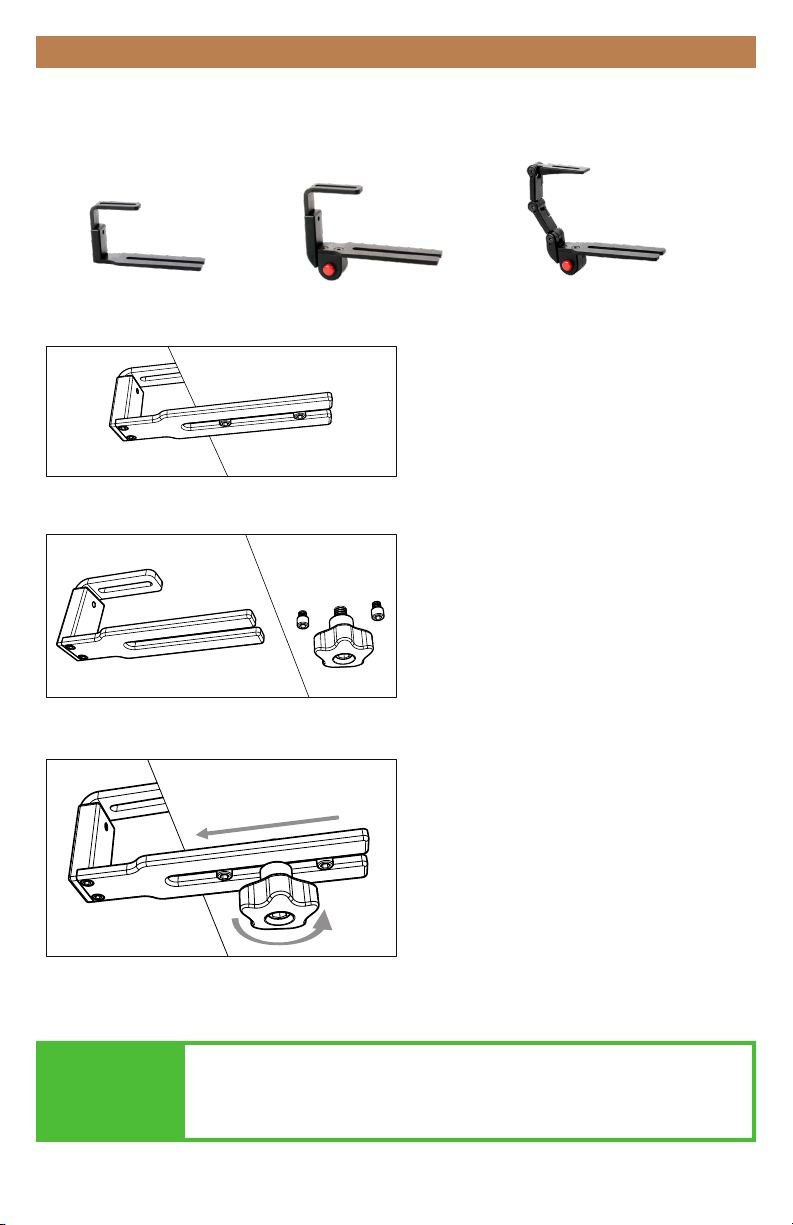

MTHW600 MTHW610 MTHW630

Applies to the following hardware:

Figure A: The two screws are guides for the support.

Figure B: The center hole is larger than the other two.

Figure C: Turn the knob counter-clockwise to remove the

medial thigh support. Turn clockwise to tighten.

Mounting the removable hardware:

1. Locate the center row of t-nuts

in the bottom of the seat. Insert the

two 1/4-20 Socket Head Screws

into the front and rear holes (Fig. A)

and tighten with a 3/16 hex key

(these screws are only to prevent

rotation of the bracket). Leave the

center hole open for the

installation of the knob in the next

step.

2. Thread the 5/16-18 Socket Head

Screw into the knob if it is not

already threaded into it. Twist it

until it is about half way through

the knob.

3. Apply red threadlocker to 4-5

threads at the tip of the 5/16-18

Socket Head Screw (knob), and

thread it loosely into the t-nut in

the seat. Allow enough room

between the base of the knob and

the seat for the support bracket to

slide easily. Make sure there is no

excess threadlocker on the screw or

knob and allow it to cure according

to the directions on the package.

Once cured, slide the support

bracket into position and lock it in

place by turning the knob

clockwise. (Fig. C)

NOTICE Be sure not to overtighten screws.

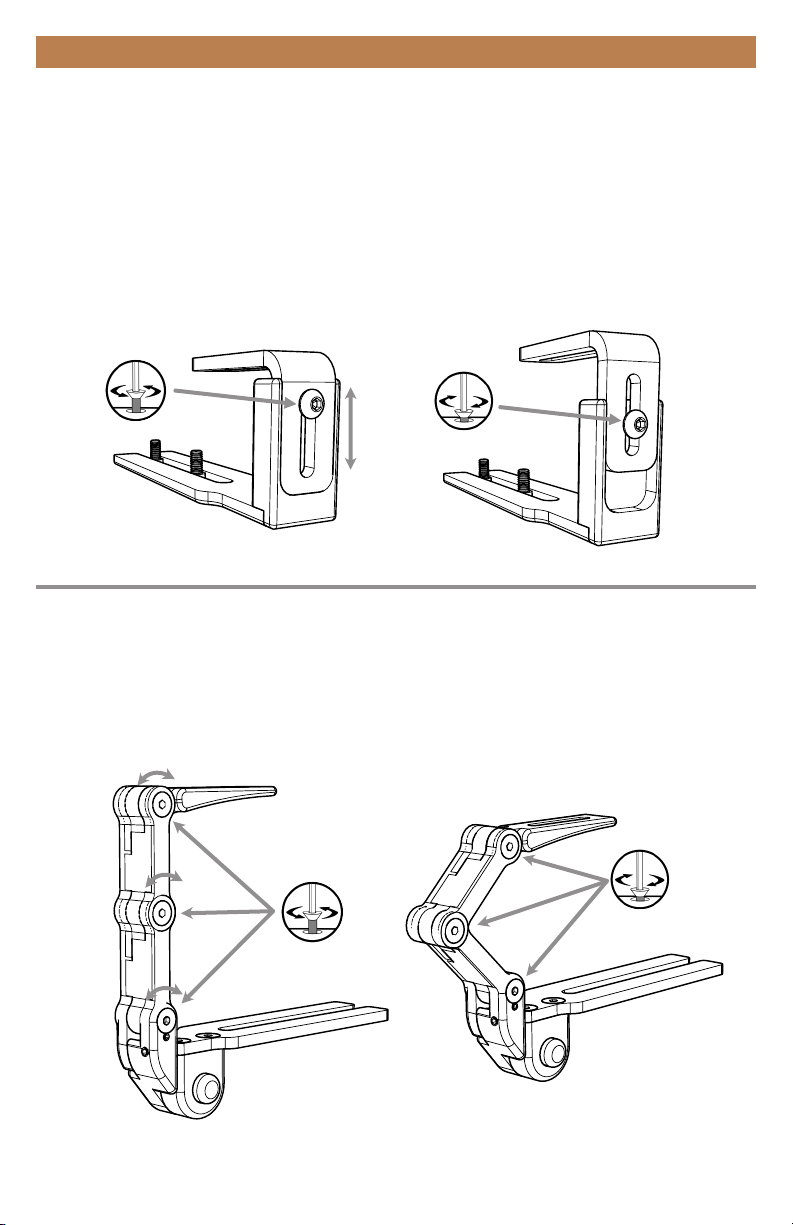

To raise or lower the pommel using link-type hardware, loosen the screw at

the fulcrum of the angle you wish to change. Adjust the angle and tighten the

screw to secure the position of the pommel.

tooltip

To raise or lower the pommel using height-adjustable hardware, loosen the

button head cap screw securing the bracket, adjust its height, and tighten the

screw to secure the pommel in position.

Height Adjustable Hardware

Link-type Hardware

Making Adjustments

Installation

Operation

Design & Function

tooltip

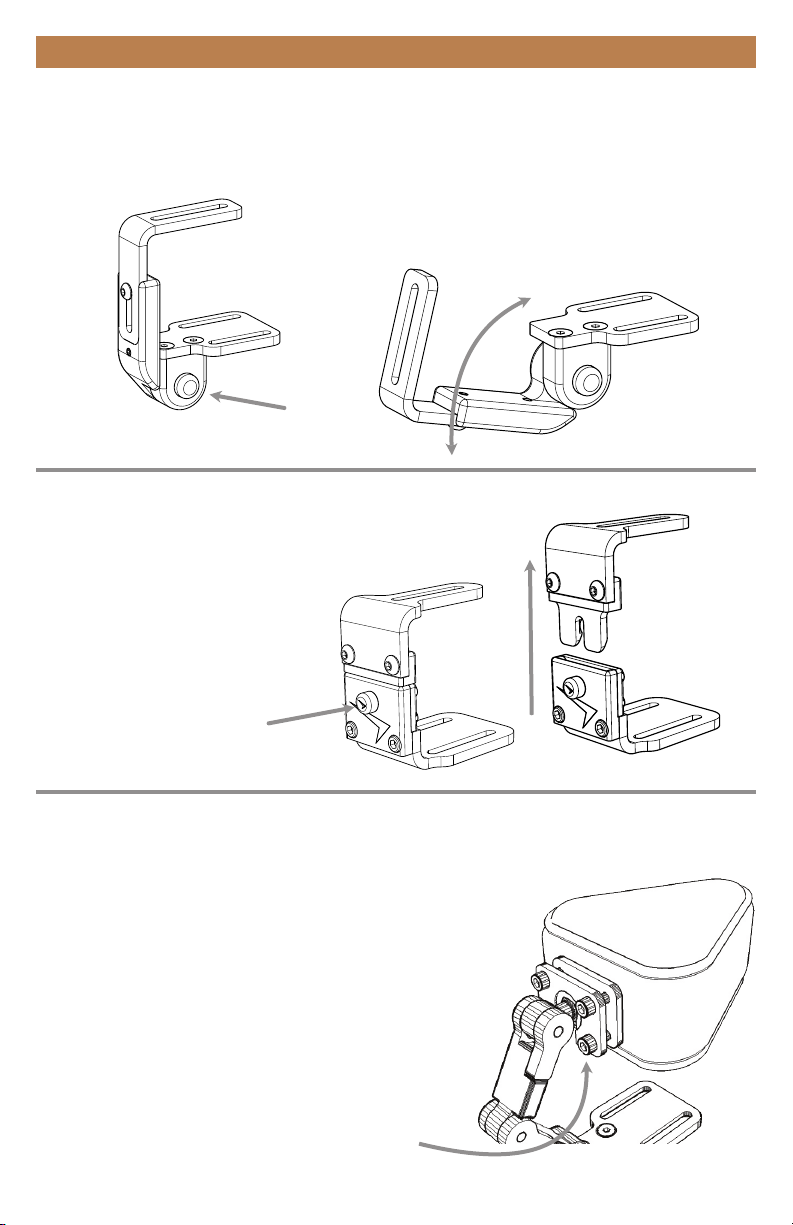

Swing Away Hardware

Press the red button (A) and push the pad away

from you. It will swing forward and down out of

the way for transfers or other needs. Lift it back

into the upright position and it will lock in place.

tooltip

Modular Hardware

Press the red button (A) and

lift the pad up away from

the seat. It will lift free and

out of the way for transfers

or other needs. Replace the

tab in the slot and it will lock

in place.

tooltip

MTMD-613 Full Surface Contact

The Full Surface Contact feature for medial includes

a ball mount for the medial pad allowing for

support on an adjustable 360° axis. The ball mount

allows for movement and rotation on an axis, and

provides excellent adjustability. The Full Surface

Contact connects directly to the links with Stealth’s

ball mount.

The Full Surface Contact can be adjusted by

these four screws (loosen to adjust, tighten to

secure)

compatible with MTHW-620 & MTHW-630

Operation

MTMD-42 Adjustable Abductor

Compatible with MTHW-600,

MTHW-610, & MTHW-620

This adjustment screw allows you

to change the angle of the pads.

Stealth’s adjustable medial pad allows

adjustment in multiple angles and planes. It

comes standard with dual 3x5” pads and slip

cover.

The MTMD-42 mounts onto a height adjustable

mounting bracket. (linking hardware does not

utilize this bracket)

When mounting on linking hardware, the

MTMD-42 utilizes an adapter like the one below

to attach to the links.

The pads connect to the planar mount with

tracks and track nuts. This allows the pads to be

adjusted forward or rearward on the planar

mount.

The height and depth are adjustable, and the

angle of the pads can be adjusted independently

to meet most asymmetrical medial positioning

needs.

Making Adjustments:

To adjust the pad on the planar mount, loosen the two screws that secure the pad to the

mount. Slide the pad to the new position and tighten the two screws.

To adjust the angle of the abductor pads, loosen the screw located at the pivot point of

the two pads. Move each pad into its new position, and tighten the screw to secure the

new angles.

To adjust the depth of the pommel, loosen the two screws that secure the abductor to

the mount and move it to the desired position. Tighten the screws to lock in the new

setting.

To adjust the height of the hardware, follow the instructions for “Height Adjustable

Hardware” located earlier in this manual.

As in all cases, be careful not to overtighten screws.

Design & Function

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Stealth Products Fauteuil roulant

Stealth Products

Stealth Products ADI Q-Back 2.0 AL Series Manuel utilisateur

Stealth Products

Stealth Products i-Fit IFCS Manuel utilisateur

Stealth Products

Stealth Products UniLink Headrest Manuel utilisateur

Stealth Products

Stealth Products I-Drive IDT100-1 Mode d’emploi

Stealth Products

Stealth Products ADI HA-42 Manuel utilisateur

Stealth Products

Stealth Products ADI ELITE Manuel utilisateur

Stealth Products

Stealth Products True Forming Back Manuel utilisateur

Stealth Products

Stealth Products mo-Vis Series Manuel utilisateur

Stealth Products

Stealth Products Drop Lock Hardware Mode d’emploi

Stealth Products

Stealth Products Stealth Positioning Pelvic Belts Manuel utilisateur

Stealth Products

Stealth Products TFB Manuel utilisateur

Stealth Products

Stealth Products UniLink Comfort Plus Series Mode d’emploi

Stealth Products

Stealth Products The World's Best Laterals Manuel utilisateur

Stealth Products

Stealth Products I-Drive IDCH Series Instructions d'utilisation

Stealth Products

Stealth Products Carbon Fiber Seat Base Manuel utilisateur

Stealth Products

Stealth Products Pelvic Support Manuel utilisateur

Stealth Products

Stealth Products ADI HA-18 Manuel utilisateur

Stealth Products

Stealth Products Simple Solutions Tray Manuel utilisateur

Stealth Products

Stealth Products AL Series Manuel utilisateur

Stealth Products

Stealth Products ADI AL Series Manuel utilisateur

Stealth Products

Stealth Products i-Drive Mode d’emploi

Stealth Products

Stealth Products ADI Aluminum Series Manuel utilisateur

Stealth Products

Stealth Products ADI Q-Back AL Series Manuel utilisateur

Stealth Products

Stealth Products ADI Q-Back 2.0 Manuel utilisateur

Manuels Fauteuil roulant populaires d'autres marques

Otto Bock

Otto Bock Skippi plus Manuel utilisateur

Invacare

Invacare Action 4NG series Manuel utilisateur

SORG

SORG LoopSORG 802 Manuel utilisateur

Designability

Designability WizzyBug Instructions d'installation

Vermeiren

Vermeiren RAPIDO Manuel utilisateur

Excel

Excel G5 KIDS 0285 Manuel utilisateur

M. Bartels

M. Bartels SA-3 Manuel utilisateur

nino robotics

nino robotics NIno Manuel utilisateur

Vermeiren

Vermeiren Turios Manuel utilisateur

Invacare

Invacare MK5 EX Manuel utilisateur

Invacare

Invacare Solara Spree GT Manuel

Nova

Nova TKW-12 Manuel utilisateur

BCW

BCW Advantage Manuel utilisateur

You-Q

You-Q Luca Manuel utilisateur

interco

interco Ortolight Standard Mode d’emploi

Nova

Nova 7190L Manuel utilisateur

Vermeiren

Vermeiren EZ1 Manuel utilisateur

PaceSaver

PaceSaver Scout M-300 Manuel utilisateur
