StarTech.com MNRISERCLMP Guide de démarrage rapide

Quick-Start Guide

To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.

Manual Revision: August 13, 2019 11:31 AM

Product Diagram (MNRISERCLMP)

Component Function

1Monitor Platform • Used to support the Monitor.

2Legs (x 2) • Used to support the Monitor Riser.

3Clamps (x 2) • Used to secure the Monitor Riser to the edge

of the surface.

4Thumb Screws (x 2) • Used to secure the Monitor Riser to the edge

of the surface.

Requirements

For the latest requirements, please visit www.startech.com/MNRISERCLMP

• Suitable Mounting Surface x 1

Package Contents

• Monitor Platform x 1

• Desk Clamp Assemblies x 2

• Hex Key x 1

• Screws x 4

• Washers x 4

Assembling the Monitor Riser

1. Place the Monitor Platform screw-hole side facing upwards on a at, stable surface.

Desk Clamp Monitor Riser

2. Align the Screw Holes (x 2) on the Clamp Assembly with the Mounting Holes (x

2) on the bottom of the Monitor Platform. When aligning the Clamp Assembly

with the Mounting Holes, the back of the Clamp Assembly should be closest to the

edge of the Monitor Platform.

Assembling the Monitor Riser

3. Align the Washers (x 2) with the Screw Holes on the Clamp Assembly.

4. Insert the Screws (x 2) through the Washers and Clamp Assembly and into the

Monitor Platform.

5. Using the Hex Key (included) tighten the Screws, being careful not to over-tighten.

6. Repeat steps 2 - 5 to install the second Clamp Assembly to the Monitor Platform.

Installing the Monitor Riser

The Monitor Riser can support one monitor with a maximum screen size of 812 mm

(32”).

1. Align the Clamp Assemblies with the edge of the surface

2. Slide the Clamp Assemblies over the edge of the surface.

3. Using the Thumb Screw, tighten the Clamp until the Clamp is pressed tightly

against the surface.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-

party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only

and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which

this manual applies by the third-party company in question. StarTech.com hereby acknowledges that all trademarks, registered

trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the

property of their respective holders.

Warranty Information

This product is backed by a ve-year warranty.

For further information on product warranty terms and conditions, please refer to www.startech.com/warranty.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors, employees or agents)

for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of prots, loss of

business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product.

Some states do not allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations

or exclusions contained in this statement may not apply to you.

FR: startech.com/fr

DE: startech.com/de

ES: startech.com/es

NL: startech.com/nl

IT: startech.com/it

JP: startech.com/jp

StarTech.com Ltd.

45 Artisans Cres

London, Ontario

N5V 5E9

Canada

StarTech.com Ltd.

Unit B, Pinnacle 15

Gowerton Rd,

Brackmills

Northampton

NN4 7BW

United Kingdom

StarTech.com LLP

2500 Creekside

Parkwy

Lockbourne, Ohio

43137

U.S.A.

Product Specications

Type of Measurement Measurement

Weight Capacity

20 kg. (44 lb.)

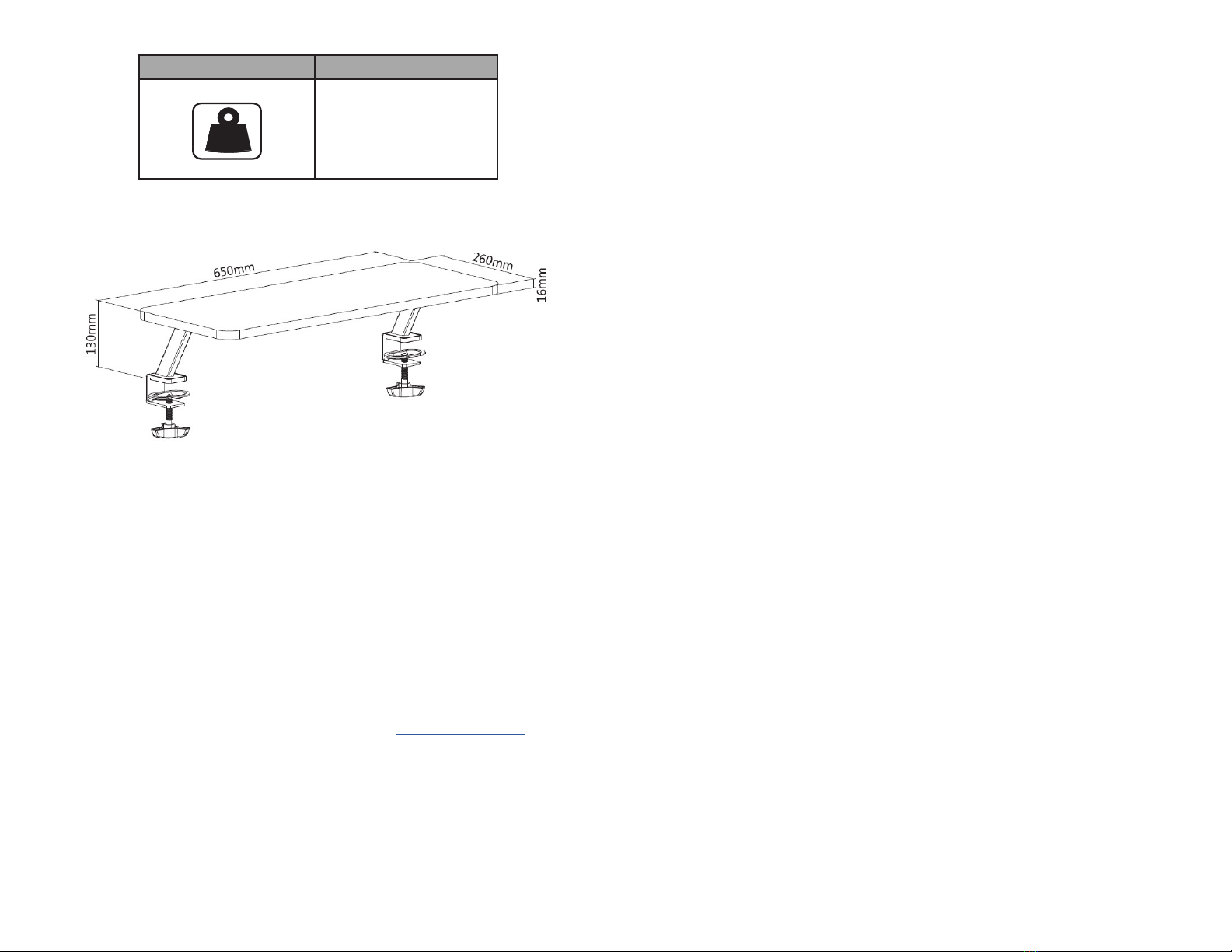

Product Dimensions
