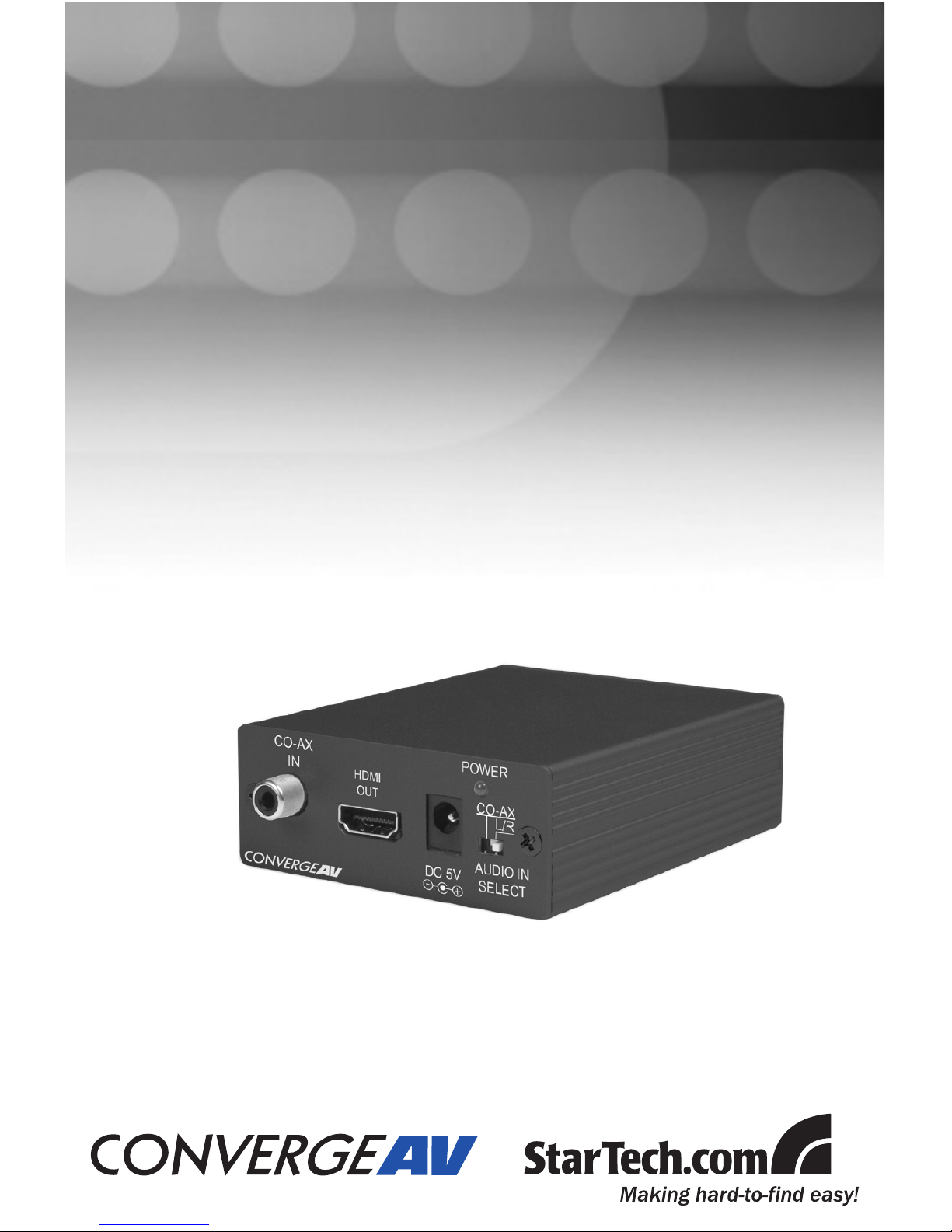

StarTech.com CONVERGEAV CPNTA2HDMI Manuel utilisateur

Component Video with Digital Audio to HDMI Converter

CPNTA2HDMI

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates,

uses and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there

is no guarantee that interference will not occur in a particular installation. If this equipment

does cause harmful interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct the interference by

one or more of the following measures:

Reorient or relocate the receiving antenna.•

Increase the separation between the equipment and receiver.•

Connect the equipment into an outlet on a circuit different from that to which the•

receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.•

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected

names and/or symbols of third-party companies not related in any way to StarTech.com.

Where they occur these references are for illustrative purposes only and do not represent an

endorsement of a product or service by StarTech.com, or an endorsement of the product(s)

to which this manual applies by the third-party company in question. Regardless of any

direct acknowledgement elsewhere in the body of this document, StarTech.com hereby

acknowledges that all trademarks, registered trademarks, service marks, and other protected

names and/or symbols contained in this manual and related documents are the property of

their respective holders.

Instruction Manual

Table of Contents

Introduction ................................................................................... 1

Features ......................................................................................1

Package contents ........................................................................1

System Requirements .................................................................1

Operating Controls and Functions .............................................. 2

Front Panel ..................................................................................2

Rear Panel...................................................................................2

Connection and Installation ......................................................... 3

Speciﬁcations ................................................................................ 4

Instruction Manual

Introduction

Convert analog component video (YPbPr and YCbCr) and audio (digital

or analog) to HDMI! Supporting resolutions of up to 1080p, and 5.1

channel audio, the Converge AV Component with Audio to HDMI Format

Converter is extremely simple to install and conﬁgure to get the input

signal you want from your source equipment.

Features

Consolidates YPbPr/YCbCr video and Toslink digital audio into a•

single HDMI connection

HDMI 1.2 compliant•

Supports display resolutions of up to 1920 x 1080 (60Hz)•

Package contents

This package should contain:

1 x YPbPr/YCbCr video and Toslink digital audio•

1 x Power Adapter•

1 x 3’ (1m) RCA Audio Cable•

1 x Instruction Manual•

System Requirements

A YPbPr/YCbCr video source•

A Toslink digital audio source•

An HDMI Cable•

An available power outlet•

January 9, 2007

Instruction Manual

Operating Controls and Functions

Front Panel

Rear Panel

HDMI output connector1. : Connect to the HDMI input of your display

TV using HDMI cable

DC power supply 5V(1A)2.

Power LED light3.

Toslink Digital Audio Input:4. Connects to the Toslink output of your

DVD or Set-Top-Box

Analog YPbPr/YCbCr Input Connector:5. Connects to the YPbPr or

YCbCr output of your DVD or Set-Top-Box.

1 2 3

Instruction Manual

Connection and Installation

HDMI

Capable

Display

HDMI Cable

CPNTA2HDMI

3 RCA to 3 RCA cable

Video Source

(PbPr

Component

OUT)

Instruction Manual

Specications

HD Input Analog YCbCr/YPbPr through 3

RCA Connectors

Input Signal 1 Vp-p 75 W, Cb/Cr or Pb/

Pr:0.7Vp-p, 75 W

Audio Input Digital Toslink

Input/Output Resolutions HD: 480i, 480p, 720p, 1080i,

1080p@60Hz,

576i, 576p, 720p, 1080i,

1080p@50Hz

1080p @30Hz

1080p @25Hz

1080p @24Hz

Power 5V (1A) Center Positive

Product Dimensions 76 x 30 x 105mm (W x H x L)

Instruction Manual

Technical Support

StarTech.com’s lifetime technical support is an integral part of our commitment to

provide industry-leading solutions. If you ever need help with your product, visit

www.startech.com/support and access our comprehensive selection of online tools,

documentation, and downloads.

Warranty Information

This product is backed by a one-year warranty. In addition, StarTech.com warrants

its products against defects in materials and workmanship for the periods noted,

following the initial date of purchase. During this period, the products may be

returned for repair, or replacement with equivalent products at our discretion. The

warranty covers parts and labor costs only. StarTech.com does not warrant its

products from defects or damages arising from misuse, abuse, alteration, or normal

wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or

their ofﬁcers, directors, employees or agents) for any damages (whether direct or

indirect, special, punitive, incidental, consequential, or otherwise), loss of proﬁts,

loss of business, or any pecuniary loss, arising out of or related to the use of the

product exceed the actual price paid for the product. Some states do not allow the

exclusion or limitation of incidental or consequential damages. If such laws apply,

the limitations or exclusions contained in this statement may not apply to you.

StarTech.com has been making “hard-to-ﬁnd easy” since 1985, providing

high quality solutions to a diverse IT and A/V customer base that spans

many channels, including government, education and industrial facilities

to name just a few. We offer an unmatched selection of computer parts,

cables, A/V products, KVM and Server Management solutions, serving a

worldwide market through our locations in the United States, Canada, the

United Kingdom and Taiwan.

Visit www.startech.com today for complete information about all our

products and to access exclusive interactive tools such as the Cable Finder,

Parts Finder and the KVM Reference Guide. StarTech.com makes it easy

to complete almost any IT or A/V solution. Find out for yourself why our

products lead the industry in performance, support, and value.
