StarTech.com 8STET91000LCOAM Manuel utilisateur

Manual Revision: 03/10/2016

For the most up-to-date information, please visit: www.startech.com

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l'utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

IT: Guida per l'uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

ET91000LCOAM

In-Band OAM Gigabit Ethernet to MM LC Fiber

Media Converter - 550m, Metal Housing

*actual product may vary from photos

Instruction Manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation.This equipment generates,

uses and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there

is no guarantee that interference will not occur in a particular installation. If this equipment

does cause harmful interference to radio or television reception, which can be determined by

turning the equipment o and on, the user is encouraged to try to correct the interference by

one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver

is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not

represent an endorsement of a product or service by StarTech.com, or an endorsement of the

product(s) to which this manual applies by the third-party company in question. Regardless

of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby

acknowledges that all trademarks, registered trademarks, service marks, and other protected

names and/or symbols contained in this manual and related documents are the property of

their respective holders.

Instruction Manual

Table of Contents

Product Overview ..................................................................................1

Side 1 ............................................................................................................................................................. 1

Side 2 ............................................................................................................................................................. 1

Introduction............................................................................................2

Packaging Contents ................................................................................................................................. 2

System Requirements.............................................................................................................................. 2

Factory Reset Procedure .......................................................................2

Installation ..............................................................................................3

Installation into ETCHS2U Chassis.......................................................................................................4

Operation ................................................................................................4

System Information Section.................................................................................................................. 5

Local Settings Section ............................................................................................................................. 6

Tools Section............................................................................................................................................... 15

Logging Out................................................................................................................................................ 17

Specications..........................................................................................18

Technical Support ..................................................................................19

Warranty Information............................................................................19

Instruction Manual

Product Overview

The LAN Speed and FX Speed LEDs use 2 colors to indicate speed. Green indicates Fast

Ethernet (100Mbps), while Yellow indicates Gigabit Ethernet. When the LEDs are o, it

indicates a speed of 10Mbps.

Default

(Use to recover from lost

password or to return all settings

to factory default values)

Speed

LAN

Speed

LAN

Link

Power

LC Connector

RJ-45

DC Jack

Side 1

Side 2

Instruction Manual

Introduction

Packaging Contents

• 1x Fiber Media Converter

• 1x Universal Power Adapter (NA/UK/EU/AU)

• 1x Instruction Manual

System Requirements

• 1000BASE-T compatible Ethernet network equipment

• RJ45 terminated UTP Cat5e or better Ethernet cable

• Available AC electrical outlet

Factory Reset Procedure

Apply power to the unit and allow approximately 30 seconds to fully boot. Using a

pencil or a ball-point pen, press the“DEFAULT”push button located on the face plate

and hold it for 6 seconds. The media converter will be restored to its factory default

values, which are:

IP: 10.1.1.1

Subnet Mask: 255.255.255.0

Gateway: 10.1.1.254

Username/Password: “admin”

Instruction Manual

Installation

1. Connect the ber optic network cable from a computer/switch/media converter to

the LC connector on the media converter.

NOTE: When connecting the ber cable, make sure to connect the Tx (transmit)

terminal on one end, with the Rx (receive) terminal on the other end.

2. Connect a UTP Ethernet cable, from a computer/switch to the RJ45 jack on the

media converter.

3. Connect the power adapter to the media converter.

The following example illustrates the connection scheme when connecting from a

1000BASE-T Ethernet port of a hub/switch to a 1000BASE-SX/LX port of another hub/

switch. Through the ber media converter:

The following example illustrates the connection scheme when connecting from a

1000BASE-T Ethernet port on a hub/switch to a 1000BASE-T Ethernet Network Interface

Card (NIC) in a computer through the ber media converter:

Instruction Manual

Installation into ETCHS2U Chassis

The ETCHS2U chassis supports the full line of StarTech.com ET series 2 media

converters, which can be installed in a mixed fashion to suit your environment. The

cards are designed to be hot-swappable, meaning the chassis need not be powered o

in order to remove or insert a card.

1. If the chassis slot was previously unused, loosen the screw at the top of the slot to

remove the cover plate

2. Align the card with the desired slot of the chassis and gently slide the card into the

groove to seat the power connection

3. Re-tighten the captive screw to hold the card in place

Operation

The media converter can be congured via a web console, accessible through any web

browser by using its IP address.

1. Open your desired web browser and enter the IP address for the device into the

address bar (Default IP: 10.1.1.1).

2. Enter the username / password (Default: admin / admin) and click Login.

Instruction Manual

The conguration webpage will appear with the following section down the left side.

Each can be expanded to reveal several conguration options and tool, which will be

explained in the following pages

System Information Section

Network Information

The information displayed on this page gives specic device information, network

information, and port status for the local ET91000LCOAM and for any remote unit that

is accessible via IEEE802.3ah OAM in-band management.

Instruction Manual

DD Information

The DD or DDOM information is read from the MSA compliant SFP module and can be

displayed via the web user interface.

Local Settings Section

IP Conguration

Use this screen to congure TCP/IP settings for the local unit. Click the Apply button to

save your settings.

Note: Changing the IP address will cause you to lose your remote management

session until you re-connect at the new address.

Instruction Manual

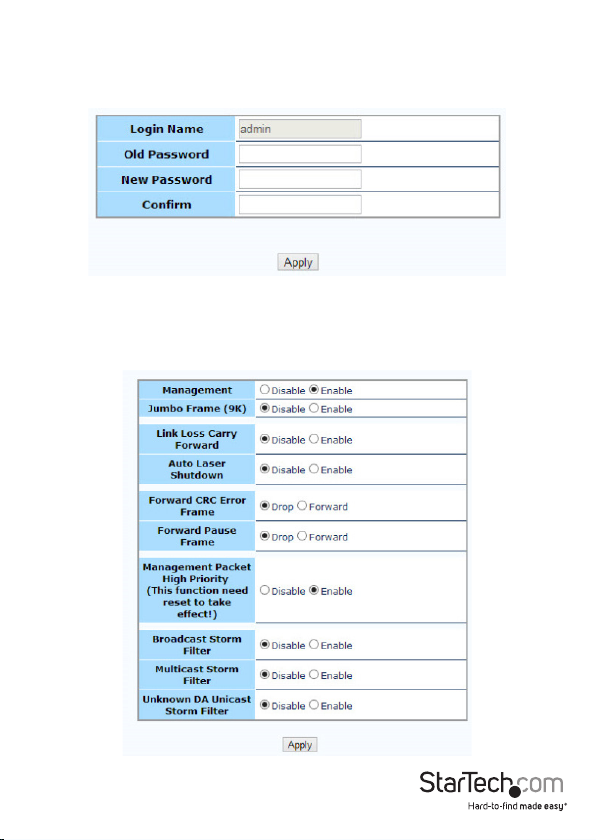

Password Settings

Use this screen to change the web console login password. Key in the current

password (Default: admin) and then enter your desired new password twice. Click the

Apply button to save your settings.

Converter Conguration

The Converter conguration menu includes special features of the ET91000LCOAM,

dened below. Click the Apply button to save your settings.
