Introduction

Thank you for purchasing a StarTech.com KVM extender. This product al-

lows a computer to control a host system from a remote location at a dis-

tance of up to 500 feet (150 meters). For ease of installation, this product

uses standard Category 5, 5E, or 6 network cabling that ﬁts easily into

almost any existing network infrastructure. For added versatility, the KVM

extender supports either PS/2 or USB computer interfaces. Console sup-

port is provided using standard USB and VGA connectors.

Features

Can be used with a single computer or connected to an existing KVMs

switch

Easy installation using industry-standard UTP network cables

Intuitive hotkey commandss

Supports auto-switching between host and remote users or dedicateds

control

USB computers are supported at the host and remote locations (USBs

keyboard and mouse required for remote console)

System Requirements

1 x integrated KVM cable each for the host and remote computers.

Longer cables are available from StarTech.com, part numbers: SVECONx

(PS/2), SVECONUSx (USB)

Unshielded Category 5/5e/6 twisted pair (UTP) straight-throughs

network cable terminated at each end with RJ-45 connectors (if using

surface cabling)

Unshielded Category 5/5e/6 twisted pair (UTP) straight-throughs

network cable terminated at each end in a wall-mounted outlet, with a

standard Category 5/5e/6 patch cable, at both locations (if using

premises cabling)

NOTE: The total length of cable between the Host and Remote Units

Instruction Manual

cannot exceed 500 feet (150 meters), including patch cables (if used).

Category 5e and 6 cabling is compatible with this product and may im-

prove performance.

NOTE: Long cable lengths between the Host and Remote Units may

adversely affect image quality at high resolutions and refresh rates. If you

need to run your remote displays at high resolutions and frequencies, use

as little cabling between locations as possible and avoid practices such as

“coiling” unused cable in a ceiling.

This product will also control a KVM switch, allowing you to manage more

than one computer remotely. In this conﬁguration, you can connect the

KVM extender’s Host Unit to the “console” ports on the KVM. You must

use the provided power adapters if using this conﬁguration. You should

set the Host Unit to Compatibility Mode before connecting it to a KVM that

uses the [Ctrl] key as its hotkey sequence; see page 8for details.

Package Contents

1 x Host Unit

1 x Remote Unit

1 x Instruction Manual

1x Power adapter

2 x 6 ft. 2-in-1 USB VGA KVM cables

1 x Set of rubber mounting feet

Instruction Manual

Connecting Your KVM Extender

Preparing Your Site

Before you can install the the product, you need to prepare your site.

Determine where the1. host computer will be located and set up the

computer.

Determine where the console devices (mouse, keyboard, monitor) will2.

be located and place them appropriately.

a) If you are using surface cabling, ensure you have enough3.

Category 5 unshielded twisted pair (UTP) network cabling to

connect the Host Unit to the Remote Unit’s location, and that each

end is terminated with a RJ-45 connector.

3. b) If you are using premises cabling, ensure that the Category 5

unshielded twisted pair (UTP) network cabling between the Host

Unit and the Remote Unit has been properly terminated in a wall

outlet in each location and there is a patch cable long enough to

connect the Remote Unit and the Host Unit to their respective

outlets.

Instruction Manual

Installing the Host Unit

Place the1. Host Unit near the computer.

Switch off the computer and disconnect any connected devices.2.

Using the provided StarTech.com integrated KVM cable (see page 153.

for alternative part numbers), connect the end of the cable that has

two (USB) or three (PS/2 + VGA) connectors to the VGA Out connector

and the USB or mouse and keyboard PS/2 connectors on the computer

as appropriate. (The PS/2 version of the cable is color-coded.)

Connect the opposite end of the cable with a single connector to the

gray-coded connector marked COMPUTER on the Host Unit of the

KVM extender.

If you wish to have console access to the4. host computer, connect a

USB mouse, keyboard, and VGA monitor to the indicators marked as

CONSOLE on the Host Unit.

Connect the UTP cable connection for Remote Unit to the NETWORK5.

RJ-45 connector on the Host Unit. Connect the opposite end to a

terminated wall outlet (if you are using premises cabling).

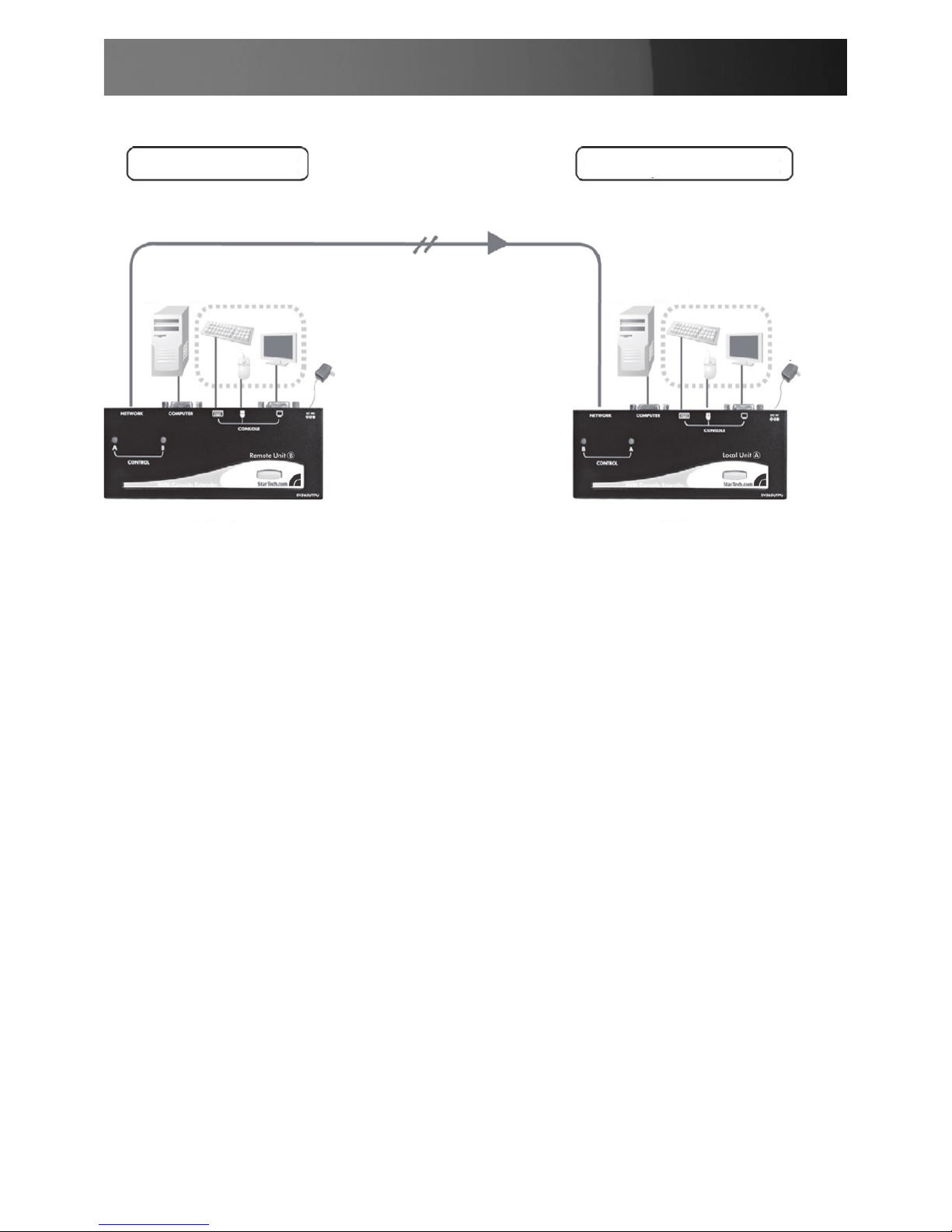

Control Direction

Cat 5 Cable

Computer

BConsole Computer

AConsole

1 to 2 2 to 1

Remote Unit Local Unit

(optional)

Instruction Manual

Installing the Remote Unit

Place the Remote Unit near the computer.1.

Switch off the computer and disconnect any existing VGA and input2.

connections.

Using a StarTech.com integrated KVM cable (see page 15for part3.

numbers), connect the end of the cable that has two (USB) or three

(PS/2) connectors to the VGA Out connector and the USB or mouse

and keyboard PS/2 connectors on the computer as appropriate. (The

PS/2 version of the cable is color-coded.) Connect the opposite end

of the cable with a single connector to the gray-coded connector

marked COMPUTER on the Remote Unit of the KVM extender.

Connect a USB mouse, keyboard, and a VGA monitor to the indicators4.

marked as CONSOLE on the Remote Unit.

Connect the UTP cable connection for Remote Unit to the NETWORK5.

RJ-45 connector on the Remote Unit. Connect the opposite end to a

terminated wall outlet (if using premises cabling).

CAUTION: The UTP network cables that connect the Host

and Remote Units carry electrical current and should not

be plugged in to other devices, as they may cause damage.

We strongly recommend marking the cables you are using

with this product at both locations for easy identiﬁcation.

Instruction Manual

Video Compensation

Video Compensation allows the user to adjust the equalization on the

Remote Unit to optimize video performance based on the length of cable

being used, as well as other factors that may affect . There are ﬁve seg-

ments of various lengths of CAT 5 cables from which to chose; to achieve

the best visibility, please refer to the section titled Keyboard Shortcut

Command Sequences, to adjust the video compensation.

First, note the length of CAT 5 cable you used. Then, use the hotkeys

to adjust the video compensation accordingly. You can use the hotkey

sequence as outlined in the section titled Keyboard Shortcut Command

Sequences.

Before Video Compensation

After Video Compensation

Instruction Manual

Using the KVM Extender

This section details how to use your KVM extender at both the host and

remote locations.

Using the Host Unit

The Host Unit allows users connected to the Host and Remote units to

share control of devices (hosts, computers, KVM Switches) connected to

it.

The Host Unit has three modes that control which user may access the

system at a given time: Auto (the KVM extender looks for keyboard or

mouse activity from both A and B and automatically accepts input from

the active console), Local (only the user seated at the Host unit can ac-

cess the system), and Remote (only the user at the Remote station can

access the system).

You can use either keyboard shortcuts (if there is a keyboard and mouse

attached) or the mode switch on the top of the Host Unit to control which

user has access to devices connected to the Host unit, by pressing the

button in sequence.

By default, the Host Unit operates in Auto mode, and switches to the next

mode in the sequence each time the switch is pressed as follows:

Having a keyboard and mouse attached to the console ports on the Host

Unit is recommended, since it offers access to a number of extended

features.

LED Indicators

Mode AIndicator BIndicator

Auto (Auto senses activity) Flashing Flashing

Local (User at Local Unit has exclusive control) On (solid) Off

Remote (User at Remote Unit has exclusive control) Off On (solid)

Auto Local Remote

Autres manuels pour SV565UTPU

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels StarTech.com Extenseur

StarTech.com

StarTech.com ST1214T Manuel utilisateur

StarTech.com

StarTech.com IREXT2 Manuel utilisateur

StarTech.com

StarTech.com 410VDSLEXT Manuel utilisateur

StarTech.com

StarTech.com ST121HDT4P Manuel utilisateur

StarTech.com

StarTech.com STUTPRXWAL Manuel utilisateur

StarTech.com

StarTech.com SV565UTPUL Manuel utilisateur

StarTech.com

StarTech.com ST12MHDDC Manuel utilisateur

StarTech.com

StarTech.com ST121UTPHDMI Manuel utilisateur

StarTech.com

StarTech.com 4K70IC-EXTEND-HDMI Manuel utilisateur

StarTech.com

StarTech.com USBthere USB204EXTFIB Manuel utilisateur

StarTech.com

StarTech.com ST222HDBT Manuel utilisateur

StarTech.com

StarTech.com USB2G4LEXT2NA Manuel utilisateur

StarTech.com

StarTech.com ST121WHD2 Manuel utilisateur

StarTech.com

StarTech.com 0065030863223 Manuel utilisateur

StarTech.com

StarTech.com ST124HDBT Manuel utilisateur

StarTech.com

StarTech.com 110VDSLEXT Manuel utilisateur

StarTech.com

StarTech.com ST121HDFXA Manuel utilisateur

StarTech.com

StarTech.com ST121 Series Manuel utilisateur

StarTech.com

StarTech.com STUTPEALR Manuel utilisateur

StarTech.com

StarTech.com SV565UTPDUV Manuel utilisateur

StarTech.com

StarTech.com USBthere USB110EXT Manuel utilisateur

StarTech.com

StarTech.com IREXT2 Manuel du système

StarTech.com

StarTech.com 110VDSLEXTGB Manuel utilisateur

StarTech.com

StarTech.com USB2G4LEXT2 Manuel utilisateur

Manuels Extenseur populaires d'autres marques

SY HDBT-60T Manuel utilisateur

Appsys ProAudio

Appsys ProAudio ADX-16 Manuel utilisateur

Atlona

Atlona RS232 Manuel utilisateur

IDK

IDK OPF-TH1000-A Manuel utilisateur

Enable-IT

Enable-IT 824WP Manuel utilisateur

Worx

Worx Landroid RadioLink WA0864 Fiche technique

TP-Link

TP-Link TL-WA730RE Manuel utilisateur

Camplex

Camplex CMX-HDMI-SFPL Manuel utilisateur

SC&T

SC&T HE03-4K Manuel utilisateur

Marmitek

Marmitek MegaView70 Manuel utilisateur

Samsung

Samsung SCS-26UC4 Manuel utilisateur

Foxun

Foxun SX-GES24 Manuel utilisateur

MuxLab

MuxLab 500771 Manuel utilisateur

foxunhd

foxunhd SX-AEX01 Manuel utilisateur

TERK Technologies

TERK Technologies LFIRX2 Manuel utilisateur

Devolo

Devolo Audio Extender Manuel

Edimax

Edimax EW-7438RPn V2 Manuel utilisateur

Shinybow USA

Shinybow USA SB-6335T5 Manuel utilisateur
