StarTech.com USB32DPPRO Manuel utilisateur

Manual Revision: 06/26/2012

For the most up-to-date information, please visit: www.startech.com

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l'utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

IT: Guida per l'uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

USB32DPPRO

USB 3.0 to Displayport External Video

Card Multi Monitor Adapter

*actual product may vary from photos

WARNING! Install Drivers before plugging in USB video adapter.

Instruction Manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates,

uses and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there

is no guarantee that interference will not occur in a particular installation. If this equipment

does cause harmful interference to radio or television reception, which can be determined by

turning the equipment o and on, the user is encouraged to try to correct the interference by

one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver

is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Use ofTrademarks, RegisteredTrademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not

represent an endorsement of a product or service by StarTech.com, or an endorsement of the

product(s) to which this manual applies by the third-party company in question. Regardless

of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby

acknowledges that all trademarks, registered trademarks, service marks, and other protected

names and/or symbols contained in this manual and related documents are the property of

their respective holders.

Instruction Manual

Table of Contents

Introduction............................................................................................1

Packaging Contents ................................................................................................................................. 1

System Requirements.............................................................................................................................. 1

Installation ..............................................................................................2

Driver Installation...................................................................................................................................... 2

Hardware Installation .............................................................................................................................. 3

Multiple USB Video Adapter Installation .......................................................................................... 3

Conguring the USB Video Adapter....................................................4

Extend ........................................................................................................................................................... 5

Mirror............................................................................................................................................................. 5

Extend To...................................................................................................................................................... 6

Screen Resolution ..................................................................................................................................... 6

Screen Rotation ......................................................................................................................................... 6

Set as Main Monitor ................................................................................................................................. 6

Notebook Monitor O............................................................................................................................. 6

O ................................................................................................................................................................... 6

Specications..........................................................................................7

Technical Support ..................................................................................8

Warranty Information............................................................................8

Instruction Manual

Introduction

The USB32DPPRO USB 3.0 to DisplayPort® Multi Monitor Adapter functions as an

external DisplayPort video card, turning an available USB 3.0 port into a DisplayPort

output, with support for high resolution 2560x1600 video, and 5.1 surround sound

audio. The USB 3.0 DisplayPort adatper delivers a convenient, high-performance

external video solution that makes it easy to add multi-monitor capability to a

USB 3.0-enabled desktop or laptop computer (optimal performance from USB 3.0,

backward compatible with USB 2.0).

Leveraging the high-bandwidth (5 Gbps) SuperSpeed USB 3.0 interface, the adapter

delivers smooth, high-denition content to your DisplayPort-capable display, and can

be used to mirror your primary desktop, showing the same image on each display, or

to extend your desktop to double your workspace and increase your productivity.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

Note: Connect a maximum of ve USB32DPPRO adapters on a single PC - See system

requirements

Packaging Contents

• 1x USB 3.0 to Displayport Adapter

• 1x Driver CD

• 1x Installation Guide

System Requirements

• USB enabled computer system with available USB 3.0 or 2.0 port

• CPU: Quad Core 2.4GHz or Higher (i5 recommended)

• RAM: 4GB or higher

• Microsoft® Vista(32/64-bit) 7(32/64-bit)

Instruction Manual

Installation

Driver Installation

Please ensure that the driver installation is complete prior to the physical

installation (plugging in) of the USB 3.0 Video Adapter

1. Download the latest drivers from the StarTech.com website (recommended), or

insert the included Driver CD into your CD/DVD-ROM drive.

2. Locate the Setup.exe application. This le will be located in the root directory of the

Driver CD (e.g. D:\) or downloaded le.

3. Executing the Setup.exe application will launch the following screen. Please click I

Accept to start installation process. The set-up program will install the device driver

and software application respectively.

*Ensure that the USB Video Adapter is not connected to the host computer.

*The screen may ash or go black during installation. No additional message

will be displayed to alert that the installation has completed.

Instruction Manual

Hardware Installation

1. Once DisplayLink Core Software screen has disappeared Connect your USB32DPPRO

device via the USB cable to your PC.

2. The system will initiate driver and software application (the DisplayLink Software

Conguration screen may ash or go black during the install).

*Some machines may require a system reboot for the USB Display Adapter to initialize.

Connect your Displayport monitor to the available Displayport on the USB32DPPRO device.

4. The USB Video Adapter is now ready for use.

Multiple USB Video Adapter Installation

Ensure you have the latest version of the drivers installed, otherwise, please download

them from the StarTech.com website (www.startech.com).

1. Complete the standard driver installation steps, up to when you plug in the rst USB

Video Adapter.

Connect another monitor/display to the second USBVideo Adapter, and turn on the display.

3. Connect the USB type A connector on the second USB Video Adapter to an available

USB 3.0 port on the host computer. The driver installation will begin automatically.

Repeat these steps for each additional USB Video Adapter you wish to install. Once all

USB Video Adapters are installed, reboot the computer. After rebooting, you may be

prompted to reboot one nal time; please do so.

Instruction Manual

Conguring the USB Video Adapter

When devices are attached, an icon appears in the taskbar. This gives you access to the

DisplayLink manager menu.

1. From the taskbar, click the Show hidden icons arrow to show all available icons.

2. Click the DisplayLink icon, then click UHD-100 DP. A menu appears with

congurable options. These are shown and described below.

Instruction Manual

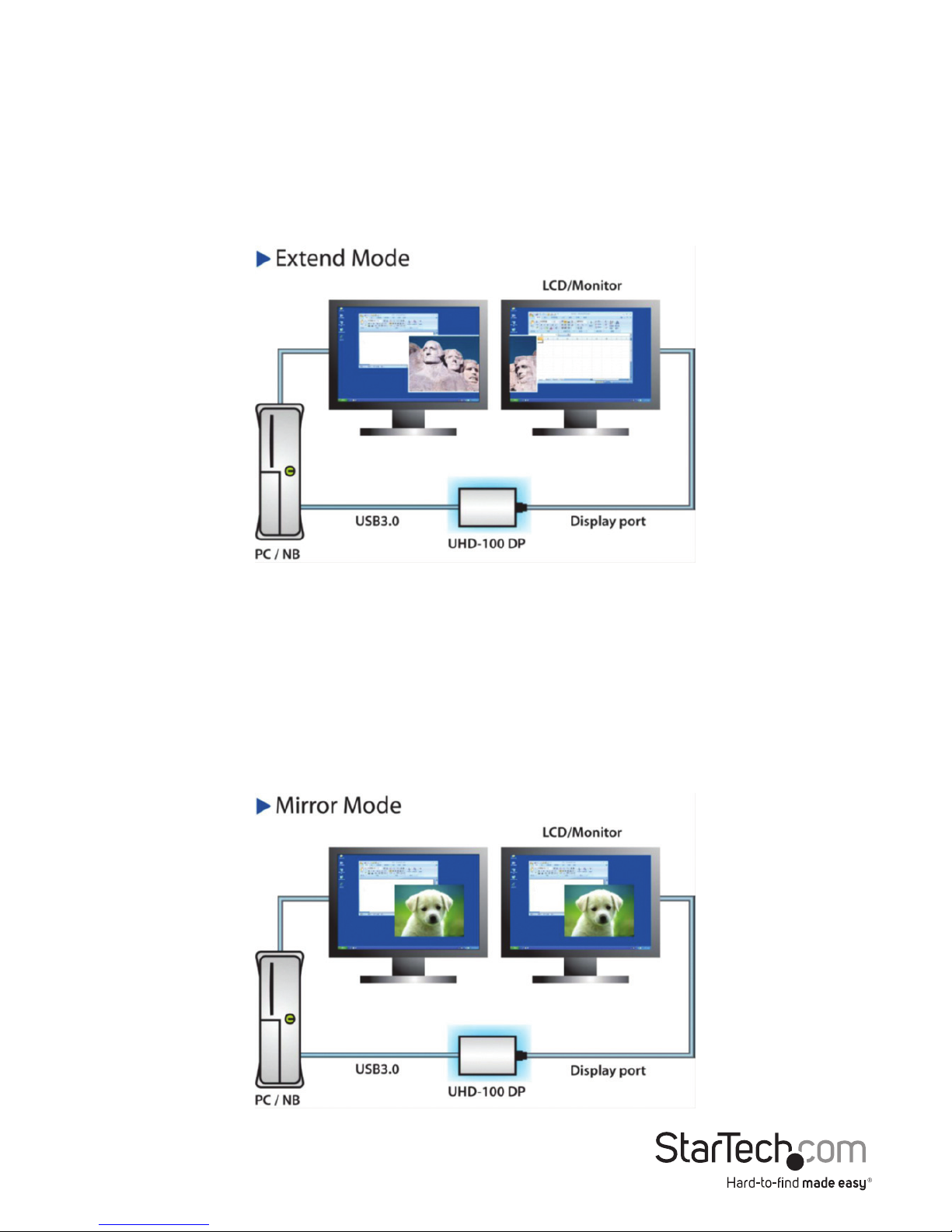

Extend

The monitor attached to the USB32DPPRO USB Graphics adapter displays an extension

of the user’s active Windows desktop. The extra desktop area is a great productivity

aid, allowing more applications or documents to be visible at a time. The device is now

extended in the direction it was the last time the display was in this mode. For more

control, use the Extend To submenu and select one of the options. This puts the device into

extend mode, and places it to the Left/Right/Above/Below the main (primary) monitor.

Mirror

The monitor attached to the USB32DPPRO USB Graphics device displays a duplication

of the primary display.

The resolution, color depth and refresh rate of the primary screen are replicated on the

monitor connected to the USB Graphics device.

Please Note: If the monitors used are of dierent specications, the system’s primary

graphics adapter will scale all settings to lower specication to maintain a uniform

aspect ratio.

Instruction Manual

Extend To

This option allows you to specify the physical location of the monitor connected to the

USB32DPPRO in relation to the systems on board monitor.

Screen Resolution

This option allows you to change the resolution on the monitor connected to the

USB32DPPRO device. Simply select the desired option from the list of supported

resolutions displayed in the sub menu.

Screen Rotation

This option allows you to change orientation in which the screen is viewed. The two

most common types of orientation are portrait and landscape.

Set as Main Monitor

Selecting this option allows your computer to consider the monitor connected

through the USB32DPPRO as your primary monitor. Your primary monitor displays all

system notications, and takes priority with applications.

Notebook Monitor O

Selecting this option disables the onboard system monitor. Please note this will

disable the monitor on a Desktop, or Notebook computer.

O

This option disables the monitor connected to the USB32DPPRO.

Instruction Manual

Specications

Audio Specication 5.1 Channel Surround (48Khz)

AV Input USB 3.0

Interface USB

Max Resolution 2560 x 1600

AV Output DisplayPort

Cable Length 0.91m

Chipset ID Displaylink DL3500

Color Black

Enclosure Type Plastic

Audio Yes

Max Digital Resolutions 2560 x 1600

Memory 512MB DDR II

OS Compatibility Windows® 7 (32/64 bit) *Aero 3D interface supported

Output Signal DisplayPort®

Industry Standards Standard DisplayPort, SuperSpeed USB 3.0, USB 2.0

Supported Resolutions

Widescreen (16/32 bit): 2560x1600, 2048x1152,

1920x1200, 1920x1080, 1680x1050, 1600x900,

1440x900, 1360x768, 1280x800, 1280x768, 1280x720

Standard (16/32 bit): 1600x1200, 1400x1050,

1280x1024, 1280x960, 1152x864, 1024x768, 800x600

Widescreem Supported Yes
