StarTech.com USB2DVIE2 Manuel utilisateur

Manual Revision: 04/07/2011

For the most up-to-date information, please visit: www.startech.com

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l'utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

IT: Guida per l'uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

USB2DVIE2

USB2VGAE2

USB 2.0 to DVI External Video Adapter

*actual product may vary from photos

USB 2.0 to VGA External Video Adapter

Instruction Manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates,

uses and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there

is no guarantee that interference will not occur in a particular installation. If this equipment

does cause harmful interference to radio or television reception, which can be determined by

turning the equipment o and on, the user is encouraged to try to correct the interference by

one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver

is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other Protected Names and

Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not

represent an endorsement of a product or service by StarTech.com, or an endorsement of the

product(s) to which this manual applies by the third-party company in question. Regardless

of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby

acknowledges that all trademarks, registered trademarks, service marks, and other protected

names and/or symbols contained in this manual and related documents are the property of

their respective holders.

Instruction Manual i

Table of Contents

Introduction ............................................................................................1

Packaging Contents ................................................................................................................................. 1

System Requirements .............................................................................................................................. 1

Installation ..............................................................................................2

Driver Installation ...................................................................................................................................... 2

Multiple USB Video Adapter Installation .......................................................................................... 3

Verifying Installation ................................................................................................................................ 3

Conguring the USB Video Adapter ....................................................4

Display ID ..................................................................................................................................................... 4

Display Resolution .................................................................................................................................... 4

Display Rotation ........................................................................................................................................ 4

Display Modes ............................................................................................................................................ 5

Identify Monitors ....................................................................................................................................... 6

Multi-Display Control Panel ................................................................................................................... 6

Display Settings ......................................................................................................................................... 6

Specications ..........................................................................................7

Supported Resolutions .........................................................................7

Technical Support ..................................................................................8

Warranty Information ............................................................................8

Instruction Manual 1

Introduction

The USB DVI or VGA Multi Monitor External Video Adapter turns an available USB

2.0 port into an external video card DVI or VGA port - providing high quality dual-

display or multi-monitor capability that can be used in a variety of laptop or desktop

applications to increase your productivity.

The device also oers the option of running up to ve additional displays

simultaneously (using ve Multi Monitor External Video Adapters). Each connected

adapter can be used to further extend the desktop or mirror the image shown on the

existing display - all without having to open the computer case to install an additional

video card.

Packaging Contents

• 1 x USB External Video Adapter

• 1 x Driver and Software CD

• 1 x Instruction Manual

System Requirements

• Available USB 2.0 port

• Single Video Adapter:

CPU: Intel/AMD single core 1.5GHz or higher

RAM: 512MB or more

• 2-3 Video Adapters:

CPU: Intel/AMD single core 2.4GHz or higher

RAM: 1GB or more

• 4-5 Video Adapters:

CPU: Intel/AMD dual core 2.0GHz or higher

RAM: 2GB or more

• Microsoft® Windows® 2000/XP/Vista/7 (32/64-bit)

Instruction Manual 2

Installation

Please ensure that the driver installation is complete before the physical installation of

the USB 2.0 Video Adapter.

Driver Installation

1. Insert the Driver CD into your CD/DVD-ROM drive.

2. If the installation program does not begin automatically, locate the Setup.exe

application. This le will be located in the root directory of the Driver CD.

3. Executing the Setup.exe application will launch

the following screen. Please click on Next:

*Ensure that the USB Video Adapter is not

connected to the host computer.

4. Once the Windows has nished the driver

installation, it will prompt you to restart the

computer. Select “Yes, I want to restart my

computer now”, and click the “Finish” button.

5. While the computer is restarting, connect the video cable running from the

secondary monitor/display to the USB adapter. Turn the monitor/display on.

6. Once Windows has fully loaded, plug the USB Video Adapter into an available USB

2.0 port of your PC or Notebook.

7. A Hardware Installation Wizard dialog will show

up, please select “No, not this time” and click

“Next” to continue.

Instruction Manual 3

8. Please select “Install the software automatically

(Recommended)”. And click ”Next” to continue.

9. Click “Finish” to complete the Hardware Wizard.

Multiple USB Video Adapter Installation

Ensure you have the latest version of the drivers installed, otherwise, please download

them from the StarTech.com website (www.startech.com).

1. Complete the installation steps, up to when you plug in the rst USB Video Adapter.

2. Connect another monitor/display to the video connector of the second USB Video

Adapter, then turn on the display.

3. Connect the USB type A connector on the second USB Video Adapter to an available

USB 2.0 port on the host computer. The driver installation will begin automatically.

Repeat these steps for each additional USB Video Adapter you wish to install. Once all

USB Video Adapters are installed, reboot the computer. After rebooting, you may be

prompted to reboot one nal time; please do so.

Verifying Installation

From the main desktop, right-click on “My Computer” (“Computer” in Vista/7), then

select Manage. In the new Computer Management window, select Device Manager

from the left window panel.

Double-click the Display Adapters and Universal Serial Bus Controllers category.

Instruction Manual 4

Conguring the USB Video Adapter

Look for the USB Video Adapter icon ( ) on your Windows Start bar. Right-click this

icon to access the variety of functions associated to the adapter.

Display ID

The USB Video Adapter supports the VESA

dened DDC/EDID standard. The utility

will show the display device ID whenever it

is attached to the USB Video Adapter.

If there is no display device attached to

the USB Video Adapter, an “Unknown

Monitor” ID will be shown. In some cases,

if the attached display device does not

support EDID, the ID will also be dened as

“Unknown Monitor”.

Display Resolution

Select the desired video display resolution

for the connected monitor.

The default setting resolution is: 1024 x 768

* 32-bit.

Display Rotation

4 options available: 0°, 90°, 180°, 270° when

used with the Extended or Primary display

modes. It is a useful function for some

rotatable display devices.

Instruction Manual 5

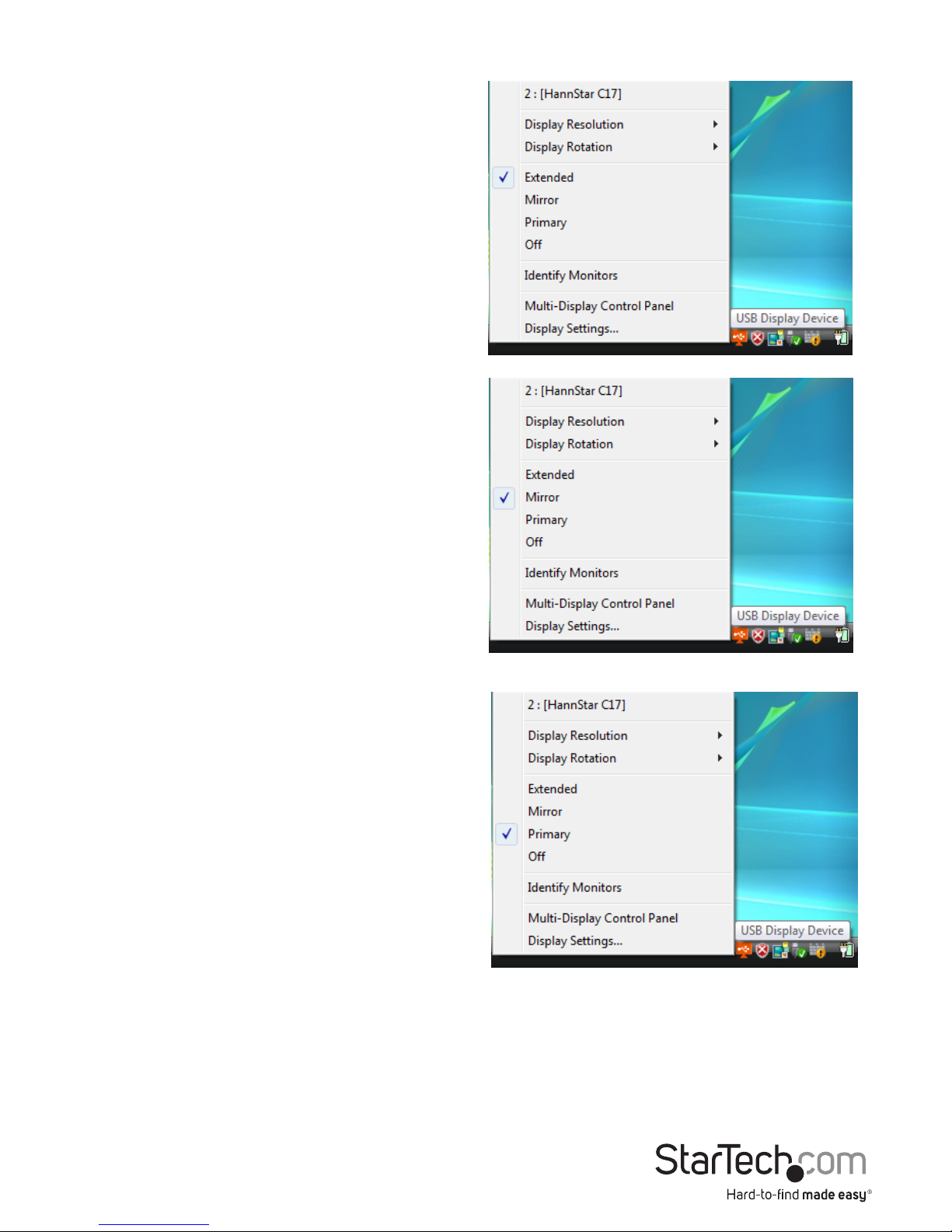

Display Modes

“EXTENDED” DISPLAY MODE (DEFAULT)

A default display mode; this feature allows

the attached USB Video Adapter enabled

display to work as an “Extended” display to

the on-board display. The extended working

space improves work eciency.

You may change the relative position of

this extended display through the Display

Settings.

“MIRROR” DISPLAY MODE

This feature allows the same content from

the on-board display to be duplicated

(mirroring) to the USB Video Adapter

enabled display.

The screen resolution setting on the USB

Video Adapter enabled device will match the

on-board displays’s resolution. For example,

if the on-board displays’s resolution is

1024x768*32-bit, and the USB Video Adapter

will use the same resolution.

“PRIMARY” DISPLAY MODE

A unique feature to allow the USB Video

Adapter to act as the main working display.

The USB Video Adapter will work as the

main graphics adapter on the system. The

on-board display will work as the extended

display.

Please be advised that some display utilities

and drivers that shipped with certain AGP

and built-in display adapters may prevent

this option from working on some systems.

You may be able to disable the other utility program (usually found in the same toolbar

located on the bottom right hand corner) to make this function work properly.

“OFF” DISPLAY MODE

This option disables the video output from the USB Video Adapter.

Instruction Manual 6

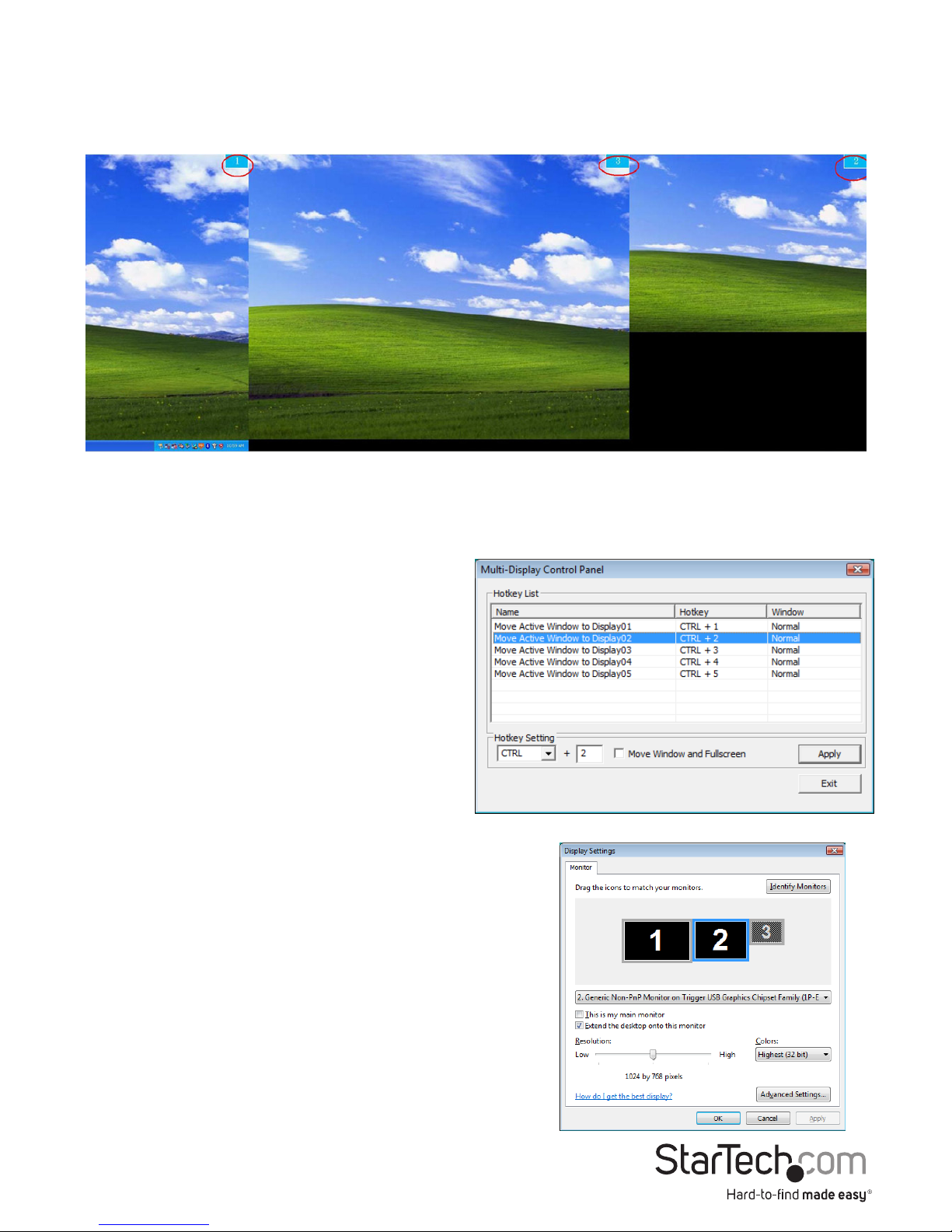

Identify Monitors

Easy display identication via an overlay will be shown in the upper right corner of all

attached display devices.

Multi-Display Control Panel

A unique feature to allow quicker and

simpler management of a multi-display

environment. A series of hotkeys to quickly

move the active window or mouse cursor

to the desired display (either on-board or

each USB Video Adapter).

The default setting of the hotkeys can be

found in the Hotkey List of “Multi-Display

Control Panel”.

For example: Ctrl + 2 means: to move the

window to Display 2

Display Settings

Quick access to the Windows “Display Settings”

window.

Instruction Manual 7

Specications

USB2DVIE2 USB2VGAE2

Host Interface USB 2.0

Connectors 1 x USB type A male

1 x DVI (29-pin) female

1 x USB type A male

1 x DE-15 VGA female

Onboard Memory 16 MB

Operating Temperature 0°C ~ 70°C (32°F ~ 158°F)

Storage Temperature 15°C ~ 30°C (32°F ~ 122°F)

Humidity 45% ~ 85% RH

Dimension (LxWxH) 90.5mm x 52.5mm x

18.0mm

75.0mm x 42.0mm x

18.0mm

Weight 92g 80g

Compatible Operating Systems Windows 2000/XP/Vista/7 (32/64-bit)

Supported Resolutions

Resolution Color Depth Refresh Rate

800x600 16/32-bit 60/75Hz

1024x768 16/32-bit 60/75Hz

1152x864 16/32-bit 60Hz

1280x768 16/32-bit 60Hz

1280x800 16/32-bit 60Hz

1280x960 16/32-bit 60Hz

1280x1024 16/32-bit 60Hz

1400x1050 16/32-bit 60Hz

1440x900 16/32-bit 60Hz

1680x1050 16/32-bit 60Hz

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels StarTech.com Adaptateur

StarTech.com

StarTech.com DKT30CSDHPD3 Manuel utilisateur

StarTech.com

StarTech.com USB2DVI Manuel utilisateur

StarTech.com

StarTech.com ICUSB232IS Manuel utilisateur

StarTech.com

StarTech.com ITB20D3250 Manuel utilisateur

StarTech.com

StarTech.com USB312SAT3CB Manuel utilisateur

StarTech.com

StarTech.com DKT30CHVGPD Manuel utilisateur

StarTech.com

StarTech.com SAT32MSATM Manuel utilisateur

StarTech.com

StarTech.com USB32HDDVII Manuel utilisateur

StarTech.com

StarTech.com USB2ESATA Manuel utilisateur

StarTech.com

StarTech.com USB867WAC22 Manuel utilisateur

StarTech.com

StarTech.com 35S24M2NGFF Manuel utilisateur

StarTech.com

StarTech.com DVI2HD Manuel utilisateur

StarTech.com

StarTech.com USB32VGAV Manuel utilisateur

StarTech.com

StarTech.com TB2USB3ES Manuel utilisateur

StarTech.com

StarTech.com 8STDKT30CHPD Manuel utilisateur

StarTech.com

StarTech.com ZIF2IDE35 Manuel utilisateur

StarTech.com

StarTech.com USB32HD2 Manuel utilisateur

StarTech.com

StarTech.com PEX4SFF8639 Manuel utilisateur

StarTech.com

StarTech.com ESATAPLT2M Manuel du système

StarTech.com

StarTech.com DP2HDMIUSBA Manuel utilisateur

StarTech.com

StarTech.com USB32HD2 Manuel utilisateur

StarTech.com

StarTech.com 1P3FP-USB-SERIAL Manuel utilisateur

StarTech.com

StarTech.com PAX2235-WIFI-6E-CARD Manuel utilisateur

StarTech.com

StarTech.com ICUSB232PRO Manuel utilisateur

Manuels Adaptateur populaires d'autres marques

PCB Piezotronics

PCB Piezotronics 090B274 Manuel utilisateur

Auvidea

Auvidea J20 Manuel du produit

Gossen MetraWatt

Gossen MetraWatt AT3-III E Manuel utilisateur

Akribis

Akribis ITF-21-BISS-MIT Manuel utilisateur

Tenda

Tenda W54U Manuel utilisateur

ROHO

ROHO AGILITY Manuel utilisateur

PROLiNK

PROLiNK WN2001 Manuel utilisateur

Hawking

Hawking HUF2 Manuel utilisateur

Airlink101

Airlink101 AWLC4030 Manuel utilisateur

NETGEAR

NETGEAR XAV101v1 - Powerline AV Ethernet Adapter Manuel utilisateur

Philips

Philips SWA4554S/10 Manuel utilisateur

JVC

JVC TS-C9D2B Manuel d'instructions

NETGEAR

NETGEAR A6100 Manuel utilisateur

D-Link

D-Link DWA-121 Manuel utilisateur

Philips

Philips SWA2037 Manuel utilisateur

Basalte

Basalte 0610-20 Manuel utilisateur

Yealink

Yealink EHS40 Manuel utilisateur

Balluff

Balluff BIC 1B0-IT1A7-Q40KFU-SM4A4A Manuel utilisateur
