SAT2IDEADP

SATA to 2.5in or 3.5in IDE Hard Drive

Adapter for HDD Docks

*actual product may vary from photos

Instruction Manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates,

uses and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there

is no guarantee that interference will not occur in a particular installation. If this equipment

does cause harmful interference to radio or television reception, which can be determined by

turning the equipment o and on, the user is encouraged to try to correct the interference by

one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver

is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Use ofTrademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not

represent an endorsement of a product or service by StarTech.com, or an endorsement of the

product(s) to which this manual applies by the third-party company in question. Regardless

of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby

acknowledges that all trademarks, registered trademarks, service marks, and other protected

names and/or symbols contained in this manual and related documents are the property of

their respective holders.

Instruction Manual

Table of Contents

Introduction............................................................................................1

Packaging Contents ................................................................................................................................. 1

System Requirements.............................................................................................................................. 1

Installation ..............................................................................................3

3.5in Hard Drive Setup ............................................................................................................................ 3

2.5in Hard Drive Setup ............................................................................................................................ 5

Specications..........................................................................................6

Technical Support ..................................................................................7

Warranty Information............................................................................7

Instruction Manual

Introduction

The SAT2IDEADP SATA to IDE hard drive adapter enables you to use your 2.5-inch/3.5-

inch IDE-based (PATA) hard drives in most StarTech.com SATA-based HDD docking

stations and drive duplicators. The SATA-IDE adapter features all-metal construction

that ensures maximum durability, and is fully compatible with IDE hard drives up to

ATA-133 (133MBps).

The unique mounting style of the SATA/IDE adapter enables it to be easily mounted

to an IDE/ATA hard drive, and inserted into a SATA hard drive dock bay, for quick and

easy retrieval of data from older HDDs. The adapter can also be used to install IDE hard

drives into SATA-only desktop computers, or any other scenario that requires an IDE

hard drive to be connected through Serial ATA.

Packaging Contents

• 1x SATA to IDE adapter

• 1x 40-pin IDE cable

• 1x 40-pin to 44-pin IDE cable with power

• 1x SP4 to LP4 Power cable

• 1x Package of mounting screws

• 1x Instruction Manual

System Requirements

• 2.5in 44-pin IDE hard drive or 3.5in 40-pin IDE hard drive

Instruction Manual

3.5” Hard Drive

Mounting Points

2.5” Hard Drive

Mounting Points

Installation

3.5in Hard Drive Setup

1. If connecting a 3.5in (40-pin) IDE hard drive, connect the 40-pin IDE ribbon cable to

the 40-pin connector on the inside of the SAT2IDEADP.

2. Connect the large 4-pin LP4 power cable to the small 4-pin SP4 oppy power

connector on the inside of the SAT2IDEADP.

Instruction Manual

3. Connect the ribbon cable and power cable to the connectors on the IDE hard drive.

4. Place the IDE drive onto the back plate of the SAT2IDEADP adapter and fold/tuck the

cables into the opening of the adapter. Slide the IDE drive towards the connectors

until the mounting holes on the bottom of the drive line up with the mounting

points on the back plate of the adapter. The edge of the IDE drive should be sitting

almost ush with the edge of the adapter’s opening.

5. Use the provided screws to fasten the drive to the back plate of the adapter. Small

screws provided for 2.5”drives and larger screws for 3.5” drives.

Mounting Screws

Tuck in Cables

Instruction Manual

2.5in Hard Drive Setup

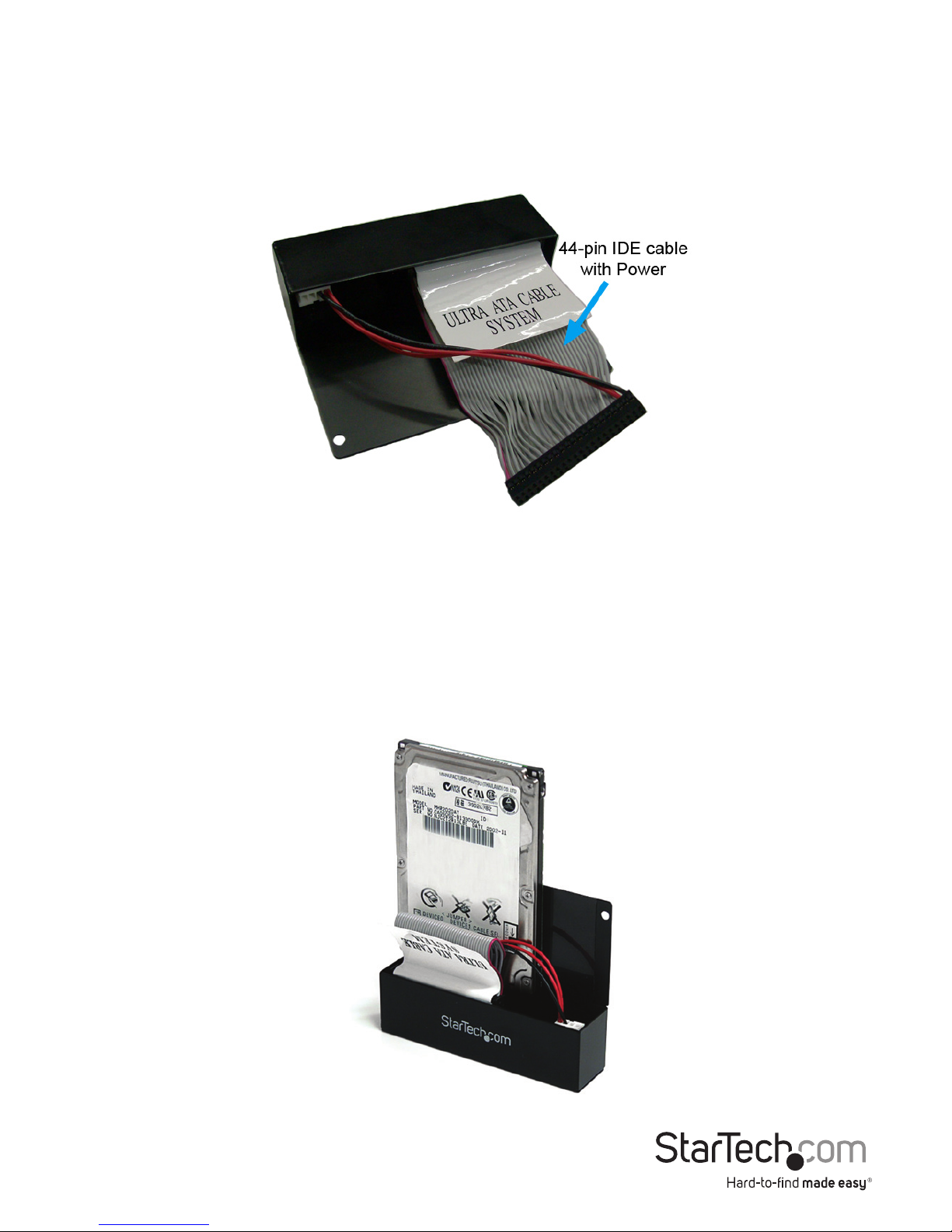

1. If connecting a 2.5in (44-pin) IDE hard drive, connect the 40-pin to 44-pin IDE ribbon

cable to the 40-pin connector on the inside of the SAT2IDEADP.

2. Connect the small 4-pin SP4 oppy power cable from the ribbon cable into the SP4

connector on the inside of the SAT2IDEADP.

3. Connect the IDE hard drive to the 44-pin connector on the ribbon cable.

4. Place the IDE drive onto the back plate of the SAT2IDEADP adapter and fold/tuck the

cables into the opening of the adapter. Slide the IDE drive towards the connectors

until the mounting holes on the bottom of the drive line up with the mounting

points on the back plate of the adapter.

5. Use the provided screws to fasten the drive to the back plate of the adapter. Small

screws provided for 2.5”drives and larger screws for 3.5” drives.

Instruction Manual

Specications

Host Interface SATA revision 1.0

Connectors 1 x 40-pin IDE male

1 x SP4 Power male

Compatible Hard Drives 2.5in and 3.5in PATA (IDE) 66/100/133

hard drive

LBA Support 48-bit

Enclosure Material Metal

Operating Temperature 5°C ~ 80°C (41°F ~ 176°F)

Storage Temperature -40°C ~ 70°C

(-40°F ~ 158°F)

Humidity 8% ~ 90% RH

Dimensions (LxWxH) 101.0mm x 78.0mm x 26.0mm

Weight 104g
