Starbridge Lynx 524 Wireless ADSL Router
User Manual
Wireless ADSL Router USER MANUAL
NOTICE
This document contains proprietary information protected by copyright, and this Manual
and all the accompanying hardware, software, and documentation are copyrighted. All
rights are reserved. No part of this document may be photocopied or reproduced by
mechanical, electronic, or other means in any form.
The manufacturer does not warrant that the hardware will work properly in all
environments and applications, and makes no warranty or representation, either
expressed or implied, with respect to the quality, performance, merchantability, or
fitness for a particular purpose of the software or documentation. The manufacturer
reserves the right to make changes to the hardware, software, and documentation
without obligation to notify any person or organization of the revision or change.
All brand and product names are the trademarks of their respective owners.
© Copyright 2009
All rights reserved.
Content
1 OVERVIEW........................................................................................................................1
1.1 FEATURES ........................................................................................................................... 1
1.2 PACKET CONTENTS............................................................................................................ 3
1.3 SYSTEM REQUIREMENTS .................................................................................................... 3
1.4 FACTORY DEFAULTS........................................................................................................... 4
1.5 WARNINGS AND CAUTIONS ................................................................................................. 4
2 HARDWARE DESCRIPTION.............................................................................................5
3HARDWARE INSTALLATION...........................................................................................7
4 PC CONFIGURATION GUIDE...........................................................................................8
4.1 LOCAL PC CONFIGURATION IN WINDOWS 95, 98, ME, XP................................................. 8
4.2 LOCAL PC CONFIGURATION IN WINDOWS 2000................................................................. 8
5 WEB-BASED MANAGEMENT GUIDE..............................................................................9
5.1 LAN SETTING PAGE............................................................................................................ 9
5.2 INTERNET ACCESS CONFIGURATION ................................................................................... 9
QUICK SETUP............................................................................................................................. 9
5.3 WIRELESS SETTING .......................................................................................................... 20
APPENDIX: FREQUENT ASKED QUESTIONS.................................................................24
Wireless ADSL Router USER MANUAL
1
1 Overview
Thank you for choosing our product. The Starbridge Lynx 524 Wireless ADSL
Router uses Broadcom’s CPE solution that fully complies withADSL,ADSL2，
ADSL2+ and IEEE802.11b/g standards. It will provide your SOHO with
convenient Internet access.
1.1 Features
1.1.1 Data Rate
zDownstream data rate up to 24 Mbps
zUpstream data rate up to 1Mbps
1.1.2 ADSL Compliance
zITU G.992.1 (G.DMT)
zITU G.992.2 (G.Lite)
zITU G.992.3 (G.DMT.BIS)
zITU G.992.4 (G.lite.bis)
zITU G.992.5
zITU G.994.1 (G.hs)
zCompatible with all T1.413 issue 2 (full rate DMT over analog
POTS), and CO DSLAM equipment
zTR-069 compliant with ACS
1.1.3 Wireless
zFully IEEE 802.11b & IEEE 802.11g compatible
zWireless data rate up to 54 Mbps
zOperating in the unlicensed 2.4 GHz ISM band
zSupports 64/128 bits WEP security and user authentication
1.1.4 Network Protocol & Features
zEthernet to ADSL Self-Learning Transparent Bridging
zInternet Control Message Protocol (ICMP)
zIP Static Routing
Wireless ADSL Router USER MANUAL
2
zRouting Information Protocol (RIP, RIPv2)
zNetwork Address Translation (NAT)
zVirtual Server, Port Forwarding
zDynamic Host Configuration Protocol (DHCP)
zDNS Relay, DDNS
zIGMP Proxy
zSimple Network Time Protocol (SNTP)
zVPN pass-through (IPSec/PPTP/L2TP)
zParent control
1.1.5 ATM Capabilities
zRFC 1483 Multi-protocol over ATM “Bridged Ethernet” compliant
zRFC 2364 PPP over ATM compliant
zRFC 2516 PPP over Ethernet compliant
zATM Forum UNI3.1/4.0 PVC - Up to 8 PVCs
zVPI Range: 0-255
zVCI Range: 32-65535
zUNI 3.0 & 3.1 Signaling
zATM AAL5 (Adaption Layer type 5)
zOAM F4/F5
1.1.6 FIREWALL
zBuilt-in NAT
zMAC Filtering
zPacket Filtering
zStateful Packet Inspection (SPI)
zDenial of Service Prevention (DoS)
zDMZ
Wireless ADSL Router USER MANUAL
3
1.1.7 Management Support
zWeb Based GUI
zUpgrade or update via FTP/HTTP
zCommand Line Interface via Telnet
zDiagnostic Test
zFirmware upgrade-able for future feature enhancement
1.1.8 Operating System Support
zWINDOWS 98/SE/ME/2000/XP/VISTA
zMacintosh
zLINUX
1.1.9 Environmental
zOperating humidity: 10%-90% non-condensing
zNon-operating storage humidity: 5%-95% non-condensing
1.2 Packet Contents
The packet contents are as the following:
zADSL ROUTER x 1
zExternal Splitter x 1
zPowerAdapter x1
zTelephone Line x 1
zEthernet Cable x 1
zUser Manual(CD) x 1
1.3 System Requirements
Before using this ROUTER, verify that you meet the following requirements:
zSubscription for ADSL service. Your ADSL service provider should
provide you with at least one valid IP address (static assignment or
dynamic assignment via dial-up connection).
zOne or more computers, each contains an Ethernet 10/100M Base-T
network interface card (NIC).
Wireless ADSL Router USER MANUAL
4
zA hub or switch, if you are connecting the device to more than one
computer.
zFor system configuration using the supplied web-based program: A web
browser such as Internet Explorer v5.0 or later, or Netscape v4.7 or
later.
1.4 Factory Defaults
The device is configured with the following factory defaults:
zIP Address: 192.168.1.1
zSubnet Mask: 255.255.255.0
zSSID: Lynx524
zEncapsulation: RFC 2516 LLC
zVPI/VCI: According to local information
1.5 Warnings and Cautions
zNever install telephone wiring during storm. Avoid using a telephone
during an electrical storm. There might be a risk of electric shock from
lightening.
zDo not install telephone jacks in wet locations and never use the product
near water.
zTo prevent dangerous overloading of the power circuit, be careful about
the designed maximum power load ratings. Not to follow the rating
guideline could result in a dangerous situation.
zPlease note that telephone line on modem must adopt the primary line
that directly outputs from junction box. Do not connect Router to
extension phone. In addition, if your house developer divides a
telephone line to multi sockets inside the wall of house, please only use
the telephone that has connected with the splitter of ADSL Router when
you access the Internet. Under the above condition, if you also install
telephone with anti-cheat-dial device, please pull out this kind of
telephone, otherwise ADSL Router may occur frequently off-line.
Wireless ADSL Router USER MANUAL
5
2 Hardware Description
Front Panel
LED Color Function
PWR Green
On: Power
Off: No power
ETH1-4 Green
On: LAN link established and active via LAN port
Blinking: ADSL data activity occurs
Off: No LAN link via LAN port
WLAN Green
On: The wireless module is ready and idle
Blinking: Data transmitting or receiving over WLAN
Off :The wireless module is not installed
DSL Green
On: ADSL link established and active
Quick blinking: ADSL is trying to establish a connection
Slow blinking: No ADSL link
INET Green
Blinking: ADSL data activity occurs.
Off: No ADSL data is being sent or received
Wireless ADSL Router USER MANUAL
6
Rear panel
Port Function
DSL Connect the device to an ADSL telephone jack or splitter
using a RJ-11 telephone cable
RESET System reset or reset to factory defaults.
LAN Connect the device to user’s PC's Ethernet port, or to the
uplink port on user’s hub/switch, using a RJ-45 cable
POWER Connect to the supplied power adapter
ON/OFF Switch it on or off
ANT Antenna interface
Wireless ADSL Router USER MANUAL
7

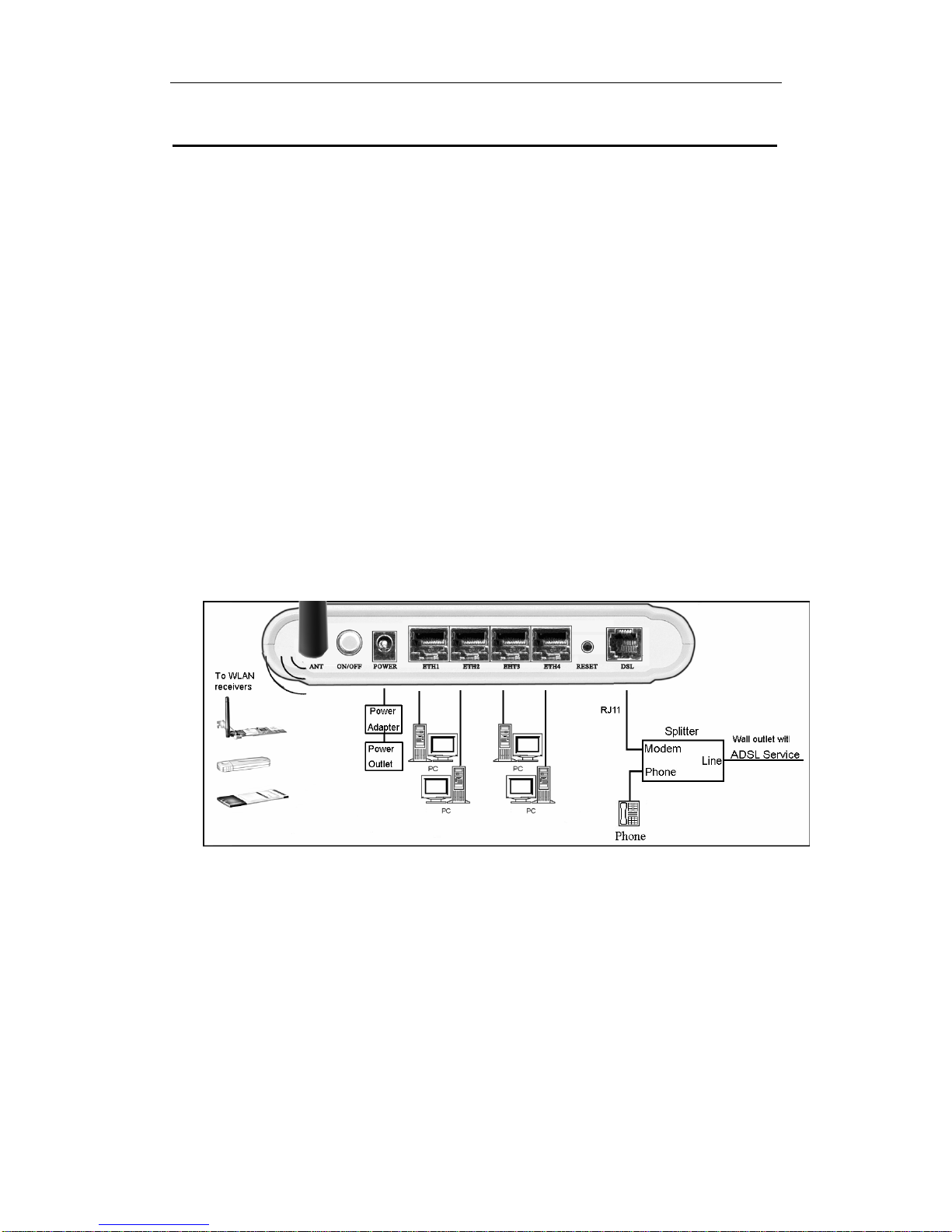

3 Hardware Installation
This chapter shows user how to connect Router. Meanwhile, it introduces the
appropriate environment for the Router and installation instructions.
1. Using a telephone line to connect the DSL port of ROUTER to the Modem
port of the splitter, and using a other telephone line connect user’s
telephone to the PHONE port of the splitter, then connect the wall phone
jack to the LINE port of the splitter.
The splitter comes with three connectors as below:
LINE: Connects to a wall phone jack (RJ-11 jack)
ROUTER: Connects to the DSL jack of ROUTER
PHONE: Connects to a telephone set
2. Using an Ethernet Cable to connect the LAN port of the ROUTER to user’s
LAN or a PC with network card installed. Or using an USB cables to connect
the USB port of the ROUTER to user’s PC.
3. Connect the power cable to the PWR connector on ROUTER, then plug in
the AC power adapter to the AC power outlet, and then press the on-off
button.
Notes: Without the splitter and certain situation, transient noise from
telephone can interfere with the operation of the Router, and the
Router may introduce noise to the telephone line. To prevent this
from happening, a small external splitter must be connected to
each telephone.
