Star FuturePRNT TSP100IIU Manuel

Rev. 1.0

Applicable model:

TSP100

ECO Setting Manual

Contents

Introduction ................................................................................................................ 1

1. Starting the Configuration Utility .................................................................... 1

2. ECO Settings ........................................................................................................... 3

2-1. Auto Reduction Setting ..........................................................................................3

2-2. Top Margin to First Line ..........................................................................................4

2-3. On demand.................................................................................................................5

3. Indicator................................................................................................................... 9

4. Revision History................................................................................. 10

ECO Setting Manual

Introduction

The TSP100IIU is equipped with an ECO function to help protect the environment while also reducing

costs.

This manual contains information about the ECO function.(*1)

How to set the ECO function and the results of the settings are the same for both the Star line mode

and ESC/POS mode.

*1)To install or uninstall the software, and for details about functions other than the ECO function,

refer to the Software Manual.

1. Starting the Configuration Utility

Use one of the following methods to open the Conguration Application dialog box. At the Windows

Start menu, select All Programs "StarMicronics "Star TSP100 "Configuration Utility, or

perform steps 1–4below.

1At the Windows Start menu, select Devices and Printers (or Printers and Faxes if using

Windows XP).

2Right-click the Star TSP100 printer icon in the folder that appears, and then select Printer

Properties (or Properties if using Windows XP).

3At the Properties dialog box, click the TSP100 Cong tab.

4Click the Launch Conguration Application button.

ECO Setting Manual

5Select an emulation, and then click the OK button.

6The conguration utility starts and the following dialog box appears.

ECO Setting Manual

2. ECO Settings

Click the ECO Settings tab on the left side of the dialog box.

When changing the settings, be sure to click the Apply Changes button after changing the settings.

The changed settings are enabled when the Apply Changes button is clicked.

2-1. Auto Reduction Setting

This function reduces the overall size of the printing.

However, to prevent any scanning errors, the size of printed barcodes is not reduced even

if the reduction settings are selected.

nPaper width used

The default setting is 80mm (Do Not Compress).

By changing the setting to 80mm->58mm, the printing area is compressed widthwise so that 58 mm

width roll paper can be used instead of 80 mm width roll paper.

1) If the printing width is set to 51 mm using General Settings in the conguration utility,

the 80mm->58mm setting in Paper width used is disabled.

2) When Paper width used is set to 80mm->58mm, the barcode will be aligned on the left

margin of the paper when printed.

If the printed barcode will be wider than 80mm->58mm, the barcode data will not be

printed.

Memo

ECO Setting Manual

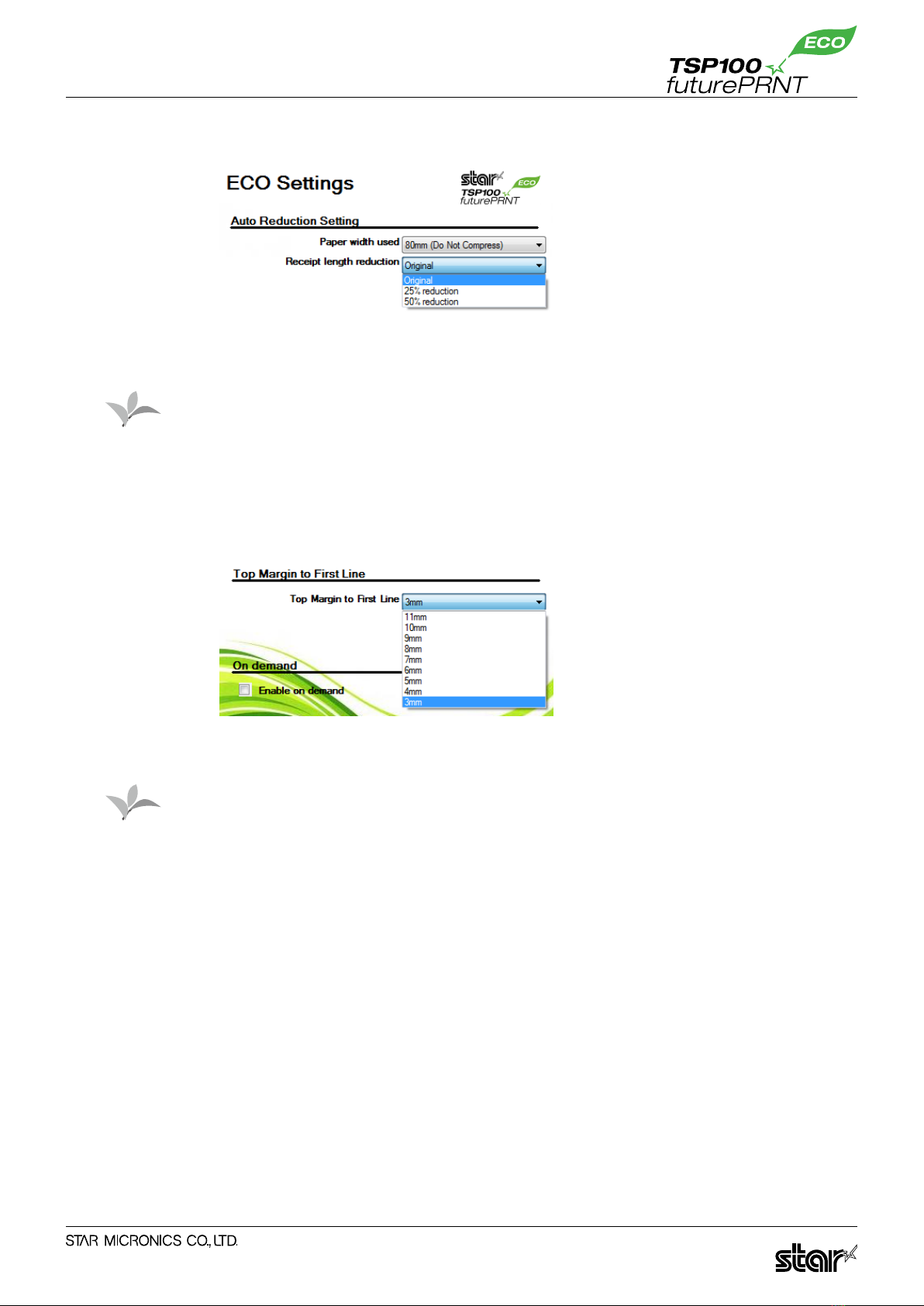

nReceipt length reduction

The default setting is Original (no reduction).

The printing area can be compressed 50% reduction or 25% reduction lengthwise.

Because the size of printed barcodes is not reduced even if the receipt length reduction

settings are selected, the receipt length will be longer than the length for the reduction

ratio when printing data that contains barcodes.

2-2. Top Margin to First Line

The length from the leading edge of the paper to the rst line of printing can be specied.

The default setting is 3mm.

To use the ECO function effectively, 3mm is recommended. However, the paper will be

automatically rewound after each printing if 10 mm or less is specied for the setting. To

reduce the printing time, specify 11mm for the setting.

Note

Memo

ECO Setting Manual

2-3. On demand

This function reduces the amount of paper wasted on unnecessary printings by prompting the user to

select whether or not to print the data.

nEnable on demand

To enable the on demand function, select the check box. When the on demand function is enabled,

the following confirmation dialog box will appear each time data is sent from the computer to the

printer.

When YES is clicked, the data will be printed.

When NO is clicked, the printing will be canceled.

Normally, the confirmation dialog box appears before the data is printed. However, in

rare cases, the conrmation dialog box may not appear, the dialog box may appear after

the data is printed, or other problems with the operation of the function may occur. If any

of these problems occur, restart your computer. After restarting the computer, check that

the on demand function is enabled and that the conrmation dialog box appears at the

proper time.

nSaving Canceled Data

When the on demand function is enabled, the data for the canceled printing can be saved or deleted.

When Don’t Save is selected, the data for the canceled printing will be deleted.

When Save is selected, the data for the canceled printing will be saved in the following folder.

For Windows 7/Vista: Hard disk:\User\< Folder for logged-on user name >\APPData\Roaming\ Star\

TSP100\Ondemand

ForWindows XP: Hard disk:\Documents.and.Setting\< Folder for logged-on user name >\

APPlication.Data\Star\TSP100\Ondemand

1) To check the data saved in the folder above, perform the following setting before

viewing the data.

At the Windows Start menu, select Control Panel "Folder Options, click the View tab,

and then click Show hidden les and folders.

2) The data saved in the folder is not deleted automatically regardless of the elapsed time.

Therefore, it is recommended to periodically delete any unnecessary data.

Note

Memo

ECO Setting Manual

nView Save Data

The data for canceled printings can be viewed. In addition, to print data that was saved from a

canceled printing, perform the following procedure.

1Click View Save Data.

2Click Search, specify the search date, and then click the OK button.

ECO Setting Manual

3The saved data appears. Click Print to print the data.

When using the on demand function, check the following information.

When the on demand function is enabled, the time that the conrmation dialog box appears may

vary according to the printing channel that is used.

The time that the conrmation dialog box appears for each channel is as follows:

Printer Driver OPOS JavaPOS WritePrinter API Virtual Serial Port

Display trigger Immediately after a cut command is sent Immediately after a cut command is sent

(Refer to following *.)

*1) Even if the write data contains several cut commands, the last cut command is

recognized as the trigger and the confirmation dialog box appears. However,

when multiple receipts are sent in a single batch through a virtual serial port,

the data will be divided automatically for processing if it exceeds the buffer

capacity. In this case, the cut command just before the buffer becomes full is the

trigger.

When using a virtual serial port, it is recommended to send the data one receipt

(data + cut command) at a time.

*2) Even if the write data is sent one line at a time, the confirmation dialog box will not

appear and the data will not be printed until a cut command is received.

Caution

ECO Setting Manual

When switching from the TSP100IIU to the TSP100U, the ECO settings may not appear

in the TSP100U configuration utility. If the ECO settings were used for the TSP100IIU,

perform the following procedure to reset all of the settings to the default settings, and

then use the TSP100U.

1Insert the CD-ROM into your computer's CD-ROM drive.

2Start the configuration utility.

3Import the following files by selecting File "Import.

Star line mode : CD-drive:\Windows\CongurationSettingFiles\default.cong.xml

ESC/POS mode : CD-drive:\Windows\CongurationSettingFiles\escpos.xml

Note
