Star Micronics LC-1011C Manuel utilisateur

DOTMATRIXPRINTER

LC-1011C

LC-100+COLOUR

TECHNICAL MANUAL

[SECOND EDITION]

NOTICE

•Allrightsreserved.Reproductionofanypartofthismanualinany

form whatsoever, without STAR’s express permission is forbid-

den.

•The contents of this manual are subject to change without notice.

•All efforts have been made to ensure the accuracy of the contents

of this manual at the time of going to press. However, should any

errors be detected, STAR would greatly appreciate being in-

formed of them.

•The above notwithstanding, STAR can assume no responsibility

for any errors in this manual.

INTRODUCTION

This manual is an introduction to dot matrix printers as shown below.

It is designed for use as a reference for periodic inspections and maintenance procedures to be executed by

service personnel. It is not intended for the general user. Users of this manual should have a basic knowledge

and understanding of the English language.

Model Destination

LC-1011C For American, Asia and Pacific market

LC-100+COLOUR For European market

•This manual is divided into the following sections:

Chapter 1 General Specifications

Chapter 2 Theory of Operation

Chapter 3 Adjustments

Chapter 4 Parts Replacement

Chapter 5 Maintenance and Lubrication

Chapter 6 Troubleshooting

Chapter 7 Parts List

CHAPTER 1

GENERAL SPECIFICATIONS

1. General Specifications .........................................................................................3

2. External Appearance and Composition ..............................................................5

3. Control Panel.........................................................................................................6

3-1. Switch Combination Functions .............................................................................6

3-2. EDS Mode Settings .................................................................................................6

4. Parallel Interface ...................................................................................................8

4-1. General Specifications ...........................................................................................8

4-2. Connector Signals ..................................................................................................8

5. Serial Interface (option) ........................................................................................9

5-1. General Specifications ...........................................................................................9

5-2. Connector Signals and Functional Descriptions ................................................ 9

5-3. DIP Switch Settings ..............................................................................................10

6. EE-PROM Mode ...................................................................................................11

6-1. Outline....................................................................................................................11

6-2. Explanation of Special Control Codes ............................................................... 11

6-3. EE-PROM Map .......................................................................................................12

6-4. Rewriting the EE-PROM........................................................................................16

– 2 –

GENERAL SPECIFICATIONS

– 3 –

GENERAL SPECIFICATIONS

1. General Specifications

Printing System Serial Impact Dot-Matrix

Printing Speed Pitch Draft (cps/dpi) NLQ (cps/dpi)

Pica (10 cpi) 160/120H 40/240H

Elite (12 cpi) 192/120H 48/240H

Condensed pica (17 cpi) 137/240H 69/240H

Condensed elite (20 cpi) 160/240H 80/240H

H: half-dot

Print Direction Draft: Bi-directional logic seeking

NLQ: Uni-directional or bi-directional logic seeking (selectable)

Bit-Image: Uni-directional

Print Head Number of pins: 9

Life: 200 million dots/pin

Line Spacing 1/6", 1/8"

7/72", n/72", n/216": software

Font Styles Draft, NLQ (Courier, Sanserif)

Character Matrix Pitch Draft NLQ

Pica (10 cpi) 9 ×11 18 ×23

Elite (12 cpi) 9 ×9 18 ×19

Condensed pica (17 cpi) 9 ×11 18 ×12

Condensed elite (20 cpi) 9 ×9 18 ×10

Environment Operating temperature: 41°F to 95°F (5°C to 35°C)

Storage temperature: -22°F to 149°F (-30°C to 65°C)

Operating humidity: 30% to 80% (non-condensing)

Storage humidity: 20% to 90% (non-condensing)

Paper Cut-sheet (manual feeding)

Paper width: 5.5" to 8.5" / 140 to 216 mm

Paper length: 5.5" to 14" / 140 to 356 mm

Paper thickness: 0.00276" to 0.00472" / 0.07 to 0.12 mm

Paper weight: 14 to 24 lbs. / 52 to 90 g/m2/ 45 to 77 kg

Cut-sheet (with optional automatic sheet feeder)

Paper width: 7.17" to 8.5" / 182 to 216 mm

Paper length: 10.12" to 14" / 257 to 356 mm

Paper thickness: 0.00315" to 0.00472" / 0.08 to 0.12 mm

Paper weight: 16 to 24 lbs. / 60 to 90 g/m2/ 52 to 77 kg

– 4 –

GENERAL SPECIFICATIONS

Fanfold (with push tractor feeder)

Paper width: 4" to 10" / 101.6 to 254 mm

Paper thickness: 0.00276" to 0.00433" / 0.07 to 0.11 mm (one-ply)

0.00984" / 0.25 mm max.

(total thickness of multi-ply paper)

Paper weight: 14 to 22 lbs. / 52 to 82 g/m2/ 45 to 70 kg (one-ply)

11 to 14 lbs. / 40 to 52 g/m2/ 34 to 45 kg (multi-ply)

Copies: Original + 2

Emulation (AEC) Standard Mode: EPSON ESC/P (9-pin)

IBM Mode: Proprinter III

Interface Standard: Centronics parallel

Option: RS-232C serial

Ribbon Type On-carriage, dedicated

Color ribbon (standard)

Fabric monochrome ribbon (option)

Ribbon Life Color ribbon (LC9CL): 0.5 million characters (draft pica, black)

Fabric monochrome ribbon (LC9HD): 1 million characters (draft pica)

Long-life fabric monochrome ribbon (LC9W): 2.5 million characters (draft pica)

Power Supply 110V AC 10%, 120V AC 10%, 230V AC +6%/-14%, 240V AC 10%; 50/60Hz

(depending on country of purchase)

Power Consumption 34W during ASCII draft printing

8W during stand-by

Options SF-10DT Single-bin Automatic Sheet Feeder

SPC-8K Serial-To-Parallel Converter

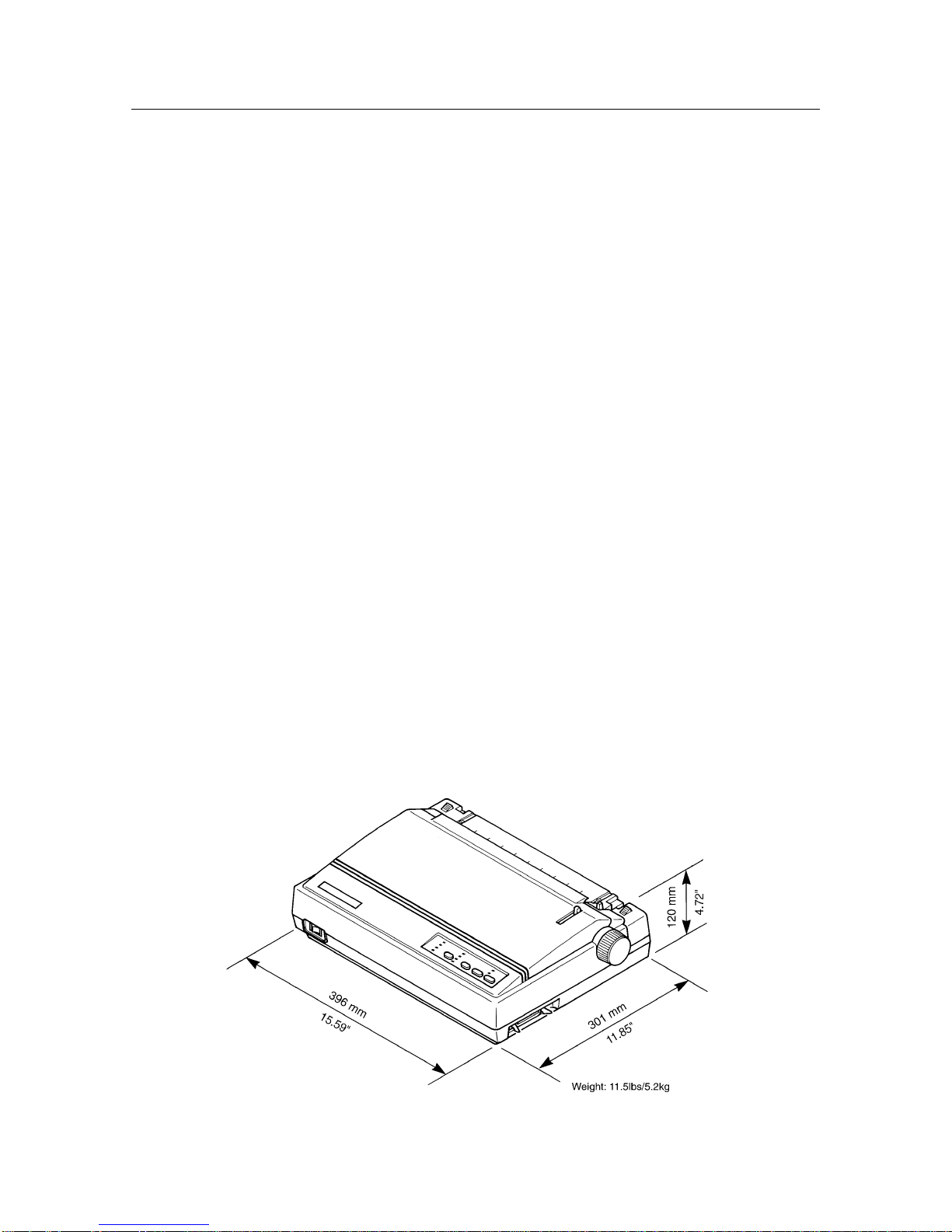

Fig. 1-1 External dimensions

– 5 –

GENERAL SPECIFICATIONS

2. External Appearance and Composition

Fig. 1-2 Front View of the Printer

Fig. 1-3 Diagram of Internal Composition

– 6 –

GENERAL SPECIFICATIONS

3. Control Panel

3-1. Switch Combination Functions

Fig. 1-4 Switch combination functions

DRAFT

COURIER

10CPI

12CPI

SANSERIF FONT

ALT

QUIET

POWER

PROP

COND

PITCH

MACRO

PAPER FEED

PARK

QUIET ON LINE

On-Line

CLEAR

MICRO FEED

Form Feed

Line FeedPitchFont

Off-Line

QuietShort Tear-offLong Tear-off

Forward

Save Macro

Font & Pitch Lock EE-PROM Mode

Buffer Clear & All Reset

AUTO LOADING POSITION CHANGE MODE

Paper Park

OFF-LINE

ExitOn/offSwitchBank

POWER-ON

Exit



NextRightLeft

EDS MODE

DOT-ADJUSTMENT MODE

Short TestLong TestPitch LockFont Lock

ON-LINE

Hex Dump Mode

Dot Adjustment Mode

EDS Mode

Aging Mode

Backward Micro Feed

Set TOF

CancelForwardBackward

Set

Save

Factory setting AUTO LOADING POSITION CHANGE MODE
