Stairmaster StepMill 7000PT Manuel utilisateur
1
STEPMILL 7000 PT
ASSEMBLY
INSTRUCTIONS
PART NUMBER 27698
2
ASSEMBLY INSTRUCTIONS
TOOLS REQUIRED:
•KNIFE
•2-9/16” WRENCHES
•5/32” ALLEN WRENCH

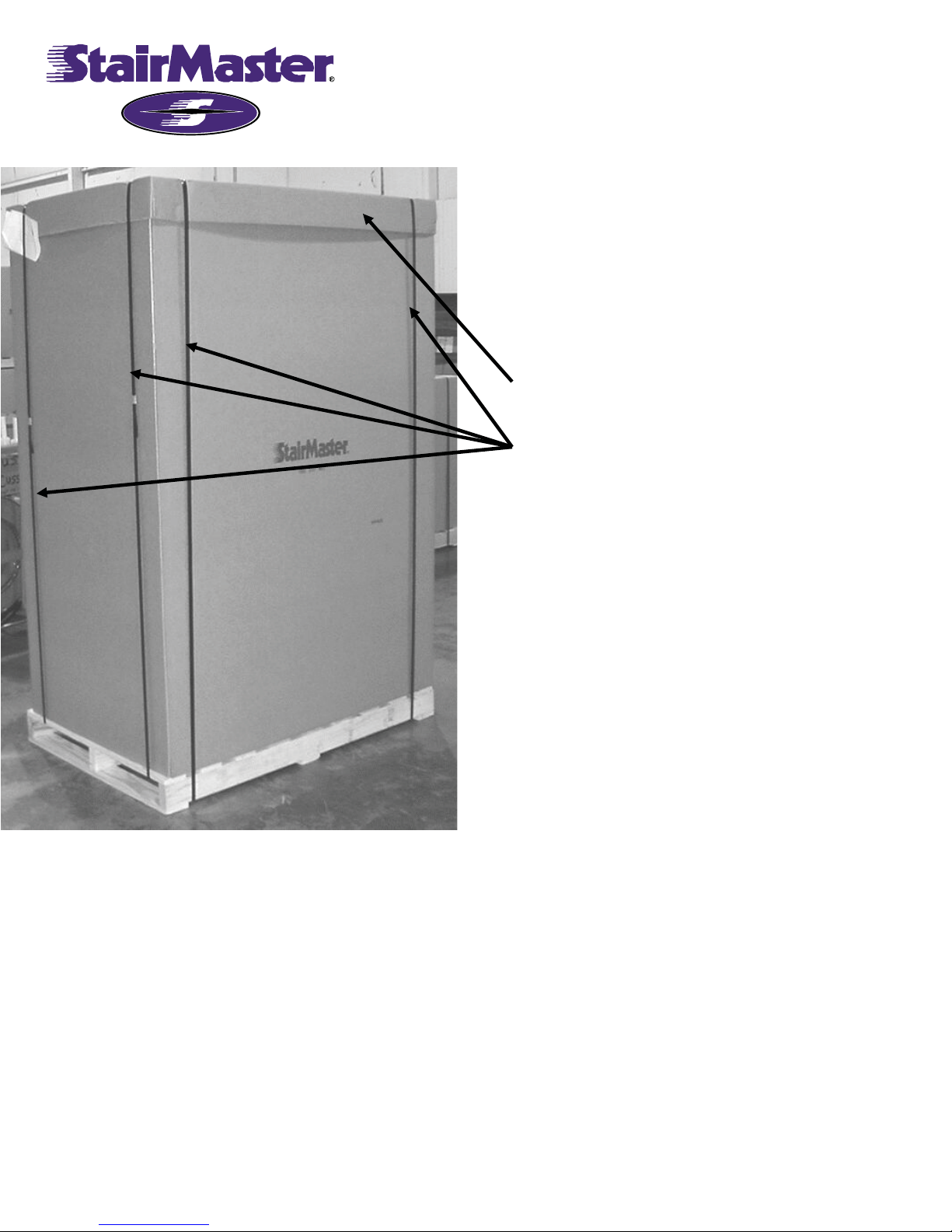

1. USE KNIFE TO CUT AND REMOVE
PLASTIC STRAPS.
TOP COVER
PLASTIC STRAPS
2. REMOVE TOP COVER FROM CARTON,
THEN REMOVE CARTON. DISCARD COVER
AND CARTON.
3
ASSEMBLY INSTRUCTIONS

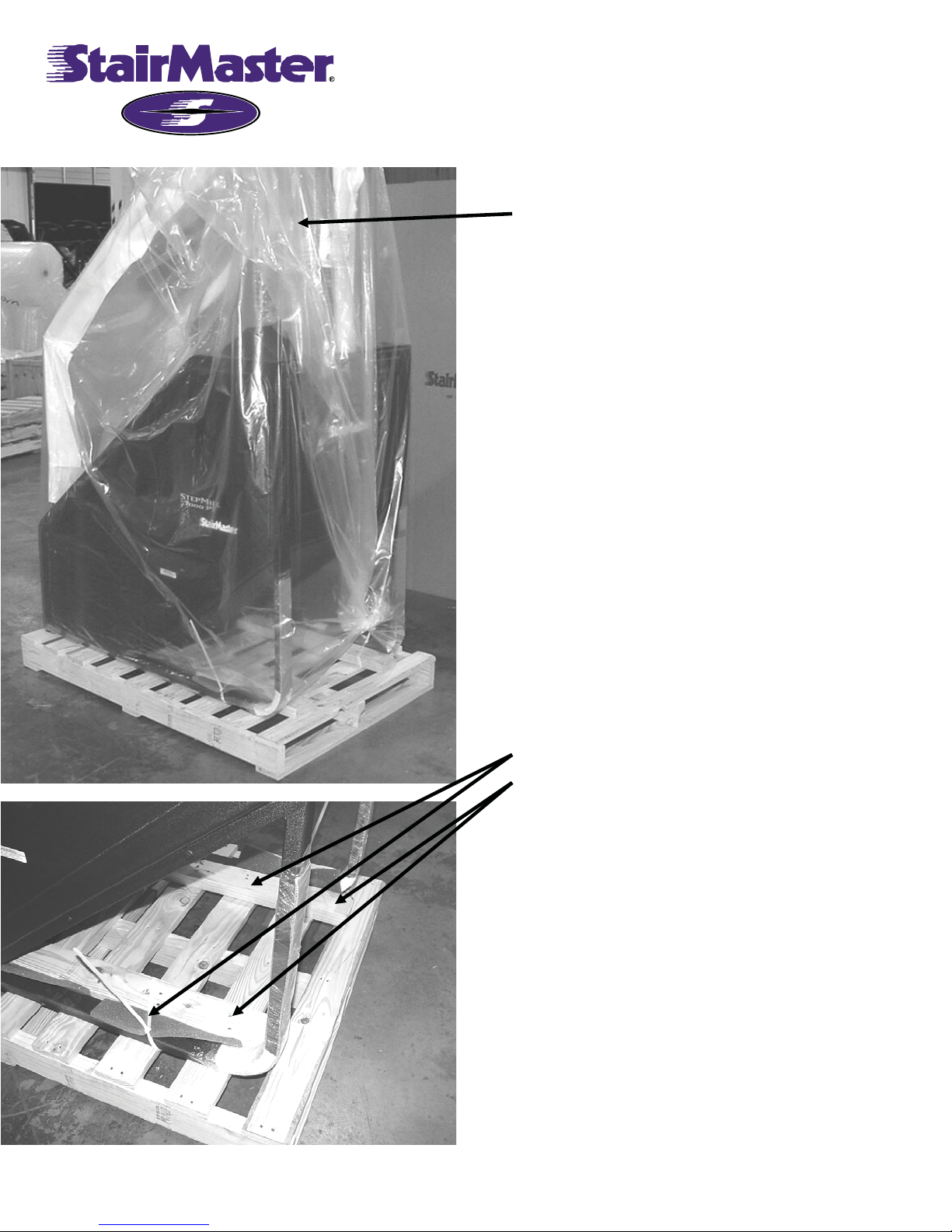

3. REMOVE PLASTIC BAG FROM
STEPMILL.
PLASTIC BAG
4. USE KNIFE TO REMOVE PLASTIC
TYRAPS SECURING FRAME TO PALLET.
USE CLAW HAMMER TO REMOVE
WOODEN PACKING BLOCKS
WOOD BLOCK
TYRAPS
5. REMOVE STEPMILL FROM PALLET:
SLIDE THE MACHINE FORWARD SO THAT
THE FRONT EDGE OF THE MACHINE
HANGS OFF THE FRONT OF THE PALLET.
CAREFULLY TIP THE STEPMILL FORWARD
UNTIL THE FRONT EDGE OF THE MACHINE
TOUCHES THE FLOOR. CONTINUE TO
PULL THE MACHINE FORWARD UNTIL IT
IS CLEAR OF THE PALLET. GENTLY TIP
THE STEPMILL BACK SO THAT THE
MACHINE RESTS ON THE BASE OF THE
FRAME. DISCARD PALLET.
4
ASSEMBLY INSTRUCTIONS

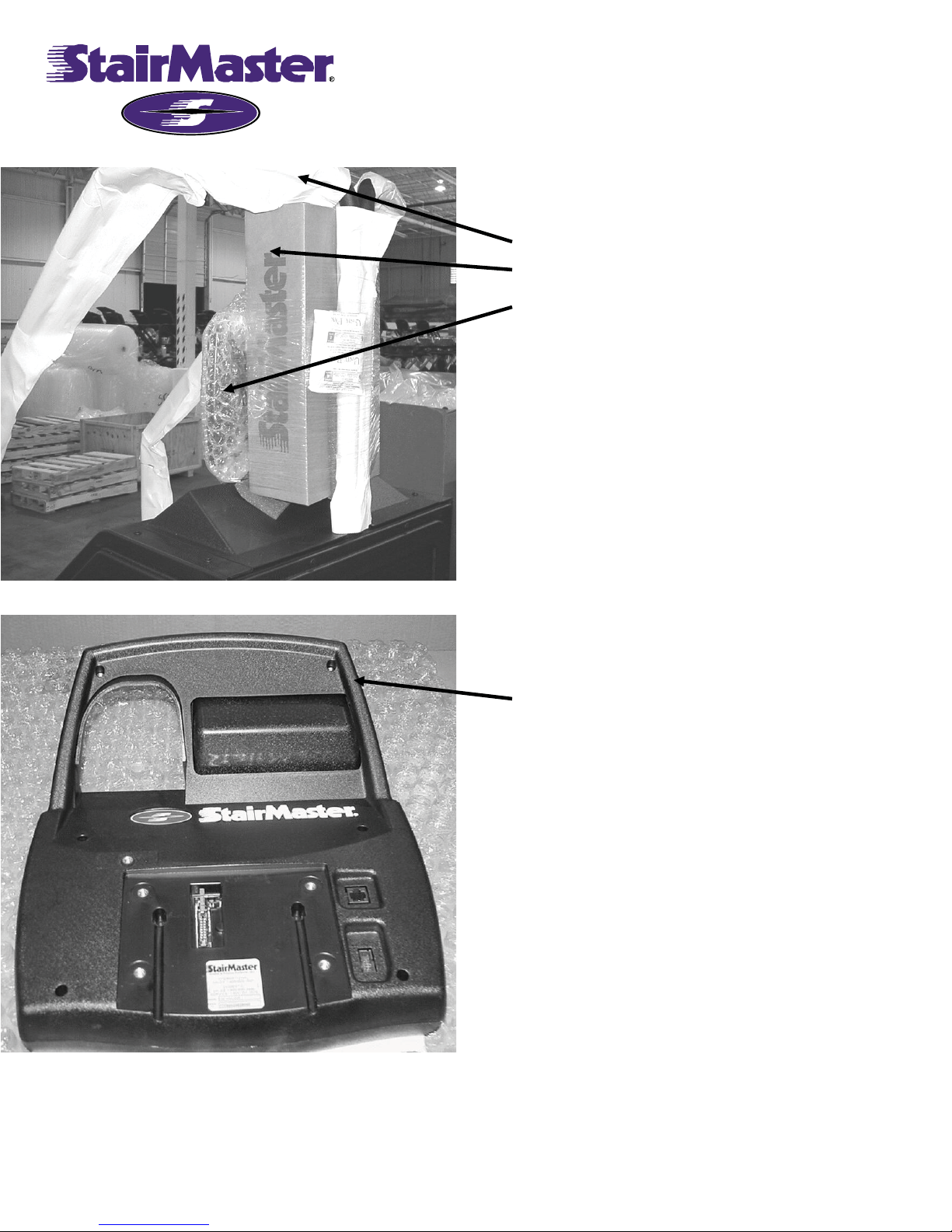

6. REMOVE BUBBLE PACK AND CARTON
FROM STEPMILL. ALSO REMOVE
PACKING MATERIALS FROM HANDRAILS.
PACKING MATERIAL
CARTON
BUBBLE PACK
7. REMOVE CONSOLE FROM BUBBLE
WRAP. DISCARD BUBBLE WRAP.
CONSOLE
5
ASSEMBLY INSTRUCTIONS

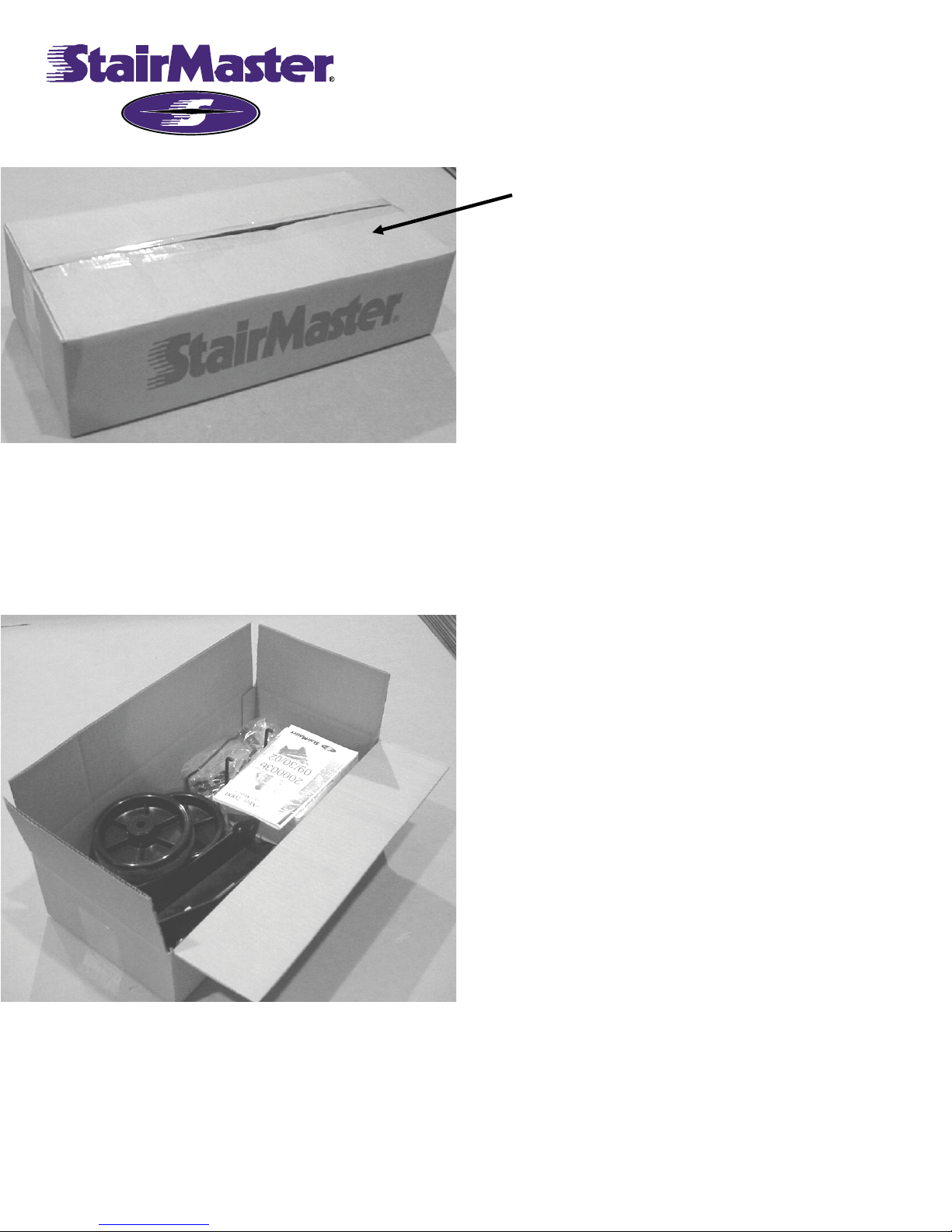

8. USE A KNIFE TO OPEN CARTON.
CARTON
9. THE CARTON CONTAINS OWNER’S
MANUAL, WHEELS, HARDWARE PLASTIC
BAG, MAGAZINE RACK, CONSOLE
BRACKET, AND POWER SUPPLY CARTON.
6
ASSEMBLY INSTRUCTIONS

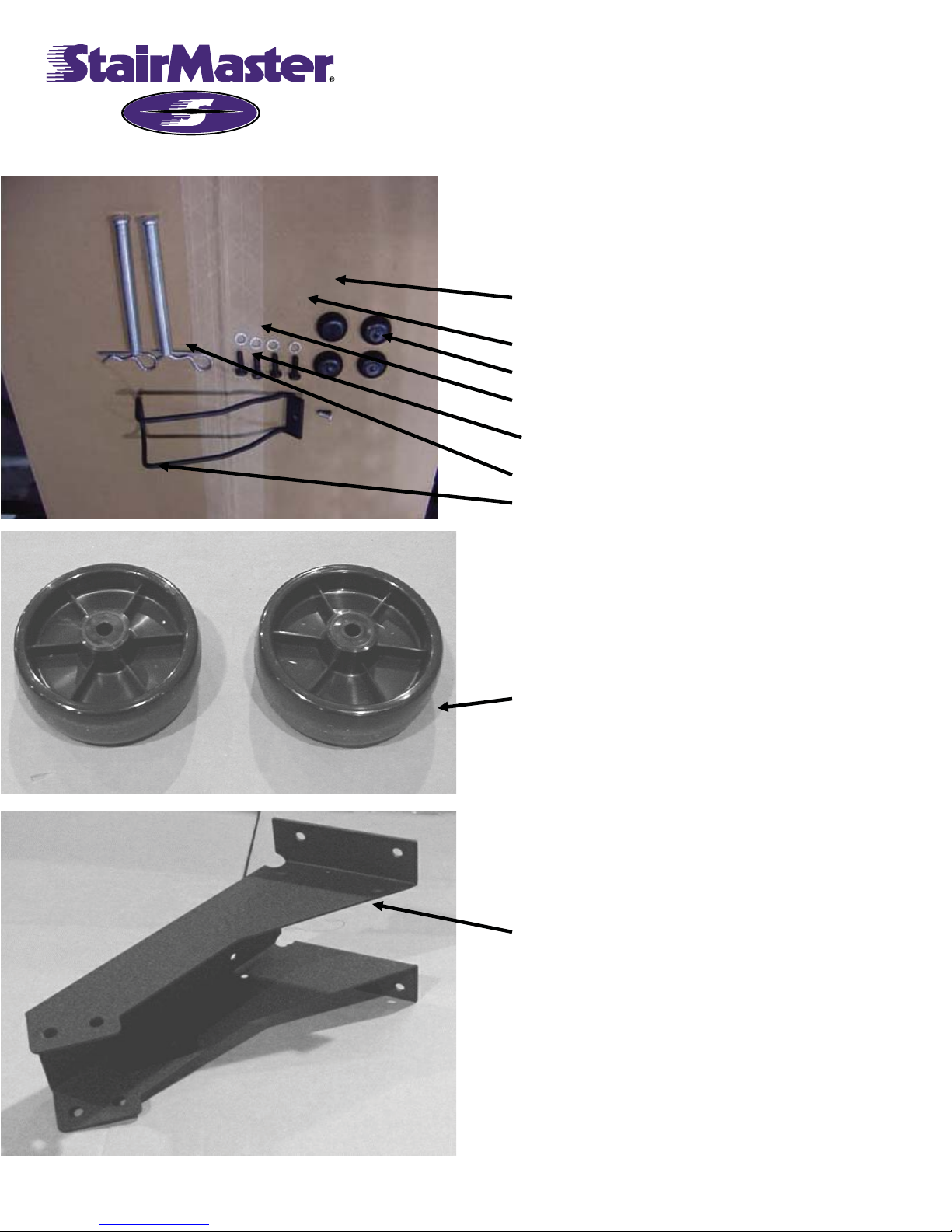

10. THE HARDWARE PLASTIC BAG
CONTAINS DRINK HOLDER BRACKET,
SCREW FOR MOUNTING DRINK HOLDER
BRACKET, WHEEL AXLES, CLIPS,
CONSOLE SCREWS, LOCK WASHERS, AND
PLASTIC COVERS.
DRINK HOLDER BRACKET SCREW
DRINK HOLDER BRACKET
PLASTIC COVER
CONSOLE SCREW
LOCK WASHER
CLIPS
WHEEL AXEL
11. TWO WHEELS ARE USED TO MOVE
THE STEP MILL TO IT’S FINAL LOCATION.
WHEEL
CONSOLE BRACKET
7
ASSEMBLY INSTRUCTIONS

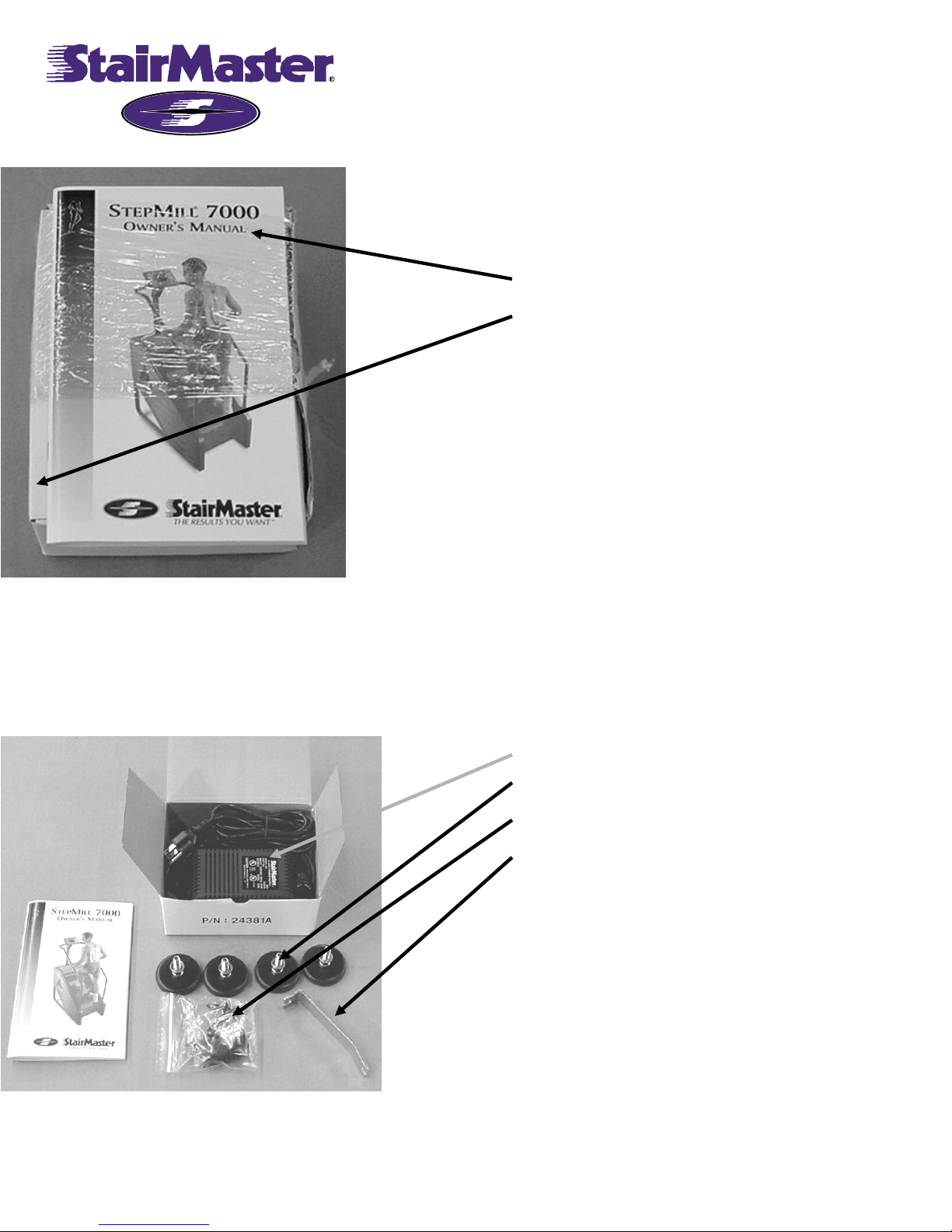

12. USE KNIFE TO REMOVE STRETCH
WRAP FROM POWER SUPPLY BOX AND
OWNER’S MANUAL. SAVE OWNER’S
MANUAL FOR LATER USE. OPEN POWER
SUPPLY CARTON.
OWNER’S MANUAL
POWER SUPPLY CARTON
13. THE POWER SUPPLY CARTON
CONTAIN FOUR LEVELING PADS, BAG OF
SPARE PUSH RIVETS, RIVET REMOVAL
TOOL, AND POWER SUPPLY.
POWER SUPPLY
LEVEL PAD
BAG OF SPARE PUSH RIVETS
RIVET REMOVAL TOOL
8
ASSEMBLY INSTRUCTIONS
14. USE TWO 9/16” WRENCHES AND
REMOVE TWO BOLTS , FOUR FINISH
WASHERS, AND TWO NUTS FROM
HANDRAILS.
BOLT
FINISH WASHER
NUT
15. GET CONSOLE BRACKET FROM
CARTON AND POSITION OVER
HANDRAILS. INSTALL BOLTS, FINISH
WASHERS, AND NUTS TO SECURE
CONSOLE BRACKET TO HANDRAILS. USE
9/16” WRENCHES TO TIGHTEN BOLTS.
HANDRAIL
CONSOLE BRACKET
BOLT
FINISH WASHER
9
ASSEMBLY INSTRUCTIONS

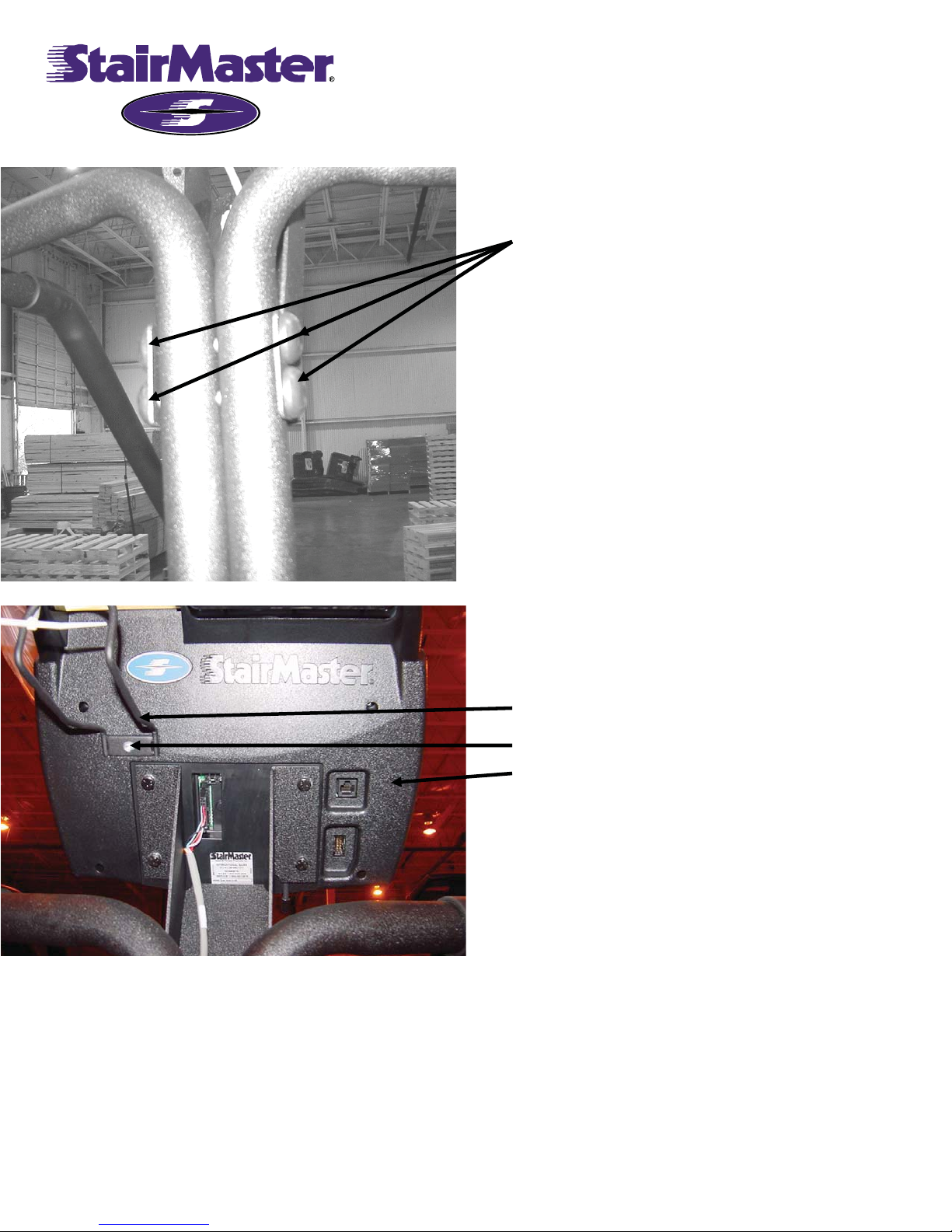

16. GET FOUR PLASTIC COVERS AND SNAP
ONTO THE FINISH WASHERS TO COVER
THE TWO BOLT HEADS AND NUTS.
PLASTIC COVER
17. USE A 5/32” ALLEN WRENCH TO
ATTACH THE DRINK HOLDER BRACKET
TO THE CONSOLE USING THE DRINK
HOLDER BRACKET SCREW.
DRINK HOLDER BRACKET
DRINK HOLDER BRACKET SCREW
CONSOLE
10
ASSEMBLY INSTRUCTIONS

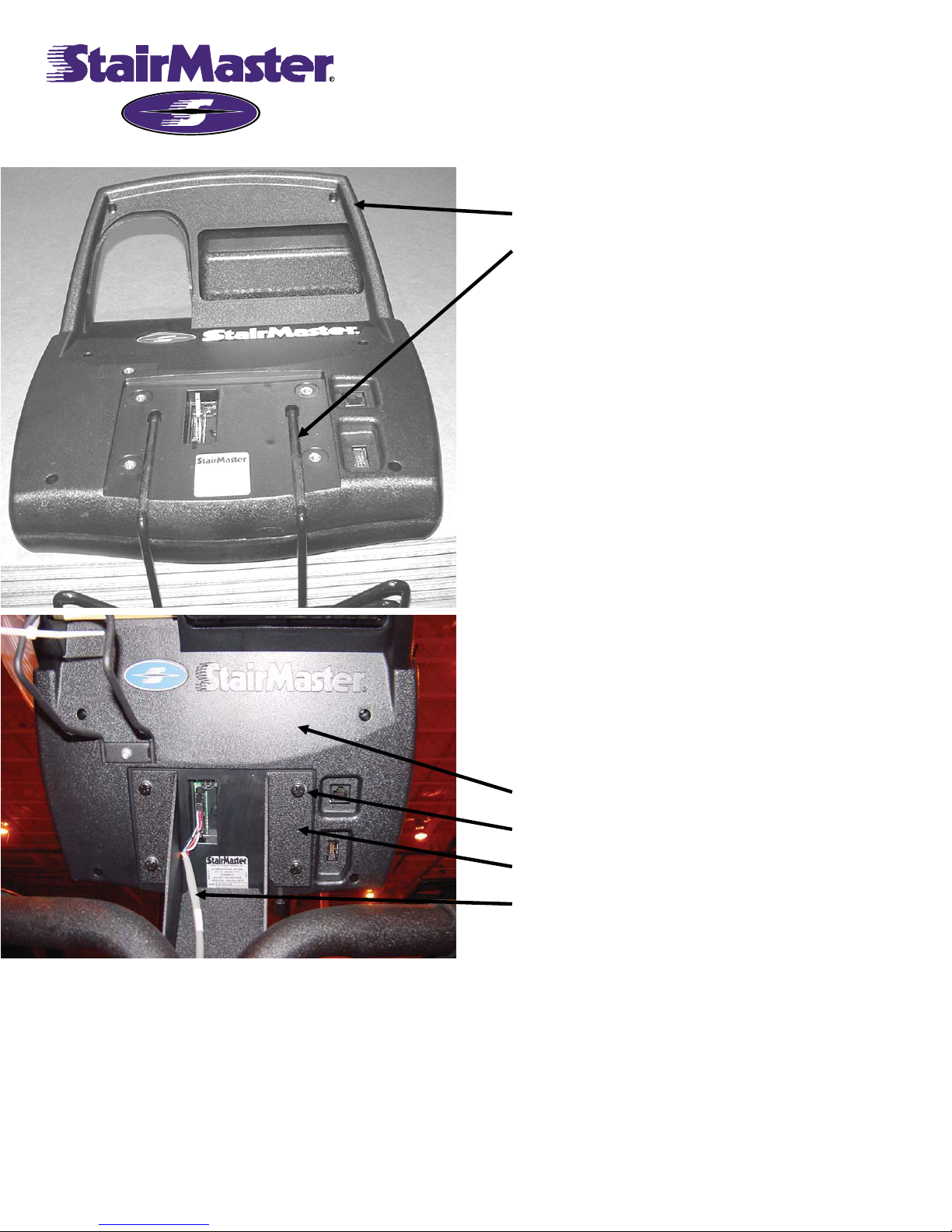

18. GET MAGAZINE RACK AND POSITION
IN GROOVES IN REAR OF CONSOLE.
CONSOLE
MAGAZINE RACK
19. GET FOUR CONSOLE SCREWS AND
LOCK WASHERS. HOLD MAGAZINE RACK
INTO GROOVES IN CONSOLE WHILE
POSITIONING THE CONSOLE OVER THE
CONSOLE BRACKET. USE THE CONSOLE
SCREWS AND LOCK WASHER TO SECURE
THE CONSOLE TO THE CONSOLE
BRACKET. ATTACH THE FEMALE
CONNECTOR ON THE CABLE TO THE
MALE CONNECTOR AT THE REAR OF THE
CONSOLE. MAKE SURE TO POSITION THE
CONNECTORS CORRECTLY WITH THE
ALIGNING TAB ON THE FEMALE
CONNECTOR WITH TH ALIGNING SLOT ON
THE MALE CONNECTOR.
CONSOLE
CONSOLE KNOB
CONSOLE BRACKET
CABLE
