EQUIPMENT FEATURES
Side handles
Two folding side handles allow the tool trolley to be carried by two
people.
Automatic venting valve
The tool trolley has an
automatic pressure relief valve
(only for the IP 67 version).
Main and front cover locks
The tool trolley is equipped with four clamp-free top cover closures
(two for non-IP67 versions) with easy opening mechanism and four
front main door closures. (Two for non-IP 67 versions)
Self-stop system
All drawers are fitted with a self-stop to prevent accidental opening.
Nameplate that can be
written on
The tool trolley has a water-
proof and removable PVC ID
label. This is where a name tag
can be inserted.

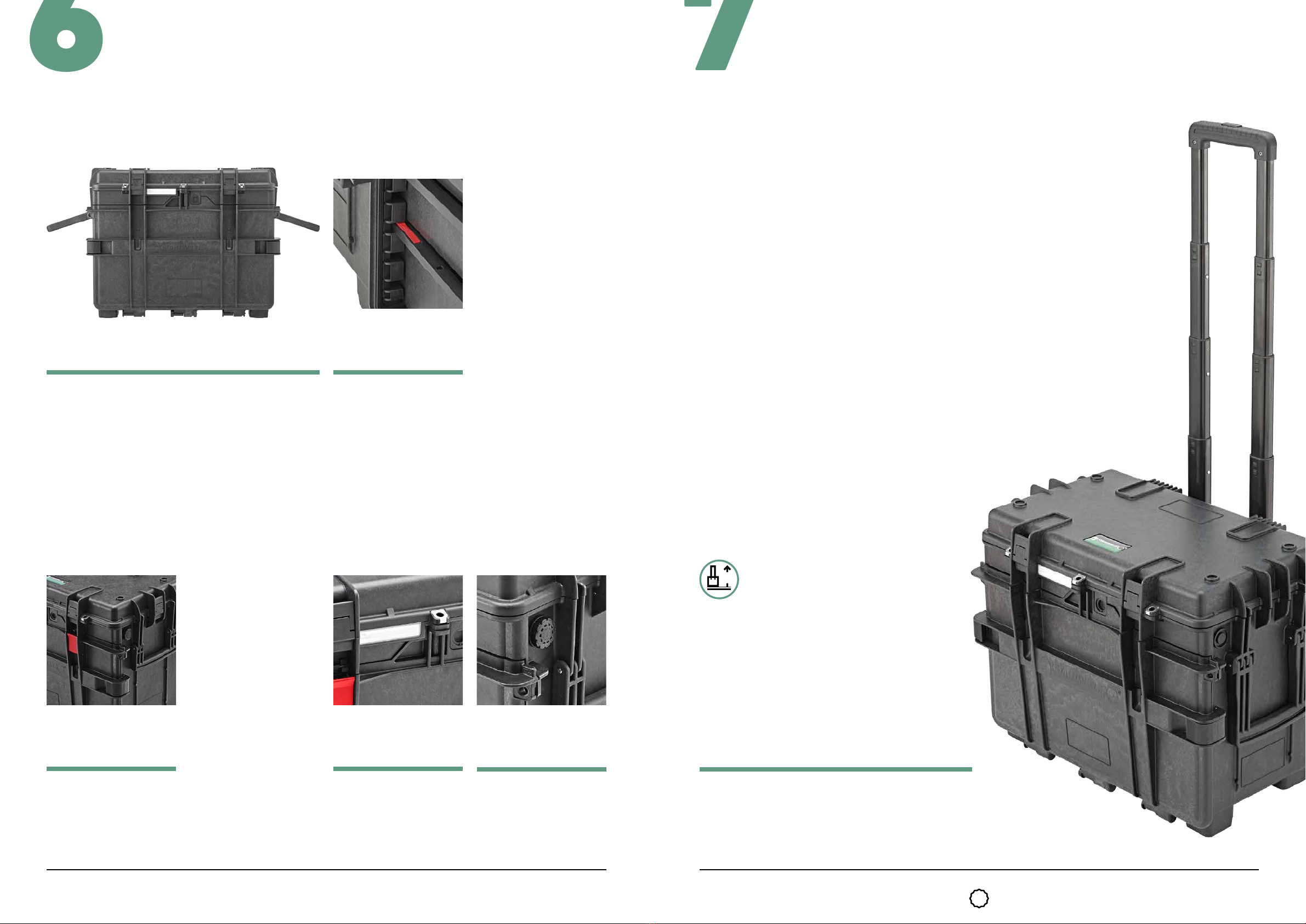

Figure 9: Writable nameplateFigure 7: Cover locks Figure 10: Automatic pressure relief valve
INTENDED USE, SCOPE OF APPLICATION
All instructions in the operating instructions must be followed
to ensure proper use. Any other use is considered improper use.
STAHLWILLE Eduard Wille GMBH & CO. shall not be liable for any
damage resulting from such use.
The tool trolley 13217 IP67 has protection class IP67 and is
virtually maintenance-free. Available spare parts are listed in the
associated spare parts list.
The tool trolleys 13217 and 13217 IP67 are designed exclusively
for the transport and storage of tools.
— No modifications (e.g. installation or modification of the tool
trolley) may be made to the tool trolley without the
manufacturer’s approval.
— Any damaged parts on the tool trolley should be replaced
immediately with original spare parts from the included spare
parts list.
— Only original spare parts and wear parts should be used.
— The built-in extendable trolley handle should only be used to pull
the trolley behind you over flat surfaces. To do this, press the
unlock button on the handle and pull the handle to the desired
height until the push buttons audibly click into place. There are
three dierent height settings.
— There are two fold-out handles on the sides for carrying the
trolley. Due to the high weight, loaded tool trolleys should only be
carried by 2 people. Avoid falls from greater heights, especially
with the telescopic handle extended or the folded handles folded
out. To avoid injuries from dropping, always wear safety shoes
when using the trolley.
— The maximum load is 36.5 kg. The maximum total weight is 50 kg.
— The 30 mm high drawer can be loaded to a maximum of 5 kg.
— The 60 and 95 mm high drawers can be loaded to a maximum of
15 kg.
Figure 11: Trolley with retracted integrated trolley handle
Figure 6: Tool trolley with folded out side handles Figure 8: Self-stop drawer system
Do not lift the trolley o the ground using
the extendable handle
DO
NOT
