MAX-E-GLAS 2 SPEED

CENTRIFUGAL PUMPS with TRAP

O W N E R’ S M A N U A L

INSTALLATION, OPERATION & PARTS

MODELS

Horsepower

3/4 HP PEXYD-133L PE5YD-133L

1 HP PEAXYE-133L PEAXYE-124L

2 HP PEAXYG-126L PEAXYG-126LS PEAXYG-126ULS

Sta-Rite Pool/Spa Group

293 Wright Street, Delavan, WI 53115

North America: 800-752-0183, FAX 800-582-2217

International: 414-728-5551, FAX: 414-728-4461, TELEX: ITT 4970245

Oxnard, CA • Union City, TN • Delavan, WI • Mississauga, Ont.

This manual should be furnished to

the end user of this pump; its use will

reduce service calls and chance of

injury and will lengthen pump life.

‘PE’ and ’

EA’ SERIES

2-SPEED PUMPS WITH TRAP

To avoid unneeded service calls, prevent possible injuries, and get the most

out of your pump, READ THIS MANUAL CAREFULLY!

The Sta-Rite ‘PE’ and ‘PEA’ Series Self-priming Centrifugal pumps:

• Are designed for use with swimming pools or as centrifugal pumps.

• Are excellent performers; durable, reliable.

Table of Contents

Safety Instructions ........................................................................................3

Installation....................................................................................................4

Electrical....................................................................................................5-6

Operation.....................................................................................................7

Storage/Winterizing...................................................................................7-8

Pump Service...........................................................................................9-10

Troubleshooting Guide...............................................................................11

Repair Parts List.....................................................................................12-14

Warranty.....................................................................................................15

READ AND FOLLOW SAFETY

INSTRUCTIONS!

This is the safety alert symbol. When you see this symbol on your system

or in this manual, look for one of the following signal words and be alert

to the potential for personal injury.

warns about hazards that will cause death, serious personal

injury, or major property damage if ignored.

warns about hazards that can cause death, serious personal

injury, or major property damage if ignored.

warns about hazards that will or can cause minor personal injury

or property damage if ignored.

NOTICE indicates special instructions not related to hazards.

Carefully read and follow all safety instructions in this manual and on equip-

ment. Keep safety labels in good condition; replace if missing or damaged.

Incorrectly installed or tested equipment may fail, causing

severe injury or property damage.

Read and follow instructions in owner's manual when installing

and operating equipment. Have a trained pool professional per-

form all pressure tests.

1. Do not connect system to a high pressure or city water system.

2. Use equipment only in a pool or spa installation.

3. Trapped air in system can cause explosion. BE SURE all air is out of system

before operating or testing equipment.

Before pressure testing, make the following safety checks:

• Check all clamps, bolts, lids, and system accessories before testing.

• Release all air in system before testing.

• Tighten Sta-Rite trap lids to 30 ft. lbs. (4.1 kg-m) torque for testing.

•Water pressure for test must be less than 25 PSI (7.5 kg/cm2).

• Water Temperature for test must be less than 100oF. (38oC).

• Limit test to 24 hours. After test, visually check system to be sure it is ready

for operation. Remove trap lid and retighten hand tight only.

NOTICE: These parameters apply to Sta-Rite equipment only. For

non-Sta-Rite equipment, consult manufacturer.

IMPORTANT

SAFETY

INSTRUCTIONS

Always follow basic safety pre-

cautions with this equipment, in-

cluding the following.

To reduce the risk of

injury, do not permit children to

use this product unless they are

closely supervised at all times.

This pump is for use

with permanently installed pools

and may also be used with hot

tubs and spas if so marked. Do

not use with storable pools. A

permanently installed pool is con-

structed in or on the ground or in

a building such that it cannot be

readily disassembled for storage.

A storable pool is constructed so

that it may be readily disassem-

bled for storage and reassembled

to its original integrity.

SAVE THESE

INSTRUCTIONS

INSTALLATION

Only qualified, licensed personnel should install pump and wiring.

Pump mount must:

Be solid - Level - Rigid - Vibration free. (To reduce vibration and pipe stress,

bolt pump to mount.)

Pump requires flooded suction.

Allow use of short, direct suction pipe (To reduce friction losses).

Allow for gate valves in suction and discharge piping.

Have adequate floor drainage to prevent flooding.

Be protected from excess moisture.

Allow adequate access for servicing pump and piping.

NOTICE: When connecting threaded pipe directly to pump, use Teflon tape

or Plasto-Joint Stik1 to seal connections. Do not use pipe dope; pipe dope

causes cracking in some plastics and may damage components in piping sys-

tem.

When connecting pipe to pump with union half, use Teflon tape or Plasto-

Joint Stik between pipe and union adapter. Union collar to pump should be

assembled dry and hand-tight.

NOTICE: Pump suction and discharge connections have molded in thread

stops. DO NOT try to screw pipe in beyond these stops.

Teflon Taping Instructions:

Use only new or clean PVC pipe fittings.

Wrap male pipe threads with one to two layers of Teflon tape. Cover entire

threaded portion of pipe.

Do not overtighten or tighten past thread stop in pump port!

If leaks occur, remove pipe, clean off old tape, rewrap with one to two addi-

tional layers of tape and remake the connection.

NOTICE: Support all piping connected with pump!

1Lake Chemical Co., Chicago, Illinois

FIGURE 1

CLAMP KNOB DISCHARGE PORT

TO FILTER OR POOL STRAINER

BASKET

COVER

SUCTION

PORT

FROM

POOL

VACUUM

FILTERS

DRAIN PLUG

CAPACITOR BONDING

LUG

PUMP MAY BE BOLTED

TO LEVEL FOUNDATION

OR MOUNTING BRACKET

Piping:

Use at least 1-1/2" (38mm) pipe with 5” (127mm) trap. Use 2” (51mm) pipe

with 6” (152mm) trap. Increase size if a long run is needed.

To avoid strains on the pump, support both suction and discharge pipes inde-

pendently. Place these supports near the pump.

To avoid a strain left by a gap at the last connection, start all piping at the

pump and run pipe away from the pump.

Never use a suction pipe smaller than pump suction connection. To avoid air-

locking, slope suction pipe slightly upward toward the pump.

NOTICE: To prevent flooding when removing pump for service, all flooded

suction systems must have gate valves in suction and discharge pipes.

Fittings:

Fittings restrict flow; for best efficiency use fewest possible fittings.

Avoid fittings which could cause an air trap.

Pool fittings must conform to International Association of Plumbing and

Mechanical Officials (IAPMO) standards.

Use only non-entrapping suction fitting or double suction.

TABLE I - RECOMMENDED FUSING AND WIRING DATA

Serv. to Motor - Dist. in Ft. (M)

Motor Branch Fuse Max Load Voltage/ 0-100' 101-200' 201-300'

HP Rating Amps* Amps Hz/Phase (0-30) (30-60) (60-90)

PE5YD-133L 3/4-1/8 15 12.0/4.0 115/60/1 14(2) 14(2) 12(3)

PEXYD-133L

PEAXYE-133L 1-1/6 15 12.0/4.0 115/60/1 14(2) 14(2) 12(3)

PEAXYE-124L 1-1/6 15 5.3/2.0 230/60/1 14(2) 14(2) 14(2)

PEAXYG-126L 2-1/3 15 10.1/3.7 230/60/1 14(2) 14(2) 12(3)

PEAXYG-126LS 2-1/3 15 10.1/3.7 230/60/1 14(2) 14(2) 12(3)

* Time delay fuses are recommended instead of standard fuses in any motor circuit.

AWG

Wire

Size

(mm2)

}

Timer Motor

Supply

Circuit

Protector

Remote

SPDT

Switch

Ground

(Green)

Common

Remote Switching For 2-Speed Pumps

Timer (optional)

Low Speed Only

Minimum switch and timer amp rating must equal Branch Fuse

Rating given in "Recommended Fusing and Wiring Data" table.

ELECTRICAL

Ground motor before connecting to electrical power supply. Failure to

ground motor can cause severe or fatal electrical shock hazard.

Do not ground to a gas supply line.

To avoid dangerous or fatal electrical shock, turn OFF power to motor

before working on electrical connections.

Ground Fault Circuit Interrupter (GFCI) tripping indicates an electrical

problem. If GFCI trips and will not reset, have a qualified electrician

inspect and repair electrical system.

Exactly match supply voltage to nameplate voltage. Incorrect voltage

can cause fire or seriously damage motor and voids warranty. If in

doubt consult a licensed electrician.

Voltage

Voltage at motor must be not more than 10% above or below motor name-

plate rated voltage or motor may overheat, causing overload tripping and re-

duced component life. If voltage is less than 90% or more than 110% of rated

voltage when motor is running at full load, consult power company.

Grounding/Bonding

Install, ground, bond and wire motor according to local or National Electrical

Code requirements.

Permanently ground motor. Use green ground terminal provided under motor

canopy or access plate (See Fig. 2); use size and type wire required by code.

Connect motor ground terminal to electrical service ground.

Bond motor to pool structure. Use a solid copper conductor, size No. 8 AWG

(8.4 sq.mm) or larger. Run wire from external bonding lug (see Fig. 2) to rein-

forcing rod or mesh.

Connect a No. 8 AWG (8.4 sq.mm) solid copper bonding wire to the pressure

wire connector provided on the motor housing and to all metal parts of the

swimming pool, spa, or hot tub and to all electrical equipment, metal piping

or conduit within 5 feet (1.5 m) of the inside walls of swimming pool, spa, or

hot tub.

Wiring

Pump must be permanently connected to circuit; be sure no other lights or ap-

pliances are on the same circuit. Match wire sizes to Table I (Pg. 5).

NOTICE: To prevent dirt, rain, bugs, etc., from entering motor when not

wiring with conduit, be sure to seal wire opening on end of motor.

Use Ground Fault Circuit Interrupter (GFCI) as master on-off switch; it will

sense a short circuit to ground and disconnect power before it becomes dan-

gerous to pool users. Test according to maker’s instructions.

In case of power outage, check GFCI for tripping (which will prevent normal

water circulation). Reset if necessary.

BONDING

LUG

GREEN

GROUND

SCREW

510 0993

Hazardous voltage.

Can shock, burn,

or cause death.

Ground pump before

connecting to

power supply.

Figure 2 – Typical ground screw and

bonding lug locations.

Figure 3 – Wiring hook-up diagram

OPERATION

NOTICE: NEVER run pump dry. Running pump dry may damage seals, caus-

ing leakage and flooding. Fill pump with water before starting motor.

Before removing trap cover:

1. STOP PUMP before proceeding.

2. CLOSE GATE VALVES in suction and discharge pipes.

3. RELEASE ALL PRESSURE from pump and piping system.

4. NEVER tighten or loosen clamp while pump is operating.

If pump is being pressure tested, release all pressure before removing

trap cover.

Do not block pump suction. To do so with body may cause severe or

fatal injury. Small children using pool must ALWAYS have close adult

supervision.

Priming Pump

Release all air from filter and piping system: see filter owner’s manual.

In a flooded suction system (water source higher than pump), pump will prime

itself when suction and discharge valves are opened.

If pump is not in a flooded suction system, unscrew and remove trap cover;

fill trap and pump with water.

Lubricate trap cover “O” Ring with petroleum jelly each time it is removed.

Clean and inspect “O” Ring; reinstall on trap cover.

Replace trap cover on trap; turn clockwise to tighten cover.

NOTICE: Tighten trap cover by hand only (no wrenches)! Use a wrench only

if necessary to remove lid!

Pump should prime now. Priming time will depend on vertical length of suc-

tion lift and horizontal length of suction piping.

If pump does not prime, make sure that all valves are open, suction pipe end

is under water, pump suction is below water level, and that there are no leaks

in suction pipe. See Troubleshooting Guide, Page 11.

Storage/Winterizing:

NOTICE: Allowing pump to freeze will damage pump and void warranty!

NOTICE: Do not use anti-freeze solutions (except propylene glycol) in your

pool/spa system. Propylene glycol is non-toxic and will not damage plastic

system components; other anti-freezes are highly toxic and may damage plas-

tic components in the system.

Hazardous suction.

Can trap hair or

body parts, causing

severe injury

or death.

Do not block

suction.

Drain all water from pump and piping when expecting freezing temperatures

or when storing pump for a long time (see instructions below).

Keep motor dry and covered during storage.

To avoid condensation/corrosion problems, do not cover pump with plastic.

For outdoor/unprotected installations:

1. Enclose entire system in a weatherproof enclosure.

2. To avoid condensation/corrosion damage, allow ventilation; do not wrap

system in plastic.

3. Use a 40% propylene glycol/60% water solution to protect pump to -50°F

(-46°C).

Draining Pump

1. Pump down water level below all inlets to the pool.

To avoid dangerous or fatal electrical shock hazard, turn OFF power to

motor before draining pump.

2. Remove trap cover and use low pressure air to blow accumulated water

from the piping system. Use a Sta-Rite U79-11 Lid Wrench to remove trap

covers that have been overtightened or have taken a set and cannot be re-

moved by hand.

3. Cap inlet piping after draining to keep water out of the pipes.

4. To prevent pump from freezing, remove the trap cover and drain the tank

body through the two drain plugs provided. Clean pump thoroughly; re-

place trap cover.

NOTICE: Tighten trap cover by hand only (no wrenches)! Use a wrench

only if necessary to remove cover.

5. Be sure motor is kept dry and covered.

Startup For Winterized Equipment

1. Remove any temporary weather protection placed around system for shut-

down.

2. Follow filter manufacturer’s instructions for reactivation of the filter.

3. Inspect all electrical wiring for damage or deterioration over the shutdown

period. Have a qualified serviceman repair wiring as needed.

4. Inspect and tighten all watertight connections.

5. Open all valves in suction and return piping.

6. Remove any winterizing plugs in piping system.

7. Drain all antifreeze from system.

8. Close all drain valves and replace all drain plugs in piping system.

9. Prime pump according to instructions on Page 7.

Hazardous voltage.

Can shock, burn,

or cause death.

Disconnect power

before working

on pump or motor.

PUMP SERVICE

Pump should only be serviced by qualified personnel.

Be sure to prime pump (Pg. 7) before starting.

Before removing trap cover:

1. STOP PUMP before proceeding.

2. CLOSE GATE VALVES in suction and discharge pipes.

3. RELEASE ALL PRESSURE from pump and piping system.

4. NEVER tighten or loosen clamp while pump is operating.

To avoid dangerous or fatal electrical shock hazard, turn OFF power to

motor before working on pump or motor.

Aside from lubricating trap cover O-Ring, no lubrication or regular mainte-

nance is needed beyond reasonable care and periodic cleaning.

If shaft seal is worn or damaged, repair as follows:

Pump Dissasembly/Removing Old Seal

Disconnect power to pump motor.

Be sure gate valves on suction and return piping are closed before start-

ing work.

Release all pressure by opening all vents before starting work.

1. Drain pump by removing drain plugs on bottom of pump body and trap

body.

2. Be sure there is no pressure in trap body; remove cover (unscrew by turn-

ing counterclockwise).

3. Remove clamp holding pump halves together.

4. Remove pump base mounting bolts, if used. Motor and seal plate assem-

bly can now be pulled away from pump body.

5. Remove five screws and washers holding diffuser to seal plate. Remove

diffuser.

6. Remove motor canopy. Being careful not to touch capacitor terminals,

loosen capacitor clamp and move capacitor to one side.

7. Hold shaft with 7/16" open-end wrench on motor shaft flats.

8. Unscrew impeller from shaft (turn counterclockwise when facing it).

NOTICE: On 2 HP models, remove impeller screw (left hand thread -

turn clockwise) and gasket before removing impeller. Inspect gasket for

damage, cracks, etc. Replace if damaged.

9. Remove four screws holding seal plate to motor.

10. Place seal plate face down on flat surface and tap out ceramic seat (Fig. 4).

NOTICE: Do not force out heat sink insert (Key No. 7, Page 12). If insert

has moved, pump will leak; see “Installing Insert”, Page 10.

11. Clean seal cavity in seal plate and clean motor shaft.

Hazardous voltage.

Can shock, burn,

or cause death.

Disconnect power

before working

on pump or motor.

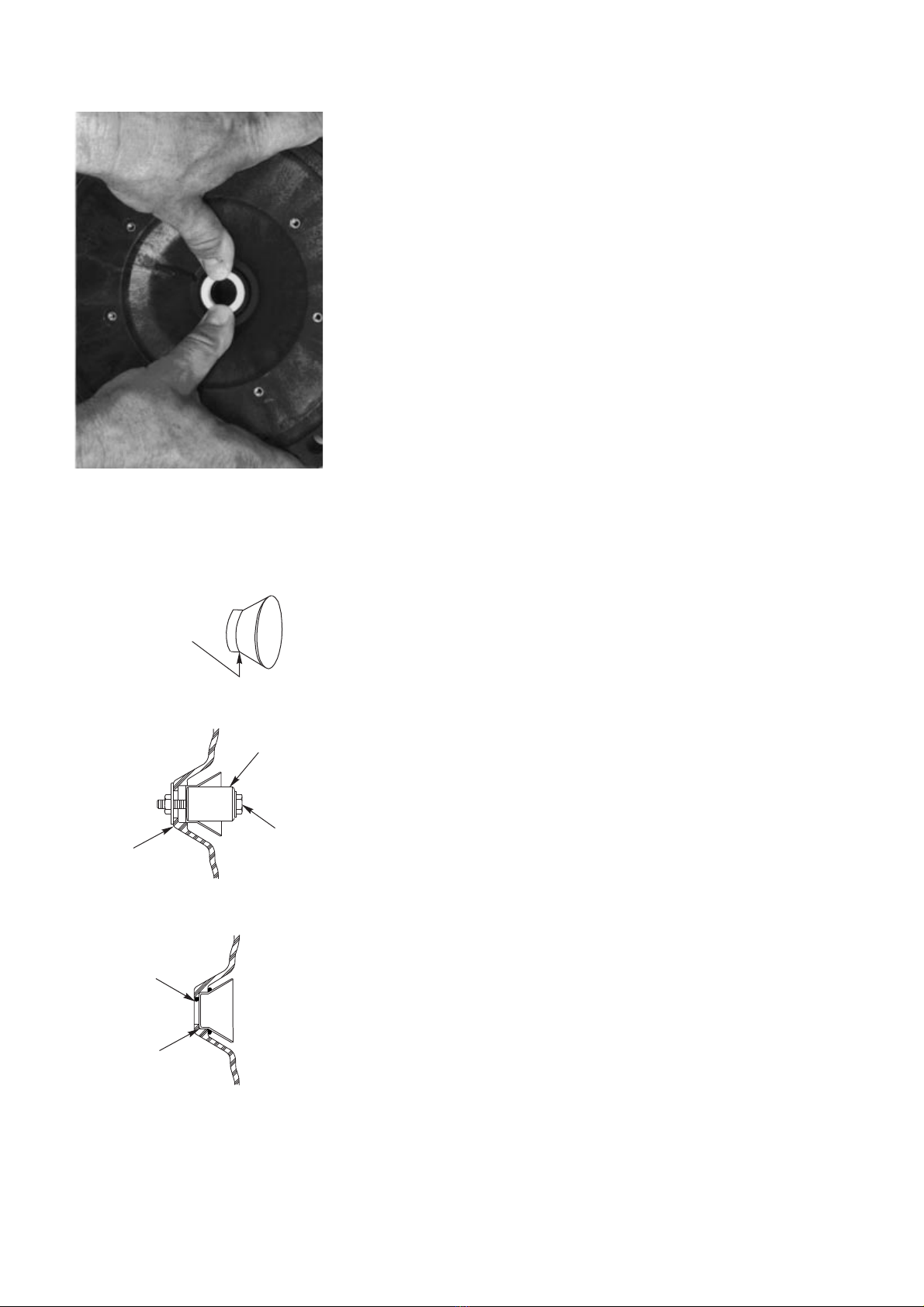

Figure 4

Pump Reassembly/Installing New Seal

1. Ceramic seat must be clean and free of dirt, grease, dust, etc. Wet outer

edge of "O" Ring with small amount of liquid detergent; press ceramic

seat into seal plate cavity firmly and squarely with finger pressure (Fig. 5).

2. If ceramic seat will not locate properly, remove it, place face up on bench

and reclean cavity. Ceramic seat should now locate.

3. If seat still will not locate properly, place a cardboard washer over the

polished face and use a piece of 3/4" (19mm) standard pipe for pressing

purposes. NOTICE: Be sure not to scratch or mar polished surface or seal

will leak.

4. Remount seal plate on motor. Tighten bolts to 60-80 inch-lbs. (69-92

kg/cm) torque.

5. Apply a small amount of liquid detergent to inside diameter of rotating

half of seal.

6. Slide rotating seal member, polished carbon face out, over shaft and shaft

shoulder until rubber drive ring hits shaft houlder. NOTICE: Be sure not to

nick or scratch polished seal face; seal will leak if face is damaged.

7. Screw impeller onto shaft (clockwise); this will automatically locate seal in

seal plate.

NOTICE: On 2 HP models, install impeller screw (left-hand thread - turn

counterclockwise).

8. Mount diffuser on seal plate; tighten screws to 10-14 inch-lbs. (11.2-16.1

kg/cm) torque.

9. Assemble motor and seal plate to volute; be sure clamp is properly

seated. NOTICE: Clamp knob can be located in any position around vo-

lute; if it is moved after assembly, tighten knob ahile tapping around

clamp to assist sealing. Do not move clamp while pump is full of water.

10. Reinstall pump base mounting bolts (if used) and prime pump according

to instructions on Page 7.

Installing Heat Sink Insert:

If the heat sink insert moves or shifts during seal removal, remove and re-

install it to prevent leakage.

1. To remove heat sink insert, grasp with fingers at large end and move back

and forth. Do not deform.

2. Replace heat sink insert as follows:

A. Clean off old sealant and foreign material; clean out insert cavity.

B. Apply a small amount of non-hardening silicone RTV on surface of

insert (see Figure 6).

C. Pull inset into cavity (see Figure 7).

D. Remove surplus silicone RTV from insert cavity (see Figure 8).

Figure 5

Wipe on small amount of

non-hardening Permatex

on this surface

756 0993

7/8" Socket

Bolt

1-3/8" O.D.

Washer

Remove

Surplus

Permatex

Properly

Seated

Figure 6

Figure 7

Figure 8

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels STA-RITE Pompe à eau

STA-RITE

STA-RITE 300EL Series Manuel utilisateur

STA-RITE

STA-RITE 700E Series Manuel utilisateur

STA-RITE

STA-RITE Dura-Jet Manuel utilisateur

STA-RITE

STA-RITE PE Series Manuel utilisateur

STA-RITE

STA-RITE 10DOM05121 Manuel utilisateur

STA-RITE

STA-RITE ST33APP Manuel utilisateur

STA-RITE

STA-RITE SL Series Manuel utilisateur

STA-RITE

STA-RITE DB10018T Manuel utilisateur

STA-RITE

STA-RITE INTELLIPRO 2 VST Manuel utilisateur

STA-RITE

STA-RITE DYNA-WAVE MPRA Series Manuel utilisateur

STA-RITE

STA-RITE DPC Manuel utilisateur

STA-RITE

STA-RITE SG12 Series Mode d’emploi

STA-RITE

STA-RITE TPEA Series Manuel utilisateur

STA-RITE

STA-RITE IntelliPro Variable Speed Manuel utilisateur

STA-RITE

STA-RITE DURA-JET 5JTAC-A Manuel utilisateur

STA-RITE

STA-RITE DURA-JET 5DJAFB-0001 Manuel utilisateur

STA-RITE

STA-RITE PC13316V-01 Mode d’emploi

STA-RITE

STA-RITE DURA-GLAS II P4R Series Manuel utilisateur

STA-RITE

STA-RITE Signature 2000 Manuel utilisateur

STA-RITE

STA-RITE 5PRA Series Manuel utilisateur

STA-RITE

STA-RITE 5P6R Series Manuel utilisateur

STA-RITE

STA-RITE DURA-GLAS II P4RA Series Manuel utilisateur

STA-RITE

STA-RITE PTM50JWAD-03 Manuel utilisateur

STA-RITE

STA-RITE HC-01 Manuel utilisateur

Manuels Pompe à eau populaires d'autres marques

Neptun

Neptun NPHW 5500 Manuel utilisateur

Sensidyne

Sensidyne Gilian BDX-II Instructions d'installation et d'utilisation

Draper

Draper 47808 Manuel utilisateur

Trolla

Trolla 12820 Manuel utilisateur

Sunfab

Sunfab SVH Series Manuel utilisateur

WilTec

WilTec 50740 Manuel utilisateur

Fieldmann

Fieldmann FVC 5015 EK Manuel utilisateur

Everbilt

Everbilt EFSUB5-122HD Manuel utilisateur

Graco

Graco Husky 3300e Manuel utilisateur

esotec

esotec 101018 Manuel utilisateur

moyno

moyno 2000 CC Manuel utilisateur

Becker

Becker BASIC VASF 2.80/1-0.AC230 Manuel utilisateur

Sykes AmeriPumps

Sykes AmeriPumps GP100M Guide de dépannage

DUROMAX

DUROMAX XP WX Series Manuel utilisateur

BRINKMANN PUMPS

BRINKMANN PUMPS SBF550 Manuel utilisateur

Franklin Electric

Franklin Electric IPS Manuel utilisateur

Xylem

Xylem e-1532 Series Manuel utilisateur

Milton Roy

Milton Roy PRIMEROYAL Manuel utilisateur
