ST FP-SNS-DATALOG2 Manuel utilisateur
Quick Start Guide
STM32Cube function pack for high speed
datalogging and ultrasound processing
(FP-SNS-DATALOG2)
Version 2.0 –Sep ’23
Agenda
1Hardware and Software overview
3Documents & Related Resources
2
2Setup & Demo Examples
1 - Hardware and Software overview
STEVAL-STWINBX1

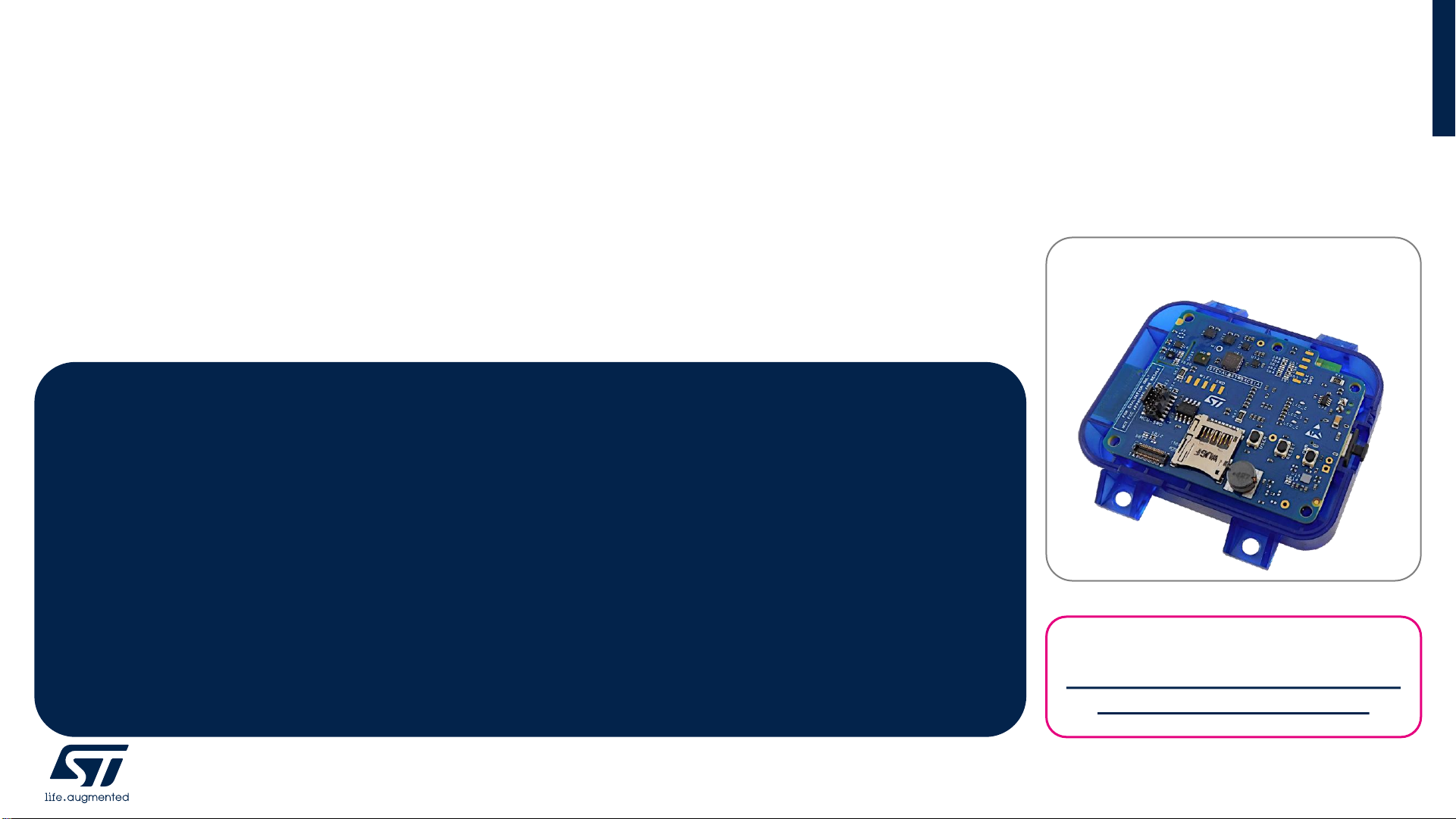

STWIN.box development kit - STEVAL-STWINBX1
Hardware Overview
STWIN.box - SensorTile Wireless Industrial Node
The STWIN.box (STEVAL-STWINBX1) is a development kit and reference design that simplifies prototyping and testing
of advanced industrial sensing applications in IoT contexts such as condition monitoring and predictive maintenance.
It is an evolution of the original STWIN kit (STEVAL-STWINKT1B) and features a higher mechanical accuracy in the
measurement of vibrations, an improved robustness, an updated BoM to reflect the latest and best-in-class MCU and
industrial sensors, and an easy-to-use interface for external add-ons.
The STWIN.box kit consists of an STWIN.box core system, a 480mAh LiPo battery, an adapter for the ST-LINK
debugger (STEVAL-MKIGIBV4), a plastic case, an adapter board for DIL 24 sensors and a flexible cable.
Key Features
•Multi-sensing wireless platform for vibration monitoring and ultrasound detection
•Built around STWIN.box core system board with processing, sensing, connectivity, and expansion capabilities
•Ultra-low power Arm® Cortex®-M33 with FPU and TrustZone at 160 MHz, 2048 kBytes Flash memory (STM32U585AI)
•MicroSD card slot for standalone data logging applications
•On-board Bluetooth® low energy v5.0 wireless technology (BlueNRG-M2), Wi-Fi (EMW3080) and NFC (ST25DV04K)
•Wide range of industrial IoT sensors: Ultra-wide bandwidth (up to 6 kHz), low-noise, 3-axis digital vibration sensor (IIS3DWB),
3D accelerometer + 3D gyro iNEMO inertial measurement unit (ISM330DHCX) with Machine Learning Core, High-
performance ultra-low-power 3-axis accelerometer for industrial applications (IIS2DLPC), Ultra-low power 3-axis
magnetometer (IIS2MDC), Dual full-scale, 1.26 bar and 4 bar, absolute digital output barometer in full-mold package
(ILPS22QS), Low-voltage, ultra low-power, 0.5°C accuracy I²C/SMBus 3.0 temperature sensor (STTS22H), Industrial grade
digital MEMS microphone (IMP34DT05), Analog MEMS microphone with frequency response up to 80 kHz (IMP23ABSU)
•Expandable via a 34-pin FPC connector
Latest info available at
https://www.st.com/en/evaluation
-tools/steval-stwinbx1.html
Battery
LiPo-752535 - 480mAh
STWIN.box development kit - STEVAL-STWINBX1
Hardware Overview
STWIN.box - SensorTile Wireless Industrial Node

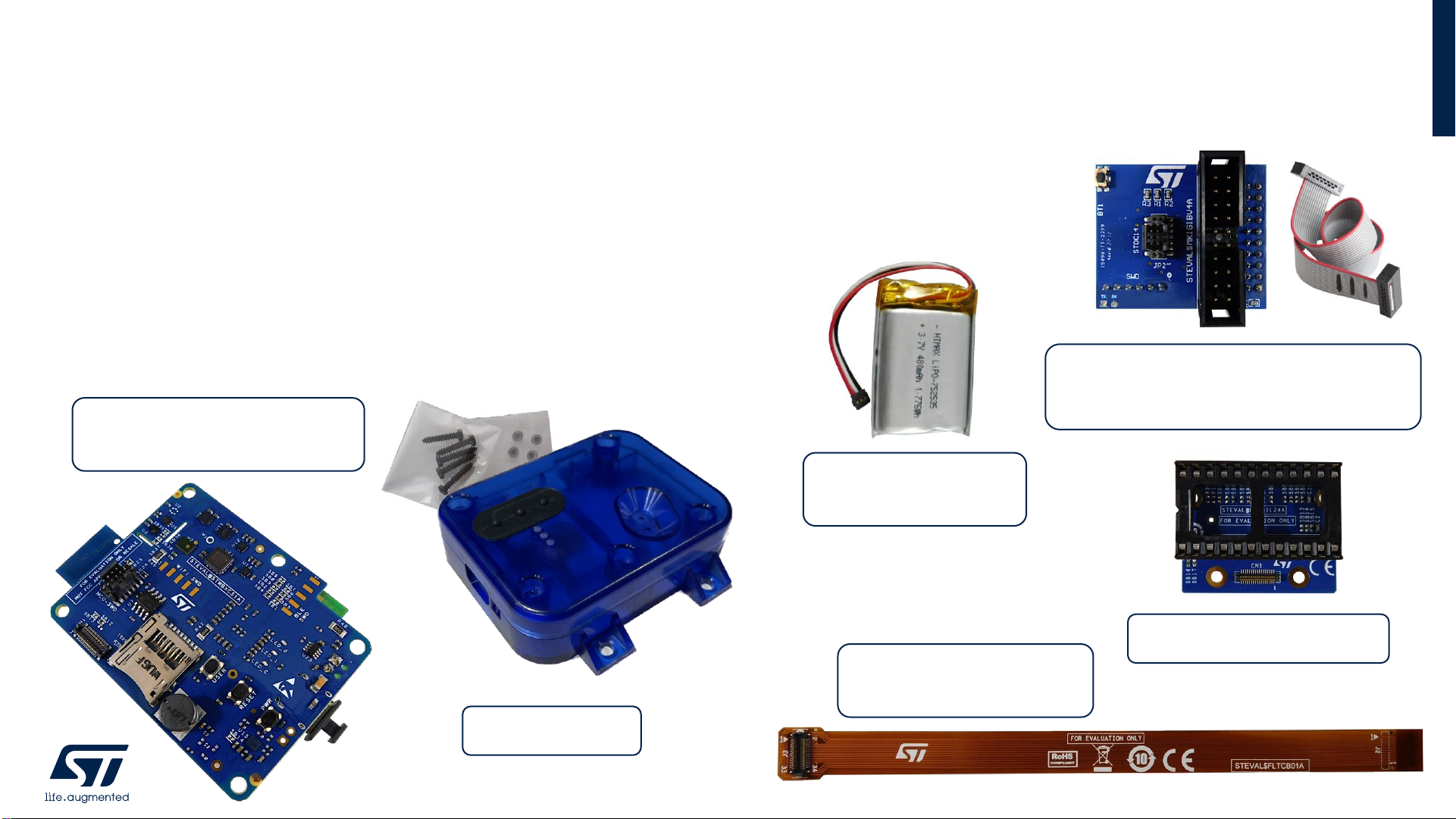

The STEVAL-STWINBX1 development kit includes:
•The STEVAL-STWBXCS1 STWIN.box core system (main board);
•A plastic case with M3 bolts;
•A 480 mAh 3.7 V LiPo battery;
•The STEVAL-MKIGIBV4 ST-LINK adapter with programming cable;
•The STEVAL-C34DIL24 adapter board for DIL24 sensors with the
STEVAL-FLTCB01 flexible cable.
STEVAL-STWBXCS1
STWIN.box Core System
Plastic Case
STEVAL-MKIGIBV4 + Cable
STLINK Adapter (V2, V2.1)
STEVAL-FLTCB01
34 pin Flex cable
STEVAL-C34DIL24
STWIN.box Modular platform expansion - STEVAL-C34KAT1
Hardware Overview
Vibrometer and Temperature Sensors Expansion Board
STWIN.box expansion with Vibrometer (IIS3DWB) and Temperature
(STTS22H) sensors
•Optimal high frequency performance (up to 6kHz)
•Exposed pad on bottom side for thermal coupling
•34-pin slave connector, compatible with STWIN.box and other ST
Evaluation boards
•34-pin flex cable included
•4x fixing holes
STEVAL-C34AT01
STEVAL-FLTCB01
Flex cable
2.5cm
2.5cm
15cm
STWIN.box Modular platform expansion - STEVAL-C34KAT2
Hardware Overview
6 axis + ISPU and Temperature Sensors Expansion Board
STWIN.box expansion with 6 axis + ISPU (ISM330IS) and Temperature
(STTS22H) sensors
•Optimal high frequency performance
•Exposed pad on bottom side for thermal coupling
•34-pin slave connector, compatible with STWIN.box and other ST
Evaluation boards
•34-pin flex cable included
•4x fixing holes
STEVAL-C34AT02
STEVAL-FLTCB01
Flex cable
2.5cm
2.5cm
15cm
STWIN development kit - STEVAL-STWINKT1B
Hardware Overview
STWIN - SensorTile Wireless Industrial Node
The STWIN (STEVAL-STWINKT1B) is a development kit and reference design that simplifies prototyping and testing
of advanced industrial IoT applications such as condition monitoring and predictive maintenance. The kit supports
BLE wireless connectivity through an on-board module and Wi-Fi connectivity through a special plugin expansion
board (STEVAL-STWINWFV1), wired RS485 and USB OTG connectivity.
Key Features
•Multi-sensing wireless platform implementing vibration monitoring and ultrasound detection
•Updated version of STEVAL-STWINKT1, now including STSAFE-A110 populated, BlueNRG-M2S module and
IMP23ABSU MEMS microphone
•Ultra-low-power ARM Cortex-M4 MCU at 120 MHz with FPU, 2048 kbytes Flash memory (STM32L4R9)
•Micro SD Card slot for standalone data logging applications
•Option to implement Authentication and Brand protection secure solution with STSAFE-A110
•Wide range of industrial IoT sensors: ultra-wide bandwidth (up to 6 kHz), low-noise, 3-axis digital vibration sensor
(IIS3DWB), 3D accelerometer + 3D Gyro iNEMO inertial measurement unit (ISM330DHCX) with machine learning core,
ultra-low-power high performance MEMS motion sensor (IIS2DH), ultra-low-power 3-axis magnetometer (IIS2MDC),
digital absolute pressure sensor (LPS22HH), relative humidity and temperature sensor (HTS221), low-voltage digital local
temperature sensor (STTS751), industrial grade digital MEMS microphone (IMP34DT05), analog MEMS microphone with
frequency response up to 80 kHz (IMP23ABSU)
•Modular architecture, expandable via on-board connectors: STMOD+ and 40-pin flex general purpose expansions, 12-pin
male plug for connectivity expansions, 12-pin female plug for sensing expansions
•Other kit components: Li-Po battery 480 mAh, STLINK-V3MINI debugger with programming cable, Plastic box
Latest info available at
www.st.com/stwin
STEVAL-MKBOXPRO

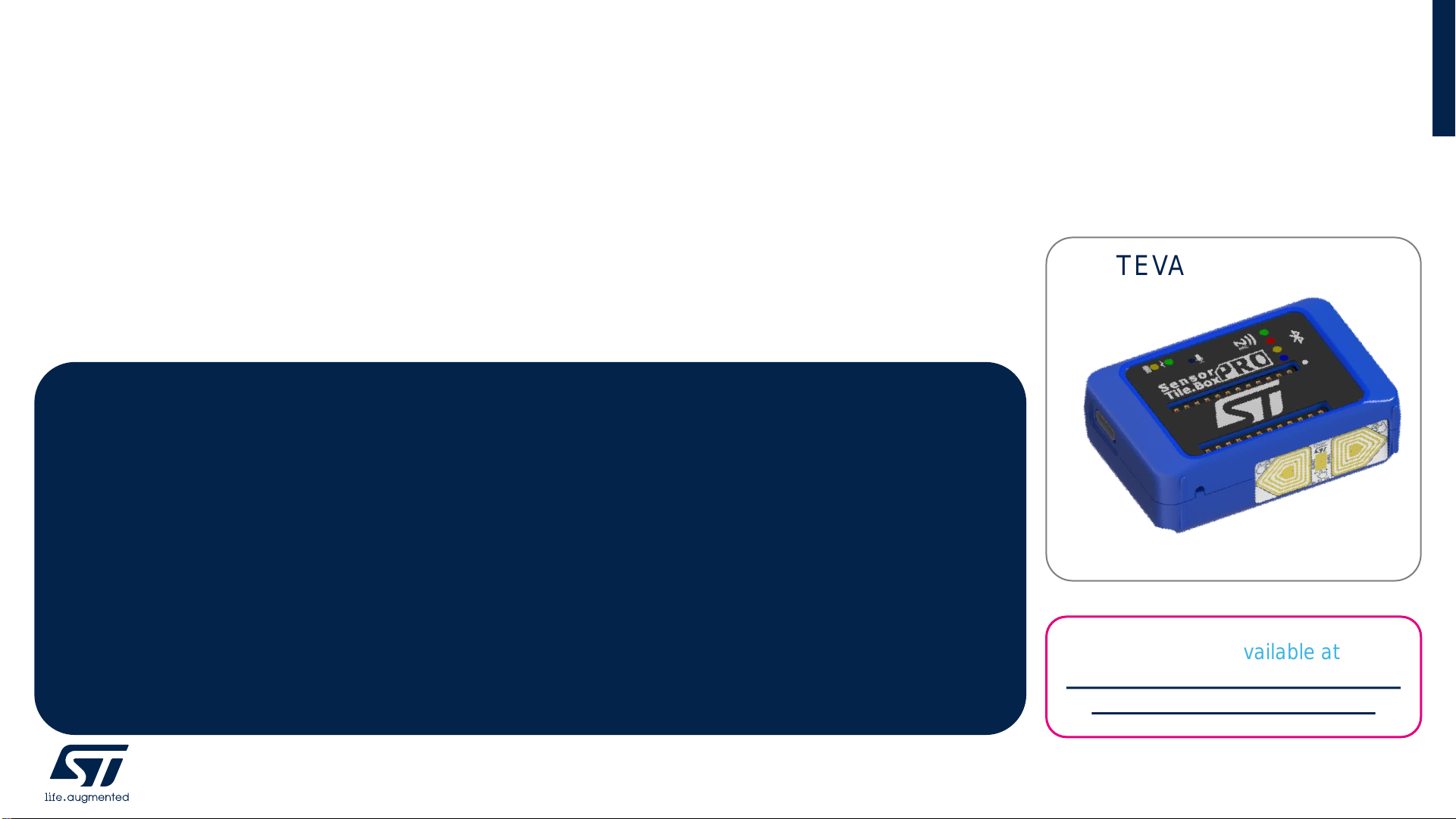

Sensortile.box PRO development kit - STEVAL-MKBOXPRO
Hardware Overview
SensorTile.box PRO discovery box
The STEVAL-MKBOXPRO is the new ready-to-use programmable wireless box kit for developing any IoT application
based on remote data gathering and evaluation.
The SensorTile.box PRO board fits into a small plastic box with a long-life 480mAh rechargeable battery, for the first time
leveraging also on a wireless charger and a programmable NFC tag. The board can be easily connected via Bluetooth to
the ST BLE Sensor app on your smartphone, from which the box kit can be enjoyed in Base and Expert mode. In Pro
mode, professional users can exploit the firmware programming and debugging interface in the STM32 ODE for
developing their firmware from scratch.
Key Features
•All-in-one sensor node in a very small form factor board - Ready-to-go development kit
•Develop apps quickly regardless of your level of expertise:
•Basic mode: wide range of default IoT and wearable applications
•Expert mode: build custom applications leveraging the available algorithms
•Pro mode: develop code in an intuitive way using STM32 open development environment (ODE) and ST function pack
libraries
•ST BLE Sensor app on your smartphone (both on the Android Play Store andiOS App Store) allows you to immediately
connect to the box kit
•Rechargeable long-life battery
•Windows, LINUX, and MacOS ST software compatibility
•Over the Air (OTA) Firmware upgrade
Latest info available at
https://www.st.com/en/evaluation
-tools/steval-mkboxpro.html
B-U585I-IOT02A
Discovery kit for IoT node - B-U585I-IOT02A
Hardware Overview
B-U585I-IOT02A Discovery kit
The B-U585I-IOT02ADiscovery kit provides a complete demonstration and development platform for the STM32U585AI
microcontroller, featuring an Arm® Cortex®-M33 core with Arm® TrustZone® and Armv8-M mainline security extension,
2 Mbytes of Flash memory and 786 Kbytes of SRAM, as well as smart peripheral resources.
This Discovery kit enables a wide diversity of applications by exploiting low-power communication, multiway sensing, and
direct connection to cloud servers.
It includes Wi-Fi® and Bluetooth® modules, as well as microphones, temperature and humidity, magnetometer,
accelerometer and gyroscope, pressure, time-of-flight, and gesture-detection sensors.
Key Features
•Ultra-low-power STM32U585AII6Q microcontroller based on the Arm® Cortex®-M33 core with Arm® TrustZone®, 2 Mbytes
of Flash memory and 786 Kbytes of SRAM, and SMPS in UFBGA169 package
•512-Mbit Quad-SPI Flash memory, 64-Mbit Octo-SPI PSRAM, 256-Kbit I2C EEPROM
•USB FS, Sink and Source power, 2.5 W power capability
•802.11 b/g/n compliant Wi-Fi® module from MXCHIP
•Bluetooth® Low Energy from STMicroelectronics
•MEMS sensors from STMicroelectronics
•2 user LEDs, User and Reset push-button
•On-board STLINK-V3E debugger/programmer with USB re-enumeration capability: mass storage, Virtual COM port, and
debug port Latest info available at
https://www.st.com/en/evaluation
-tools/b-u585i-iot02a.html
