Model SRV947IFS-BT 24 X 48 Remote Display Platform Scale

Operating and Service Manual

Part No.: MAN947IFSBT_190708 Page 1 of 14

SInstruments, Inc., 600 Young Street, Tonawanda, NY 14150

Tel: 716-693-5977 Fax: 716-693-5854 URL: www.srscales.com

SRV947IFS-BT

Remote Display Platform Scale

App Enabled Wireless

by SR Instruments, Inc.

Operating and Service

Manual

Model SRV947IFS-BT 24 X 48 Remote Display Platform Scale

Operating and Service Manual

Part No.: MAN947IFSBT_190708 Page 2 of 14

SInstruments, Inc., 600 Young Street, Tonawanda, NY 14150

Tel: 716-693-5977 Fax: 716-693-5854 URL: www.srscales.com

TABLE OF CONTENTS

TABLE OF FIGURES......................................................................................................................2

PACKING CHECKLIST –MODEL SRV947IFS-BT..................................................................3

ASSEMBLY.......................................................................................................................................4

REPLACEMENT PARTS AND ACCESSORIES ........................................................................5

SYSTEM DESCRIPTION AND INTENDED USE.......................................................................5

MAINTENANCE AND CLEANING..............................................................................................6

STORAGE AND TRANSPORTATION ........................................................................................6

SPECIFICATIONS...........................................................................................................................7

BUTTON FUNCTIONS...................................................................................................................8

BASIC SYSTEM OPERATION......................................................................................................9

PAIRING TO BLUETOOTH........................................................................................................10

CALIBRATION..............................................................................................................................11

TROUBLESHOOTING.................................................................................................................11

WARRANTY...................................................................................................................................12

NOTES.............................................................................................................................................13

TABLE OF FIGURES

Figure 1: Wall Box Assembly/Conduit Placement.......................................................................4

Figure 2: Concrete Fill....................................................................................................................4

Figure 3: Button Display ................................................................................................................8

Figure 4: SR App ..........................................................................................................................10

Figure 5: Calibration Table .........................................................................................................11

Model SRV947IFS-BT 24 X 48 Remote Display Platform Scale

Operating and Service Manual

Part No.: MAN947IFSBT_190708 Page 3 of 14

SInstruments, Inc., 600 Young Street, Tonawanda, NY 14150

Tel: 716-693-5977 Fax: 716-693-5854 URL: www.srscales.com

PACKING CHECKLIST –Model SRV947IFS-BT

Portable Platform Scale



DESCRIPTION

QUANTITY

PLATFORM PIT FRAME ASSEMBLY

1 ea

FRONT PANEL/WALL BOX ASSEMBLY

1 ea

SIGNAL CABLE ASSEMBLY

1 ea

CONDUIT

1 ea

CALIBRATION CERTIFICATE

1 ea

WARRANTY CARD

1 ea

MANUAL

1 ea

Model SRV947IFS-BT 24 X 48 Remote Display Platform Scale

Operating and Service Manual

Part No.: MAN947IFSBT_190708 Page 4 of 14

SInstruments, Inc., 600 Young Street, Tonawanda, NY 14150

Tel: 716-693-5977 Fax: 716-693-5854 URL: www.srscales.com

ASSEMBLY

STEP 1: Unpack the scale system and check parts

against the PACKING CHECKLIST. If there are

any missing or damaged parts, please call the Service

Hotline at: 1-800-654-6360.

STEP 2: Verify that the serial number on the label of

Wall Box Display matches that on Platform Base.

STEP 3: (Figure 1) Mount Wall Box Display into

wall and run the conduit, with connector cable inside,

down through wall and into pit as shown.

STEP 4: Prepare pit area to accept the Scale

Frame. It is recommended that a properly

plumbed drain be installed in the center of pit to

avoid any water buildup that might damage scale.

STEP 5: Center the Scale Frame in the pit.

NOTE: Scale frame dimensions are 52” x 28” x 2” deep. Recommended pit perimeter

dimensions are 58” x 34”.

STEP6: (Figure 2) Back fill around the perimeter of the Pit Frame Assembly with 3000PSI concrete.

Trowel the concrete level with the scale frame and existing floor. Trowel the base of the pit level with

the base of the frame with a gradient toward the centered drain, if used. Conduit and cable should be left

free so cablecan be easilyconnected to the Platform Assembly.

STEP7: When the concrete has set, connect the Cable Assembly to

the mating connector on the Platform Assembly.

STEP8: Carefully lower the Platform Assembly into the Pit Frame

Assembly. Ensure that Platform feet set into locators on Pit Frame and that

extra cable does not interfere with platform.

STEP 9: Install building ground wire and green ground wire from Display Front Plate into the

terminal lug in the wall box

STEP 10: Connect signal cable to the mating connector on the Display Front Panel

STEP 11: Connect A/C power wires to the power supply wire leads

STEP 12: Install Front Panel Assembly to the previously mounted Wall Box. Use supplied star

washers and screws. Ensure screws are securely tightened.

STEP 13: Restore power to the display

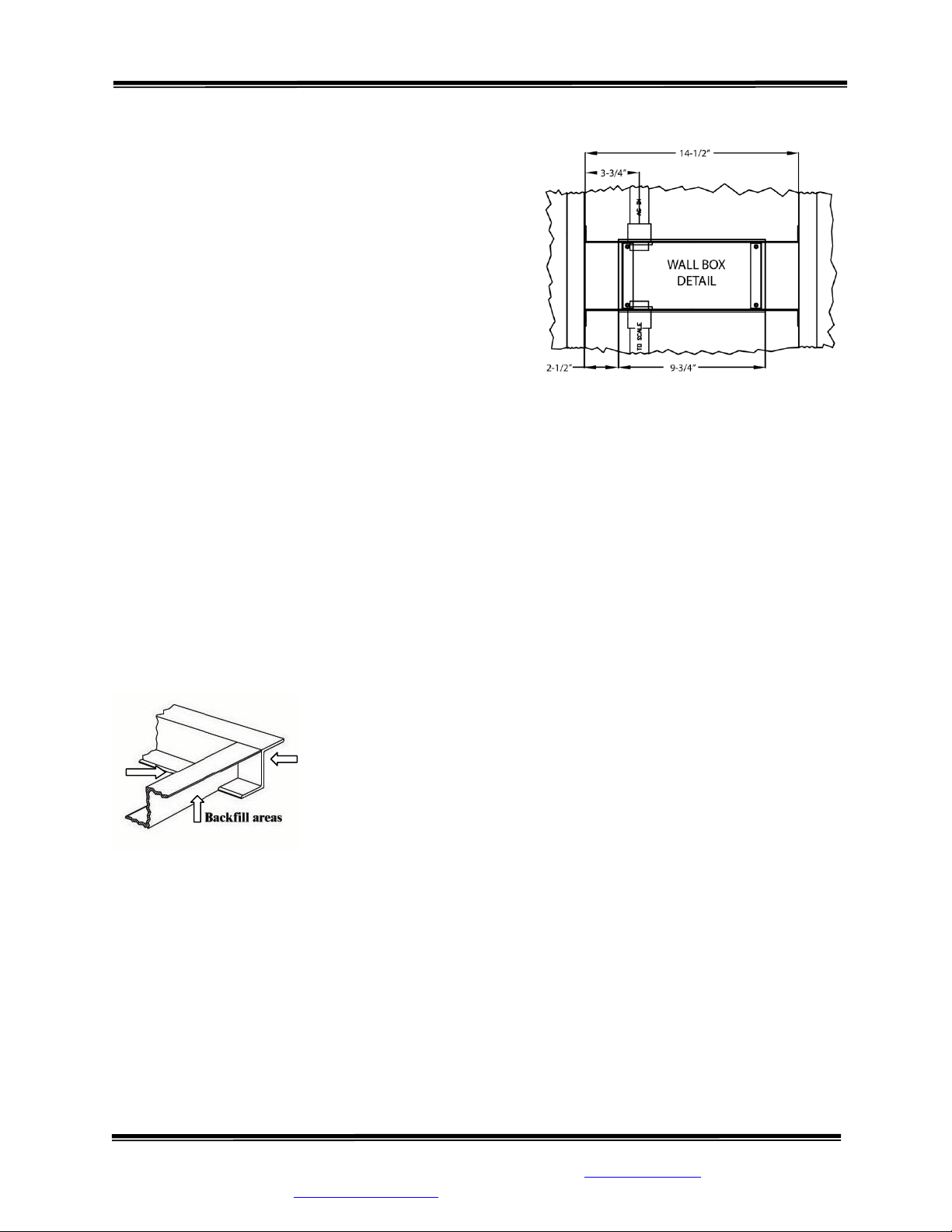

Figure 1: Wall Box Assembly/Conduit

Placement

Figure 2: Concrete Fill

Model SRV947IFS-BT 24 X 48 Remote Display Platform Scale

Operating and Service Manual

Part No.: MAN947IFSBT_190708 Page 5 of 14

SInstruments, Inc., 600 Young Street, Tonawanda, NY 14150

Tel: 716-693-5977 Fax: 716-693-5854 URL: www.srscales.com

REPLACEMENT PARTS AND ACCESSORIES

SYSTEM DESCRIPTION AND INTENDED USE

SYSTEM DESCRIPTION

The SRV947IFS-BT Portable Platform Scale is a low profile design which allows the animal easy

access. The SRV947IFS-BT Scale employs the latest in microprocessor and load cell technology

to provide accurate and repeatable weight data. Six (6) identically matched transducers are

strategically placed to ensure an accurate representation of the animal’s weight.

The animal’s weight is displayed on an LCD screen. With a push of a button, weight data may be

viewed in either pounds or kilograms.

The SRV947IFS-BT Platform scale is equipped with a Bluetooth wireless module. By waking the

scale up with the “weigh” button the wireless feature is turned on. Then use the free SR Scales

app (Google Play store) to connect with the scale to allow for remote wireless operation.

INTENDED USE

The SRV947IFS-BT Portable Platform Scale is a lightweight portable scale designed for use as a

weighing system for animals not exceeding 400 pounds or 182 kilograms, gross weight. Please

read the following warnings to avoid injury to the animal or attendant.

Part #

Description

CA9261

Display Label

SE6000-6

Signal Cable

MF2284

Replacement Foot

WARNING

DO NOT USE FOR ANIMAL TRANSPORT

DO NOT EXCEED MAXIMUM LIMIT OF 400 LB / 182 KG

Model SRV947IFS-BT 24 X 48 Remote Display Platform Scale

Operating and Service Manual

Part No.: MAN947IFSBT_190708 Page 6 of 14

SInstruments, Inc., 600 Young Street, Tonawanda, NY 14150

Tel: 716-693-5977 Fax: 716-693-5854 URL: www.srscales.com

MAINTENANCE and CLEANING

The SRV947IFS-BT Portable Platform Scale is made with a polyurea-coated aluminum platform.

Exercise caution when cleaning the display window as it is made of a clear plastic and can be

scratched by abrasive cleaners. Mild soap and water is recommended for general cleaning and

disinfecting.

STORAGE and TRANSPORTATION

STORAGE

To maintain proper operation of this instrument, storage and transport conditions should not vary

outside the following conditions: Relative Humidity 0% to 85%, Ambient Temperature 14F to

122F (-10C to +50C).

TRANSPORTATION

The SRV947IFS-BT Portable Platform Scale has four (4) recessed handles on the underside of the

scale for easy portability and a pull tab on the platform surface for ease of removal from the pit

frame.

WARNING

DO NOT use pressurized water or steam.

The scale system contains microprocessor

circuitry and strain gauge sensors that may

be adversely affected by exposure to such an

environment.

Model SRV947IFS-BT 24 X 48 Remote Display Platform Scale

Operating and Service Manual

Part No.: MAN947IFSBT_190708 Page 7 of 14

SInstruments, Inc., 600 Young Street, Tonawanda, NY 14150

Tel: 716-693-5977 Fax: 716-693-5854 URL: www.srscales.com

SPECIFICATIONS

MAXIMUM WEIGHT CAPACITY

400 lb / 182 kg

PLATFORM SIZE

24 in x 48 in x 2 in

(61 cm x 122 cm x 5 cm)

DISPLAY TYPE

1”digit LCD

DISPLAY RESOLUTION

0.2 lb / 0.1 kg

ACCURACY

0.2% +/- 2 digits of displayed resolution for calibrated

range

AUTO ZERO

One button operation / Hold for Zero

AVERAGING

Automatic digital filter

POWER SUPPLY

110v AC, 50-60Hz

CALIBRATION

Calibration is traceable to NIST standards

OPERATING CONDITIONS

Normal operating conditions for this product:

Ambient Temperature Range: 68F to 85F (20C to

30C), Relative Humidity Range: 0%-85%. Avoid

exposure to high-pressure water or steam.

TRANSPORT and STORAGE

Storage and transport conditions should not vary

outside the following conditions: Relative Humidity

0% to 85%, Ambient Temperature 14F to122F (-10C

to +50C).

BLUETOOTH REQUIREMENTS

Refer to the SR Scales App on the Google Play store

for further information.

Model SRV947IFS-BT 24 X 48 Remote Display Platform Scale

Operating and Service Manual

Part No.: MAN947IFSBT_190708 Page 8 of 14

SInstruments, Inc., 600 Young Street, Tonawanda, NY 14150

Tel: 716-693-5977 Fax: 716-693-5854 URL: www.srscales.com

MODE

ZERO

HOLD/

RECAL

BUTTON FUNCTIONS

The “ZERO/WEIGH” button is used to clear the Recall memory and start a new

weighing cycle. Press and hold for 3 seconds to zero the display.

The “MODE” button is used to select pounds or kilograms.

The “HOLD/RECALL” button is used to “lock in” the weight currently displayed,

or to recall the last saved weight, if nothing is on the scale platform.

Figure 3: Button Display

Model SRV947IFS-BT 24 X 48 Remote Display Platform Scale

Operating and Service Manual

Part No.: MAN947IFSBT_190708 Page 9 of 14

SInstruments, Inc., 600 Young Street, Tonawanda, NY 14150

Tel: 716-693-5977 Fax: 716-693-5854 URL: www.srscales.com

BASIC SYSTEM OPERATION

TURNING SYSTEM ON

Make sure the scale is free and clear of any obstructions and all six feet are touching a level

surface. Press the “ZERO” button and hold for 3 seconds. The display will read “ZERO” then

display “0.0” when system is ready for weighing.

UNIT

Press the “MODE” button to toggle between pounds or kilograms. The system will remain in the

same mode as last used unless manually changed.

WEIGH

The “WEIGH” button is used to clear the “Recall” memory and start a new weighing cycle.

HOLD/RECALL

The “HOLD/RECALL” button is used to “lock in” and store the weight currently displayed in

system memory. With no weight on the platform pressing the button again will recall the last

stored weight and display it for 15 seconds.

AUTOHOLD

With autohold enabled, when the system detects a stable weight, that value will be stored in

system memory. This value can later be recalled by pressing the “HOLD/RECALL” button with

no weight on the platform.

Model SRV947IFS-BT 24 X 48 Remote Display Platform Scale

Operating and Service Manual

Part No.: MAN947IFSBT_190708 Page 10 of 14

SInstruments, Inc., 600 Young Street, Tonawanda, NY 14150

Tel: 716-693-5977 Fax: 716-693-5854 URL: www.srscales.com

PAIRING TO BLUETOOTH

1. Using a supported Android device open the SR Scales application.

2. Turn the scale display on and scan for Bluetooth devices on the Android device by pressing the

Bluetooth icon in the application and then pressing “Scan for devices”.

3. Locate the scale Bluetooth module in the list of devices. The scale’s Bluetooth ID is listed on

the Calibration Form

4. Select the appropriate device and select pair.

5. When the device is connected it will quickly flash “Connected to (device name)” on the bottom

of the Android device screen.

6. Ensure that the Android Device is communicating with the scale by placing a load on the scale

and verifying the reading on the SR Scales App in the “Real Time Weight” portion of the

display.

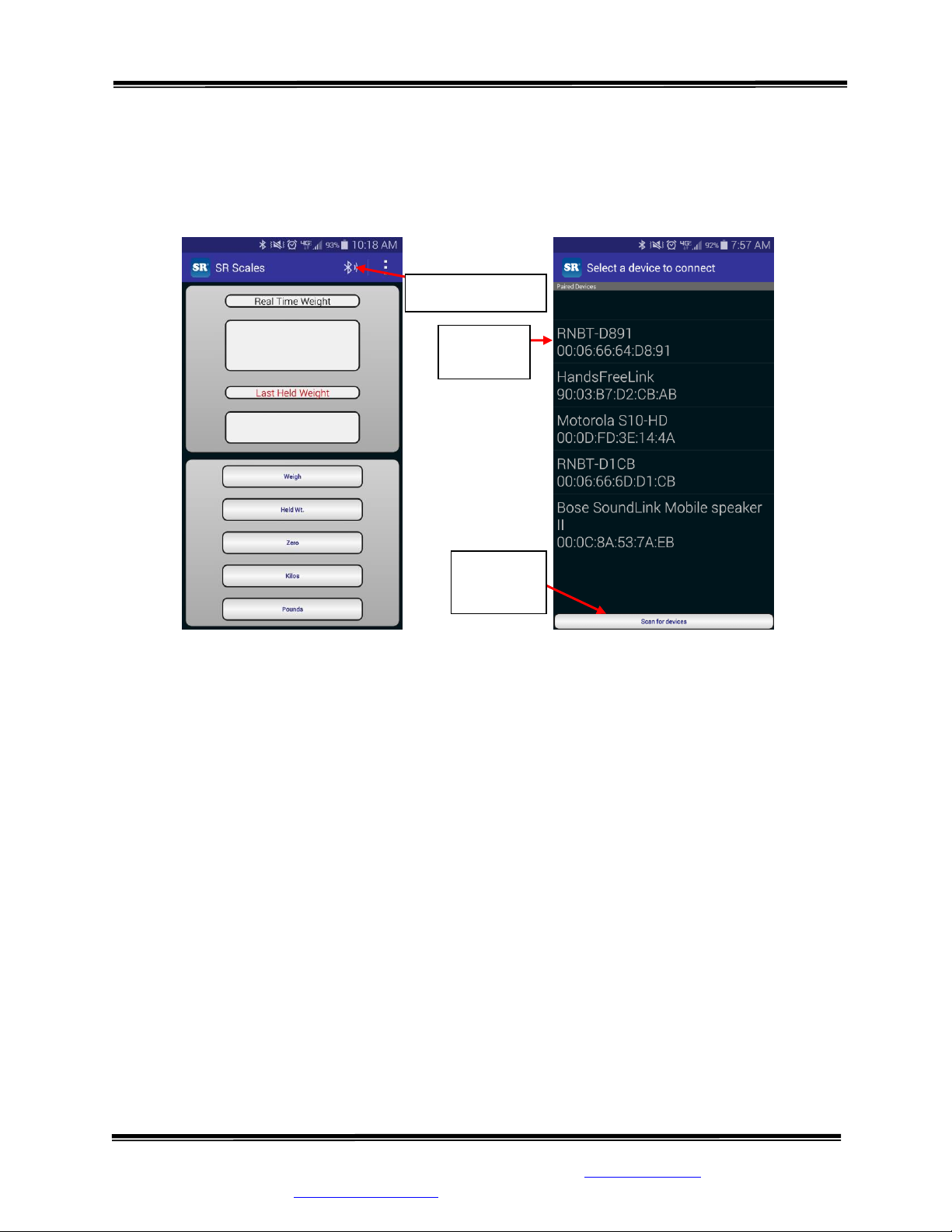

Figure 4: SR App

Bluetooth Icon

Example

Device

Scan for

devices

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels SR Instruments Échelle

SR Instruments

SR Instruments SR Scales SRV947-BT Manuel de service

SR Instruments

SR Instruments SRScales SR465 Manuel utilisateur

SR Instruments

SR Instruments SR Scales SR555i-KG Manuel de service

SR Instruments

SR Instruments SR Scales SR241 Manuel de service

SR Instruments

SR Instruments SRScales SRV716W Series Manuel de service

SR Instruments

SR Instruments SR Scales SR7005i-KG Manuel de service

SR Instruments

SR Instruments SR Scales SR463iR-PH Series Manuel de service

SR Instruments

SR Instruments SR Scales SRV945-BT Manuel de service

SR Instruments

SR Instruments SR Scales SR555i Manuel de service

SR Instruments

SR Instruments SRScales SRV949-BT Manuel de service

SR Instruments

SR Instruments SRScales SR7000i Manuel de service

SR Instruments

SR Instruments SRScales SR7000i-KG Manuel de service

SR Instruments

SR Instruments SR Scales SR7010i Manuel de service

SR Instruments

SR Instruments SR Scales SRV713 Manuel de service

SR Instruments

SR Instruments SR300 Series Manuel utilisateur

SR Instruments

SR Instruments SR300 Manuel utilisateur

SR Instruments

SR Instruments SR Scales SR630i-KG Manuel de service

SR Instruments

SR Instruments SRScales SRV947R-BT Manuel de service

SR Instruments

SR Instruments SR Scales SRV957IFS Manuel de service

SR Instruments

SR Instruments ST Scales SRV930KG Series Manuel de service

SR Instruments

SR Instruments SRScales SRV947R Manuel de service

SR Instruments

SR Instruments SR Scales SR 735i Manuel de service

SR Instruments

SR Instruments SRScales SRV949 Manuel de service

SR Instruments

SR Instruments SR Scales SR725i Manuel de service

Manuels Échelle populaires d'autres marques

AWS

AWS ZEO-50 Manuel utilisateur

Gima

Gima Glass Body Fat Analyzer Manuel de la liste des pièces

Seca

Seca 374 Manuel utilisateur

TEC

TEC TEC SL59 SERIES Manuel utilisateur

Axis

Axis B/E Series Manuel utilisateur

Alecto

Alecto ACW-40 Manuel utilisateur

Rice Lake

Rice Lake MSI-4260 IS Manuel utilisateur

IKA

IKA RCT basic safety control Manuel utilisateur

ADE

ADE M20011 Manuel utilisateur

Duronic

Duronic KS3000 Manuel utilisateur

Digi

Digi SM-720 Manuel utilisateur

Cardinal

Cardinal CS Series Manuel utilisateur

Korona

Korona Kastella Manuel utilisateur

A&D

A&D FC-50Ki Manuel utilisateur

BDA

BDA CAMARGUE Manuel utilisateur

Tanita

Tanita HD-357 Manuel utilisateur

Leifheit

Leifheit 03173 Manuel utilisateur

Lumme

Lumme LU-1340 Manuel utilisateur
