SPS HUGO Manuel utilisateur

HUGO User Manual

SafeGuard Power Solutions, LLC. Rev 1.3 www.safeguardpowersolutions.com

HUGO USER MANUAL

REV 1.3

SAFEGUARD POWER SOLUTIONS

855.484.6797

PAGE | 1

Table of Contents

PRECAUTIONS AND GENERAL GUIDELINES................................................................................................... 3

ELECTRICAL SAFETY PRACTICES .................................................................................................................... 4

ELECTRICAL SAFETY PRACTICES .................................................................................................................... 5

BATTERY WARNING ...................................................................................................................................... 5

INTRODUCTION............................................................................................................................................. 6

PACKING LIST ................................................................................................................................................ 6

KEY FEATURES ............................................................................................................................................... 6

WORKING PRINCIPLE .................................................................................................................................... 7

MOUNTING AND INSTALLATION................................................................................................................... 7

•FRONT PANEL OF UPS ....................................................................................................................... 7

•LED DISPLAY ...................................................................................................................................... 8

•INSTALLATION ................................................................................................................................... 8

FLOW SENSOR INSTALLATION .................................................................................................................... 11

NO-FLOW INSTALLATION............................................................................................................................12

TEMPERATURE SENSOR SETUP................................................................................................................... 12

HARDWIRING INSTRUCTION.......................................................................................................................13

OPERATIONS ...............................................................................................................................................14

STORAGE AND TRANSPORTATION.............................................................................................................. 15

MAINTENANCE AND TROUBLESHOOTING..................................................................................................15

1. Maintenance ...................................................................................................................................15

2. Troubleshooting.............................................................................................................................. 16

TECHNICAL SUPPORT ..................................................................................................................................17

REGISTER YOUR HUGO................................................................................................................................17

TECHNICAL SPECIFICATIONS ....................................................................................................................... 18

HUGO USER MANUAL

REV 1.3

SAFEGUARD POWER SOLUTIONS

855.484.6797

PAGE | 2

IMPORTANT

Read this User Manual carefully before operation.

•Retain this manual for future reference.

•It is prohibited to connect any appliance or electrical load other than those for which this

product is intended.

NOTE: Throughout this document the HUGO-X1R (Uninterruptible Power Supply) may also be

referred to as "UPS".

HUGO USER MANUAL

REV 1.3

SAFEGUARD POWER SOLUTIONS

855.484.6797

PAGE | 3

PRECAUTIONS AND GENERAL GUIDELINES

The basic condition for safe use and proper operation of the UPS is the knowledge and attention to

the safety information provided in this manual.

The following safety information must be observed by all persons who will work with the UPS.

This symbol is used to call your attention to hazards or unsafe practices which

could result in an injury or property damage. The symbol, defined below, indicates

the severity of the hazard. The message after the symbol provides information for

preventing or avoiding the hazard.

WARNING Hazards which, if not avoided, COULD result in severe injury or death.

CAUTION Hazards or unsafe practices which, MAY result in injury or property

damage.

WARNING

•Read all safety warning and all instructions. Failure to follow the

warnings and instructions may result in electric shock, fire and/or

serious injury.

•Save all warnings and instructions for future reference.

HUGO recommends the UPS be used with all installed safety features. Customer

assumes all liability for injury that could result from improper use of this UPS and

responsibility for all necessary training to ensure safe operation of this UPS.

For installation and use by trained personnel only.

If any damage to the product is apparent or suspected, do not use the product. Refer

product to qualified service personnel.

FCC WARNING: Changes or modifications to the product could void the user’s authority

to operate the product.

Use recommended accessories. Consult the owner’s manual for recommended

accessories. The use of improper accessories may cause risk of injury to person.

HUGO USER MANUAL

REV 1.3

SAFEGUARD POWER SOLUTIONS

855.484.6797

PAGE | 4

ELECTRICAL SAFETY PRACTICES

GROUNDING:

In the event of a malfunction or breakdown, grounding provides a path of least resistance

for electric current which reduces the risk of electrical shock.

Improper connection of the equipment grounding conductor can result in a risk of electric

shock. The conductor with insulation having an outer surface that is green with or without

yellow stripes is the equipment-grounding conductor.

Check with a qualified electrician, or service personnel if the grounding instructions are not

completely understood; or if in doubt as to whether the UPS is properly grounded.

Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and

refrigerators. There is an increased risk of electric shock if your body is earthed or

grounded.

DO NOT remove the ground connection from the UPS’s power plug.

WARNING

Use personal protective equipment. Safety glasses must be worn at all times by

all persons installing the UPS.

Have your UPS serviced by a qualified repair person using only identical

replacement part.

HUGO USER MANUAL

REV 1.3

SAFEGUARD POWER SOLUTIONS

855.484.6797

PAGE | 5

ELECTRICAL SAFETY PRACTICES

WARNING

ONLY OPERATE THE UPS IN A CLEAN ENVIRONMENT.

DO NOT EXPOSE THE UPS INTERIOR TO RAIN OR WET CONDITIONS.

WATER ENTERING A UPS WILL INCREASE THE RISK OF ELECTRIC SHOCK.

KEEP AWAY FROM LIVE CIRCUITS

•Operating personnel must not remove covers.

•Replacement of components and internal adjustments must be made by qualified

maintenance personnel.

•Disconnect power when replacing components.

•Dangerous voltages may exist even with the power removed.

•To avoid injuries, always disconnect power and tum power switch to OFF.

•Input connection to the product must remain accessible as a disconnect device.

•DO NOT work on the product; connect or disconnect cables during periods of lightning.

•Provide wiring per national and local electrical codes.

BATTERY WARNING

•Turn off the UPS and unplug it from the AC power source before battery replacement.

•This UPS contains a sealed lead-acid battery. DO NOT open the battery.

•DO NOT short or bridge the battery terminals with any object.

•The battery must be charged within 80 days from receiving the UPS. If the UPS is stored away, it is

strongly recommended to cycle the charge within the battery every 90-120 days for battery to maintain

its optimum performance.

•Ensure to charge the battery fully with each charge. Battery damage may occur if these instructions are

not followed.

•Before replacing battery, make sure the replacement battery has the same charging voltage (12V/38 Amp

Hours.) If any doubt, contact the manufacturer.

•Once the battery has reached the end of its life, properly dispose of the battery. REFER TO YOUR LOCAL

LAWS AND REGULATIONS FOR BATTERY DISPOSAL REQUIREMENTS.

•DO NOT alter the system in any way.

HUGO USER MANUAL

REV 1.3

SAFEGUARD POWER SOLUTIONS

855.484.6797

PAGE | 6

INTRODUCTION

The new and improved HUGO-X1R is a 350W interruptible power supply (UPS) that is designed to

support gas tankless water heaters, direct vent space heaters, vent free space heaters, boilers,

furnaces, or any other gas-powered appliances. The UPS can also be used to charge mobile devices

such as mobile phones, tablets, laptops, modems, and routers.

NOTE: The UPS shall be used for its intended purposes listed above only. Any alternation to the

product or if used inappropriately will void all warranties. Please consult with SPS prior to any such

actions.

PACKING LIST

•HUGO Power Supply

•Flow Sensor, if applicable

•Hanging brackets (4)

•Wall mount screws and anchor (4 sets)

•Bracket screws (9)

•User Manual (1)

•Door Key (1)

•Rubber pads to support floor standing installs (4)

KEY FEATURES

•Low output harmonic

The output wave form is pure sinewave, the harmonic is at minimal.

•IntelligentMCU Technology

The intelligent MCU (Micro-Computing Unit) automatically monitors the input voltage surge,

sags, break, output loads and battery status, providing the downstream application with

maximum protections.

•HighlyReliable

The UPS constantly monitors input voltage for surge, sags, or breaks, whenever such occurs, the

UPS will transfer to battery mode within 15ms. It will also constantly monitor output load to

prevent over-load and provide LED indications and chirp sequence alarm to alert user of such

event. The UPS is also built with self-protect and self-reset functions.

•DC Start and Restart

The UPS is capable to switch on from the battery mode without city power, it will also automatically

re-start after 10 minutes of the city power source is restored.

•Green Power

This series is equipped with high efficiency, EMC standard meet A class, it meets green power

standard.

HUGO USER MANUAL

REV 1.3

SAFEGUARD POWER SOLUTIONS

855.484.6797

PAGE | 7

WORKING PRINCIPLE

When the utility power is normal, the UPS will transfer the utility power to downstream application.

During a power outage or when the utility power is below 92v or above 138v, the UPS will transfer to

inverter mode.

While in inverter mode, the UPS will monitor flow and temperature sensor (if purchased). When flow

sensor detects a demand for water, it will turn on power output to downstream application. When the

temperature senses 37deg f (+/- 2 deg f) or below, it will also override the UPS to turn on AC output. If

flow sensor does not detect a flow or if temperature is above 37 deg f, the UPS will be in standby mode.

For non-flow applications, unplug (temp.flow) port in front of inverter to allow flow sensing bypass. For

this operation, whenever utility power is lost, the UPS will provide continuous power to downstream

application immediately.

MOUNTING AND INSTALLATION

•FRONT PANEL OF UPS

DC input connector bar (Connected to the battery)

Toggle power switch

Temperature dry contact*

Flow dry contact*

Input/output socket

Indicator lamp

Note that when the toggle power switch is in the “ON” position, voltage may still be present at

the output terminals even when the input terminals are disconnected from power. DO NOT

transport or attempt to make connections to the terminals when the toggle switch is in the

“ON” position.

*Connected by default, disconnect for no-flow installation only.

HUGO USER MANUAL

REV 1.3

SAFEGUARD POWER SOLUTIONS

855.484.6797

PAGE | 8

•LED DISPLAY

•INSTALLATION

Ensure that the ON/OFF switch is in the “OFF” position during installation. The UPS

can store a significant amount of power for an extended period. AC/DC voltage

may be present at the output terminals even when the input terminals are

disconnected from power.

1. After unpacking the UPS, check whether there is any mechanical damage due to

transportation. If the UPS has been noticeably damaged, contact your sales

representative forassistance.

2. Tools Required

3. Remove the (4) hangers and (8) M5 screws. Tighten each hanger with (2) screws.

HUGO USER MANUAL

REV 1.3

SAFEGUARD POWER SOLUTIONS

855.484.6797

PAGE | 9

4. Choose and prepare proper installation location. Note: Center point distance between

left and right hangers is 15.5 inches.

Warning! Ensure UPS is located above flood and snow lines. If at any time the UPS

becomes damaged due to water or other, please consult with SPS customer care.

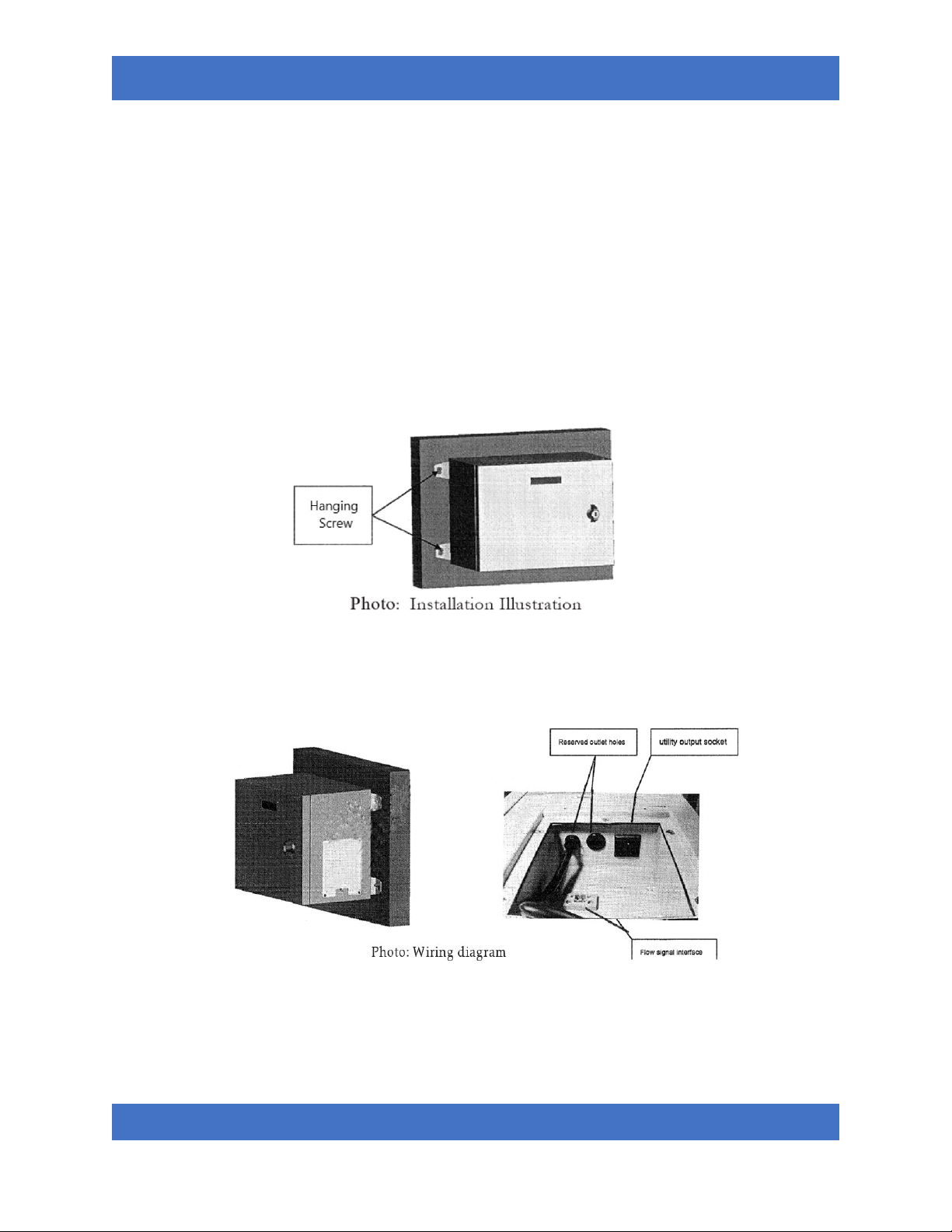

5. Hang the UPS on a flat surface that will adequately support the weight of the UPS (45

lbs). When replacing hanger screws, please consult with professionals to use the

proper mounting screws or bolts. If the unit is to be wall mounted, it is strongly

recommended by the manufacturer to mount on wall studs or ¾” plywood panels only

due to the heavy weight of the unit (45 lbs). SPS is not liable for any installation errors

such as improper use of mounting material and/or mounting methods.

6. Using a Phillips head screwdriver, remove the wiring cover at right side of the UPS,

connect appliance to "utility output socket", Flow Sensor to "Flow signal interface" (if

applicable), as shown below:

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels SPS Équipement de laboratoire

SPS

SPS Polos SPIN150i infinite Manuel utilisateur

Manuels Équipement de laboratoire populaires d'autres marques

Qiagen

Qiagen DML 3000 Manuel utilisateur

Queensgate

Queensgate NANOSCAN OP400 Manuel de programmation

Conviron

Conviron GEN1000-GE Manuel utilisateur

Parr Instrument

Parr Instrument 4560 Mode d’emploi

IKA

IKA IC control Manuel utilisateur

Integra

Integra DOSE IT Manuel utilisateur

Agilent Technologies

Agilent Technologies 5800 ICP-OES Manuel utilisateur

Endress+Hauser

Endress+Hauser Cleanfit CPA875 Manuel utilisateur

NI PXI-5422 Manuel

Collomix

Collomix Aqix Manuel utilisateur

SPEX SamplePrep

SPEX SamplePrep 6875 Freezer/Mill Series Manuel utilisateur

Ocean Insight

Ocean Insight FLAME-NIR+ Manuel utilisateur

Parker

Parker ALIGN-MG-NA Manuel utilisateur

BD 644787 Manuel utilisateur

DENTAURUM

DENTAURUM Compact Megaplus Manuel utilisateur

Biuged Laboratory Instruments

Biuged Laboratory Instruments BGD 626 Manuel utilisateur

VWR

VWR SAS Super IAQ Manuel utilisateur

illumina

illumina MiSeqDx Manuel utilisateur
