1. Quick Guide

1.1 Overview

NeoLive R2 Plus is a professional live streaming switcher. It supports 4 x HDMI

multi-resolution inputs and 2 x external audio inputs. The output supports 2 x HDMI PGM

outputs, and transmits the real-time audio and video signals to the computer for live

streaming through the TypeC interface, user can also ﬁll in the RTMP code for network

streaming directly.

When using the TypeC interface, Neolive R2Plus will be recognized by the computer as a

high-deﬁnition web camera, which can adaptively support MJPEG and YUY2 formats (the

default format is MJPEG under USB2.0, while it is YUY2 default under USB3.0, YUY2

format supports better image quality, higher-quality performance and more eﬃcient

decoding performance, YUY2 format is better for use). It has a built-in 5.5-inch LCD

display, which can realize real-time monitoring of input and output and online operation. At

the same time, it has more convenient functions, such as PTZ camera control, scene

preset, chroma /luma key, special transition eﬀects, mixed audio and monitoring and

recording etc. R2Plus can also deal with various live broadcasting needs which is a

professional product in live streaming.

Switch & Lock Button

Press to power on

Short press and return to the main scene

Press and hold for 3s to lock and unlock

Press and hold for 5s to switch oﬀ

REC & Pause

Press the REC button to start

recording for PGM

Press again to stop recording

and generate MP4 ﬁles

Press PAUSE to stop recording

or continue recording

Auxiliary Operation Area

Under PTZ control

It is for logo switching when the logo

button is ﬂashing

+Scale knob is for layer vertical

adjustment

+Scale knob is for layer horizontal

adjustment

After pressing Scene

for Save page the scene,

for Load page for scene

It is for zoom in or out

SCENE

Press to activate the scene

for Save page the scene,

for Load page for scene

Select the number button to save

and load the scene

PIP

Press to enable PIP

Press again to select the PIP

sub-layer

When the button is ﬂashing,

and the sub-layer can be

edited and closed

MEDIA

Load picture

Select image as

signal source when

editing layers

LOGO

Press to display the logo

Press again to edit the logo

Adjust the logo position by

joystick

Switch the logo by button

LUMA &

CHROMA KEY

STILL

Press to chroma key for the

current input source

Press STILL to freeze the

PGM screen

EFFECT

Press STILL to freeze the current

PGM screen

Knob

It is for the menu operation when

the menu is activated

Layer zoom adjustment in the scene

FTB

Press to fade to black in PGM output

CUT & AUTO

Press CUT to switch between PST & PGM

Press AUTO to realize the transition eﬀect

between PST & PGM

MODE

For layer operation modes

T-bar mode is for PST layer operation

EAZY mode is for PGM layer switching

STREAM Button

Press STREAM button to start the

RTMP stream. The button is on when

the stream is normal

Audio Operation

Press Audio to enter the audio setting interface

The volume knob is for the PGM output volume

adjustment

Press to mute and restore

The Channel A knob is for the volume

adjustment of PIP

The Channel B knob is for the volume

adjustment of the background

Connecte the HDMI

monitor for PGM display.

2. Common Operation

2.1 Video Part

a. Press the "SCENE" button, turn the knob to select the image layout and

press the knob to conﬁrm, if it is the PIP, press the PIP button to select and

edit the corresponding layer under PST, there will be a green frame to mark

the selected layer, press the input source 1/2/3/4 button to switch the input

source for the layer, turn the knob to scale the selected image and use the

joystick to change the layer position.

b. Press the MODE button. When the button is red, press the input source

1/2/3/4 button to switch directly to the PGM screen. When the button is

green, press the input source 1/2/3/4 button to switch directly to the PST

screen.

c. After that, press the MENU button to enter the scene menu, select any

number to save, and the number is white when it is done. When you need to

load the saved scene, enter the scene menu and select the corresponding

number to load the scene.

d. Press the "EFFECT" button and rotate the button to select the transition

eﬀect for the current layer.

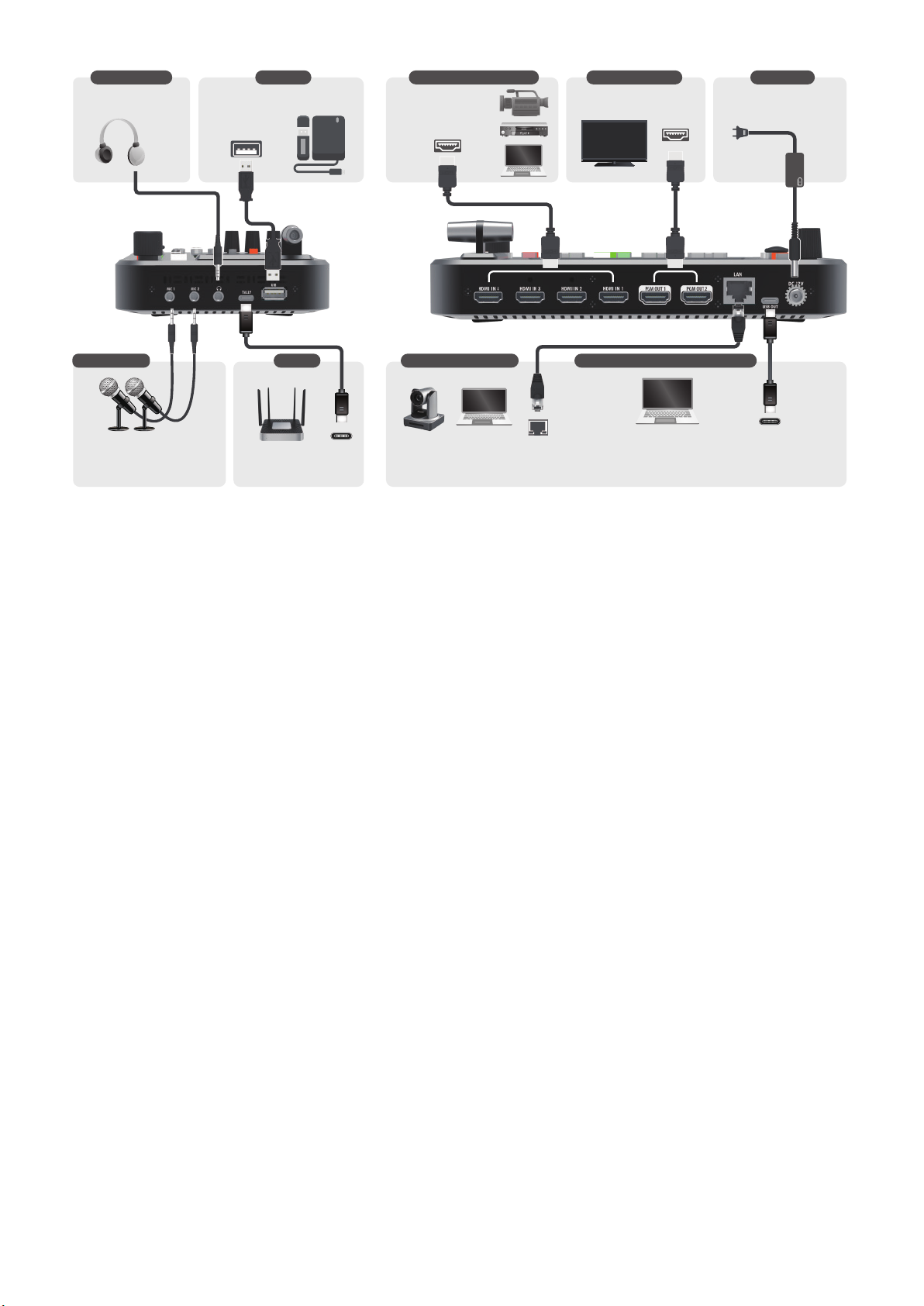

Headphone jack

Supports audio

channel monitoring

Supports 2 channels of external

audio, this interface connects to a

microphone or external audio

mixer and is selected accordingly.

Connect the port to the computer using the Type-C cable, and

the computer will detect the R2 PLUS as HD Webcam and

microphone, users can use this interface for audio and video

live streaming.

Used to load pictures and logos from

a USB flash drive & firmware update

& records from a

USB drive

Connect the four

inputs to HDMI signal

source like camera,

computer or media

player

Plug the power adapter into

the power jack, making sure

the screws are tightened.

Support Web browser control, network

streaming and PTZ camera control.

Default IP is 192.168.0.177

Tally

External Tally device for

camera Indicator

USB2.0 1-4 video input interface Monitor interface Power Jack

Line in/Mic in Network port control Type-C interface lossless acquisition

e. Press the "AUTO" button, and the content will switch to the PGM output.

You can also use CUT button to switch directly.

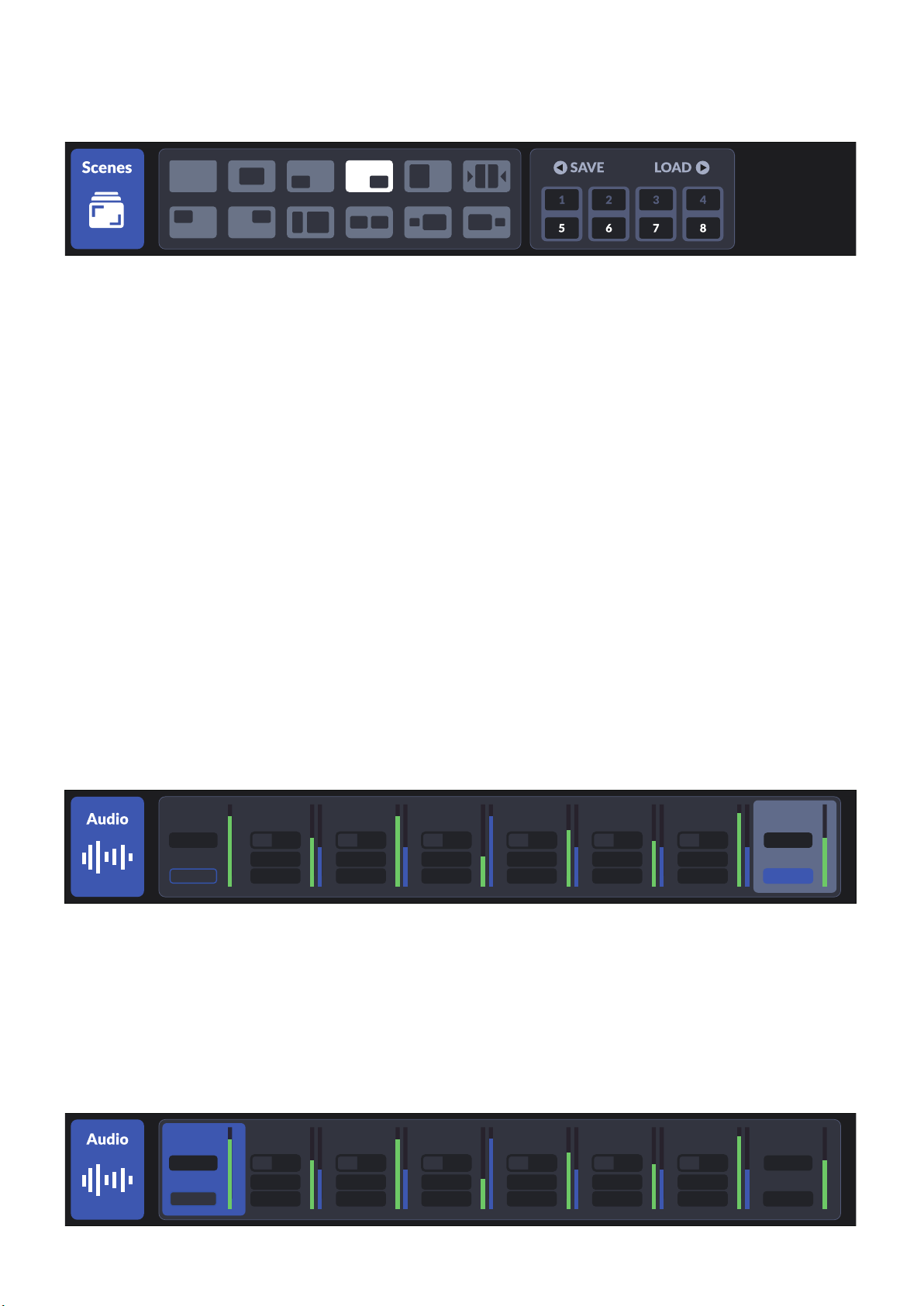

2.2 Volume Adjust

a. Press the MENU button and select the audio part, you can adjust all the

audio, or you can press the AUDIO button to enter.

b. Knob 1 is the Volume knob, which is used to adjust the volume of the main

output. Press to mute and restore.

c. Knob 2 is the Channel A knob, which controls the volume adjustment of the

PIP layer.

d. Knob 3 is the Channel B, which controls the volume of the background

layer.

e. All the audio channels are available for adjust on Audio menu. PGM total

output volume, four input source volume IN1/IN2/IN3/IN4, two external audio

inputs MIC1/MIC2 and audio monitoring.

f. HP can be selective monitoring.

g. Use the knob to select and adjust the desired audio and volume level, and

toggle the 5-way button up and down to set diﬀerent parameters.

h. When the audio mode is AFV, the audio will switch with the layer switch.

When ON, the main outputs output this audio at the same time.

When OFF, the sound is turned oﬀ and that audio sound does not appear.

PGM

IN 1

AFV

Digital

65 1.01

IN 2

AFV

Digital

65 1.01

IN 3

AFV

Digital

65 1.01

IN 4

AFV

Digital

65 1.01

MIC 1

Line in

65 1.01

MIC 2

OFF

Mic in

65 1.01

HDMI1

PGM

IN 1

AFV

Digital

65 1.01

IN 2

AFV

Digital

65 1.01

IN 3

AFV

Digital

65 1.01

IN 4

AFV

Digital

65 1.01

MIC 1

Line in

65 1.01

MIC 2

OFF

Mic in

65 1.01

PGM

3. Menu Functions and Details

3.1 Input

a. Input setting mainly includes input detection of 4 HDMI signal sources and

picture setting. The input resolution of the current input source will be detected

and displayed when there is HDMI input source access.

b. When there is no HDMI input source, it can be manually set as TP test

pattern.

3.2 Output

The output contains output format and colorspace , which can be selected

according to the needs of the corresponding output, including

1080P60/1080P50/1080P30/1080P25/1080P24/1080i60/1080i50 output

format, the color mode is RGB Full mode by default, and add RGB Limit and

YUV two modes can be selected.

3.3 Layer

a. Switch mode is optional under the Layer menu, T-Bar Mode and Fast

Switching Mode. In T-Bar switching mode, switching the source will take eﬀect

on the PST ﬁrst. The PGM transition switching will only be completed when the

T-bar or Auto key is used.

In fast switching mode, switching the signal source will directly switch the

screen on the PGM.

b. The corresponding layer can be selected under the Layer menu for signal

source switching.

BG is the bottom layer, PIP is the top layer. Select the corresponding layer then

IN 1 [email protected] IN 2 [email protected] TP1 TP2

IN 3 [email protected] IN 4 [email protected] TP1 TP2

TP2

TP1

Digital Zoom

POS 59,86

H SIize

H_Content

H Start

V Siize

V_Content

V Start

Scale

POS 44,6

60% 50%

1920

1080

Easy Mode

T-Bar Mode

PST BG

HDMI3

Digital Zoom

POS 59,86

H SIize

H_Content

H Start

V Siize

V_Content

V Start

Scale

POS 44,6

60% 50%

1920

1080

PST BG

PGM BG

PST PIP

PGM PIP

T-Bar Mode

PST BG

HDMI 2

you can change the screen by switching the signal source.

Position and Zoom can adjust the size and position of the corresponding layer,

and the ﬁve-way key can select the X-axis and Y-axis.

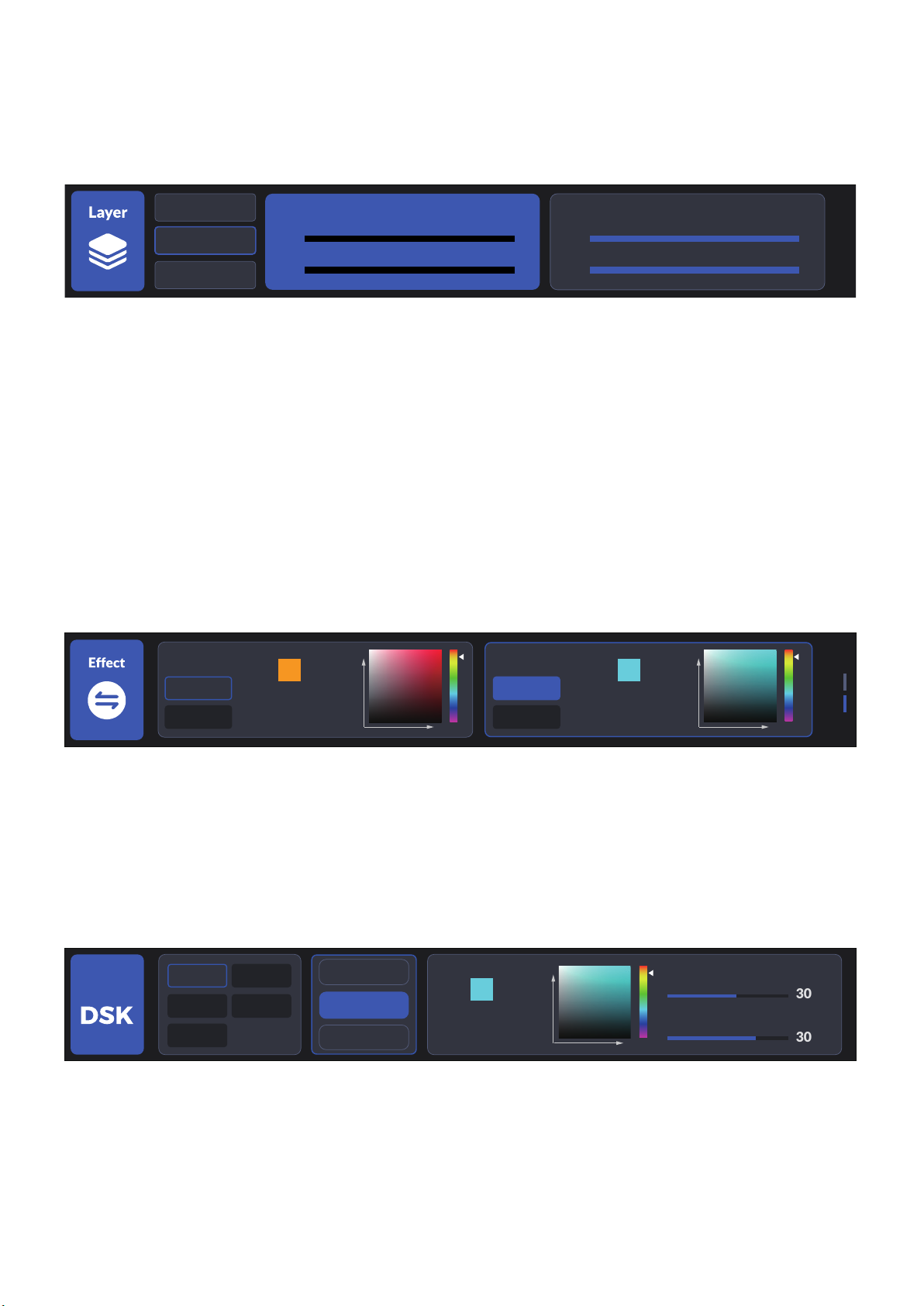

3.4 Transition

a. Transition settings mainly include the switching of transition eﬀects and the

setting of special eﬀects, which can also be accessed by EFFECT button.

b. In transition setting, you can use the knob to select the transition eﬀects,

press the knob to conﬁrm the eﬀect.

c. DIP and FTB

DIP transition and FTB are allowed to set as the speciﬁc colors or pictures. The

colors can be adjusted by the knobs and the ﬁve-way keys.

DIP color and FTB color can be adjusted separately.

3.5 Chroma Key

Enter the chroma keying menu, select the HDMI signal of the PIP layer to be

keyed and turn on the chroma key switch, you can key in the chroma key; sup-

port manual color picking through the knob and ﬁve-way key. Add the bottom

layer as needed.

3.6 Media

a. In Media menu, You can switch the LOGO and picture ﬁle.

b. (1) when the LOGO key is always on, the LOGO will display on PGM directly.

c. (2) when the LOGO key blinks , You can adjust logo position by the ﬁve-di-

FTB

Color


HSV:180,29,41

RGB:3641,41

DIP

Color


HSV:180,29,41

RGB:3641,41 HS

Smooth

OFF

Chromakey

Lumakey

HSV:180,29,41

RGB:3641,41

HDMI 1

HDMI 3 HDMI 4

HDMI 2

Media HS

Key

Similarity

POS 44,6

60% 50%

T-Bar Mode

PST BG

HDMI 2 POS 44,6

60% 50%

（1920，1080）（0,0）

Scale Digital Zoom

rection key, use the arrows keys to switch LOGO and press the knob to con-

ﬁrm.

d. In Image menu you can choose the picture mode and to edit the required

picture.

3.7 PTZ

a. R2Plus support up to four PTZ cameras control. Connect R2Plus and PTZ

camera by HDMI cable then use router or switch to set R2Plus and PTZ to the

same network segment.

b. The ip of PTZ can be modiﬁed by the combination of ﬁve-way key and knob;

the ﬁrst three digits of the ip of PTZ should be consistent with the ﬁrst three

digits of the ip of R2Plus. (Note: 192.168.5.163)

3.8 System Settings

a. System setup mainly includes network setup, time setup, device parameter

setup, system information and system reset.

b. Enter the network settings to view the MAC address, choose to turn on or oﬀ

the dynamic host conﬁguration protocol, set the IP address, subnet mask and

default gateway, and apply the settings after completion.

Set the IP address, subnet mask and default gateway, and then apply the

settings after completion.

c. Ip address can be obtained by external cable, open DHCP one-key, or

manually through the ﬁve-way key and knob.

Both methods need to be applied before they can be saved and take eﬀect.

Room 1010, the 2rd Building, Torch Xinke Plaza, Weili 2 Road, Huli district, Xiamen, China

sales@sprolink.com +86 592 5565698 www.sprolink.com

XIAMEN SPROLINK SCIENCE & TECHNOLOGY CO., LTD

ENGLISH

中文

language

System 2404 Network

DHCP

IP 192.168.5.150 Mask

Gate 192.168.5.1

192.168.5.1

ON OFF APPLY

Auto Auto

24h

Table des matières

Autres manuels SPROLINK Changer

SPROLINK

SPROLINK VC1 Manuel utilisateur

Manuels Changer populaires d'autres marques

URC

URC Total Control MFS-8 Manuel utilisateur

Azbil

Azbil HPQ-D11 Manuel utilisateur

Sony

Sony DFS-900M Manuel utilisateur

SICK

SICK i17S Manuel utilisateur

F&F

F&F SZR-277 Manuel utilisateur

Shure

Shure UAMS/BK Manuel utilisateur

Dräger

Dräger X-zone Switch Off Manuel utilisateur

Asco

Asco Joucomatic 349 Series Manuel utilisateur

BT Mini Hub Manuel utilisateur

D-Link

D-Link DES-1226G Manuel utilisateur

Johnson Controls

Johnson Controls FS80-C Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuel utilisateur

MicroNet

MicroNet SP1200A Manuel utilisateur

Ruijie

Ruijie RG-PF2920 Series Manuel d'installation et d'exploitation

Altinex

Altinex DA1914SX Manuel utilisateur

MiLAN

MiLAN MIL-SM2401M Manuel utilisateur

RJM

RJM MASTERMIND PBC/6X Manuel utilisateur

Atlas

Atlas MMK-KVM8 Manuel utilisateur
