Step 3 With two user-provided screws, attach the mount bracket assembly to a wall or ceiling. The

screw holes are sized for an M4 (#10) or larger screw. Ensure the screws have a snug fit

onto the studs, sheetrock, anchor, or other material you are bolting onto and that you

match the screw head with the appropriate cutout hole size on the bracket.

If needed, use a flat washer between the bracket and screw head to ensure a secure

fastening.

Step 4 Insert the RJ-45 connector into the Ethernet port as shown in Figure 13:

Figure 13 Route and Terminate the Cable

Step 5 Insert the radio node into the mount bracket.

Step 6 Push as much cable back through the wall or ceiling as possible. The mount bracket

assembly has room for some cable slack.

Installing the Radio Node (Method 2)

Use this method with the 1.25 inch bracket when routing an exposed Ethernet cable directly to the radio

node.

To route the cable openly and mount the radio node

Step 1 With two user-provided screws, attach the mount bracket assembly to a wall or ceiling. The

screw holes are sized for an M4 (#10) or larger screw. Ensure the screws have a snug fit

onto the studs, sheetrock, anchor, or other material you are bolting onto and that you

match the screw head with the appropriate cutout hole size on the bracket.

SpiderCloud Wireless, Inc. Proprietary and Confidential

SpiderCloud Radio Node - SCRN-220 Hardware Installation Guide

If needed, use a flat washer between the bracket and screw head to ensure a secure

fastening. Figure 14 shows the 1.25-inch mount bracket.

Figure 14 1.25-Inch Mount Bracket

Step 2 Insert the RJ-45 connector through the rectangular bracket opening into the Ethernet port

as shown in Figure 15:

Figure 15 Route and Terminate the Cable

Step 3 Insert the radio node into the mount bracket.

SpiderCloud Wireless, Inc. Proprietary and Confidential

SpiderCloud Radio Node - SCRN-220 Hardware Installation Guide

Completing the Installation

Step 1 Attach a padlock or cable tie wrap into the provided slot to secure the unit to the mount

bracket.

Figure 16 Padlock and Lock Holes

Step 2 The radio node boots up and attempts to connect to the services node. Refer to Boot

Sequence and Services Node Communication on page 20 for more information.

Detaching the Radio Node from the Mount Bracket

To remove the radio node from the bracket assembly

Step 1 If needed, remove the padlock or cable tie wrap securing the radio node.

Step 2 Slide the radio node out of the mount bracket.

Step 3 Detach the RJ-45 clip from the Ethernet port and remove the cable from cable brackets

and cable opening.

The lock in the above figure is shown schematically. The orientation is for illustration

purposes (not accurate) since the bracket is typically wall or ceiling mounted.

Note

SpiderCloud Wireless, Inc. Proprietary and Confidential

SpiderCloud Radio Node - SCRN-220 Hardware Installation Guide

Boot Sequence and Services Node Communication

On initial boot, the radio node performs the following boot sequence. When finished, all devices are

reachable. Figure 17 shows the radio node boot sequence:

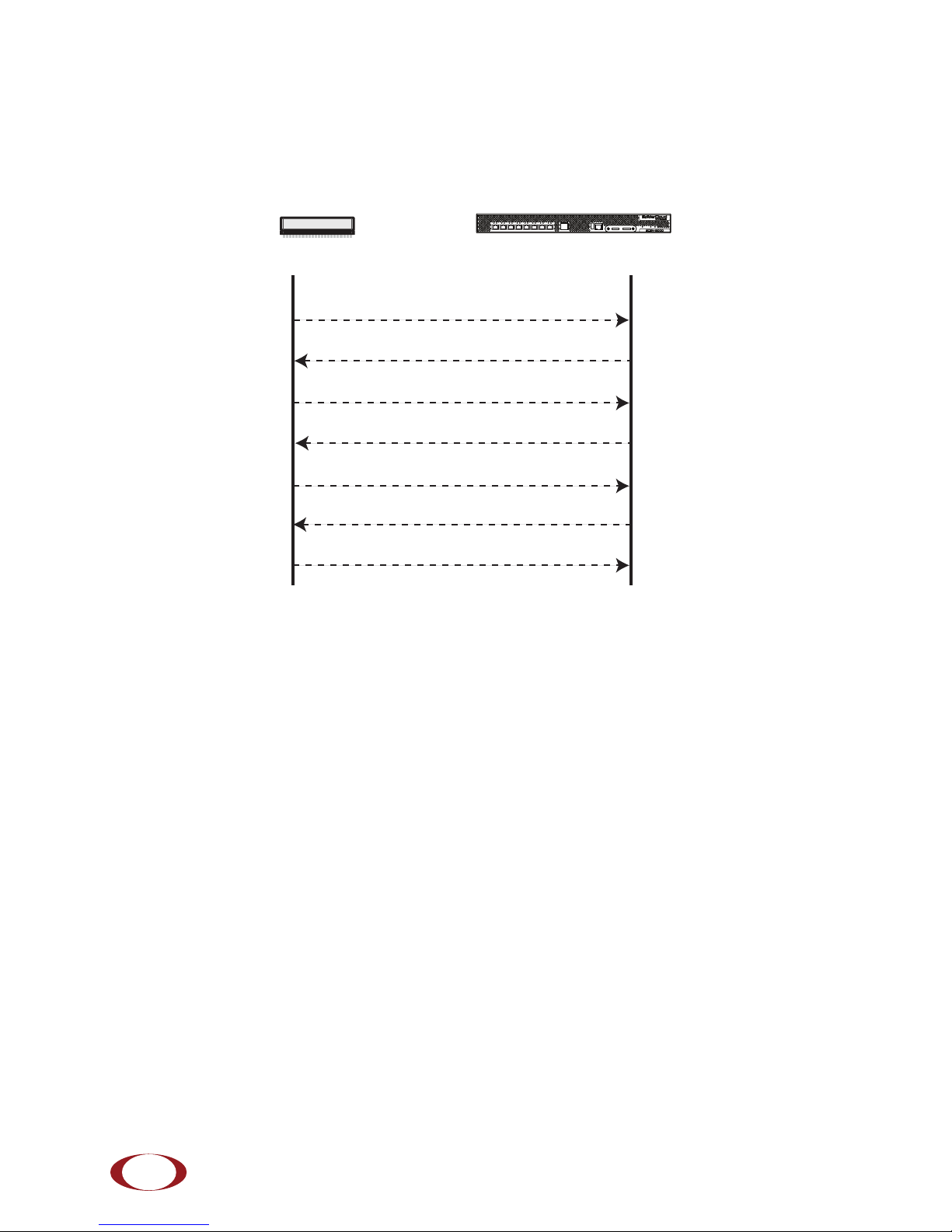

Figure 17 Radio Node Boot Sequence

Boot Sequence:

1. When the radio node is powered on, the device sends a DHCP Request to the services node

DHCP server to get IP information. The DHCP server is configured on the services node to

respond only to DHCP requests from SpiderCloud Wireless radio nodes. Refer to the SpiderCloud

OS (SCOS) Administrator Guide for more information about the services node DHCP server

configuration.

2. The server responds with the IP addresses of the radio node and the services node (the master of

the radio node).

3. Using its own IP address, the radio node sends a Join Request message to the services node.

The radio node seeks to join the cellular network.

4. The services node responds with a Join Response message indicating whether the radio node is

allowed to join the network or not.

5. The arrival sequence begins. The services node sends the SpiderCloud software image to the

radio node.

6. The radio node boots up the received SpiderCloud software package.

7. The radio node establishes an IPsec tunnel with the services node. Based upon the radio

configuration, the radio node loads the appropriate protocol elements and joins the network.

USB CONSOLE

LK AT LK AT LK AT LK AT LK AT LK AT LK AT LK AT

81234567

LNK ACT

MGMT

POWER STATUS 1 2

SIM0 SIM1

Radio Node Services Node

DHCP Request for IP Address

DHCP Response (RN, IP, Controller IP)

Join Request

Join Response (Join Grant, Redirect, Denied)

Arrival sequence begins

Send SpiderCloud software package

Boot-up, bring up the IPsec tunnel and join the network

SpiderCloud Wireless, Inc. Proprietary and Confidential

SpiderCloud Radio Node - SCRN-220 Hardware Installation Guide

Radio Node LED Boot Sequence

The radio node state machine is sequential and progresses in the following order:

State 0 -> State 1 -> State 2 -> State 3 -> State 4 -> State 5

A normal boot sequence transitions through all these states sequentially and the LED state transitions

accordingly. If the radio node fails to transition to the next state, the system restarts the boot sequence,

starting with State 0. You can determine the progress during the booting stages by observing the LED color

transitions. On failure, the last LED state will display the state that encountered the failure. Table 6 shows

the radio node boot sequence and corresponding LED behavior:

Table 6: Radio Node LED Boot Sequence

State LED Color Description Possible Failures and Actions

0. Power On/

Reset

Flashing

Green

This is the initial state on startup.

The radio node bootup is controlled by

firmware in this state.

It will go through a lamp test in this

state. A lamp test involves cycling

through all LED colors.

This state should be very short

lived and should transition to the

next state immediately.

A radio node should not stay in

this state indefinitely.

Note: Flashing Green is also

used to indicate a radio node

that has been administratively

disabled. This can be

determined from the CLI.

1. DHCP Solid

Red

The radio node starts by sending out a

DHCP Request.

The radio node moves to the next state

(State 2) upon receiving a DHCP

response and an IP Address.

No DHCP Response, IP

Address not allocated.

Check cabling, DHCP Server

configuration.

2. Join Solid

Blue

The radio node has an IP Address and

sends a UDP Join request to the

Serving services node.

The radio node moves to the next state

(State 3) upon getting a JOIN GRANT

from the services node.

No IP reachability to the

services node.

Check IP network between

radio node and services node

for routing issues.

3. TFTP Flashing

Blue

The radio node proceeds next to

download the operating system image

from the services node.

The radio node moves to the next state

(State 4) after the image has been

downloaded.

Failure to download TFTP

image.

Check firewall between radio

node and services node.

SpiderCloud Wireless, Inc. Proprietary and Confidential

SpiderCloud Radio Node - SCRN-220 Hardware Installation Guide

Radio Node LED Management

The LED display is active by default, but can be deactivated in light-sensitive environments as needed.

Even when the display is disabled, the LED will be lighted during the following conditions:

• while the radio node is booting

• if the radio node or cell is in fault state

• if there is an active emergency call

• if the locate radio node feature is active

• if the follow IMSI feature is active

Tabl e 7 shows the default LED behavior of the radio node:

4. Operating

System Booting

Flashing

Green

The radio node loads the operating

system and starts the default platform

applications.

The radio node moves to the next state

(State 5) when it establishes

connectivity with the service node.

Failure to start the operating

system.

This normally points to a

software/build issue. Please

contact SpiderCloud support.

5. Running Solid

Green

The operating system is running. The

radio node continues the startup

sequence, but is now controlled by the

services node.

The operating system is up and

running on the radio node.

Any subsequent state

transitions can now be tracked

from events and logs on the

services node.

Table 7: Radio Node LED Behavior

LED Status Flash Rate

Green: slow flashing The radio node or radio is

administratively disabled

Approximately ½ second on, 1½ sec. off

Green: fast flashing Booting Approximately 1.4 second on/off cycle

Green: solid Operational

Red: solid Fault

Red: fast flashing One or more emergency UMTS calls

active

Approximately 1 second on/off cycle

Blue: fast flashing Locate radio node enabled* Approximately 1 second on/off cycle

Blue: solid Follow IMSI enabled and that IMSI is

camped on a UMTS cell in the radio

node*

Off Powered off or LED disabled

Table 6: Radio Node LED Boot Sequence (continued)

State LED Color Description Possible Failures and Actions

SpiderCloud Wireless, Inc. Proprietary and Confidential

SpiderCloud Radio Node - SCRN-220 Hardware Installation Guide

* Refer to the SpiderCloud OS (SCOS) Administrator Guide for information about the locate radio node

and follow IMSI features.

To disable the LED display

Step 1 From the Configuration Mode, issue the set System RadioNode LED DefaultMode

Dark command to disable the LED display:

set System RadioNode LED DefaultMode Dark

Step 2 Issue the show System RadioNode LED command to verify the configuration:

show System RadioNode LED

DefaultMode Dark;

To re-enable the LED display

Step 1 From the Configuration Mode, issue the set System RadioNode LED DefaultMode

Standard command to re-enable the LED display:

set System RadioNode LED DefaultMode Standard

Step 2 Issue the show System RadioNode LED command to verify the configuration:

show System RadioNode LED

DefaultMode Standard;

The SpiderCloud Documentation Set

The SpiderCloud documentation set includes:

•TheSpiderCloud System Description provides an overview of how the SpiderCloud system fits

within an operator’s network and in an enterprise, describes key features of the system, and

provides specifications for the services and radio nodes.

•TheSpiderCloud Feature Description provides high-level descriptions of the E-RAN system

features, their impact on the product components (services nodes and radio nodes),

manageability considerations, and feature benefits.

•TheSpiderCloud OS (SCOS) Administrator Guide provides procedures for configuring the

software environment and internetworking between the services node and radio node devices.

•TheSpiderCloud Services Node Hardware Installation Guide provides hardware specifications

and installation instructions.

•TheSpiderCloud Radio Node Hardware Installation Guide provides hardware specifications and

installation instructions.

•TheE-RAN Deployment Planning Guide provides information about planning and dimensioning

E-RAN systems.

•TheSpiderCloud OS (SCOS) CLI User Guide provides an introduction to the key features and

functionalities of the SpiderCloud Command Line Interface (CLI).

•TheSCOS NB Data Model Reference Guide provides details about the objects and parameters

that comprise the system configuration and operational state.

•TheSpiderCloud OS Faults, Conditions, and Events Reference Guide provides details about

all alarms, conditions, and events in the system.

•TheSpiderCloud System Commissioning Guide provides information about turning up a

SpiderCloud E-RAN with the Local Configuration Interface (LCI) graphical user interface.

SpiderCloud Wireless, Inc. Proprietary and Confidential

SpiderCloud Radio Node - SCRN-220 Hardware Installation Guide

•ThePerformance Measurements for Dual-Mode Small-Cell E-RANs provides a reference guide

to UMTS and LTE Key Performance Indicators (KPI) that monitor the health and state of the E-

RAN system.

•ThePerformance Measurements for LTE Small-Cell E-RANs provides a reference guide to Key

Performance Indicators (KPI) that monitor the health and state of an LTE E-RAN system.

•TheSpiderNet Management System Installation and Administration Guide provides information

about installing the SpiderNet network management server and client and using it to remotely

manage E-RAN deployments.

•TheE-RAN Troubleshooting Guide provides information about diagnosing and correcting

problems with installing, provisioning, administering, and maintaining SpiderCloud equipment

and services.

•TheTroubleshooting E-RAN Systems with SpiderNet provides information about diagnosing

and correcting problems in the SpiderCloud system with the SpiderNet network management

system.

•TheSpiderCloud Time Zone Reference Guide provides the information required to configure the

time zone for SpiderCloud services nodes.

•TheSpiderCloud Call Performance Event Reporting Guide provides detailed information about

call performance events files including the file format, reported events, and event parameters.

•TheSpiderNet NBI Integration Guide provides information about integrating the SpiderNet

network management system into operator’s Northbound Interface (NBI) Operations Support

Systems (OSSs) to surveil SpiderCloud networks.

SpiderCloud Wireless, Inc. Proprietary and Confidential

SpiderCloud Radio Node - SCRN-220 Hardware Installation Guide

Appendix A: LTE Antenna Patterns

LTE Band 2

Frequency: 1960 MHz. Peak Gain: 3.21 Dbi.

Frequency: 1960 MHz. Peak Gain: 1.50 Dbi.

0º

Front

90º

0º

SpiderCloud Wireless, Inc. Proprietary and Confidential

SpiderCloud Radio Node - SCRN-220 Hardware Installation Guide

LTE Band 4

Frequency: 2145 MHz. Peak Gain: 4.10 Dbi.

Frequency: 2145 MHz. Peak Gain: 2.63 Dbi.

0º

Front

90º

0º

SpiderCloud Wireless, Inc. Proprietary and Confidential

Autres manuels pour SCRN-220

Table des matières

Autres manuels SpiderCloud Système de microphone

SpiderCloud

SpiderCloud SCRN-330 Manuel

SpiderCloud

SpiderCloud SCRN-220 Manuel

Manuels Système de microphone populaires d'autres marques

Paso

Paso R824 Manuel utilisateur

Naxa

Naxa NAM-982 Manuel utilisateur

Motorola

Motorola PMNN4461 Manuel utilisateur

Xvive

Xvive U3 Manuel utilisateur

Tekon

Tekon DUOS Manuel utilisateur

Heyuan Intelligence

Heyuan Intelligence IOT-G2S-01 Manuel utilisateur

Devine

Devine WMD-IE Manuel utilisateur

LG LF-D7150 Manuel utilisateur

GE S768DAV Manuel utilisateur

LD U305 HBH 2 Manuel utilisateur

Chainway

Chainway URA8 Manuel utilisateur

ORATOR

ORATOR D860TD Manuel utilisateur

Sennheiser

Sennheiser Evolution Wireless Digital EW-DX EM 2 Manuel utilisateur

Alpha Technologies

Alpha Technologies RBMS Manuel utilisateur

SWIT Electronics Co.,LTD.

SWIT Electronics Co.,LTD. CW-S150 Manuel utilisateur

Shure

Shure UA844 Manuel utilisateur

Panasonic

Panasonic SHFX70 - DVD HOME THEATER WIRELESS SYSTEM Manuel utilisateur

Pyle

Pyle PDWM5000 Manuel utilisateur
