Welcome to the Speed Queen®family. Thank you for your support of our truly commercial quality products. Our washers and dryers are

expertly engineered to deliver commercial performance, tested to ensure ultimate durability and built with American Pride. For more than 110

years, Speed Queen consumer laundry products have been manufactured in Ripon, Wisconsin, a place where pride of workmanship is not just

alive, but thriving and embodied by each individual who designs, tests, assembles or in some way touches a Speed Queen product. A special

thing happens when that pride is combined with the highest quality commercial materials and components…it leads to the ultimate reliability…

reliability measured in decades, not years. That’s legendary Speed Queen Quality.

Three (3) Screws

(Electric Models)

Installation

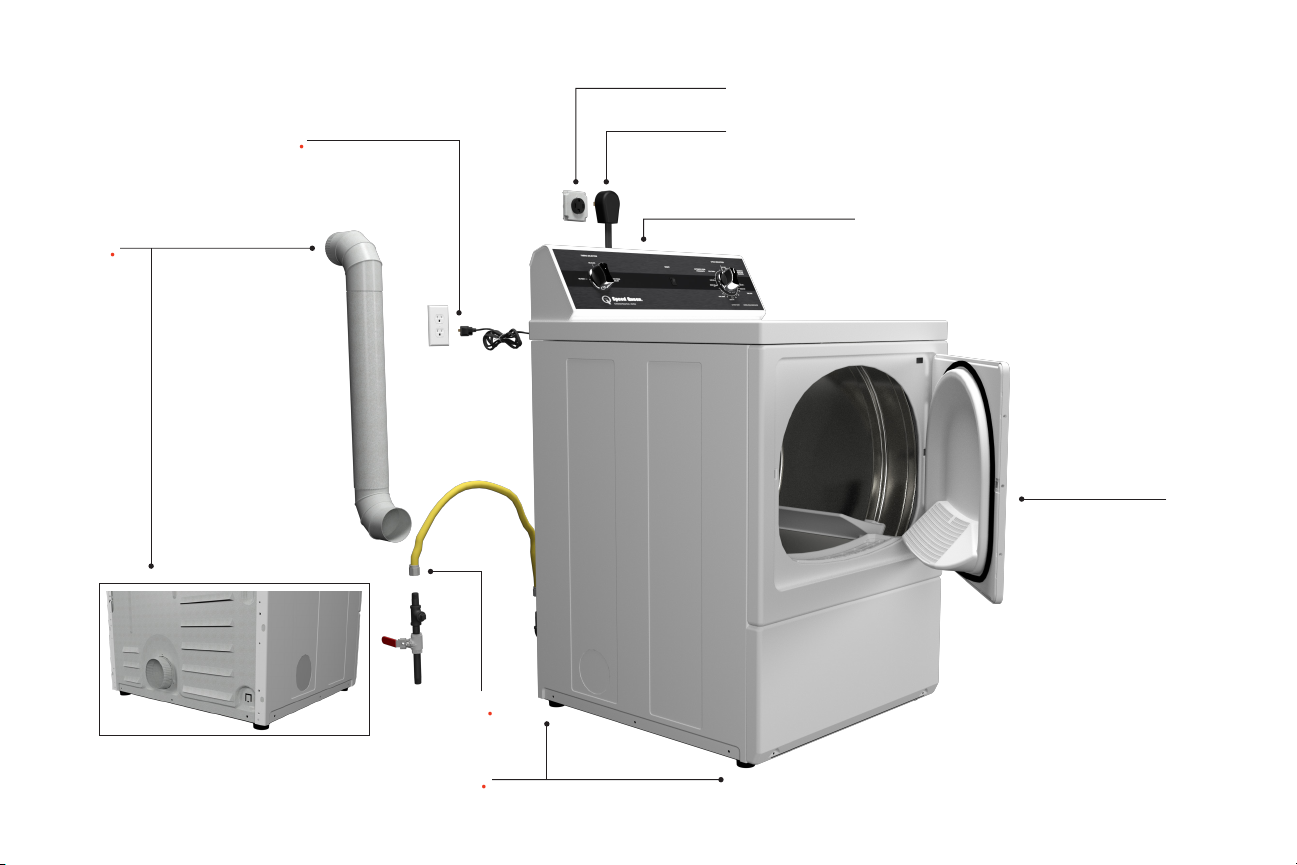

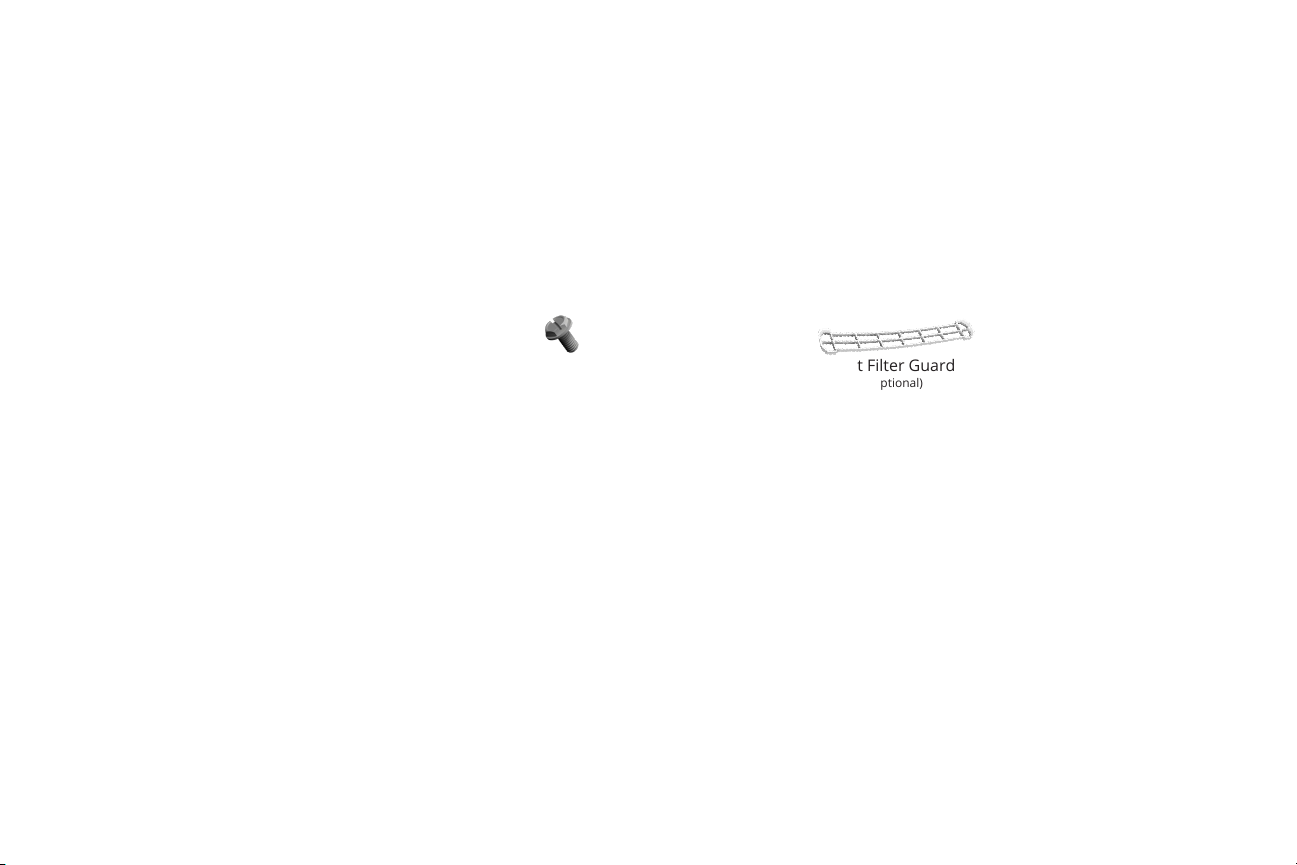

Parts included:

Welcome

Electric models – connect electrical cord

with three-wire or four-wire plug.

Refer to installation instructions, which can

be found at speedqueendoc.net

Wipe out inside of dryer.

Plug in the dryer.

Start dryer and check that dryer is heating.

Position and level the dryer.

• Recommended rear clearance

minimum is 2 in (51 mm) for utility

connections and 6 in (152 mm) when

venting through rear of unit

Connect exhaust system.

• Dryer must be exhausted to the

outdoors

• Use 4 in (102 mm) rigid duct

• Maximum straight duct length = 65 ft

(19.8 m). Each elbow deduct 10 ft (3

• Sucient make-up air must be sup-

plied. The free area of any opening

for outside air must be at least 40 in2

(25806 mm2) per unit

Gas models – connect gas supply pipe.

Gas service to a gas dryer must conform

with the local codes and ordinances.

Refer to installation instructions, which can

be found at

speedqueendoc.net

• Tighten all connections securely but

do not overtighten to avoid breaking

or bending the gas valve bracket.

Turn on gas and check all pipe

connections (internal and external) for

gas leaks by applying a non-corrosive

leak detection uid to the ttings. If

bubbles are present then a leak is likely.

Retighten connections and recheck for

leaks.

Lint Filter Guard

(Optional)

(gas models)

(electric models)

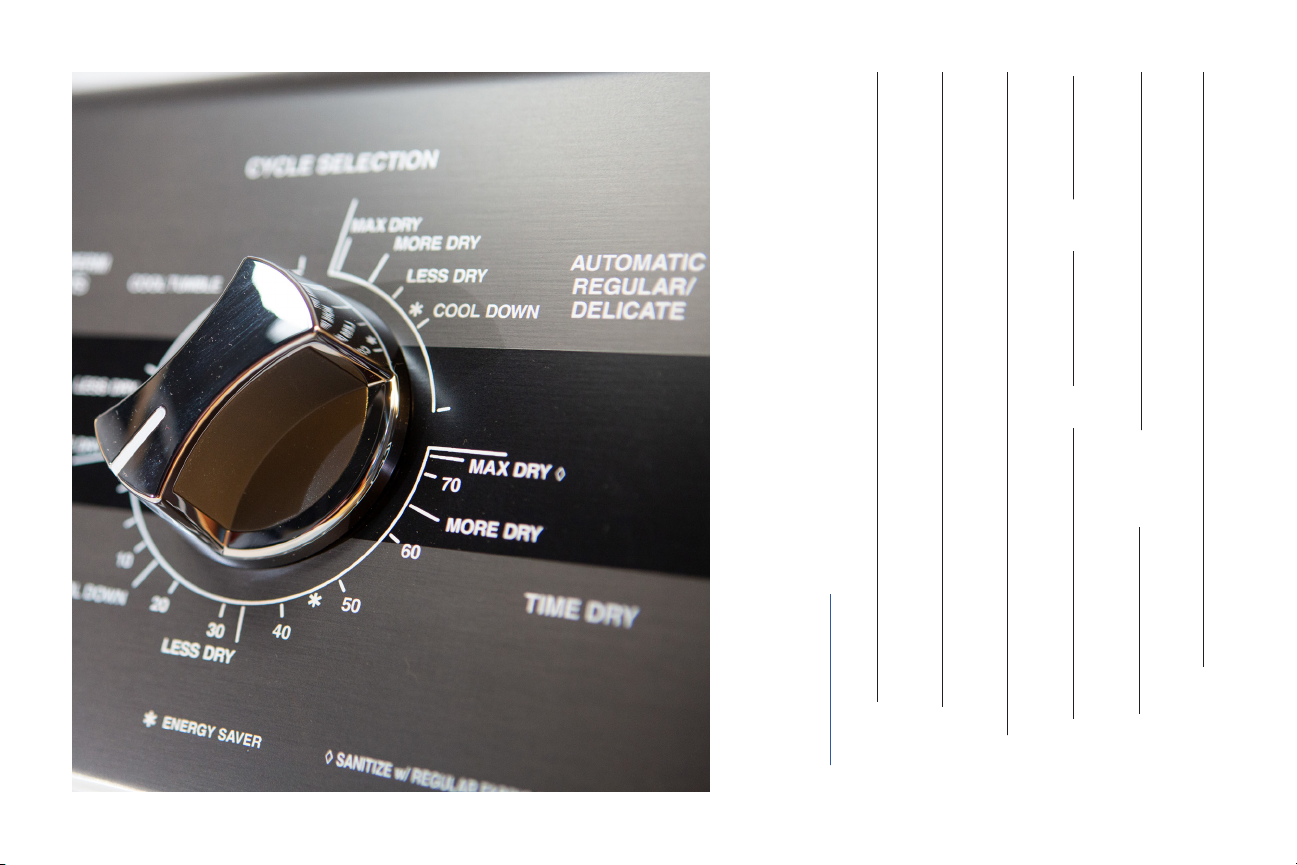

Cycle Information

Time Dry Cycle

This cycle will operate dryer for up to 75

minutes. Cottons and heavyweight items

dry best between 50 and 75 minutes,

and lightweight items dry best between

20 and 40 minutes.

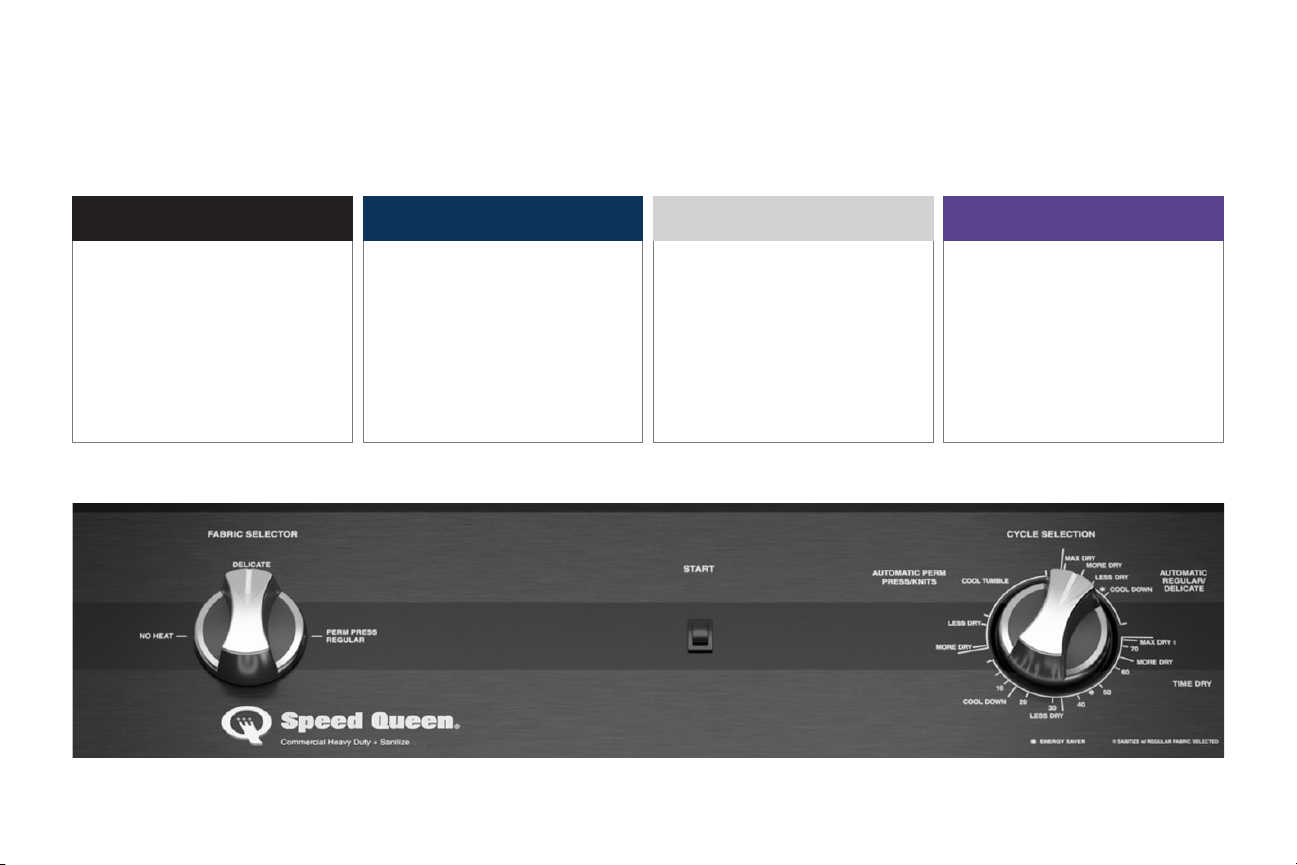

The following cycle descriptions will help determine which cycle to choose depending on the type of laundry being dried.

Sanitize*

This is a high heat, 75 minute cycle

intended to sanitize medium size loads.

Be sure to follow the item manufacturer’s

fabric care instructions.

Set the Cycle Selection to Time Dry, Max

Dry, the Fabric Selector to Perm Press/

Regular, and allow the dryer to complete

the cycle uninterrupted.

*Bacteria tested by an independent lab were Staphylococcus aureus, Pseudomonas aeruginosa, Klebsiella pneumoniae. Individual results may vary.

Automatic Regular/

Delicate Cycle

Use for sturdy items like play or work

clothes and also for delicate items.

The type of heat is determined by

choosing the proper Fabric Selector

option. There are three settings in the

Automatic Regular/Delicate cycle: Max

Dry, More Dry, and Less Dry.

Automatic Perm

Press/Knits Cycle

Use for permanent press items

and synthetics. The type of heat is

determined by selecting the proper

Fabric Selector option. There are three

settings in the Automatic Perm Press/

Knits cycle: More Dry, Less Dry, and

Cool Down (select models).

2. Clean lint lter by

wiping lint out of

screen area

(if using lint lter guard, remove

rst)

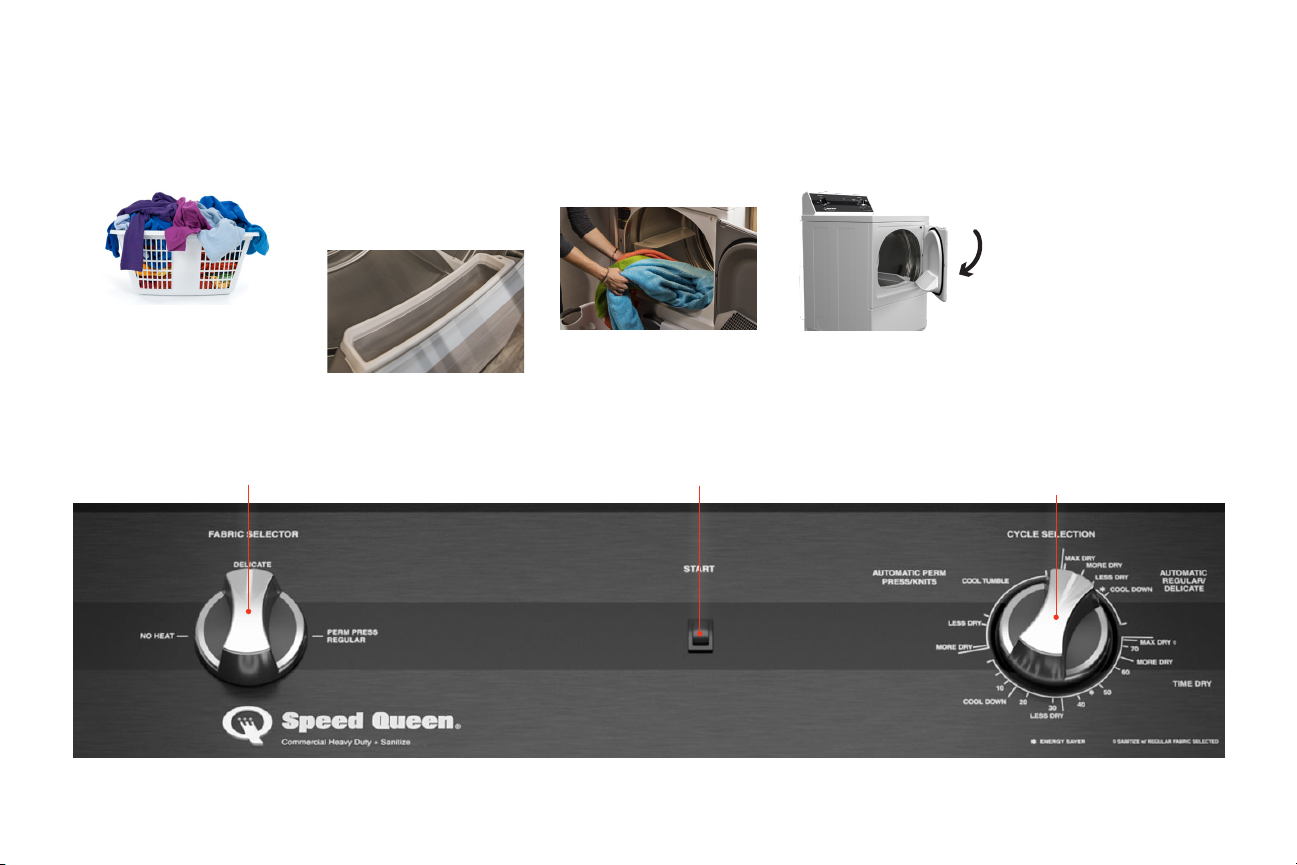

Operating

1. Prepare laundry 3. Load dryer half

full with laundry

4. Close door

5. Set cycle 6. Set temperature or

fabric selector

7. Press start button

to start

8. Remove laundry

from dryer once

cycle has ended

1. Register your product at www.speedqueen.com to take full advantage of the limited warranty.

2. Download full documentation and view installation and operating videos for an immersive experience at Speedqueendoc.net

or scan the QR code below.

3. If you wish to receive printed documents at no cost, please complete the order form online at speedqueen.com/request-printed-documents/

or email your request to [email protected].

Warranty

3, 5 & 7 Year Warranties, depending on your model.

Covers all parts and in-home labor.

Note: This unit includes a limited warranty. Refer to Speedqueendoc.net to download the full warranty bond.

Order Form for Printed Documentation

☐Please send me a printed Installation Manual, User’s Guide, and Warranty Bond.

☐I understand this card does not register my product. I must go to

www.speedqueen.com to register.

Model No.

Serial No.

Name

Zip Code Phone No.

Email Address

Allow 1-2 weeks for delivery.

Address City State

Part No. D518607

February 2021
