Speed Queen ADEE8RGS Manuel utilisateur

Installation Instructions

for Dryers

Original Instructions

Keep These Instructions for Future Reference.

(If this machine changes ownership, this manual must accompany machine.)

www.speedqueen.com Part No. 514319R1

October 2014

www.goedekers.com

Front Matter

WARNING

Risk of fire. Highly flammable material.

W881

Read all instructions before using unit.

WARNING

FOR YOUR SAFETY, the information in this manual

must be followed to minimize the risk of fire or ex-

plosion or to prevent property damage, personal in-

jury or death.

W033

WARNING

• Do not store or use gasoline or other flammable

vapors and liquids in the vicinity of this or any

other appliance.

•WHAT TO DO IF YOU SMELL GAS:

• Do not try to light any appliance.

• Do not touch any electrical switch; do not use

any phone in your building.

• Clear the room, building or area of all occu-

pants.

• Immediately call your gas supplier from a

neighbor’s phone. Follow the gas supplier’s in-

structions.

• If you cannot reach your gas supplier, call the

fire department.

• Installation and service must be performed by a

qualified installer, service agency or the gas sup-

plier.

W052

IMPORTANT: Purchaser must consult the local gas

supplier for suggested instructions to be followed if

the dryer user smells gas. The gas utility instructions

plus the SAFETY and WARNING note directly above

must be posted in a prominent location near the dryer

for customer use.

Front Matter

Part No. 514319R1 © Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT 3

www.goedekers.com

WARNING

• Installation of unit must be performed by a quali-

fied installer.

• Install clothes dryer according to manufacturer’s

instructions and local codes.

•DO NOT install a clothes dryer with flexible plas-

tic venting materials. If flexible metal (foil type)

duct is installed, it must be of a specific type

identified by the appliance manufacturer as suita-

ble for use with clothes dryers. Refer to section

on connecting exhaust system. Flexible venting

materials are known to collapse, be easily crush-

ed, and trap lint. These conditions will obstruct

clothes dryer airflow and increase the risk of fire.

W729R1

WARNING

To reduce the risk of severe injury or death, follow

all installation instructions. Save these instructions.

W894

WARNING

FOR YOUR SAFETY

Do not store or use gasoline or other flammable vapors and

liquids in the vicinity of this or any other appliance.

W053

This product uses FreeRTOS V7.2.0 (www.freertos.org).

The following information applies to the state of Massachusetts,

USA.

• This appliance can only be installed by a Massachusetts li-

censed plumber or gas fitter.

•This appliance must be installed with a 36 inch [910 mm]

long flexible gas connector.

• A “T-Handle” type gas shut-off valve must be installed in the

gas supply line to this appliance.

• This appliance must not be installed in a bedroom or bath-

room.

Front Matter

4 © Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT Part No. 514319R1

www.goedekers.com

Table of Contents

Dimensions............................................................................................. 6

Installation............................................................................................. 8

Before You Start.............................................................................................8

Supplies..................................................................................................... 8

Parts Included............................................................................................. 8

Order of Installation Steps............................................................................8

Position and Level the Dryer............................................................................8

Connect Dryer Exhaust System...................................................................... 11

Exhaust Direction......................................................................................12

Exhaust System.........................................................................................12

Gas Dryers - Connect Gas Supply Pipe........................................................... 13

Electric Dryer Only - Connect Electrical Plug..................................................15

Earth/Ground Information.......................................................................... 15

Connecting Power Cord with Three-Wire Plug.............................................15

Connecting Power Cord with Four-Wire Plug.............................................. 17

Reverse Door, if Desired............................................................................... 18

Wipe Out Inside of Dryer.............................................................................. 20

Plug In the Dryer.......................................................................................... 20

Electric Dryer........................................................................................... 20

Gas Dryer................................................................................................. 20

Recheck Steps.............................................................................................. 21

Check Heat Source........................................................................................21

Electric Dryers.......................................................................................... 21

Gas Dryers................................................................................................21

Installer Checklist.................................................................................23

written consent of the publisher.

Part No. 514319R1 © Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT 5

www.goedekers.com

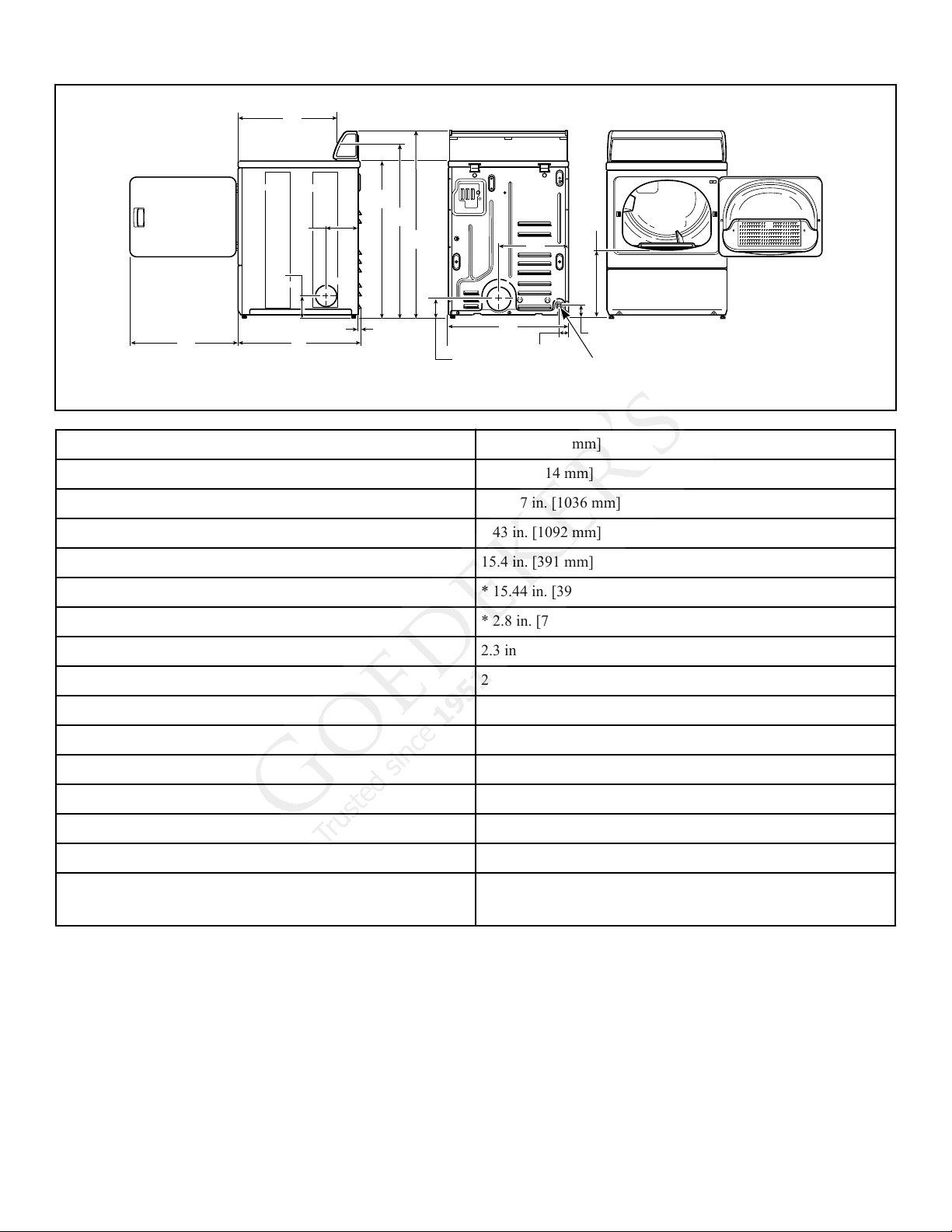

Dimensions

Electric Dryers

DRY2495N_SVG

A 23.19 in. [589 mm]

B * 36 in. [914 mm]

C * 40.77 in. [1036 mm]

D * 43 in. [1092 mm]

E 15.4 in. [391 mm]

F * 15.44 in. [392 mm]

G 26.875 in. [683 mm]

H 4 in. [102 mm]

I 0.4 in. [10 mm]

J 28 in. [711 mm]

K * 4.5 in. [114 mm]

L 8 in. [203 mm]

M 23.5 in. [597 mm]

NOTE: Exhaust openings are 4 inch [102 mm] metal

ducting.

* With leveling legs turned into base.

Dimensions

Part No. 514319R1 © Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT 6

www.goedekers.com

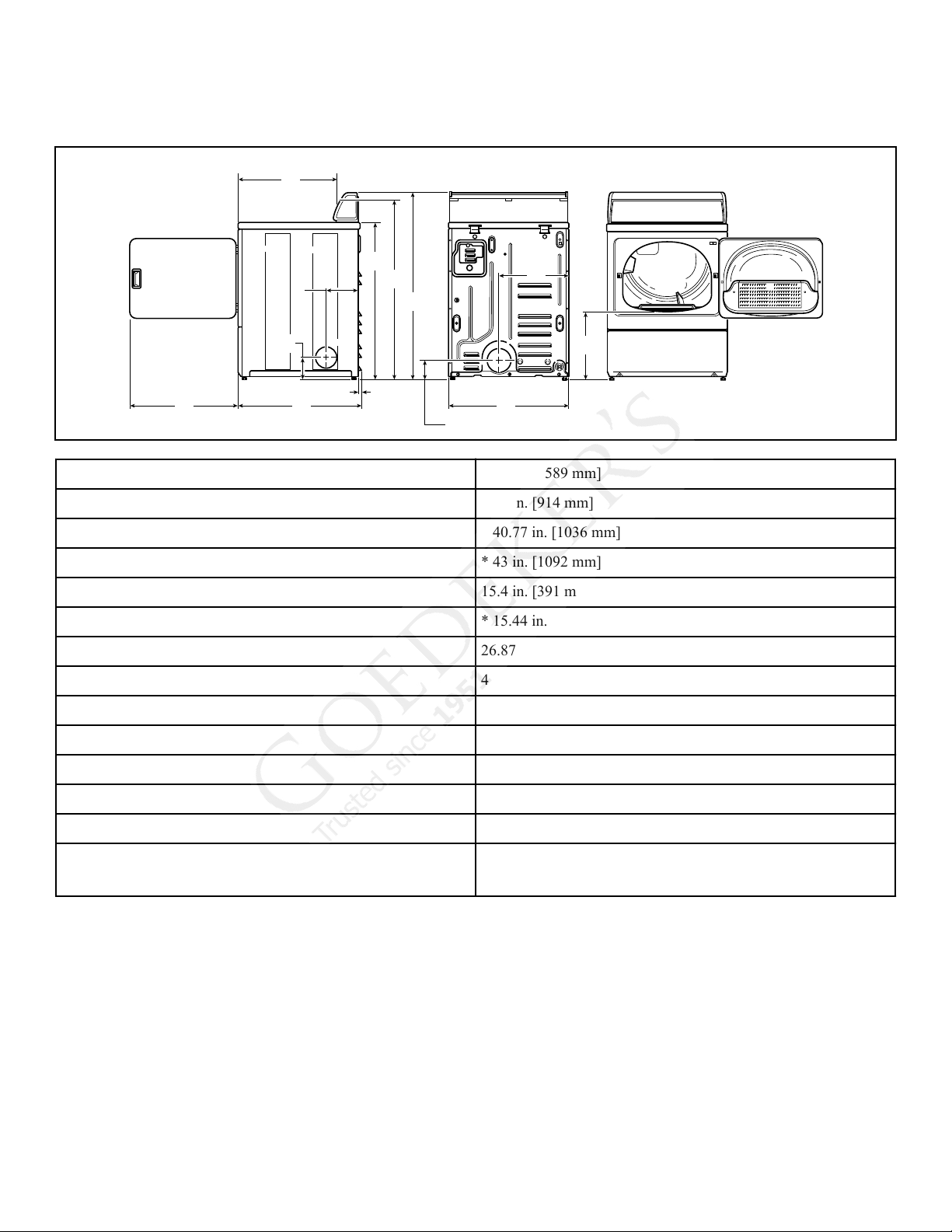

Gas Dryers

DRY2496N_SVG

1. 3/8 in. N.P.T. Gas Connection

A 23.19 in. [589 mm]

B * 36 in. [914 mm]

C * 40.77 in. [1036 mm]

D * 43 in. [1092 mm]

E 15.4 in. [391 mm]

F * 15.44 in. [392 mm]

G * 2.8 in. [70 mm]

H 2.3 in. [60 mm]

I 26.875 in. [683 mm]

J * 4 in. [102 mm]

K 0.4 in. [10 mm]

L 28 in. [711 mm]

M * 4.5 in. [114 mm]

N 8 in. [203 mm]

O 23.5 in. [597 mm]

NOTE: Exhaust openings are 4 inch [102 mm] metal

ducting.

* With leveling legs turned into base.

Dimensions

Part No. 514319R1 © Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT 7

www.goedekers.com

Installation

Before You Start

Supplies

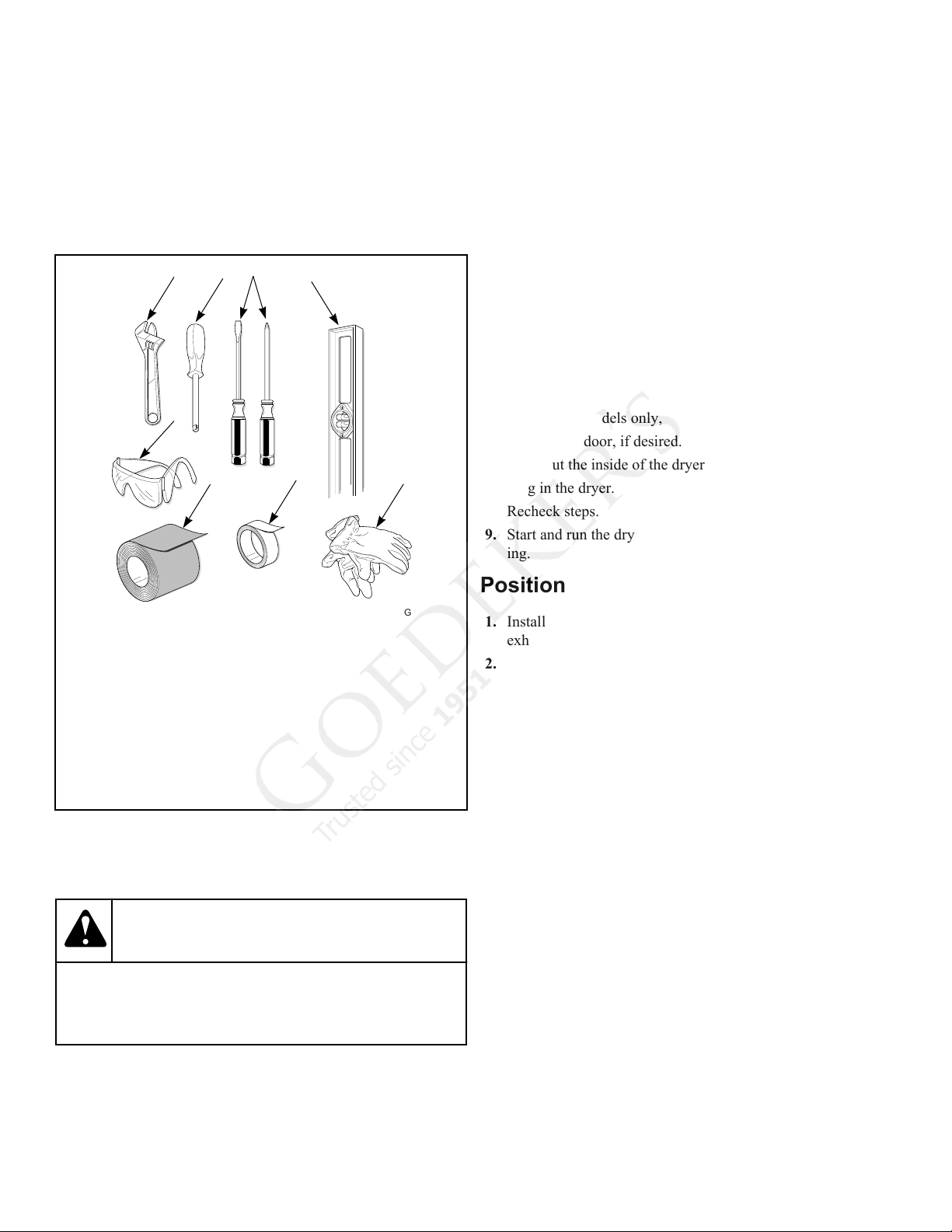

For most installations, the basic supplies you will need are:

DRY2586N_SVG

765

1. Wrench

2. 1/4 inch Driver

3. Screwdrivers

4. Level

5. Gloves

6. Teflon Tape

7. Duct Tape

8. Safety Glasses

Figure 1

NOTE: This appliance is suitable for use in countries

having a warm, damp climate.

WARNING

Any disassembly requiring the use of tools must be

performed by a suitably qualified service person.

W299

Parts Included

An accessories bag has been shipped inside your dryer. It in-

cludes:

• Installation Instructions

• User’s Guide

•Dryer Rack Reply Card

• Warranty Bond

• Three screws (electric dryers only). Refer to Electric Dryer

Only - Connect Electrical Plug.

Order of Installation Steps

1. Position and level the dryer.

2. Connect dryer to exhaust system.

3. For gas models only, connect the gas supply pipe. Check for

gas leaks.

4. For electric models only, connect the electrical cord.

5. Reverse the door, if desired.

6. Wipe out the inside of the dryer.

7. Plug in the dryer.

8. Recheck steps.

9. Start and run the dryer in a heat setting to verify dryer is heat-

ing.

Position and Level the Dryer

1. Install dryer before washer. This allows room for attaching

exhaust duct.

2. Select a location with a solid floor. Dryers installed in resi-

dential garages must be elevated 18 inches [457 mm] above

the floor.

No other fuel burning appliance should be installed in the same

closet with the dryer.

The dryer must not be installed or stored in an area where it will

be exposed to water and/or weather.

The dryer needs sufficient clearance and an adequate air supply

for proper operation and ventilation, and for easier installation

and servicing. (Minimum clearances are shown in Figure 3 ).

3. Place the dryer in position, and adjust the legs until the dryer

is level from side to side and front to back. Leveling legs can

be adjusted from inside the dryer with a 1/4 in. driver.

4. All four legs must rest firmly on the floor so the weight of the

dryer is evenly distributed. The dryer must not rock.

Installation

Part No. 514319R1 © Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT 8

www.goedekers.com

DRY2662N_SVG

1. Dryer Base

2. Level

3. Leveling Leg

Figure 2

Installation

Part No. 514319R1 © Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT 9

www.goedekers.com

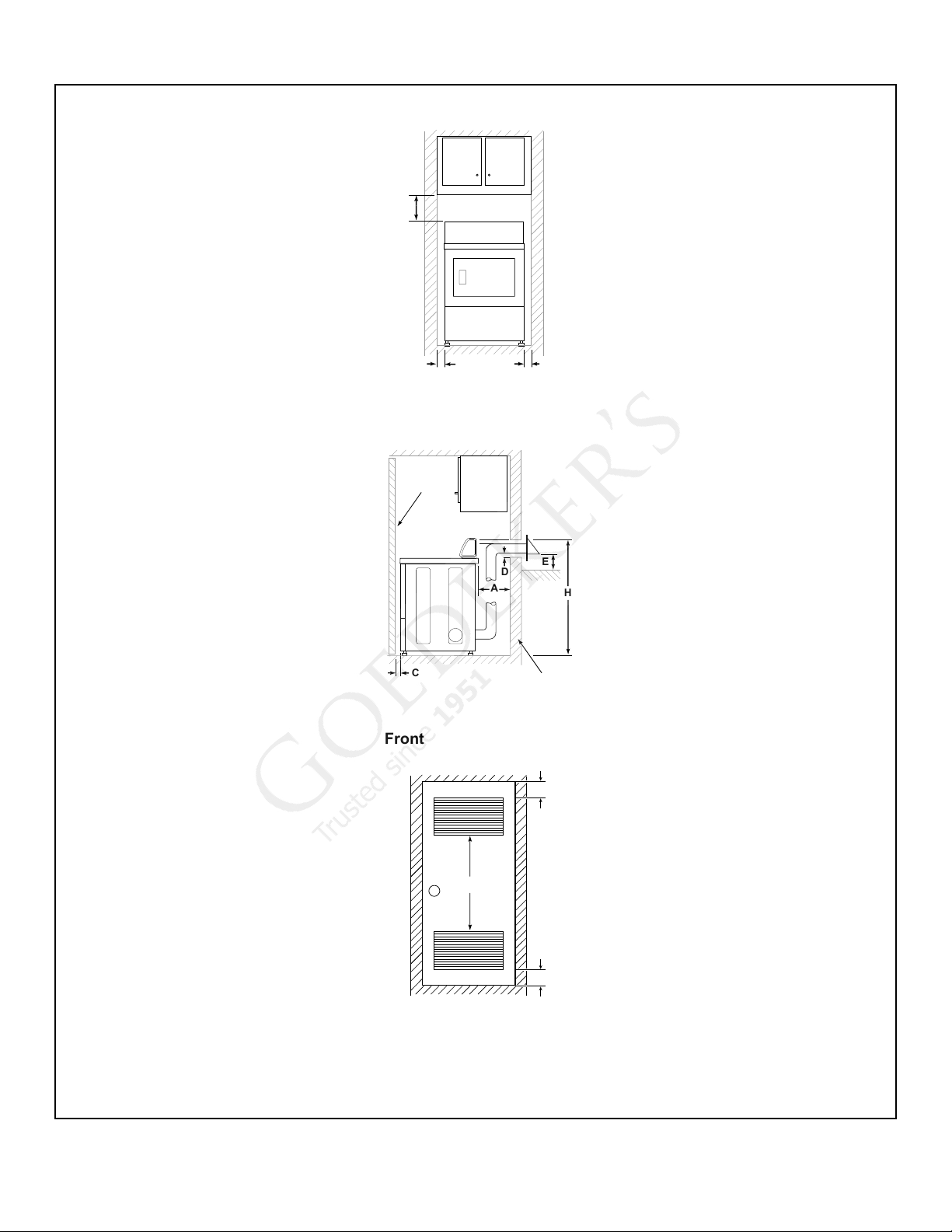

Front View (Without Closet Door)

DRY2663N_SVG

A A

Side View (Closet Door)

DRY2664N_SVG

Front View (Closet Door)

DRY2637N_SVG

2 (G)

1. Closet Door

2. Centered Air Openings (G) (2 Openings minimum)

3. Outer Wall of Enclosure

Figure 3

Installation

10 © Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT Part No. 514319R1

www.goedekers.com
