Temperature/RH

Pens

PRODUCT MANUAL

Item # 3401, 3402

Thank you for purchasing a 3401 or 3402 Temperature/RH Pen. In

addition to temperature and RH, the 3402 also displays dew point

and wet bulb temperatures. Please read this manual thoroughly

before using your meter.

Specifications

Temperature range 14 to 140°F (-10 to 60°C)

Temperature accuracy ±1°F (±0.6°C)

Humidity range 5 to 95% RH

Humidity accuracy ±3% RH

Power Supply CR2032 battery

Power ON/OFF

Power on the meter by pressing the ON/OFF button. All segments

on the display will appear for one second ("DP","WB" will appear on

the screen, although they are only operational for the 3402 model).

The meter will begin measuring temperature and humidity,

displaying both readings at the same time. “AIR” shows that the

current temperature and RH are being displayed.

Note: Be sure to rotate the sensor cap to open it.

Selecting Temperature units (C/F)

Press the F/C CAL button to alternate between temperature units.

Data Hold

Press the HOLD button until “HLD” appears on the display. The

current reading will be displayed until the HOLD button is pressed

again to release the hold.

Operation

MIN/MAX

Press the MIN/MAX button; MIN appears on display. The LCD

screen is now showing the minimum humidity and temperature

readings in memory. Press the MIN/MAX button again; MAX will

show on the LCD screen. Press MIN/MAX button once again to

return to the current measurement.

To clear the MIN and MAX readings from memory, press and hold

the RESET button. The meter reading returns to the normal mode

and data in memory has been cleared.

Dew Point and Web Bulb Temperatures (3402 only)

When the meter is in AIR temperature mode, press the MODE

button to switch between “AIR”, “DP” (dew point), and “WB” (wet

bulb) readings.

Auto Power Off

The meter will turn itself off after 20 min. To override the Auto

Power Off function, press the ON/OFF and HOLD keys

simultaneously before powering on. The display will show "n".

Release the ON/OFF button. The meter will now stay on until ON/

OFF is pressed to turn it off.

Battery Replacement

Turn off the meter , then use a coin to open the battery cover. Put

the battery (CR2032) into the battery compartment with the “+” side

out. Place the battery cover back and lock it with a coin.

Troubleshooting

Power on, but no display

Be sure to press ON/OFF for at least 1/3 second.

Ensure the battery is in place with correct polarity and good contact.

Replace with a new battery and try again.

Remove the battery. Press “ON/OFF” for 10 seconds. Reinstall the

battery and try again

Display Disappears

Remember the meter turns itself off after 20 seconds of inactivity.

If the low battery indicator is on before the display turns off, replace

the battery.

Error Codes

E02 Ambient temperature below limit. Put the meter in room temp.

for 30 minutes. If E02 recurs, repair is required.

E03 Ambient temperature above limit. Follow E02 steps.

E04 RH code appearing with E02 or E03. Follow E02 steps.

E11 RH sensor must be recalibrated.

E33 Humidity sensor damaged; repair is required.

DECLARATION OF CONFORMITY

Spectrum Technologies, Inc.

12360 S. Industrial Dr. East

Plainfield, IL 60585 USA

Model Numbers: 3401, 3402

Description: Temperature/RH Pen Meters

Type: Electrical Equipment for Measurement, Control, and Laboratory

Use

Directive: 89/336/EEC

Standards: EN 50081-1/1992 : EN 55022

EN 50082-1/1997 : EN 55024

(EN 61000-4-2/-3/-8, ENV 50204)

Michael J. Dunning, Weather Products Manager January 22, 2009

War r anty

This product is warranted to be free from defects in material or work-

manship for one year from the date of purchase. During the warranty

period Spectrum will, at its option, either repair or replace products that

prove to be defective. This warranty does not cover damage due to

improper installation or use, lightning, negligence, accident, or unau-

thorized modifications, or to incidental or consequential damages be-

yond the Spectrum product. Before returning a failed unit, you must

obtain a Returned Materials Authorization (RMA) from Spec-

trum. Spectrum is not responsible for any package that is returned

without a valid RMA number or for the loss of the package by any ship-

ping company.

12360 S. Industrial Dr. E

Plainfield IL 60585

(800) 248-8873 or (815) 436-4440

Fax (815) 436-4460

E-Mail: [email protected]

www.specmeters.com

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Spectrum Instrument de mesure

Spectrum

Spectrum FieldScout Manuel utilisateur

Spectrum

Spectrum EWS Series Instructions d'utilisation d'origine

Spectrum

Spectrum FIELDSCOUT TDR 100 Manuel utilisateur

Spectrum

Spectrum 2105 Manuel d'installation

Spectrum

Spectrum Fieldscout 2265FS Manuel utilisateur

Spectrum

Spectrum digitizerNETBOX DN2.44 Series Manuel utilisateur

Spectrum

Spectrum 2103AL Manuel utilisateur

Spectrum

Spectrum Field Scout 3414F Manuel utilisateur

Spectrum

Spectrum M2p.59 Series Manuel utilisateur

Spectrum

Spectrum FieldScout Manuel utilisateur

Spectrum

Spectrum 3445 Manuel utilisateur

Spectrum

Spectrum E-flite EFLA110 Manuel utilisateur

Spectrum

Spectrum SLC 500 Manuel utilisateur

Spectrum

Spectrum 2956 Manuel utilisateur

Spectrum

Spectrum LAQUA Twin Manuel utilisateur

Spectrum

Spectrum Fieldscout TDR 350 Manuel utilisateur

Spectrum

Spectrum 2220 Manuel utilisateur

Spectrum

Spectrum fieldscout TDR 300 Manuel utilisateur

Spectrum

Spectrum FieldScout pH 600 Meter Manuel utilisateur

Spectrum

Spectrum 2120 Manuel utilisateur

Spectrum

Spectrum Field Scout EC 450 Manuel utilisateur

Spectrum

Spectrum 3440 Manuel utilisateur

Spectrum

Spectrum SC-100 Manuel utilisateur

Spectrum

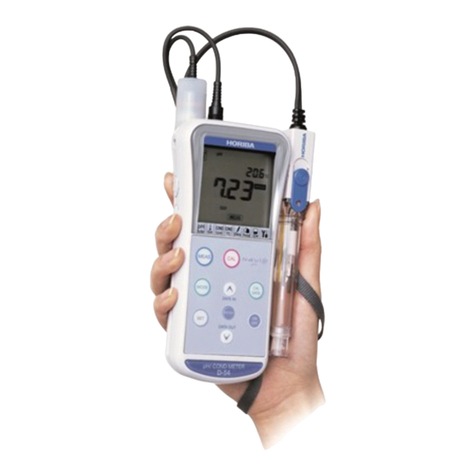

Spectrum 2172 Manuel utilisateur
