Spectrum Technologies WatchDog 3388BGU Manuel utilisateur

Bi-Directional

GPRS / CDMA

Modems & Solar Panels

PRODUCT MANUAL

Item 3388BGU, 3388BGE, 3388BC, 3388SP5

CONTENTS

Configuration 3

Assembly 5

Operation 9

Warranty 10

CE Declaration of Conformity 10

Thank you for purchasing the WatchDog Bi-Directional GPRS or CDMA modem with solar power.

Please read this manual thoroughly before assembling and using your modem.

WatchDog Modem

The modem is packed in a single box containing the waterproof enclosure. The modem, cables, and

electronics come pre-assembled within the enclosure. The enclosure should have two sets of saddle

mounting brackets attached to the back.

Solar Power System

The Solar Power system consists of a 5W Solar Panel (11” x 7.5”) with cable, a 5A-Hr sealed lead-

acid battery, and the three mounting components pictured below.

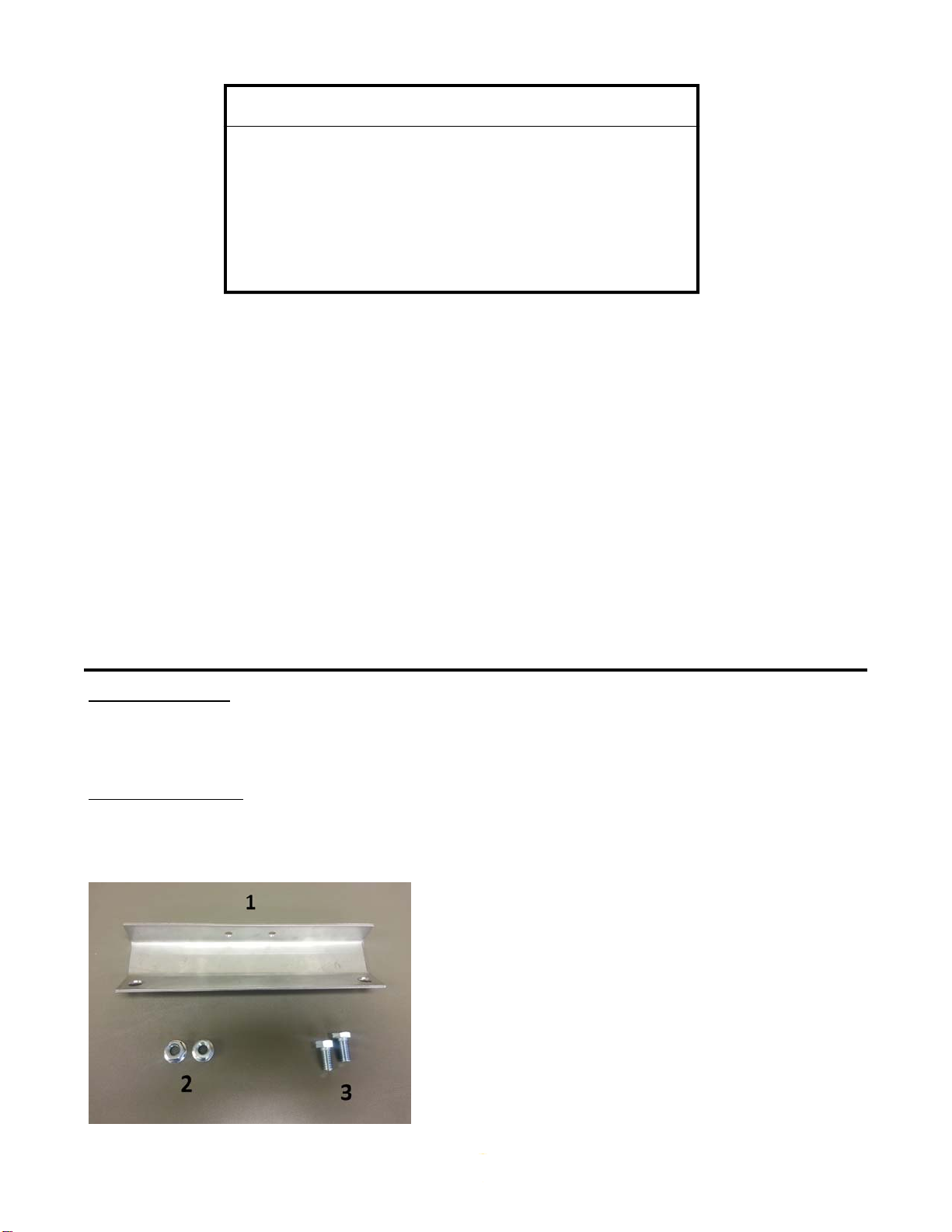

Components

1. Angle Bracket

2. Flange Nuts

3. Hex Bolts

Configuration

The WatchDog Modems are designed for use with the WatchDog 2000 Series Mini and Full Weather

Stations. If you are adding the modem to an existing station, the station microcontroller may need to

be upgraded to operate with the WatchDog modem.

You must configure your WatchDog 2000 Series Station to work with the WatchDog Modem. If you

are using the WatchDog Modem outside the United States, or sending data to an Internet location

other than SpecWeather.com, you will need to configure the Modem as well. Both processes are

easier to do at a desk in an office, compared to balancing a laptop computer in a field. You must have

SpecWare 9 Pro (or later) software installed on your computer in order to perform the configurations.

If you have not installed SpecWare, do so before continuing. Be sure to set key parameters, such as

the English/Metric option, and the communications port.

Configuring the WatchDog 2000 Series Station

Connect your station to the PC using the 6’ (2m) black direct-connect cable provided with SpecWare

software. Note: when the direct connect cable is inserted, the AUX port is disabled. Start SpecWare

Pro and start the WatchDog Manager (click the toolbar button, or the “WatchDog Manager” option in

the Logger menu). Select “<Direct Connect 2000 Series>” and click “Properties”. If requested, give

your station a name (or approve the default). When the WatchDog Properties screen displays, set the

configuration of your external sensors to match the ones you are using.

SpecWare allows you to specify both a logging interval and a data transmission interval. The “Data

Collection Interval” specifies how often data is logged to the internal memory of the station. This may

or may not match the frequency you will be transmitting current conditions to the Internet. Data saved

on the station can be retrieved at the station by using a WatchDog Data Shuttle or downloaded using

a PC with SpecWare.

The “Repeat- Transmit Interval” is used to specify how often your station will send current conditions

via the WatchDog Modem. If this does not appear on your Properties screen, contact Spectrum

Technologies to have the station firmware upgraded to support the modem.

The “Repeat-” “Format” allows you to specify the record format for the current conditions

transmissions. The following formats will be listed for a full-size WatchDog Weather Station:

• Format “1 Text” sends 128 bytes of text information at a time. This format is currently required for

use with SpecWeather.com.

• Formats “H Binary E” and “G Binary M” are shorter forms that compress the data into a 40 byte

record. The format you see will be based on your English/Metric setting in SpecWare. In general,

this is the format you should choose if you are building your own web site.

• Formats “J Short Bin E” and “I Short Bin M” are even shorter forms that compress the data into a

28 byte record by omitting the values for external sensor ports A-E. They are designed to fit in the

smallest Iridium packet to minimize satellite costs as much as possible. They should only be

used with a satellite modem, and where there are no external sensors (except in Port F,

which is used for the Solar Pyranometer on the 2900ET station).

The WatchDog Mini Stations have two “Repeat-” “Format” options:

• Format “3 Text” sends 64 bytes of text information at a time. This format is currently required for

use with SpecWeather.com.

• Formats “H Binary E” and “G Binary M” are shorter forms that compress the data into a 24 byte

record. The format you see will be based on your English/Metric setting in SpecWare. In general,

this is the format you should choose if you are building your own web site.

Once set, the “Repeat-Transmit” will send current conditions data out at the selected interval until you

reconfigure the station to disable it. If the batteries are removed and replaced, the “Repeat-Transmit”

will resume once the batteries are reinserted.

After all configuration options have been selected, click the “OK” button to send your configuration

settings to the Station.

Configuring the WatchDog Modem

If you are using Verizon, Sprint, or AT&T in the United States, and you are using the

SpecWeather.com web site, then you do not have to configure your WatchDog Modem. Otherwise

follow these steps to configure your modem.

• You must provide your own USB stick to configure your modem. Without any power from the solar

panel or battery, plug the USB stick into the telemetry board’s USB connector.

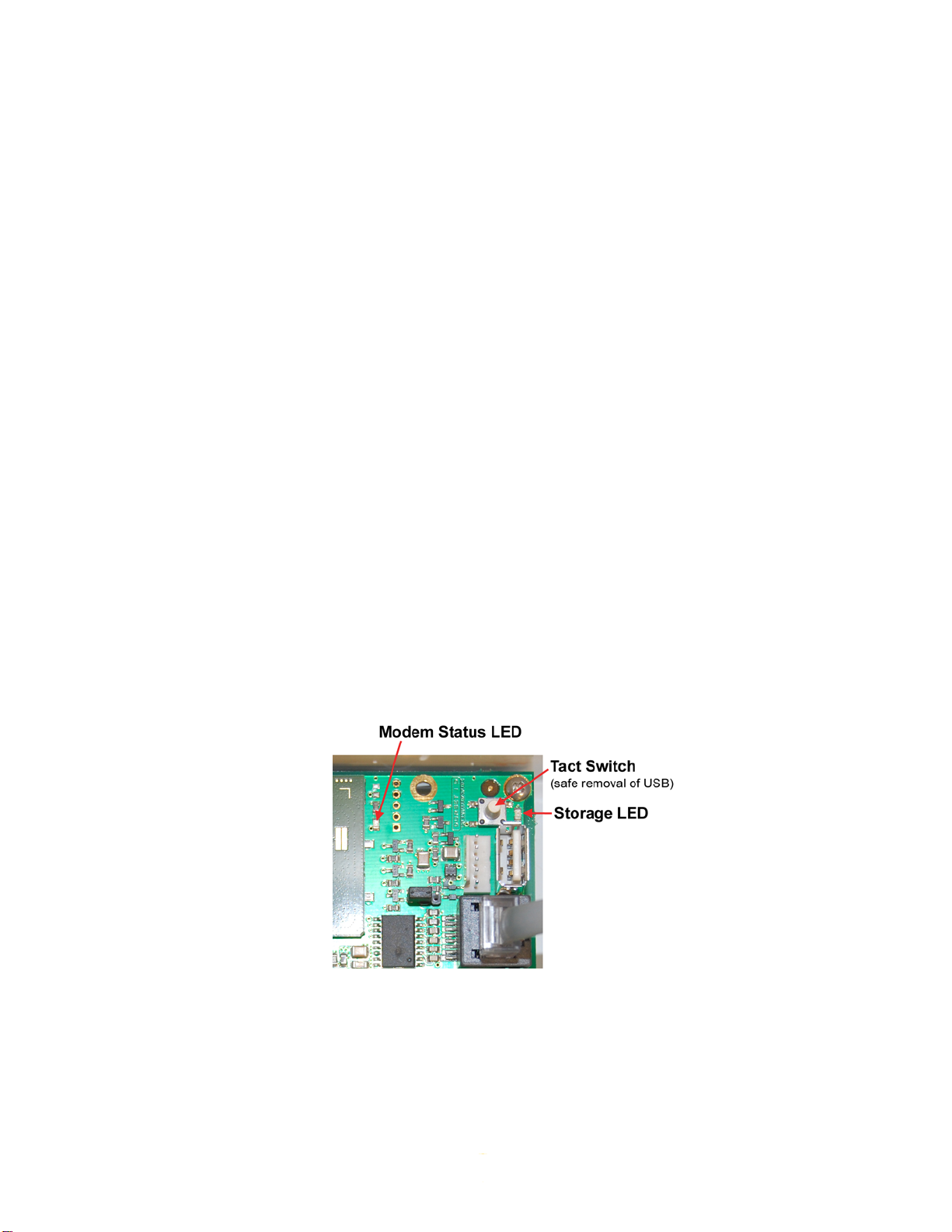

• Power-up the board with the 12v battery and wait at least 60 seconds until the storage and modem

status LED light on the board has stopped flickering. During this time the telemetry board will

create a configuration file to the USB stick. IMPORTANT: THE BLACK WIRE MUST BE

CONNECTED TO THE NEGATIVE TERMINAL ON THE BATTERY (MARKED “-” OR “NEG” AND/

OR COLORED BLACK), AND THE RED WIRE MUST BE CONNECTED TO THE POSITIVE

TERMINAL (MARKED “+” OR “POS” AND/OR COLORED RED).

• Unplug the battery and remove the USB stick by first pressing on the Tact Switch. CAUTION: Not

using the Tact Switch can corrupt the firmware, data and/or configuration files.

• Connect the USB stick to your PC. On the USB stick you should have two files the “LOG.TXT”

and “CONFIG.EXE” file. Open the “CONFIG.EXE” file to start configuring the modem settings.

• Within the Spectrum Cellular Configuration screen you will have the following options:

URL: The “Url” should only be changed if data will be sent to your own server, otherwise keep the de-

fault setting “gprs.meteodata.info.”

Page: The “Page” should only be changed if data will be sent to your own server, otherwise keep the

default setting “default.aspx.”

Behavior configuration: By default the “Send data using the GPRS” will be checked, this will trans-

mit data to the server using the GPRS modem on the unit as well as store data on the USB stick (if left

connected to the USB port after configuration is completed.) Unchecking it will simply store data

on the USB stick and will NOT transmit any data to the server.

Transmit Interval: Allows you to select how often the modem transmits stored data to the server by

changing the “Transmit/alive message interval.”

Example: if your weather station is set to a “Repeat Transmit” interval of 10 minutes and the

“Transmit interval” is unchecked the data is immediately sent to the server. If the “Transmit interval”

is checked the modem will store multiple measurements before transmitting them to the server.

Send alive message: The default setting sends a message to the server with information about the

telemetry units network, signal strength GPS coordinates (when enabled).

Use GPS: The telemetry unit has an optional GPS receiver (STD-3388GPS), must be purchased

separately. When checked the telemetry board will use the installed GPS receiver to send its coordi-

nates with the “Alive message,” or during the start-up (GPS idle feature).

GPS idle after receiving first coordinate: When checked the telemetry board will only send the

GPS coordinates the first time the weather station is powered-up.

Set defaults: Re-sets the values back to their default settings.

APN, Username and Password: Fill in the appropriate settings required by your cellular carrier.

Generate: Clicking the “Generate” button, will create a “CONFIG.CFG” file with all your new settings.

Remove the USB stick from your PC and re-attach it to the USB connector on the board. Power-up

the board again and wait at least 60 seconds until the storage and modem LEDs are no longer flicker-

ing.

Note: If the station is going to be permanently located at the measurement site, it is recommended

that the mounting pole be installed in the ground before attaching any components.

Assembly

Attaching the Solar Panel

1. Align the Angle Bracket with the two

solar panel openings on the back.

3. Attach and tighten both bolts to the solar

panel and flange nuts.

2. Place the bottom of the flange nut under

the solar panel and align it .

4. Remove the top saddle mounting brackets

from both ends of the enclosures

5. Attach Modem Enclosure to post and

tighten bottom saddle mounting bracket.

6. Tighten the spacers and nuts on mounting

saddles.

Connecting the GPRS modem to the battery and solar panel

Before connecting the solar panel to the modem, temporarily cover the panel with cardboard to

prevent any current from being generated during the installation.

1. Feed the black cable from the solar panel through the strain relief on the bottom of the Modem

Enclosure.

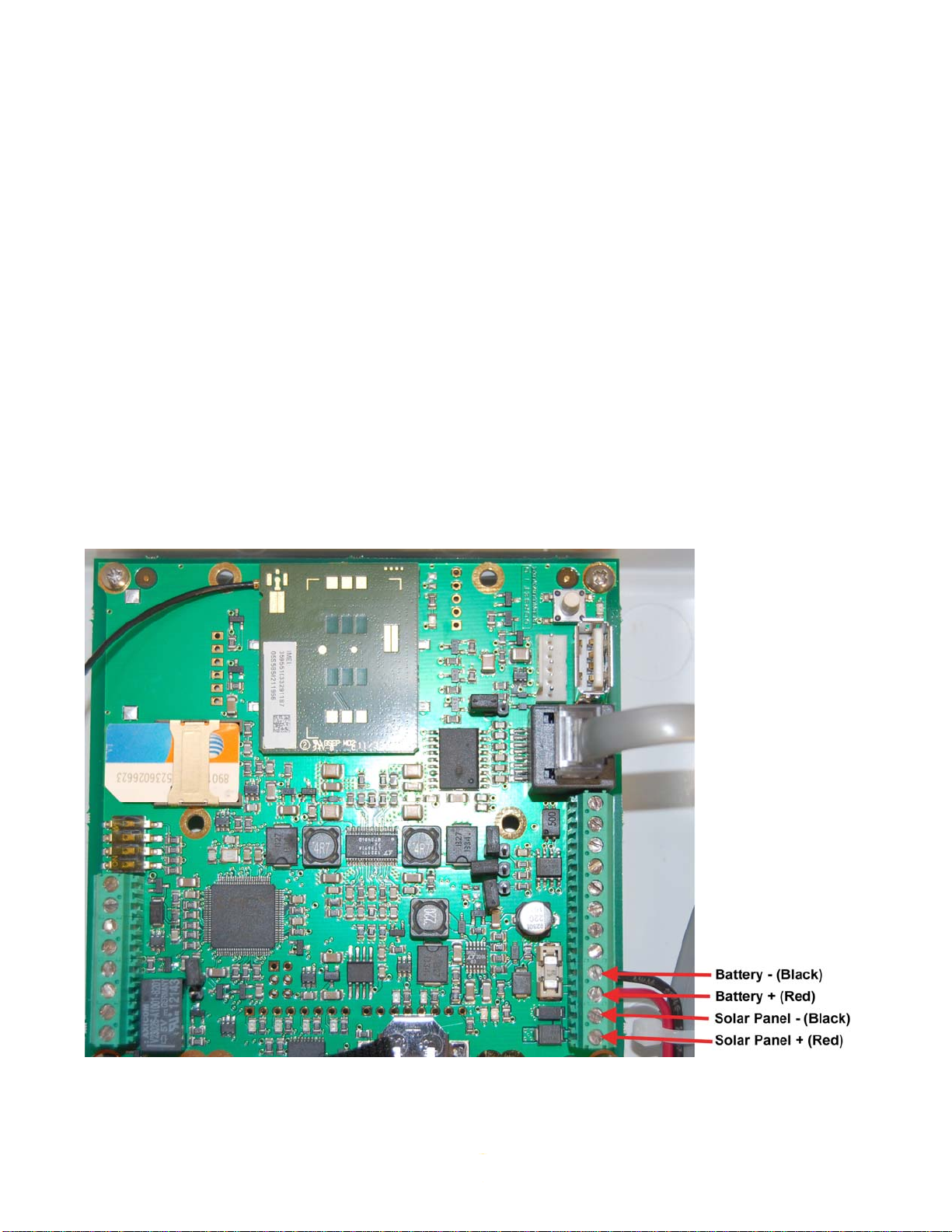

2. Attach the black and red solar panel wires to the green circuit board as diagrammed below. The

black wire attaches to the second slot from the bottom. The red wire attaches to the first slot from the

bottom. The slot is opened by loosing up the screw with a small screwdriver. Before tightening on the

screws insert the tinned leads into the holes. Next, tighten the screws completely. Repeat for the

second wire. Give the wires a slight tug to ensure they are attached securely.

Note: Attaching the solar panel wires can be a little challenging. If you are having difficulty, try using a

needle-nose plier to help push the wires into the slots.

• 3. Connect the red and black leads that are attached to the Battery+ and Battery- terminals

to the red and black terminals on the lead-acid battery (marked “-” or “NEG” and/or colored

black), and the red wire must be connected to the positive (marked “+” or “POS” and/or col-

ored red). (Caution: Reversing the wires can damage the modem). Slide the battery to the

back of the enclosure as shown in photo below. This allows the door to close properly

4. Your cellular carrier may require the modem’s IMEI/MEID number. This number should be

written on the box in which the modem was shipped. If not, it will be listed on the modems

white sticker.

5. If you have a GPRS modem and subscribe to a Spectrum Technologies data plan (US mar-

ket only), the SIM card may already be installed. Insert your SIM card according to the image

below with the metallic circle towards the bottom of the holder. Note: Placing the SIM card

incorrectly will not allow for data to transmit properly.

SIM

Card

Holder

Deploying the weather station

Attach the WatchDog Weather Station to the pole

(See the instructions in the WatchDog Weather

Station manual provided with your station). Remove

the far-right gland (cap and strain relief) from the

bottom of the station. Remove the top nut and

washer from the RJ12 (telephone), now feed the end

of the gray cable with the RJ12 connector (it is

hanging from the modem box) through the opening in

the bottom of the station and re-attach the spacer and

nut. This cable has its own gland. Loosen the cap so

it can rotate freely around the wire, and screw the

strain relief into the bottom of the station. Plug the

RJ12 connector into the weather station’s AUX jack,

and tighten the cap onto the strain relief.

AUX Port Gland re-attached to

station

You may need to rotate the modem enclosure so it points toward

your nearest cell tower. The antenna may have difficulty

connecting to the tower if the signal must pass through the

battery, modem, and circuit board.

The antenna can be carefully removed from the inside of the door

and mounted at the top of a pole to improve the connection to the

cell tower. Do not attach the antenna directly to a metal pole.

Instead, attach a length of PVC pipe to the top of the metal pole,

and attach the antenna to the PVC.

Gray Cable

Strain Relief

Cap

3600 Thayer Court

Aurora, IL 60504

(800) 248-8873 or (815) 436-4440

FAX: (815) 436-4460

E-Mail: info@specmeters.com

www.specmeters.com

The modem within this enclosure was manufactured by

Telit Communications S.p.A

Via Stazione di Prosecco, 5/B

I - 34010 Sgonico (Trieste), Italy

Model Number: GC864-QUAD V2

Description: Wireless Modem

The Manufacturer lists the following certifications:

CE Mark, R&TTE

EMC: FCC Part 15 and 24, GCF and IC

Network: PTCRB

This product is warranted to be free from defects in material or workmanship for one year from the date of pur-

chase. During the warranty period Spectrum will, at its option, either repair or replace products that prove to be

defective. This warranty does not cover damage due to improper installation or use, lightning, negligence, acci-

dent, or unauthorized modifications, or to incidental or consequential damages beyond the Spectrum prod-

uct. Before returning a failed unit, you must obtain a Returned Materials Authorization (RMA) from Spec-

trum. Spectrum is not responsible for any package that is returned without a valid RMA number or for the loss of

the package by any shipping company.

War r anty

Updated 4/10/2013

Ce manuel convient aux modèles suivants

Manuels Routeur sans fil populaires d'autres marques

Milesight

Milesight UG67 Manuel utilisateur

Airlogic

Airlogic AirSync Class 1 Manuel du propriétaire

Samsung

Samsung WCH730B Manuel utilisateur

TELEFONICA

TELEFONICA USB Adapter Manuel utilisateur

NETGEAR

NETGEAR PowerLINE WiFi 1000 Series Manuel utilisateur

Askey

Askey RAC2V1K Manuel utilisateur

Alloy

Alloy WLF2454AP-S Manuel utilisateur

TP-Link

TP-Link TL-WR542G Manuel utilisateur

NETGEAR

NETGEAR WNR2000v4 Manuel utilisateur

Hama

Hama 53120 Manuel utilisateur

Intellinet

Intellinet 524582 Manuel utilisateur

Asus

Asus RT-N10P Manuel utilisateur

D-Link

D-Link DIR-506L Manuel utilisateur

Sapido

Sapido GR297n Manuel utilisateur

Asus

Asus DSL-N55U Manuel utilisateur

AMTC

AMTC WR7502 Manuel utilisateur

Compaq

Compaq CP-2W - iPAQ Connection Point Manuel utilisateur

SMC Networks

SMC Networks WBR14-N2 FICHE Manuel utilisateur
