Speco WDR705H Manuel utilisateur

INSTRUCTION

MANUAL

SPECO 960H WDR Series

4QFDP5FDIOPMPHJFTJTDPOTUBOUMZEFWFMPQJOHQSPEVDUJNQSPWFNFOUT

8FSFTFSWFUIFSJHIUUPNPEJGZQSPEVDUEFTJHOBOETQFDJGJDBUJPOTXJUIPVUOPUJDFBOEXJUIPVUJODVSSJOHBOZPCMJHBUJPO 3FW

WDR705H

(Miniature Camera)

- 1 -



Contents...................................................... 1



Precautions................................................. 2, 3



Safety Instructions ...................................... 4



Package Contents....................................... 5



Camera Installation..................................... 5



Camera Dimension ..................................... 5



.............................................. 6



Features...................................................... 7



OSD Menu Details ...................................... 8-30



Trouble Shooting......................................... 31

Precautions

- 2 -

Precautions

Do not install the camera in

extreme temperature conditions.

Do not touch the front lens of the

camera.

Never keep the camera pointed

directly at strong light.

Do not expose the camera to

radioactivity.

Do not install the camera under

unstable lighting conditions.

Do not drop the camera or subject

it to physical shocks.

Only use the camera under conditions

where temperatures are between

-10°C and +50°C. Be especially careful to

provide ventilation when operating under

high temperatures.

This is one of the most important parts of

the camera. Be careful not to leave

fingerprints on the lens cover.

It can cause malfunctions to occur. If exposed to radioactivity the CCD

will fail.

Severe lighting change or flicker can

cause the camera to work improperly.

Housing damage can compromise

weatherproof ratings.

NOTE

* If the camera is exposed to spotlight or object reflecting strong light,

smear or blooming may occur.

* please check that the power satisfies the normal specification before

connecting the camera.

- 3 -

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK

DO NOT REMOVE COVER(OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

ISO14001

The lightning flash with an arrowhead symbol, within an equilateral

triangle is intended to alert the user to the presence of uninsulated

dangerous voltage within the product's enclosure that may be of

sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert

the user to the presence of important operating and maintenance

(servicing) instructions in the literature accompanying the appliance.

INFORMATION - This equipment has been tested and found to comply with

limits for a Class A digital device, pursuant to part 15 of the FCC Rules & CE Rules.

These limits are designed to provide reasonable protection against harmful

interference when the equipment is operated in a commercial environment.

This equipment generates, uses, and can radiate radio frequency energy and, if

not installed and used in accordance with the instruction manual, may cause

harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful

interference in which case the user will be required to correct the interference at

their own expense.

WARNING - Changes or modifications not expressly approved by the

manufacturer could void the user’s authority to operate the equipment.

CAUTION : To prevent electric shock and risk of fire hazards:

ōDo NOT use power sources other than those specified.

In USA and Canada, Use Class 2 Power Supply Only

- 4 -

Safety Instructions

1SFDBVUJPOTGPSVTF

1MFBTFIBOEMFUIJTDBNFSBDBSFGVMMZ

Ł

ŁThere are no user serviceable parts inside

ŁDo not disassemble this camera other than to make initial adjustments

ŁUse a UL approved regulated 24 volt AC or 12 volt DC power supply



Please insure that your installation area can support the weight of the camera

ŁDo not use a strong or abrasive detergent when cleaning the camera

ŁDo not install near cooling or heating device

- 5 -

Package Contents

Please make sure that the following items are included in the Package:

WDR705H





- 2 Tapping Screws M3x10

- 2 Machine Screws M2x3

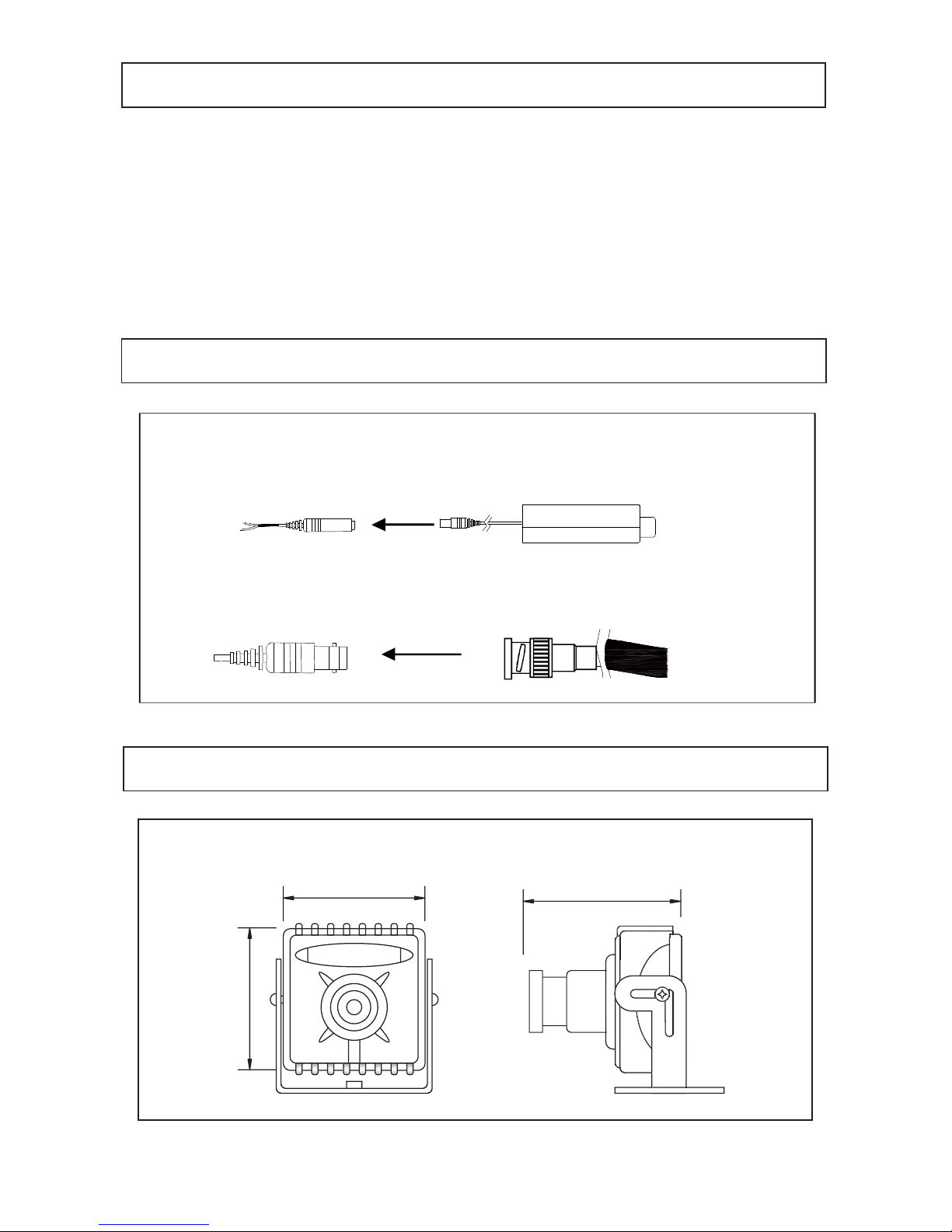

CAMERA INSTALLATION

CONNECT POWER CABLE

1. WHEN USING 12 VOLTS DC (constant voltage 500 mA)

2. CONNECT VIDEO CABLE

- CONNECT BNC CABLE TO THE BNC JACK.

kjGXY}GwGz

wGpGaylk

j GaGORP

CAMERA DIMENSION

WDR705H

1.34” 1.38”

1.34”

- 6 -

SPECIFICATIONS

Speco Technologies

(Miniature Camera)

4mm Fixed Board Lens

:'5+



02'(/ WDR705H

1/3'' SONY HAD CCD 960H (DUAL SCAN)

NTSC





2:1 Interlace

Internal

Available

ON/OFF



52dB (AGC off, Weight on)

0.000006LUX

ATW(1,800K ~ 10,500K) / PUSH / USER1 / USER2 / ANTI CR / MANUAL / PUSH LOCK

AUTO / (1/60SEC~ 1/100,000SEC)

AUTO(x2~ x512)

Level Adjustable (MAX 42dB)

OFF, LOW, MIDLOW, MID, MIDHIGH, HIGH (2D+3D)

OFF / ON (CONTRAST: LOW, MIDLOW, MID, MIDHIGH, HIGH)

ON/OFF (4 Zone)

ON/OFF (15 Zone)



0 ~15 Level Adjustable

COLOR, AUTO_(EXT ON/OFF)

SMART- IR(AUTO, CENTER Adjustable) , ATR WD-EX ON/OFF

0 ~ 255 Level Adjustable (x1 ~ x16) PAN / TILT

ON/OFF

Auto: 64 Points

Coaxial







4mm Fixed Board Lens

-4ºF ~ +140ºF RH 95% Max

1.34"(W) * 1.34"(H) * 1.38"(D)

0.78 lbs

Image Sensor



Total Pixels

Effective Pixels

Scanning System

Synchronization

O.S.D

BLC / HLC

Horizontal Resolution

S/N (Y Signal)

Minimum Illumination

White Balance

Electronic Shutter Speed

Slow Shutter (Sense-Up)

Gain Control

2D.3DNR

WDR

Motion Detection

Privacy

Mirror

Sharpness

Day/Night switch

IR OPT (SMART- IR, ATR WD-EX)

Digital E-ZOOM

DIS



Communication

Language

Power

Power Consumption

Lens

Storage Temperature

Operating Temperature

Dimension

Weight

- 7 -

FEATURES

&&04(KNVGTKPI/GVJQFQH0GYN[#FXCPEGF&04(WPEVKQP

1HZO\GHYHORSHG'ILOWHULQJHQKDQFHV'LJLWDO1RLVHUHGXFWLRQDWORZOLJKWOHYHOV'

)LOWHULQJRIWKH9LGHR6LJQDO2SWLPLVHVWKH6LJQDOWR1RLVHUDWLR

*KIJ4GUQNWVKQP

7KHFRPELQDWLRQRID6RQ\6XSHU+$'&&'LPDJHVHQVRUDQG'15'63SURYLGHVDQ

H[FHOOHQWUHVROXWLRQRI79OLQHV

9KFG&[PCOKE4CPIG

:'5LVDSRZHUIXODQGXOWUDDGYDQFHGWHFKQRORJ\WKDWFDSWXUHVFOHDQHUDQGVXSHULRU

KLJKUHVROXWLRQSLFWXUHVHYHQZKHUHWKHLPDJHVDSSHDUGDUNEHFDXVHWKHUHLVDVWURQJ

EDFNOLJKWSUHVHQW

*KIJ5RQVNKIJV$.%(WPEVKQP

8VHUV&DQ$GMXVWDQG 6HOHFWWKH 6SHFLDO5HTXLUHG$UHDWR2EVHUYHWKH7DUJHW2EMHFW

8QGHUWKH6WURQJ6SRWVRI/LJKW([LVW

+NNWOKPCVKQP

:LWKDQ ,QFUHGLEO\PLQLPXPLOOXPLQDWLRQ RI/X[ WKHVHQVRU FDQFDSWXUHJRRG

LPDJHVHYHQ LQH[WUHPHO\ORZ OLJKWFRQGLWLRQV1RLVHLVVLJQLILFDQWO\UHGXFHGE\WKH

XOWUDDGYDQFHG'15'LJLWDO1RLVH5HGXFWLRQWHFKQRORJ\

#FFKVKQPCN(WPEVKQPU

26'2Q6FUHHQ'LVSOD\PHQXZLWKPXOWL/DQJXDJHVXSSRUW

3ULYDF\0DVNLQJ]RQHV0RWLRQ]RQHV

- 8 -

Menu items can be selected by using the OSD buttons of the camera.

1. Press the Set Up button.

* The Set Up menu will be displayed on the monitor.

2. Move and select the required function using the Up and Down button.

* Move the arrow indicator Up or Down to select the desired feature by pressing

the Up or Down button.

0HQX6HW8S63(&27(&+

SPECO TECH 1/3

LENS

SHUTTER/AGC

PICT ADJUST

WHITE BAL

WDR

2D.3DNR

EXIT

LENS

SHUTTER/AGC

PICT ADJUST

WHITE BAL

WDR

2D.3DNR

EXIT

AUTO

ANTI CR

SAVE ALL

AUTO

ANTI CR

SAVE ALL

3. Change menu settings using the Left or Right button.

* Available values or Status are displayed by pressing the Left or Right buttons.

Press the button until desired value / status is displayed.

4. After Changing the setting move the arrow indicator to EXIT and press the

SET button to EXIT.

- 9 -

This function is used to set the mechanical iris of the lens.

1. Move the arrow indicator to Lens using the Up and Down buttons on the Set Up menu screen.

2. Select the mechanical iris type by pressing the left or right button between Manual and Auto.

NOTE

* Move to the available submenu by moving arrow to desired feature.

/HQV

SPECO TECH 1/3

LENS

SHUTTER/AGC

PICT ADJUST

WHITE BAL

WDR

2D.3DNR

EXIT

AUTO

ANTI CR

SAVE ALL

AUTO IRIS

TYPE

MODE

SPEED

MODE

RETURN

AUTO

075

OUTDOOR



4. Press the RETURN to return to the SETUP menu.
