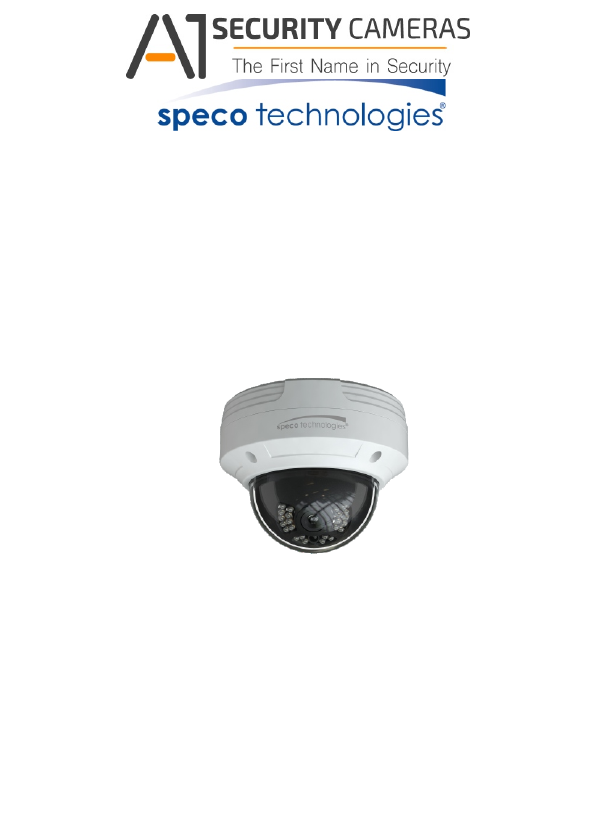

Speco O4VLD5 Manuel utilisateur

Quick Start Guide

O4VLD5

Available from A1 Security Cameras

www.a1securitycameras.com email: [email protected]

1Warning and Caution

■ If the product does not work properly, please contact your

dealer or the nearest service center. Never attempt to disassemble

the camera yourself. Any unauthorized changes or modifications

could void the warranty.

■ Do not allow water or liquid intrusion into the camera.

■ All installation and operation here should conform to local

electrical safety codes. Make sure the device is firmly installed

on the wall or ceiling.

■ Do not use camera beyond specified voltage range.

■ Do not drop the camera or subject it to physical shock.

■ Avoid touching the camera lens.

■ If cleaning is necessary, please use cleaning cloth to wipe it

gently.

■ Do not aim the camera at the sun or extremely bright light

sources.

■ Do not place the camera in extremely hot or cold environments

and dusty and damp locations. Do not expose it to highly

electromagnetic radiation.

■ Do not block any ventilations.

Package

Available from A1 Security Cameras

www.a1securitycameras.com email: [email protected]

Available from A1 Security Cameras

www.a1securitycameras.com email: [email protected]

Camera 4 tapping screws PA 4×35

Quick start guide

CD Drill template Plastic plug ×4

Rubber plug Junction box Screwdriver

vervie

3OOvervieww

1 Mounting Base 3 MIC in connector

2 Ethernet connector 4 DC power connector

Available from A1 Security Cameras

www.a1securitycameras.com email: [email protected]

Security Cap

DC12V

* 1 It is recommended to install the security cap for outdoor installations.

* 2 DC 12V power supply is not required if a PoE switch or injector is used to power

the camera.

►Connecting Network Cable

12 3

① Loosen the nut from the main element.

② Run the network cable (without RJ 45 connector) through both

elements. Then crimp the cable with RJ 45 connector.

③ Connect the cable to the hermetic connector. Then tighten the nut

and the main cover.

Available from A1 Security Cameras

www.a1securitycameras.com email: [email protected]

Low er Dome

4Installation

* Before you start, please make sure that the wall or ceiling is strong enough

to withstand three times the weight of the camera.

① Install junction box onto the wall by using the screws provided.

② Loosen the screws to open the lower dome.

Available from A1 Security Cameras

www.a1securitycameras.com email: [email protected]

Rubber Plug

③ Connect the cables, mount the rubber plug to the gap of the

mounting base and fasten the camera onto the junction box.

④ Three-axis Adjustment-Before adjustment, preview the image of the

camera on a monitor and then adjust the camera according to the figure

below to get an optimum angle.

Pan 0°~355°

Tilt 0°~65°

Rotation 0°~355°

⑤Install the lower dome back to the camera and fix it with the screws.

Web Operation and Login

IP Scanner can search for the device on the local network.

● Operation

①Make sure that the camera and the PC are connected to the same

local network. The camera is set to DHCP by default.

② Install IP Scanner from the CD and run it after installation.

Available from A1 Security Cameras

www.a1securitycameras.com email: [email protected]

③In the device list, you can view the IP address, model number, and

MAC address of each device. Select the applicable device and double

click to open up the web viewer. You can also manually enter the IP

address in the address bar of the web browser.

The login interface is shown above. Default user name is admin and

password is 1234. After logging in, follow directions to install

applicable plugins.

Available from A1 Security Cameras

www.a1securitycameras.com email: [email protected]
